Model Whirlpool AOES2730WW ELECTRIC WALL OVEN – Common Parts & Diagrams

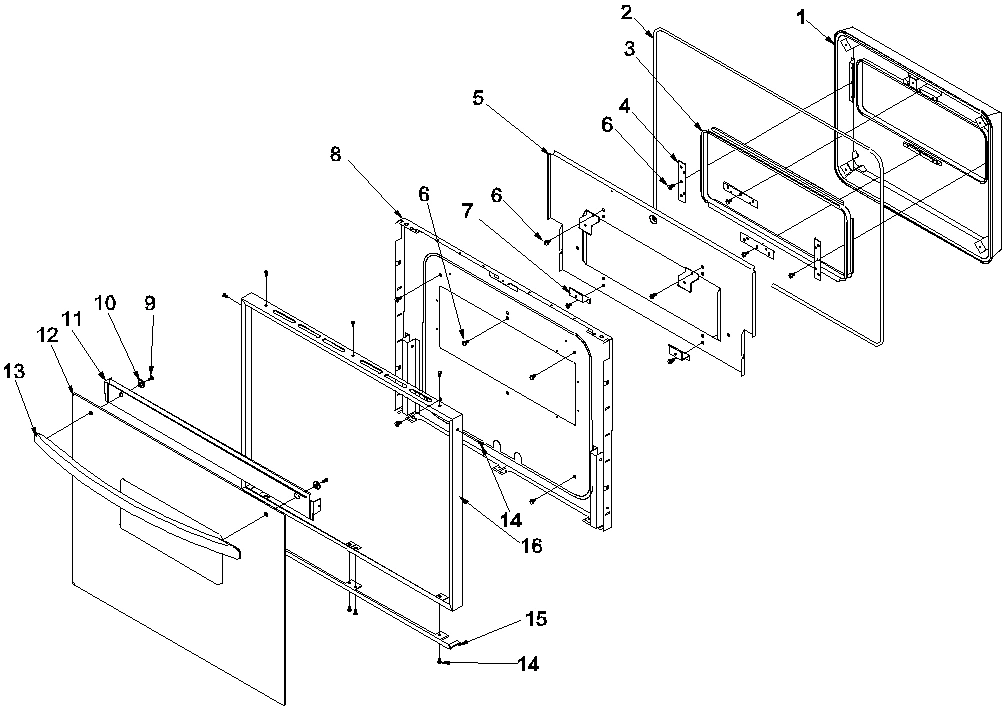

06 - OVEN DOOR

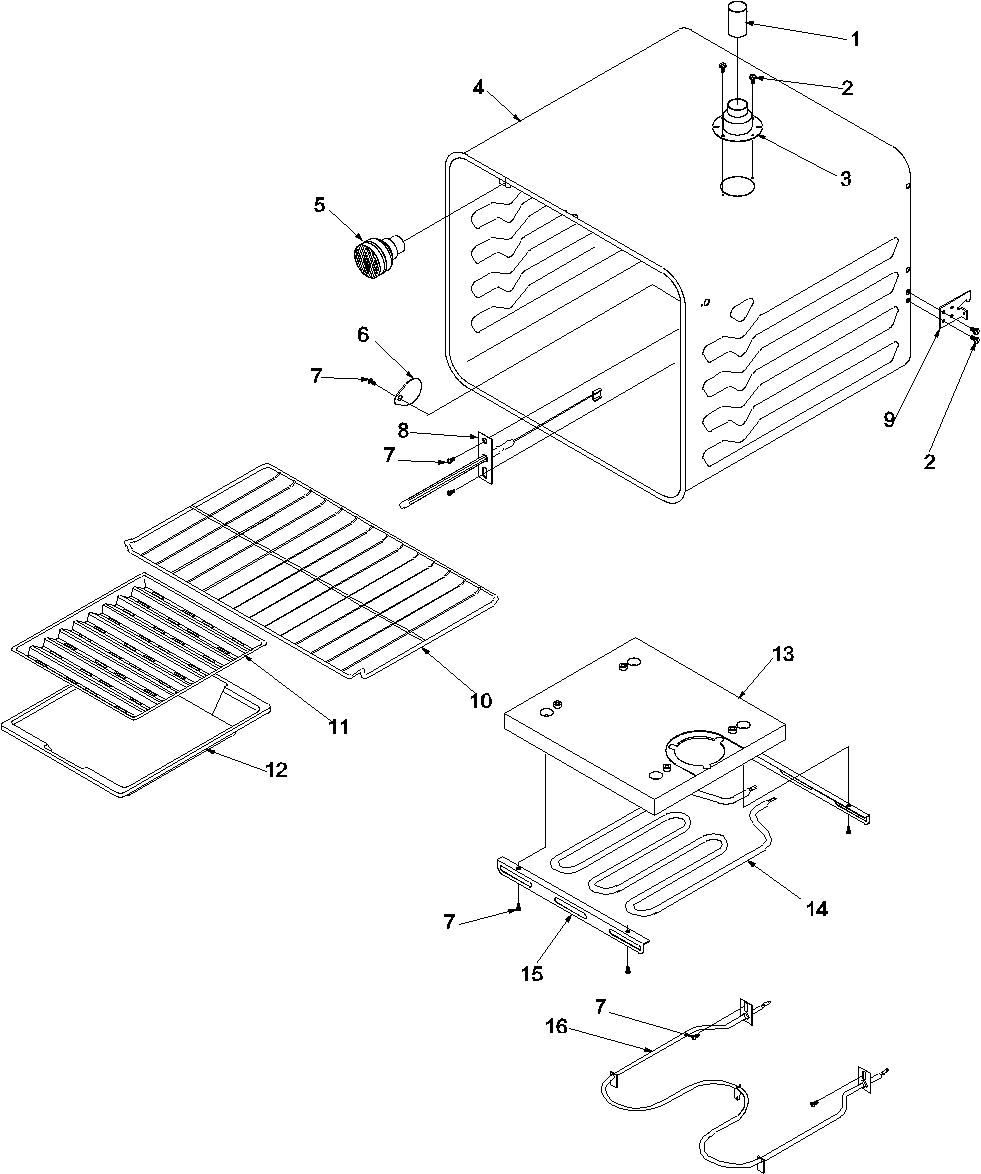

02 - CAVITY

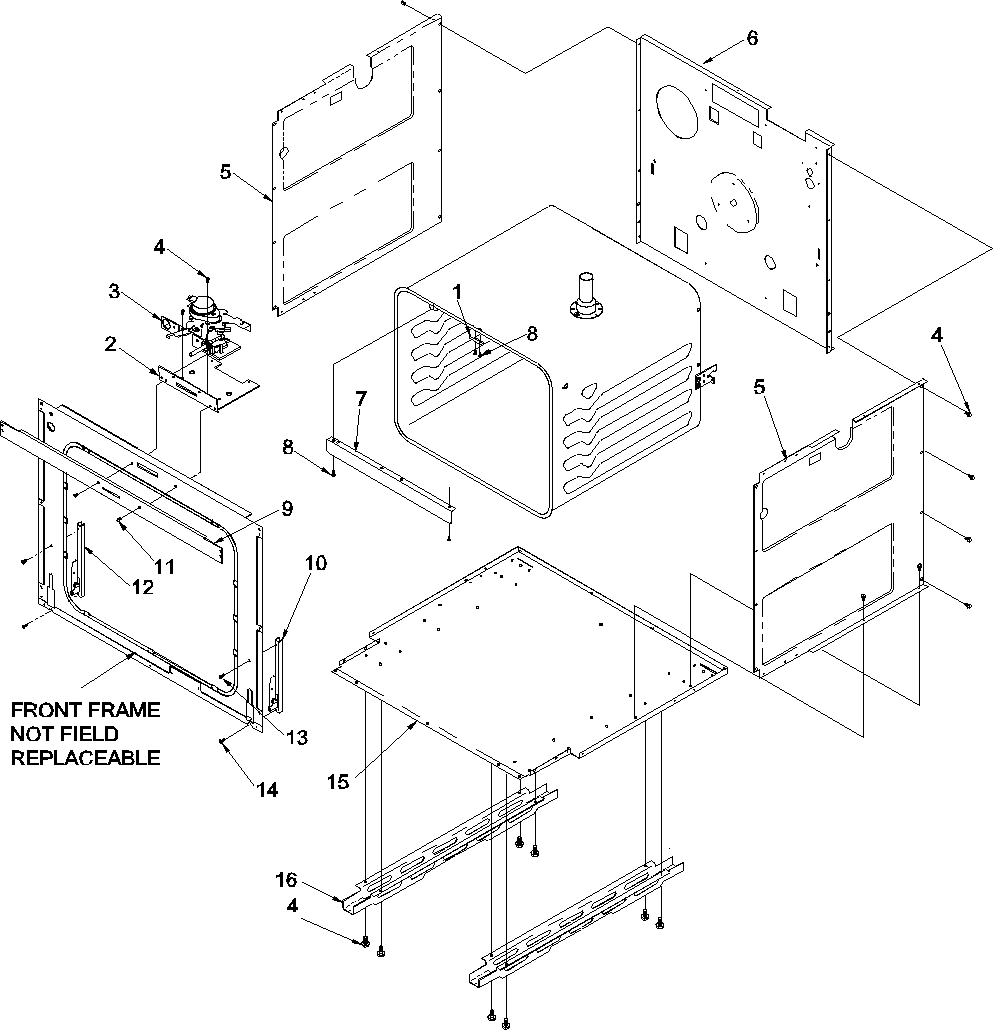

04 - MAIN FRONT

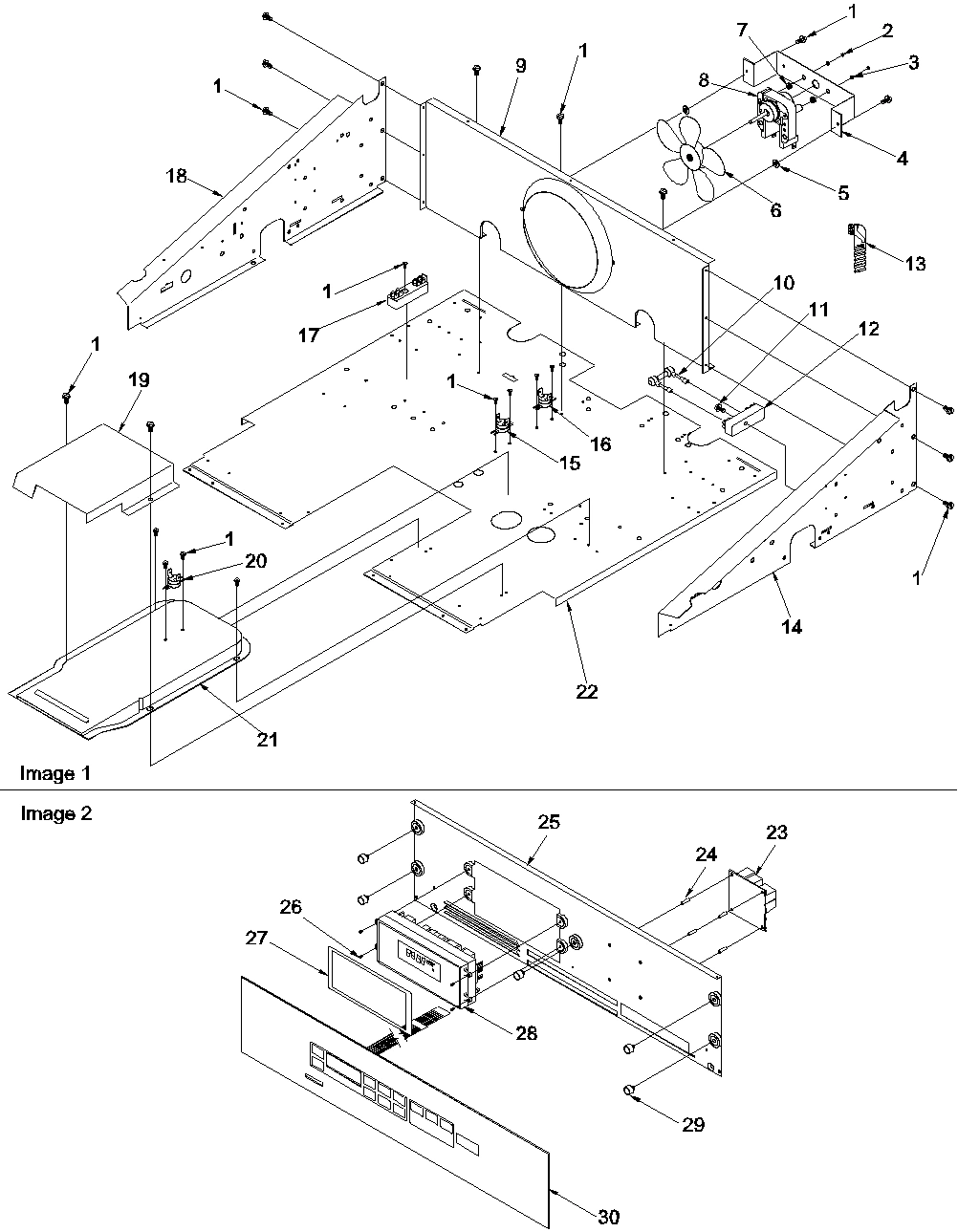

03 - CONTROL COMPARTMENT AND CONTROL PANEL
01 - CABINET
05 - MISCELLAEOUS INFORMATION
Common parts from model Whirlpool AOES2730WW ELECTRIC WALL OVEN
0
SCREW, No.8-18X 1 1/4 FLTHD(BLK) WPL 31750408 Contact Us For Availability
0
MNL, OWNERS (AOES2730) WPL 31853901 Contact Us For Availability
0
MNL, PTS ELECT WALL OVEN WPL RP2520010 Contact Us For Availability
0
MNL, SVC RANGE (SEE NOTE) WPL RS2520003 Contact Us For Availability
0
MNL, TECH SVC WALL OVEN-SEE NO WPL RT2520003 Contact Us For Availability
1
SMOKE ELIMINATOR VENT TUBE WPL Y0042409 Contact Us For Availability
1
COVER, CHIP WPL Y0315022 Contact Us For Availability
2
GASKET, DOOR (76``) WPL 31715903 Contact Us For Availability
2
BRACKET, LATCH MOUNTING WPL 31848301 Contact Us For Availability
2
SIDE, UPPER CABINET WPL 0052855 Contact Us For Availability
3
WINDOW ASSY WPL 0041491 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
3
ASSY, AUTO LATCH & SWITCH WPL 31797301 Contact Us For Availability
3
WASHER, FLAT 5/32 X 7/16 O.D. WPL 31750015 Contact Us For Availability
3
PANEL, SIDE (SINGLE) WPL Y0315145 Contact Us For Availability
4
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
4
WELD, OVEN SHELL WPL 314314CG Contact Us For Availability
4
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
4
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
5
BAFFLE, INNER WPL Y0309286 Contact Us For Availability
5
RETAINER, INSULATION-SIDE WPL Y0316868 Contact Us For Availability
5
WASHER, FLAT 1/4 X 5/8 O.D. WPL 31750005 Contact Us For Availability
5
CABINET BACK, UPPER WPL Y0059744 Contact Us For Availability
6
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
6
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
6
BLADE, FAN WPL Y0314548 Contact Us For Availability
6
SCREW, No.6-32 X .375 FH (BLK) WPL 31750319 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
7
SHIELD, REFLECTOR (CG) WPL 40850CG Contact Us For Availability
7
GROMMET-FAN WPL Y0305243 Contact Us For Availability
7
TRIM, CORNER-LT (WHT) WPL 307888W Contact Us For Availability
8
LINER, DOOR (CG) WPL 31796701CG Contact Us For Availability
8
FAN MOTOR WPL Y0042226 Contact Us For Availability
8
TRIM, SIDE LEFT WPL 308487W Contact Us For Availability
9
SCREW, No.10-32 X .687 PAN HD WPL 31750524 Contact Us For Availability
9
BRACKET, OVEN MOUNTING-PYRO WPL Y0041017 Contact Us For Availability
9
COVER, CHIP WPL 31797201 Contact Us For Availability
9
BACK, CONTROL COMPARTMENT WPL Y0315557 Contact Us For Availability
9
TRIM, TOP (WHT) WPL 307719W Contact Us For Availability
10
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
10
RACK, OVEN 19 3/16`` X 16 1/2`` WPL 314762J Contact Us For Availability
10
ASSY, OVEN HINGE RT WPL Y0315425 Contact Us For Availability
10
RESISTOR WPL Y0042064 Contact Us For Availability
10
BRKT, TRIM CORNER WPL Y0307205 Contact Us For Availability
11
BRKT, HANDLE MTG WPL 31796501 Contact Us For Availability
11
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
11
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
11
TRIM, CONTROL PANEL-BOT (WHT) WPL 308160W Contact Us For Availability
12
GLASS, DOOR (WHT)-27`` WALLOVEN WPL 31796402W Contact Us For Availability
12
ASSY, OVEN HINGE LT WPL Y0315426 Contact Us For Availability
12
TERMINAL BLOCK WPL Y0042222 Contact Us For Availability
13
HANDLE, OVEN DOOR (WHT) WPL 31796302W Contact Us For Availability
13
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
13
SCREW, No.10-24X1/2 (PH TRUS HD) WPL 31750509 Contact Us For Availability
13
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
13
TRIM, CONTROL PANEL-TOP (WHT) WPL 308159W Contact Us For Availability
14
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
14
COMPARTMENT, CONTROL RT WPL Y0314834 Contact Us For Availability
14
TRIM, CORNER-RT (WHT) WPL 307887W Contact Us For Availability
15
ANGLE, GLASS SUPPORT (WHT) WPL 305586W Contact Us For Availability
15
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
15
OVEN BOTTOM-LOWER WPL Y0316867 Contact Us For Availability
15
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 307720W Contact Us For Availability
16
FRAME, OVEN DOOR (WHT) WPL 307886W Contact Us For Availability
16
RUNNER, BASE-PYRO W/O WPL Y0041019 Contact Us For Availability
16
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
16
TRIM, SIDE RIGHT WPL 308488W Contact Us For Availability
17
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
18
COMPARTMENT, CONTROL LT WPL Y0314835 Contact Us For Availability
19
COVER FLUE BOX WPL Y040842G Contact Us For Availability
20
LIMIT SWITCH-OPEN 90 WPL Y0042066 Contact Us For Availability
21
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
22
TOP, UPPER OVEN WPL 31762101 Contact Us For Availability
23
BOARD, RELAY ERC WPL Y0316196 Contact Us For Availability
24
SUPPORT, CIRCUIT BOARD WPL 31726801 Contact Us For Availability
25
BRKT, CONT PANEL WPL 31799301B Contact Us For Availability
26
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
27
SEAL, ERC WPL 31846301 Contact Us For Availability
28
ERC-3M WPL 31761201 Contact Us For Availability
29
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
30
ASSY, MEMB SWITCH (WHITE) WPL 31795802W Contact Us For Availability
NI
WASHER, LOCK 13/16 X 3/8 O.D. WPL 31750006 Contact Us For Availability
NI
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
NI
BULB, LIGHT WPL Y0042175 Contact Us For Availability
NI
SUB 41966, INSULATION WPL Y0041113 Contact Us For Availability
NI
SUB 41966, INSULATION WPL Y0041976 Contact Us For Availability
NI
HARNESS, MAIN WPL 31795501 Contact Us For Availability
× ![]()
