Model Whirlpool AOES2430WW ELECTRIC WALL OVEN – Common Parts & Diagrams

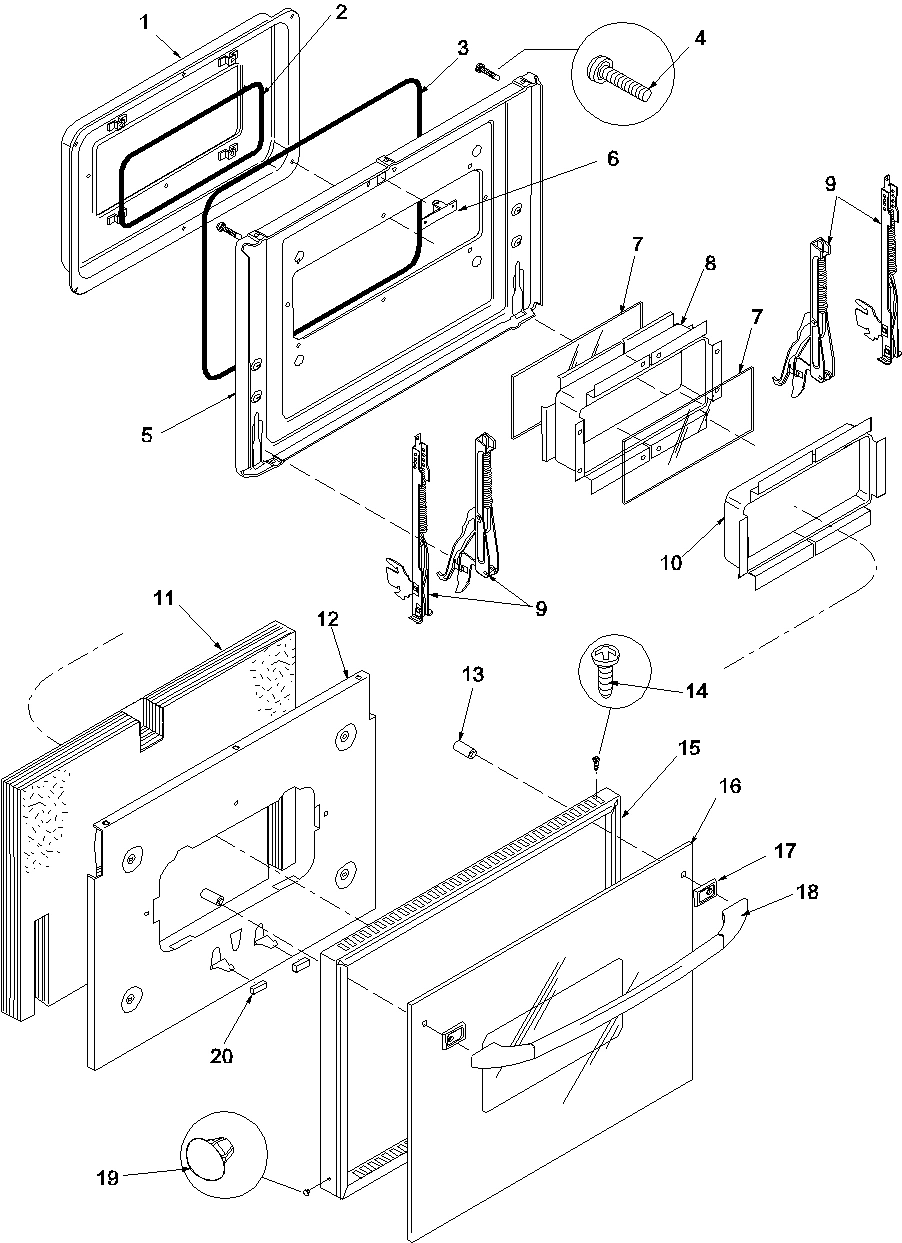

02 - Door Assy

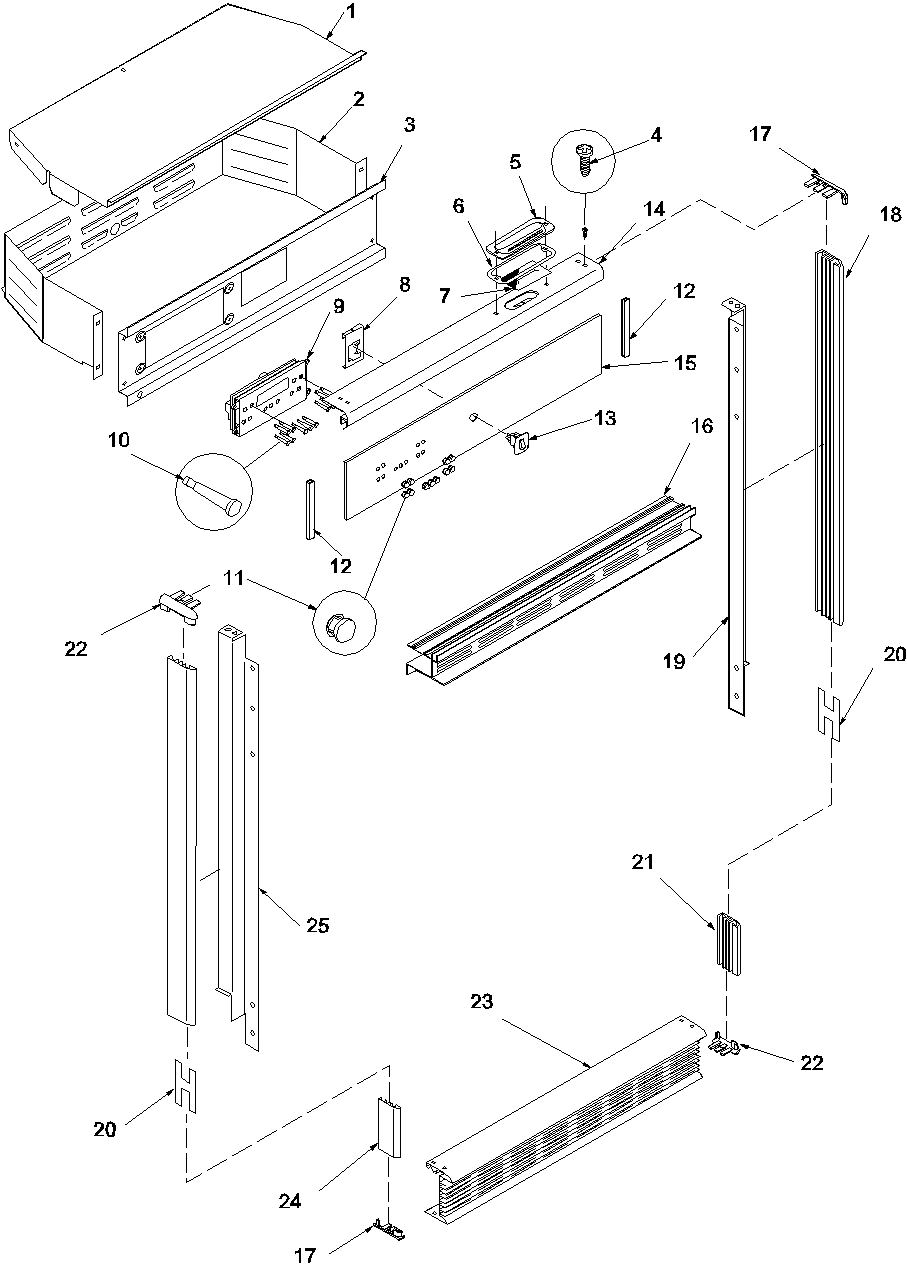

01 - Control Panel

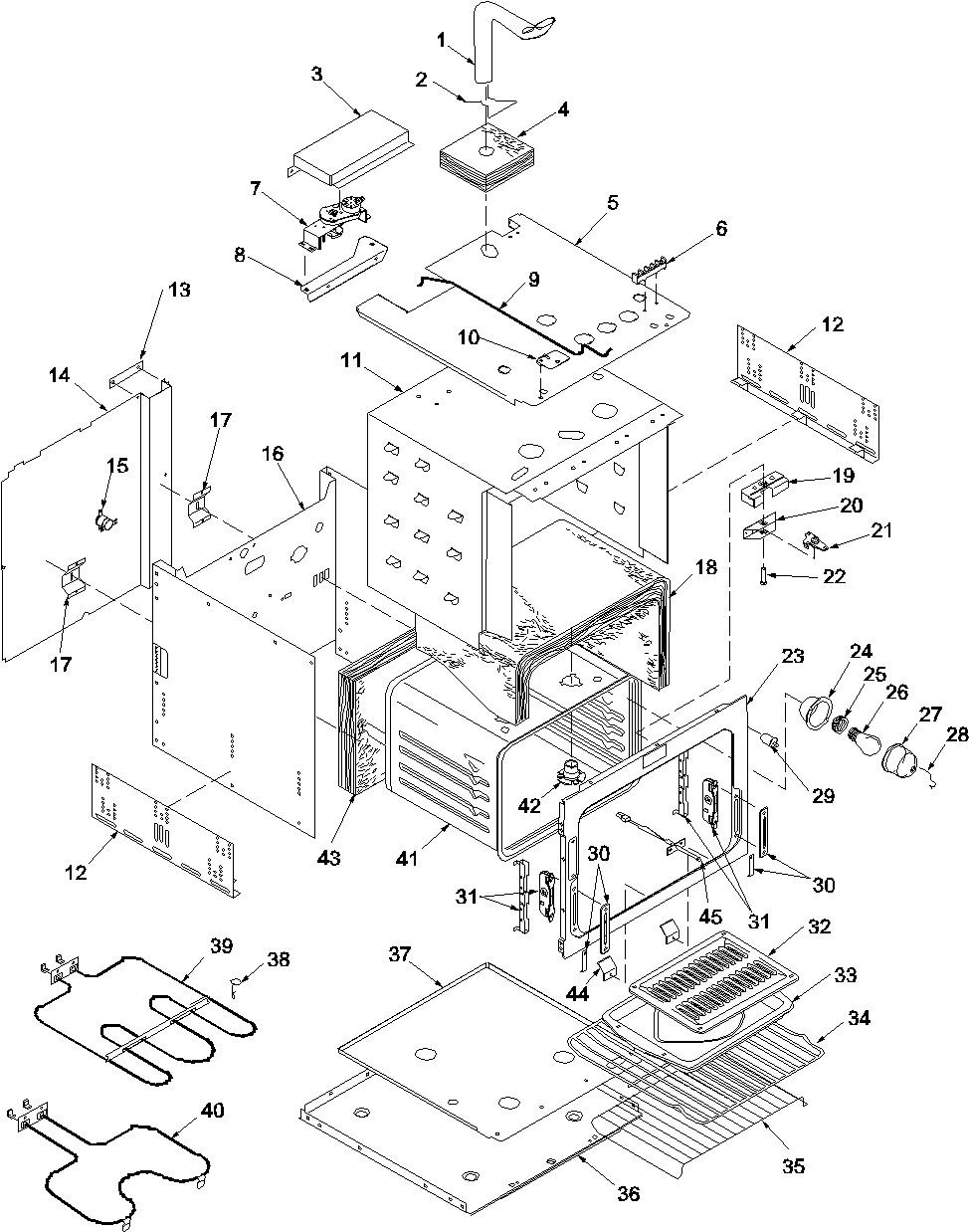

03 - Oven Body
Common parts from model Whirlpool AOES2430WW ELECTRIC WALL OVEN
1
LINER, OVEN DOOR WPL R0762056 Contact Us For Availability
1
COVER, CONTROL HOUSING WPL R0762024 Contact Us For Availability
1
DUCT, OVEN VENT WPL R0762064 Contact Us For Availability
2
SEAL, WINDOW WPL R0757006 Contact Us For Availability
2
HOUSING, CONTROL WPL R0762016 Contact Us For Availability
2
CLIP, INSULATION RETAINER WPL R0751509 Contact Us For Availability
3
SEAL, DOOR WPL R0757004 Contact Us For Availability
3
PLATE, INSTRUMENT WPL R0762068 Contact Us For Availability
3
COVER, MOTOR WPL R0753009 Contact Us For Availability
4
SCREW, HANDLE WPL R0762023 Contact Us For Availability
4
SCREW,No.6-32,3/8``FLAT,PHIL WPL R0762075 Contact Us For Availability
4
INSUL, OVEN VENT WPL R0762090 Contact Us For Availability
5
LINER, DOOR BAFFLE WPL R0762060 Contact Us For Availability
5
KIT, VENT DEFLECTOR (WHITE) WPL R0762028 Contact Us For Availability
5
WRAPPER, OUTER TOP WPL R0753016 Contact Us For Availability
6
STRIKE ASSY WPL R0760003 Contact Us For Availability
6
SEAL, VENT COVER WPL R9900460 Contact Us For Availability
7
GLASS,OV DR, HEAT BARRIER WPL R0758003 Contact Us For Availability
7
TAPE, VENT COVER WPL R0762037 Contact Us For Availability
7
MOTOR, LATCH/LOCK WPL R0762078 Contact Us For Availability
8
SPACER, GLASS WPL R0762069 Contact Us For Availability
8
BRACKET, LIGHT SWITCH WPL R0762067 Contact Us For Availability
8
BRACKET, LATCH WPL R0762087 Contact Us For Availability
9
ASSY, HINGE (AO24SE2/SEW) WPL R0753004 Contact Us For Availability
9
CLOCK/TIMER, ELECTRONIC WPL R0762043 Contact Us For Availability
9
ROD WPL R0756007 Contact Us For Availability
10
COLLAR, GLASS MTG WPL R0762070 Contact Us For Availability
10
BUTTON, SHAFT PUSH (CLOCK) WPL R0762038 Contact Us For Availability
10
COVER, CAPILLARY WPL R0762081 Contact Us For Availability
11
INSULATION, OVEN DOOR WPL R0762019 Contact Us For Availability
11
KNOB, CLOCK WPL R0762045 Contact Us For Availability
11
SHIELD, WOOL WPL R0755002 Contact Us For Availability
12
PANEL AIR WASH WPL R0760002 Contact Us For Availability
12
BASE PAN ASSY WPL ARI1962A10 Contact Us For Availability
12
SUPPORT, ADJUSTABLE WPL R0762012 Contact Us For Availability
13
SPACER, HANDLE WPL R0757003 Contact Us For Availability
13
SWITCH, LIGHT/LAMP (WHITE) WPL R0762040 Contact Us For Availability
13
BRKT, OVEN BOTTOM WPL R0762103 Contact Us For Availability
14
TRIM, TOP (WHITE) WPL R0762049 Contact Us For Availability
14
SHIELD, WIRE WPL R0762083 Contact Us For Availability
15
TRIM, OVEN DOOR (WHITE) WPL R0762046 Contact Us For Availability
15
GLASS, CONT. PANEL WPL R0762041 Contact Us For Availability
15
LIMIT, OVEN HIGH WPL R0762102 Contact Us For Availability
16
GLASS, OVEN DOOR (WHITE) WPL R0762062 Contact Us For Availability
16
TRIM, VENT (WHITE) WPL R0762010 Contact Us For Availability
16
WRAPPER WPL R0762011 Contact Us For Availability
17
SPACER, HANDLE WPL R0762100 Contact Us For Availability
17
CAP, TRIM WHITE WPL R0762055 Contact Us For Availability
17
SPRING,OVEN DOOR WPL R0751516 Contact Us For Availability
18
HANDLE OVEN DOOR WPL R0762058 Contact Us For Availability
18
TRIM, BODYSIDE WPL R0762072 Contact Us For Availability
19
BUTTON, SPACER WPL R0757007 Contact Us For Availability
19
TRIM, RH SIDE INNER WPL R0762050 Contact Us For Availability
19
HOUSING, LATCH WPL R0760014 Contact Us For Availability
20
SPACER, CORK & RUBBER WPL R0762080 Contact Us For Availability
20
SPACER, TRIM ADPT (WHITE) WPL R0181165 Contact Us For Availability
20
HOUSING, DOOR LOCK WPL R0762035 Contact Us For Availability
21
TRIM, RH BODYSIDE LWR WPL R0762052 Contact Us For Availability
21
LATCH WPL R0756008 Contact Us For Availability
22
TRIM WPL R0762054 Contact Us For Availability
22
PIN-HNG 5308012004 WPL R0751508 Contact Us For Availability
23
TRIM, BASE WPL R0762047 Contact Us For Availability
23
FRONT, OVEN WPL R0762063 Contact Us For Availability
24
TRIM, LH BODYSIDE LWR WPL R0762053 Contact Us For Availability
24
HOUSING-OVEN LIGHT WPL R0762104 Contact Us For Availability
25
TRIM, LH SIDE INNER WPL R0762051 Contact Us For Availability
25
SOCKET, OVEN LIGHT WPL R0762031 Contact Us For Availability
27
LENS, GLASS OVEN LIGHT WPL R0758008 Contact Us For Availability
28
RETAINER-LENS WPL R0751505 Contact Us For Availability
29
SWITCH, OVEN DR WPL R0762066 Contact Us For Availability
30
RETAINER- DOOR WPL R0751506 Contact Us For Availability
31
HINGE ASSY WPL R0760013 Contact Us For Availability
32
INSERT, PAN BROILER WPL R0762094 Contact Us For Availability
34
RACK, OVEN (REGULAR) WPL R0760019 Contact Us For Availability
35
SHELF, OVEN-OFFSET WPL R0762084 Contact Us For Availability
36
WRAPPER, BASE WPL R0762071 Contact Us For Availability
37
SHIELD, OVEN BOTTOM WPL R0762017 Contact Us For Availability
38
CLIP, BROIL ELEMENT WPL R0751519 Contact Us For Availability
39
ELEMENT, BROIL WPL R0762098 Contact Us For Availability
40
ELEMENT-BAKE WPL R0760012 Contact Us For Availability
41
ASSY, OVEN LINER WPL R0762065 Contact Us For Availability
42
ASSY, ADAPTER WPL R0762088 Contact Us For Availability
43
INSULATION, OVEN, BACK WPL R0762030 Contact Us For Availability
44
SPACER, OVEN WPL R0757008 Contact Us For Availability
45
PROBE, OVEN TEMP WPL R0762076 Contact Us For Availability
NI
TAPE, SEAL WPL R0762092 Contact Us For Availability
NI
SCREW, No.8-18X 1/2`` WPL R0762093 Contact Us For Availability
NI
SCREW WPL R9900430 Contact Us For Availability
NI
SCREW WPL R9900433 Contact Us For Availability
NI
SCREW WPL R9900436 Contact Us For Availability
NI
BUMPER WPL R0757001 Contact Us For Availability
NI
SCREW, No.6-20X2`` WPL R0760023 Contact Us For Availability
NI
SCREW, No.8X1/2`` WPL R0762077 Contact Us For Availability
NI
SCREW, No.6-20X 5/16`` WPL R0762097 Contact Us For Availability
NI
SCREW WPL R0762101 Contact Us For Availability
NI
CLIP, WIRE WPL R0762033 Contact Us For Availability
NI
ASSY, BOX & WIRE WPL R0762096 Contact Us For Availability
NI
SCREW WPL R9900434 Contact Us For Availability
× ![]()
