Model Whirlpool AOCS3040SS ELECTRIC WALL OVEN – Common Parts & Diagrams

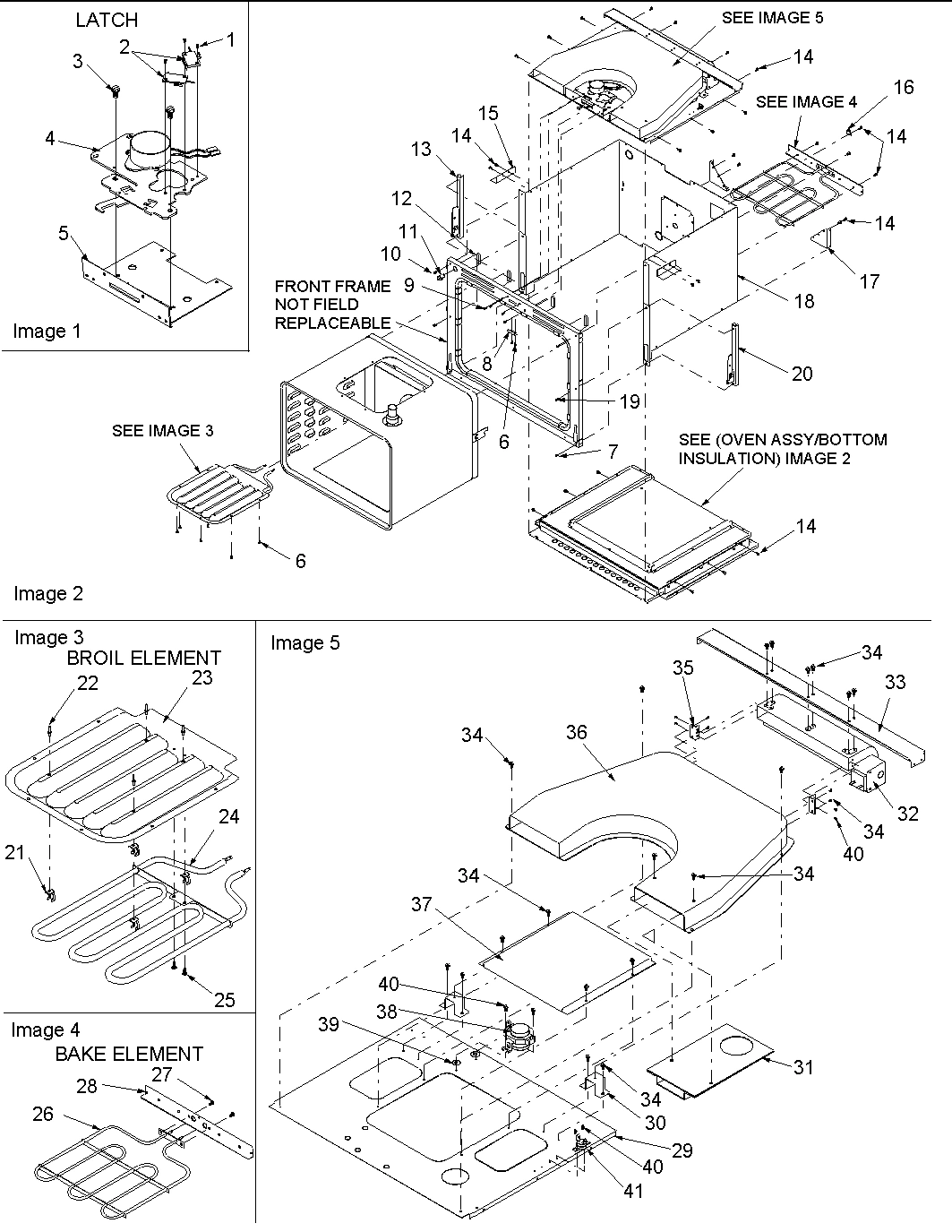

02 - Inner Cavity/Blower/Bake and Broil Assy

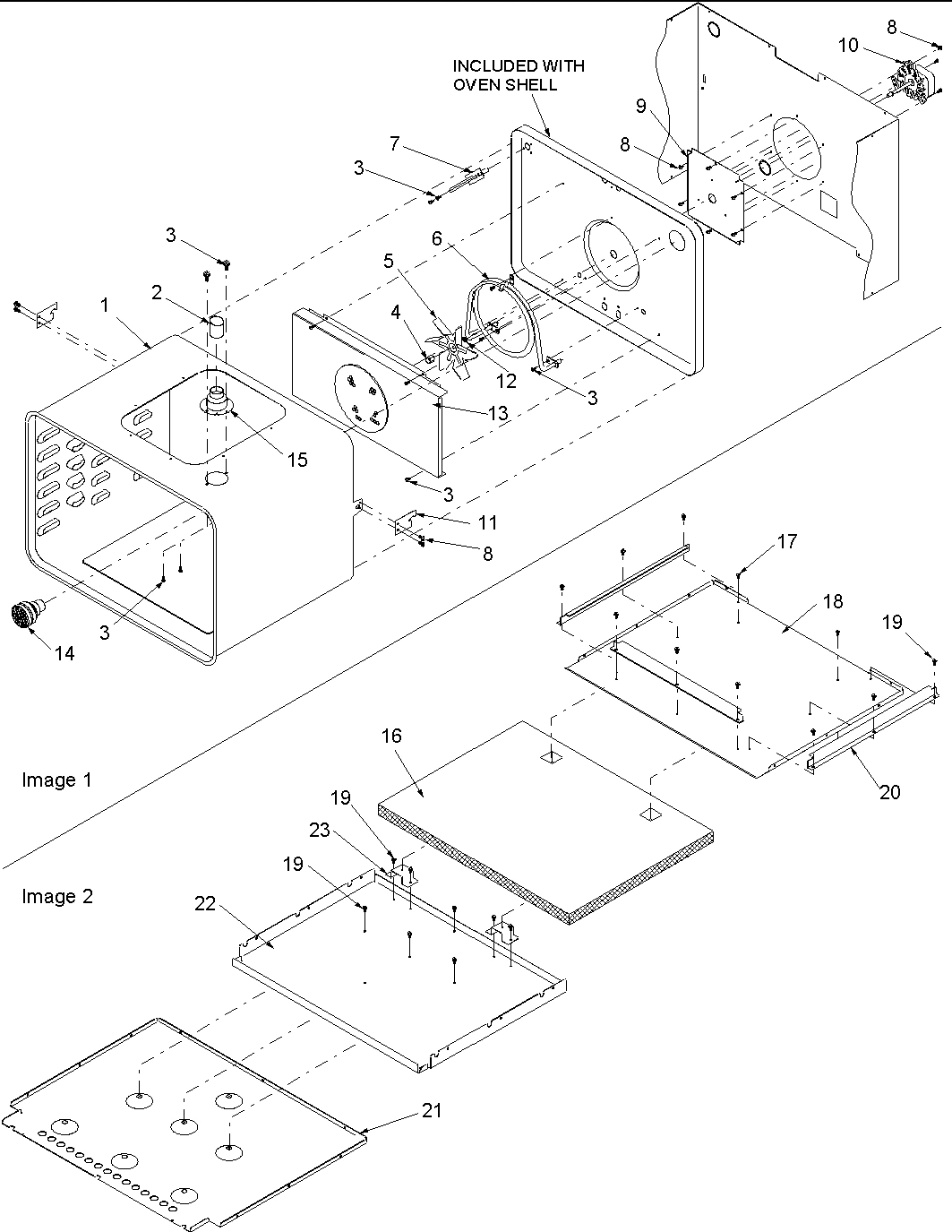

04 - Oven Assy/Bottom Insulation

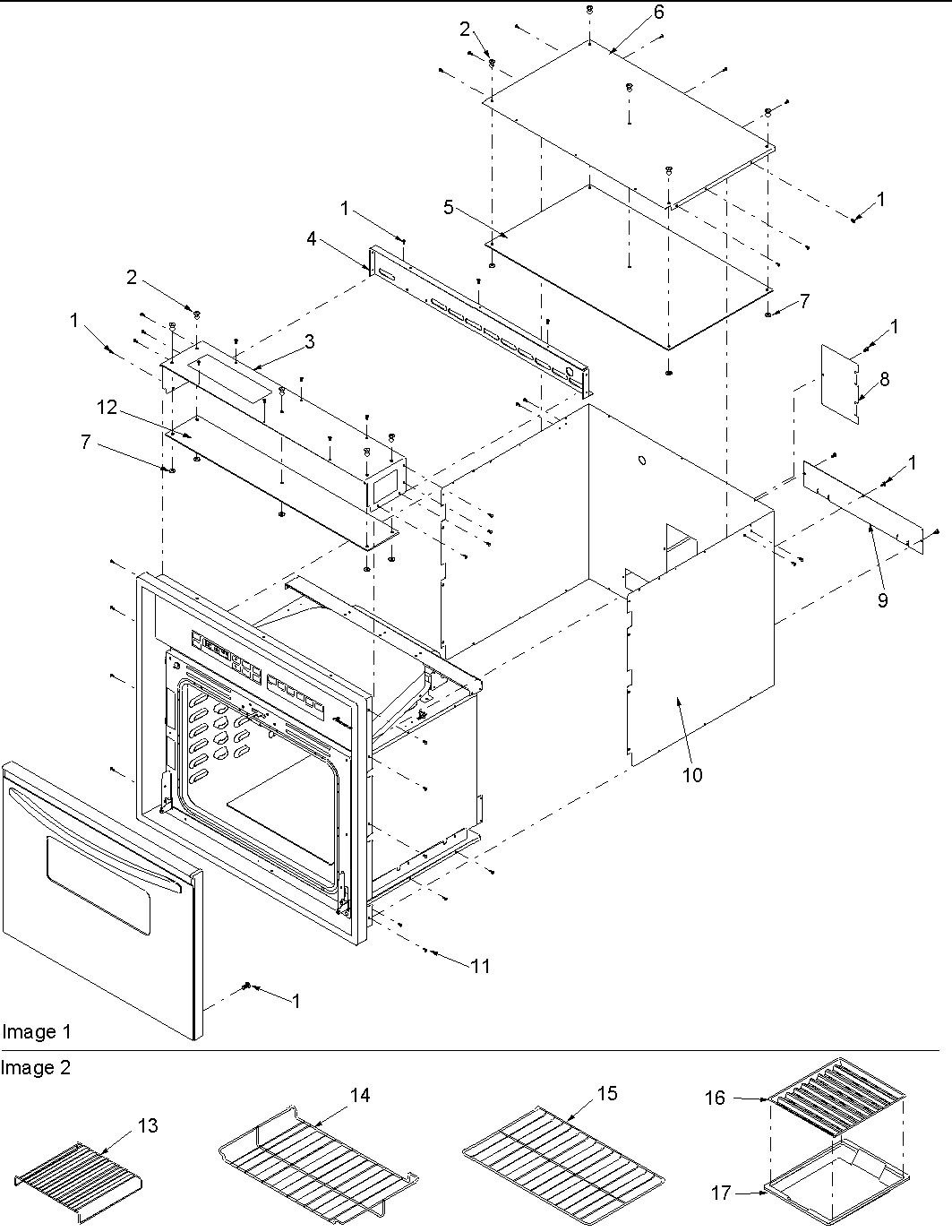

03 - Outer Cabinet/Racks

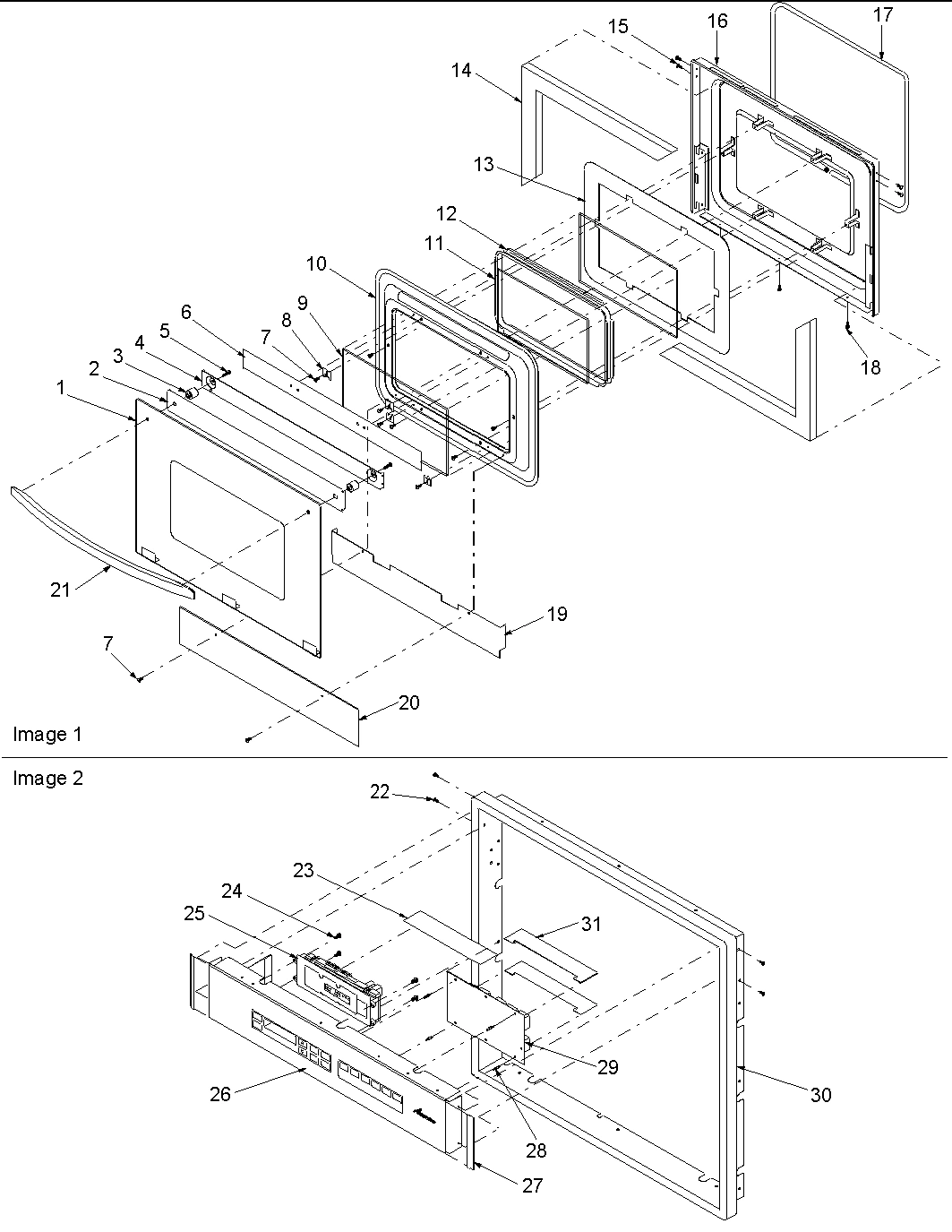

01 - Door/Control Panel
Common parts from model Whirlpool AOCS3040SS ELECTRIC WALL OVEN
1
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
1
OVEN SHELL (CG) WPL 31747201CG Contact Us For Availability
1
ASSY, DOOR FACE-WALLOVEN (SS) WPL 31864601SS Contact Us For Availability
2
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
2
TUBE, VENT WPL 31732901 Contact Us For Availability
2
RIVET, TRIMOUNT PRESS-IN WPL 31744101 Contact Us For Availability
2
SHIELD, GLASS HEAT WPL Y0316481 Contact Us For Availability
3
SHIELD, CONTROL WRAPPER WPL 31753401 Contact Us For Availability
3
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
4
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
4
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
4
SHIELD, CABINET BACK WPL 31784201 Contact Us For Availability
4
BRKT, DOOR GLASS WPL 0315791 Contact Us For Availability
5
BRACKET, LATCH MTG WPL 31768801 Contact Us For Availability
5
BLADE, FAN WPL Y0307036 Contact Us For Availability
5
INSULATION, OUTER TOP WPL 31734401 Contact Us For Availability
5
SCREW, No.10-32X1 3/8 PAN PH HD WPL 31750522 Contact Us For Availability
6
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
6
SHIELD, OUTER CABINET TOP WPL 31753301 Contact Us For Availability
6
BRKT, LONG GLASS MTG WPL 31737502B Contact Us For Availability
7
WASHER, STEEL-.218 ID/.500 OD WPL 31750001 Contact Us For Availability
8
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
PLATE, FAN ACCESS WPL Y0315792 Contact Us For Availability
8
BRACKET, GLASS MTG WPL Y0316860 Contact Us For Availability
9
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
9
BRKT, CONVECTION MTR MTG WPL Y0317001 Contact Us For Availability
9
PLATE, ELEMENT ACCESS WPL Y0316636 Contact Us For Availability
9
GLASS, WINDOW WPL 31727401 Contact Us For Availability
10
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
10
SHIELD, OUTER CABINET WRAPPER WPL Y0317003 Contact Us For Availability
10
SHIELD, DOOR LINER WPL Y0316480 Contact Us For Availability
11
SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability
11
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
11
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
12
GASKET (SILICONE5/16X1/2X1 3/4 WPL Y0317062 Contact Us For Availability
12
WASHER (ZN) WPL 0307038 Contact Us For Availability
12
INSULATION, CONTROL WRAPPER WPL 31734501 Contact Us For Availability
12
FRAME, WINDOW PACK WPL 31753701 Contact Us For Availability
13
ASSY, OVEN HINGE LT WPL Y0315426 Contact Us For Availability
13
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
13
MEAT RACK SLO/COOK WPL Y0042713 Contact Us For Availability
13
RACK, BROILER WPL Y0306531 Contact Us For Availability
13
RETAINER, DOOR INSULATION WPL 31769201 Contact Us For Availability
14
BULB, LIGHT WPL Y0042175 Contact Us For Availability
14
RACK, OVEN-OFFSET WPL 316855J Contact Us For Availability
14
INSULATION,OVEN DOOR WPL 31716601 Contact Us For Availability
15
SHIELD, CORNER WPL 31742101 Contact Us For Availability
15
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
16
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
16
INSULATION, BOTTOM WPL 0315448 Contact Us For Availability
16
LINER, DOOR (CG) WPL 317099CG Contact Us For Availability
17
GUSSET, SUPPORT WPL 0316769 Contact Us For Availability
17
GASKET, OVEN DOOR WPL Y0317098 Contact Us For Availability
18
RETAINER, INSULATION WPL 31747001 Contact Us For Availability
18
PANEL, ELEMENT WPL Y0317007 Contact Us For Availability
19
SHIELD, BOTTOM WPL 31776101 Contact Us For Availability
20
HINGE, DOOR (RH HARD SET) WPL 31789601 Contact Us For Availability
20
SPACER-BAKE ELEMENT WPL Y0316897 Contact Us For Availability
20
INSULATION, DOOR BOTTOM WPL 31751001 Contact Us For Availability
21
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
21
SHIELD, OUTER CABINET BOTTOM WPL Y0315480 Contact Us For Availability
21
HANDLE, OVEN DOOR (SS) WPL 31689504SS Contact Us For Availability
22
RIVET, POP WPL Y0097822 Contact Us For Availability
22
RETAINER, BOTTOM INSULATION WPL 0317006 Contact Us For Availability
23
REFLECTOR, BROIL ELEMENT WPL Y0315482 Contact Us For Availability
23
BRKT, SUPPORT WPL Y0316998 Contact Us For Availability
23
INSULATION, ERC WPL 31732801 Contact Us For Availability
24
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
25
ERC CONV MEMBRANE-4800 CTSL WPL 31746801 Contact Us For Availability
26
ELEMENT, BAKE (240V-2000W) WPL 31747601 Contact Us For Availability
26
ASSY, MYLAR-CONTROL PANEL (SS) WPL 31776501SS Contact Us For Availability
28
SUPPORT, BRKT ELEMENT WPL Y0316898 Contact Us For Availability
28
SUPPORT, CIRCUIT BOARD WPL 31726801 Contact Us For Availability
29
RETAINER, INSULATION (TOP) WPL 31747501 Contact Us For Availability
29
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
30
BRKT, VENT MTG WPL 31783901 Contact Us For Availability
30
ASSY, TRIM FRAME (SS) WPL 31748603SS Contact Us For Availability
31
BAFFLE, VENT WPL 31932801 Contact Us For Availability
31
INSULATOR, ELEC WPL 0317129 Contact Us For Availability
32
ASSY, BLWR MOTOR 115VAC 2750RP WPL Y0315453 Contact Us For Availability
33
BRKT, BLOWER MTG WPL Y0316645 Contact Us For Availability
35
BRKT, BLOWER VENT WPL 0316708 Contact Us For Availability
36
VENT WPL Y0315468 Contact Us For Availability
37
COVER, BROIL ELEMENT REFLECTOR WPL 31784501 Contact Us For Availability
38
LIMIT, CONTROL WPL 31751801 Contact Us For Availability
41
CONTROL, FAN WPL Y0308417 Contact Us For Availability
NI
INSULATION, BACK WPL 31747101 Contact Us For Availability
NI
INSULATION, WRAPPER WPL 31747701 Contact Us For Availability
NI
HARNESS, CONV. WALL OVEN WPL Y0315454 Contact Us For Availability
NI
ASSY, CONV. FAN & BLADE WPL 31769301 Contact Us For Availability
NI
CONDUIT ASS`Y WPL Y0315455 Contact Us For Availability
× ![]()
