Model Whirlpool AO27SE1 ELECTRIC WALL OVEN – Common Parts & Diagrams

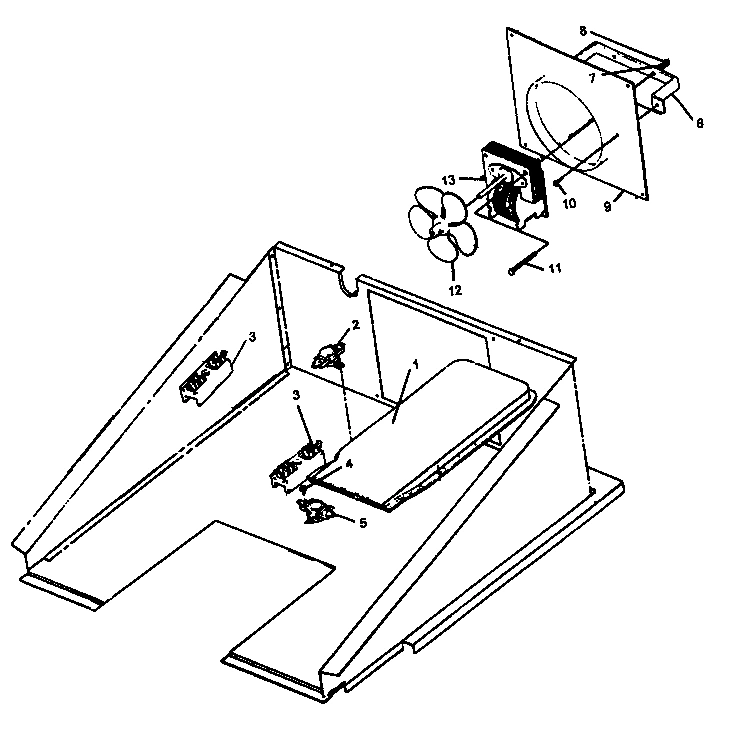

02 - CONTROL COMPARTMENT SECTION

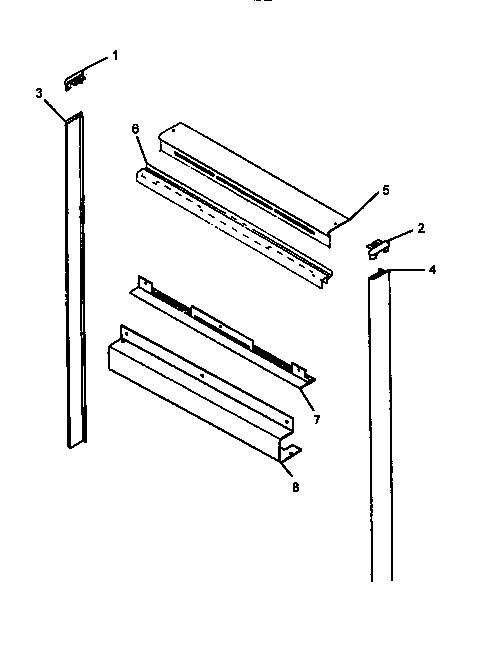

07 - TRIM

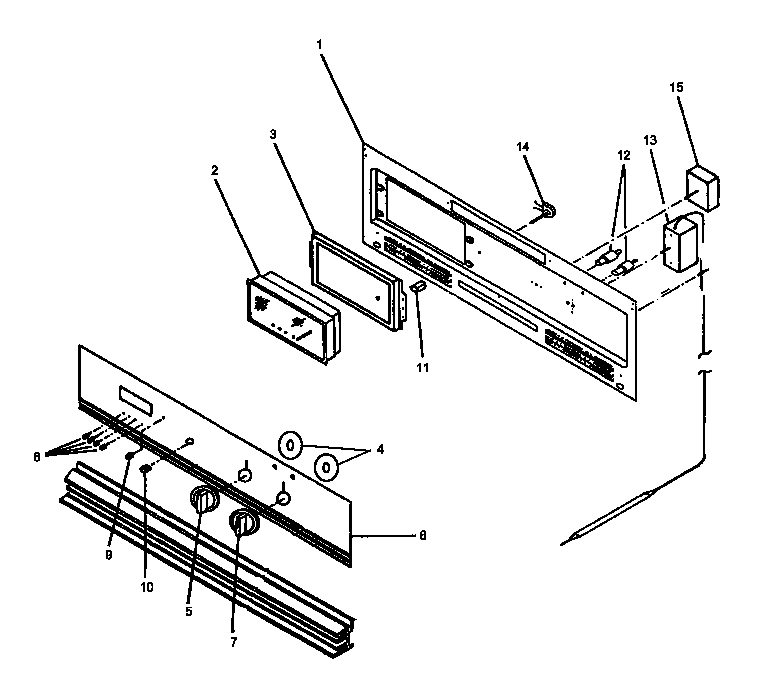

03 - CONTROL PANEL

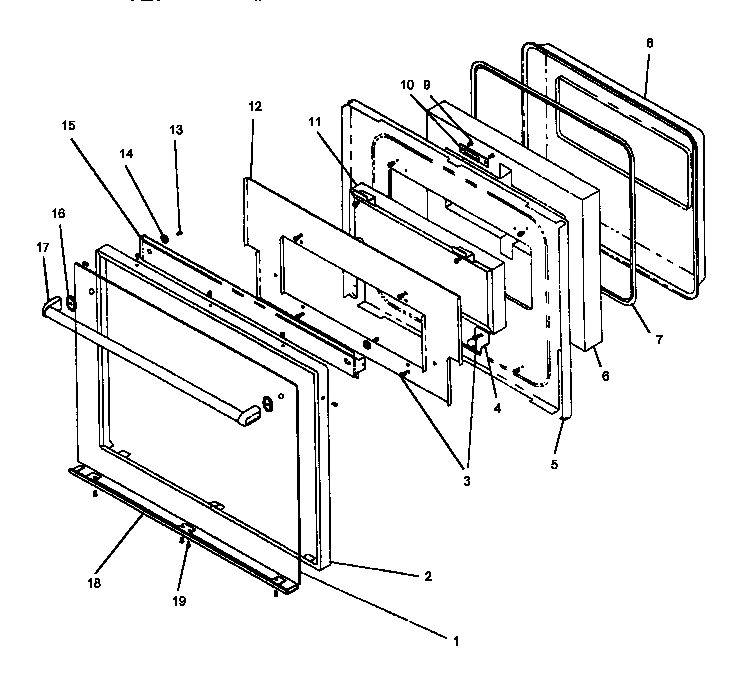

06 - OVEN DOOR

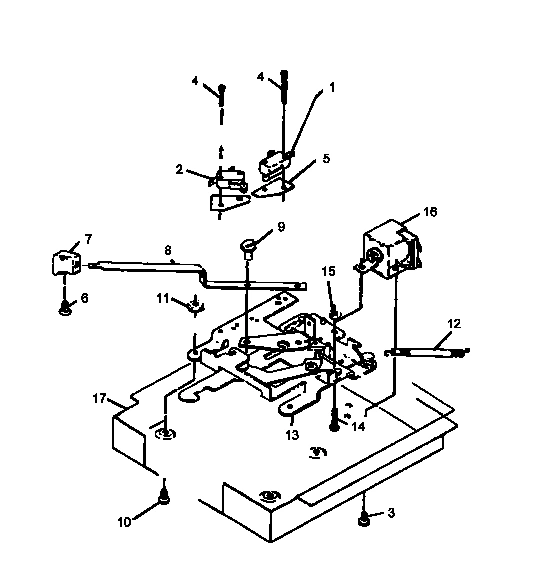

04 - DOOR LATCH ASSY

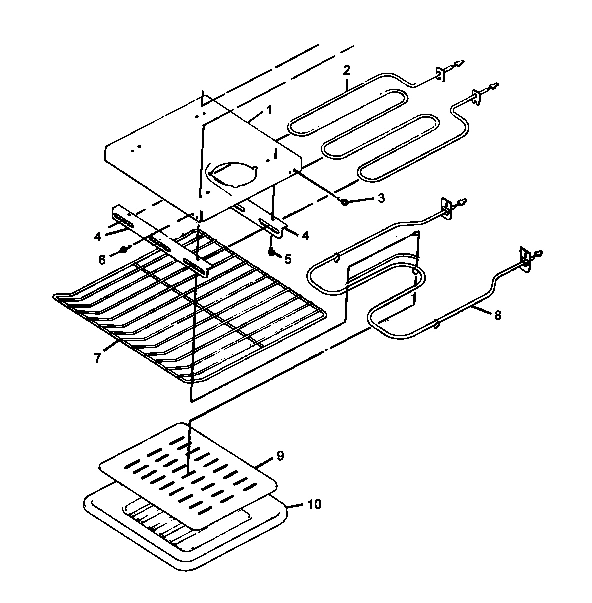

05 - OVEN ACCESSORIES

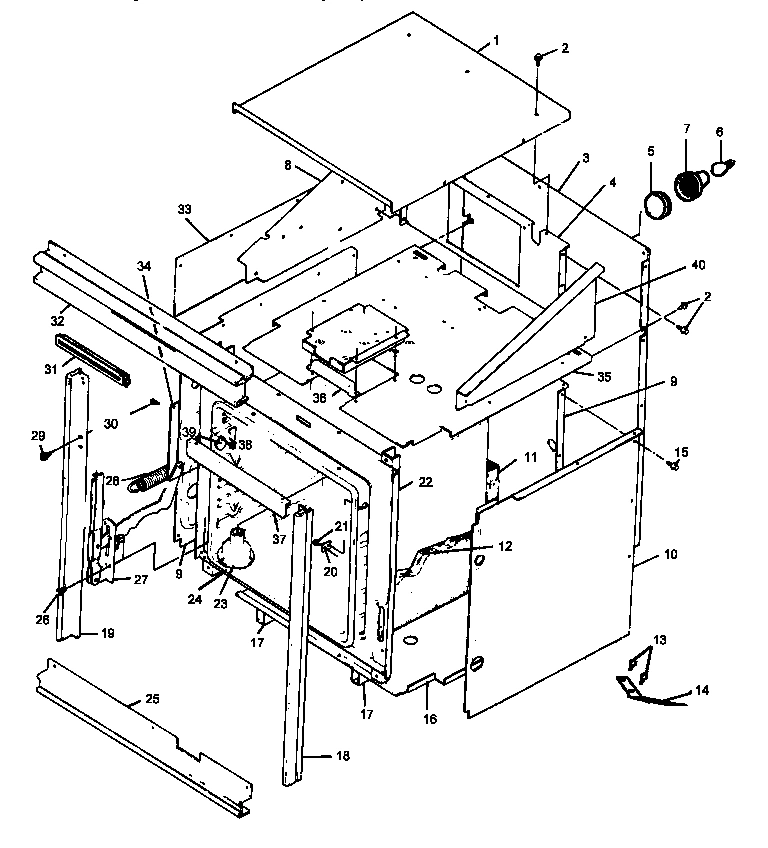

01 - CABINET SECTION
Common parts from model Whirlpool AO27SE1 ELECTRIC WALL OVEN
1
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
1
TRIM, CORNER-LT (BLK) WPL 307888B Contact Us For Availability
1
BRKT, CONT MTG. WPL 309090B Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 307885B Contact Us For Availability
1
SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability
1
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
1
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
2
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
2
TRIM, CORNER-RT (BLK) WPL 307887B Contact Us For Availability
2
CLOCK, ELECTRONIC WPL Y0302106 Contact Us For Availability
2
FRAME, OVEN DOOR (BLK) WPL 307886B Contact Us For Availability
2
MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability
2
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
3
TERMINAL BLOCK WPL Y0042222 Contact Us For Availability
3
BRACKET, CLOCK WPL 0302748 Contact Us For Availability
3
CABINET BACK, UPPER WPL Y0059744 Contact Us For Availability
4
DIAL, SELECTOR WPL 309338B Contact Us For Availability
4
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
4
SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability
4
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
4
CONT. COMP. BACK PYRO W/O WPL Y0040745 Contact Us For Availability
5
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
5
TRIM, TOP (BLK) WPL 307719B Contact Us For Availability
5
LINER, DOOR WPL 308166CG Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
6
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
6
TRIM, CONTROL PANEL-TOP (BLK) WPL 308159B Contact Us For Availability
6
GLASS, CONTROL PANEL (BLK) WPL 307871B Contact Us For Availability
6
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
6
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
6
BULB, LIGHT WPL Y0042175 Contact Us For Availability
7
SEE NOTE LOCK WASHER -- (INCLUDED IN REF. NO. WPL Y00000000 Contact Us For Availability
7
KNOB, CONTROL WPL 307372B Contact Us For Availability
7
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
7
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
7
RACK, OVEN WPL Y0042711 Contact Us For Availability
8
BUTTON, SET W/CUSHION (BLK) WPL 307821B Contact Us For Availability
8
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
8
LATCH ARM WPL 303039B Contact Us For Availability
8
CONTROL COMPARTMENT. L.H. WPL Y0305630 Contact Us For Availability
9
BACK, CONT COMP WPL Y0040905 Contact Us For Availability
9
KNOB, CLOCK (BLACK) WPL 308225B Contact Us For Availability
9
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
9
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
10
SCREW No.8X11/4 PH F H WPL Y0041804 Contact Us For Availability
10
KNOB, CLOCK (BLACK) WPL 314315B Contact Us For Availability
10
LATCH PLATE WPL Y0052039 Contact Us For Availability
10
RETAINER, SIDE INSUL WPL Y0309789 Contact Us For Availability
11
SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability
11
WINDOW ASSY WPL 0041491 Contact Us For Availability
11
SUB 41966, INSULATION WPL Y0041113 Contact Us For Availability
12
BLADE, FAN WPL Y0042754 Contact Us For Availability
12
INDICATOR LIGHT WPL Y0042183 Contact Us For Availability
12
BAFFLE, INNER DOOR WPL 308414B Contact Us For Availability
12
SPRING WPL 0044513 Contact Us For Availability
12
SUB 41966, INSULATION WPL Y0041976 Contact Us For Availability
13
FAN MOTOR WPL Y0042226 Contact Us For Availability
13
THERMOSTAT - SELF CLEAN WPL 0307771 Contact Us For Availability
13
DOOR LATCH ASSY WO WPL Y0041909 Contact Us For Availability
13
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
14
SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability
14
SWITCH, OVEN LIGHT WPL Y0308168 Contact Us For Availability
14
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
14
RETAINER, SPRING WPL Y0060759 Contact Us For Availability
15
SWITCH, SELECTOR WPL 0308356 Contact Us For Availability
15
BRACKET, HANDLE MTG. WPL 0307891 Contact Us For Availability
16
DIAL, THERMOSTAT WPL 309339B Contact Us For Availability
16
SPACER, HANDLE (BLK) WPL 307892B Contact Us For Availability
16
SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability
16
BOTTOM, LWR OVEN WPL Y0305701 Contact Us For Availability
17
HANDLE, OVEN DOOR (BLK) WPL 307884B Contact Us For Availability
17
RUNNER, BASE-PYRO W/O WPL Y0041019 Contact Us For Availability
18
TRIM, SIDE RIGHT WPL 308488B Contact Us For Availability
18
ANGLE, GLASS SUPPORT (BLK) WPL 305587B Contact Us For Availability
19
TRIM, SIDE LEFT WPL 308487B Contact Us For Availability
19
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
20
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
22
FRONT FRAME WPL 40150CG Contact Us For Availability
23
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
24
WELD, OVEN SHELL WPL 314314CG Contact Us For Availability
25
TRIM, BOTTOM (BLK) WPL 307720B Contact Us For Availability
26
SCREW 8-18X.875 B HX HD WPL 0041798 Contact Us For Availability
27
HINGE ASSY WPL Y0052095 Contact Us For Availability
28
SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability
29
No.6 PAN HD MACHINE SCREW WPL Y0041823 Contact Us For Availability
30
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
31
LATCH HANDLE GUIDE PYRO WPL Y0042015 Contact Us For Availability
32
TRIM, CONTROL PANEL-BOT (BLK) WPL 308160B Contact Us For Availability
33
SIDE, UPPER CABINET WPL 0052855 Contact Us For Availability
34
PANEL, SIDE WPL Y0052856 Contact Us For Availability
35
UPPER OVEN TOP WPL Y0052848 Contact Us For Availability
36
LATCH MTG. BRKT PYRO W/O WPL Y0040903 Contact Us For Availability
37
SHIELD, REFLECTOR (CG) WPL 40850CG Contact Us For Availability
39
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
40
CONTROL COMPARTMENT R.H. WPL Y0305629 Contact Us For Availability
NI
FLUE BOX COVER REP 915 WPL Y0040842 Contact Us For Availability
NI
RESISTOR WPL Y0042064 Contact Us For Availability
NI
GROMMET-FAN WPL Y0305243 Contact Us For Availability
NI
BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
INTERNAL LOCK WASHER No.10 WPL Y0041947 Contact Us For Availability
NI
CHIP COVER PYRO WO WPL 0040405 Contact Us For Availability
NI
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
NI
SMOKE ELIMINATOR VENT TUBE WPL Y0042409 Contact Us For Availability
NI
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
× ![]()
