Model Whirlpool AO24SB ELECTRIC WALL OVEN – Common Parts & Diagrams

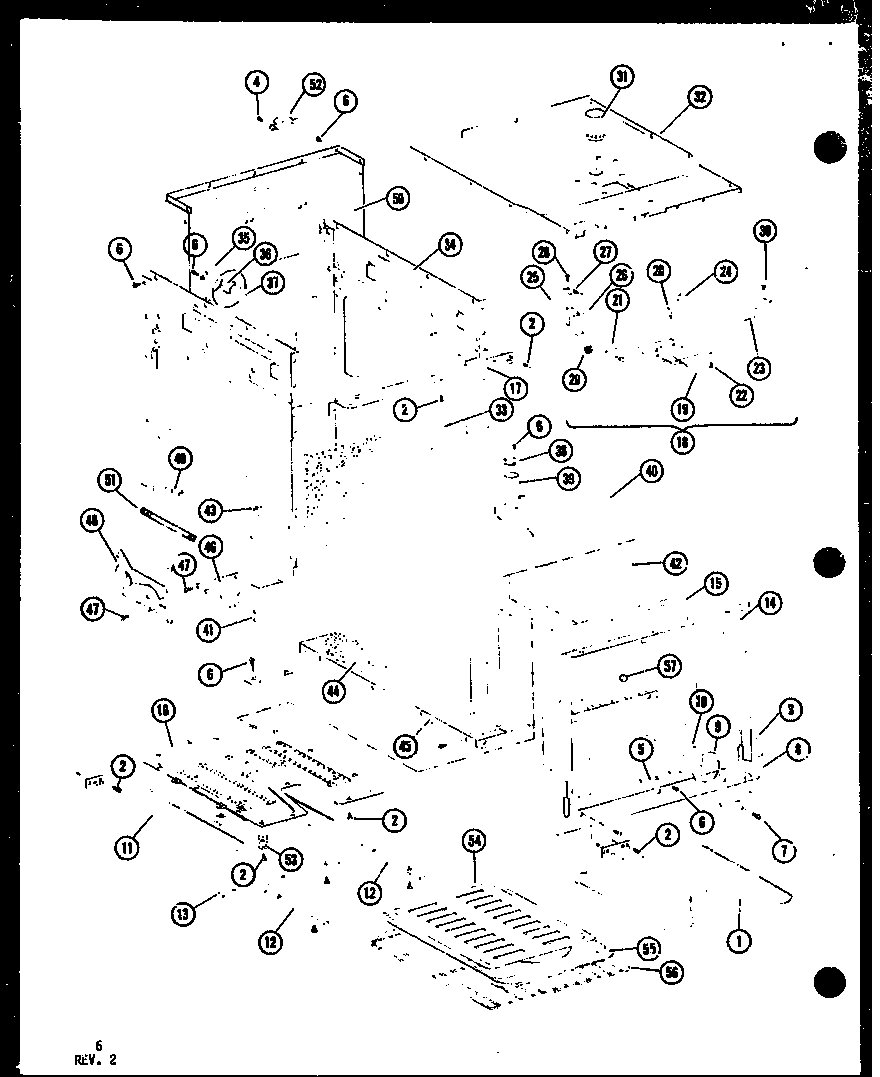

02 - Page 3
01 - Page 2

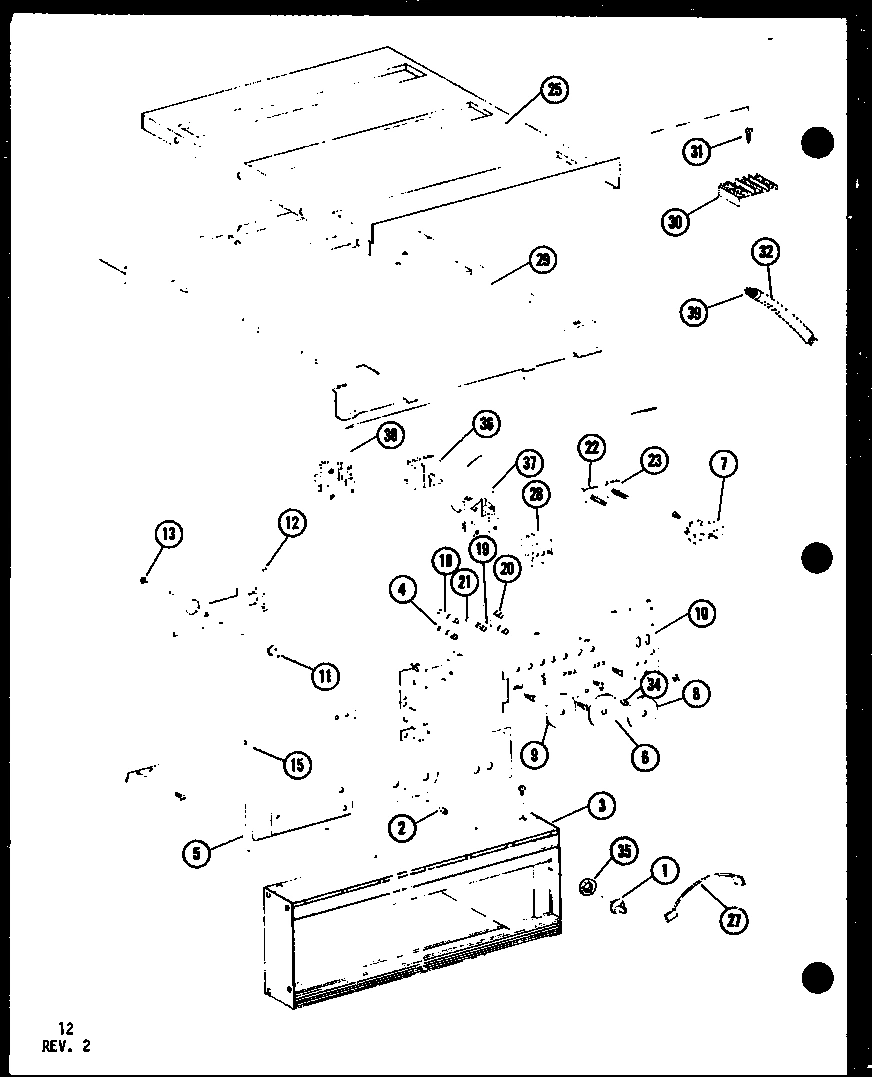

03 - Page 7
Common parts from model Whirlpool AO24SB ELECTRIC WALL OVEN
1
BAKE ELEMENT WPL R0199082 Contact Us For Availability
1
DOOR HANDLE WPL R0199088 Contact Us For Availability
2
SCREW WPL R0157641 Contact Us For Availability
2
SCREW 8 32X3/8 WPL R0157713 Contact Us For Availability
2
GROMMET WPL R0157602 Contact Us For Availability
3
HINGE ARM GUIDE WPL R0157642 Contact Us For Availability
3
NUT K WPL R0157714 Contact Us For Availability
3
PANEL FRAME ASSY WPL R0199080 Contact Us For Availability
4
DOOR FRAME WPL R0199087 Contact Us For Availability
5
SEAL-END COVER WPL R0157644 Contact Us For Availability
5
SCREW, 8A X 3/8`` WPL R0157645 Contact Us For Availability
5
GLASS, CONTROL PANEL WPL R0199089 Contact Us For Availability
6
DOOR GLASS WPL R0199091 Contact Us For Availability
6
DISC SELECTOR WPL R0199095 Contact Us For Availability
7
SCREW WPL R0157646 Contact Us For Availability
7
BUMPER WPL CG982010 Contact Us For Availability
7
TERMINAL BLOCK WPL R0157608 Contact Us For Availability
8
RETAINER-LIGHT LENS WPL R0157647 Contact Us For Availability
8
AIR BAFFLE WPL R0199219 Contact Us For Availability
8
DISC-THERMOSTAT WPL R0157609 Contact Us For Availability
9
GASKET,LIGHT LENS WPL CG981751 Contact Us For Availability
9
SHIELD-WINDOW WPL R0157720 Contact Us For Availability
10
LENS, LIGHT WPL CG981750 Contact Us For Availability
10
RETAINER-INS WPL R0157721 Contact Us For Availability
10
PLATE-CONTROL MTG WPL R0157611 Contact Us For Availability
11
BROIL ELEMENT WPL R0199081 Contact Us For Availability
11
SHIELD-SLIDE LOCK WPL R0157722 Contact Us For Availability
11
KNOB, CLOCK WPL R0157612 Contact Us For Availability
12
RETAINER, SMOKE ELIMINATOR, SH WPL R0157650 Contact Us For Availability
12
SHOULDER RIVET WPL R0157723 Contact Us For Availability
12
CLOCK WPL R0157613 Contact Us For Availability
13
RETAINER WPL R0157651 Contact Us For Availability
13
LOCK SLIDE WPL R0157724 Contact Us For Availability
13
NUT K WPL R0157614 Contact Us For Availability
14
FRONT FRAME, UPPER, DOUBLE OVE WPL R0157652 Contact Us For Availability
14
PAD-INSULATION WPL R0157725 Contact Us For Availability
15
DOOR SEAL WPL R0157653 Contact Us For Availability
15
WINDOW ASSY WPL R0157726 Contact Us For Availability
15
RETAINER WPL R0157616 Contact Us For Availability
16
SCREW WPL R0157643 Contact Us For Availability
16
SMOKE ELIMINATOR WPL R0157654 Contact Us For Availability
17
SUPPORT-CONTROL PNL WPL R0157655 Contact Us For Availability
17
DOOR LINER WPL R0157728 Contact Us For Availability
18
DOOR LATCH ASSY WPL R0199083 Contact Us For Availability
18
SPRING SHIELD LATCH WPL R0157729 Contact Us For Availability
18
LOCK LIGHT WPL R0157618 Contact Us For Availability
19
DOOR LATCH WPL R0199220 Contact Us For Availability
19
SHIELD-LATCH R WPL R0157730 Contact Us For Availability
20
SCREW WPL R0157658 Contact Us For Availability
20
SHIELD-LATCH L WPL R0157731 Contact Us For Availability
20
CLEAN LIGHT WPL R0157619 Contact Us For Availability
21
MTG BRKT-SWITCH WPL R0157659 Contact Us For Availability
21
SCREW WPL R0157732 Contact Us For Availability
21
SERVE LIGHT WPL R0157620 Contact Us For Availability
22
SCREW WPL R0157660 Contact Us For Availability
22
GUIDE-SHIELD WPL R0157733 Contact Us For Availability
23
LATCH LEVER ARM WPL R0157661 Contact Us For Availability
23
SWITCH-OVEN LIGHT WPL R0157621 Contact Us For Availability
24
KNOB-LATCH WPL R0157662 Contact Us For Availability
25
INSUL LATCH SWITCH WPL R0157663 Contact Us For Availability
25
TOP-OUTER JACKET WPL R0157624 Contact Us For Availability
26
SHIELD-SWITCH WPL R0157664 Contact Us For Availability
27
SWITCH WPL R0157665 Contact Us For Availability
27
WIRING HARNESS WPL R0199221 Contact Us For Availability
28
SCREW WPL R0157666 Contact Us For Availability
28
NET-THERMAL RELAY WPL R0157629 Contact Us For Availability
29
NUT 4-40 WPL R0157667 Contact Us For Availability
29
SANDWICH PANEL WPL R0157630 Contact Us For Availability
30
SCREW WPL R0157668 Contact Us For Availability
30
TERMINAL BLOCK WPL R0157631 Contact Us For Availability
31
DILUTER TUBE WPL R0157669 Contact Us For Availability
31
SCREW WPL R0157632 Contact Us For Availability
32
CABINET TOP WPL R0157670 Contact Us For Availability
32
CONDUIT WPL R0157633 Contact Us For Availability
33
INSULATION-BACK WPL R0157671 Contact Us For Availability
34
CAB ASSY-UPPER WPL R0157672 Contact Us For Availability
34
SPACER WPL R0157635 Contact Us For Availability
35
OVEN LIGHT SHIELD WPL R0157673 Contact Us For Availability
35
BEZEL-SWITCH WPL CG981781 Contact Us For Availability
36
SOCKET, OVEN LIGHT WPL R0157674 Contact Us For Availability
36
SWITCH WPL R0199094 Contact Us For Availability
37
THERMOSTAT, UPPER OVEN WPL R0199084 Contact Us For Availability
38
RETAINER-VENT TUBE WPL R0157676 Contact Us For Availability
39
VENT TUBE WPL R0157677 Contact Us For Availability
39
WIRING HARNESS WPL R0199226 Contact Us For Availability
40
INSULATION WPL R0157678 Contact Us For Availability
41
REAR ANCHOR WPL R0157679 Contact Us For Availability
42
OVEN LINER UPPER WPL R0199075 Contact Us For Availability
43
STANDOFF-CAB WPL R0157681 Contact Us For Availability
44
INSULATION-BTM WPL R0157685 Contact Us For Availability
45
MAIN BOTTOM WPL R0157686 Contact Us For Availability
46
CAM PLATE-R WPL R0157687 Contact Us For Availability
46
CAM PLATE-L WPL R0157688 Contact Us For Availability
47
SCREW WPL R0157689 Contact Us For Availability
48
HINGE ASSY WPL R0157690 Contact Us For Availability
49
ANCHOR SPRING WPL R0157692 Contact Us For Availability
50
MAIN BACK WPL R0157694 Contact Us For Availability
51
OVEN DOOR SPRING WPL R0157696 Contact Us For Availability
52
CLAMP-CONDUIT WPL R0157697 Contact Us For Availability
53
COVER-CAPILLARY WPL R0157699 Contact Us For Availability
56
OVEN RACK WPL R0157704 Contact Us For Availability
57
BUTTON WPL R0199086 Contact Us For Availability
× ![]()
