Model Whirlpool AO24DD ELECTRIC WALL OVEN – Common Parts & Diagrams

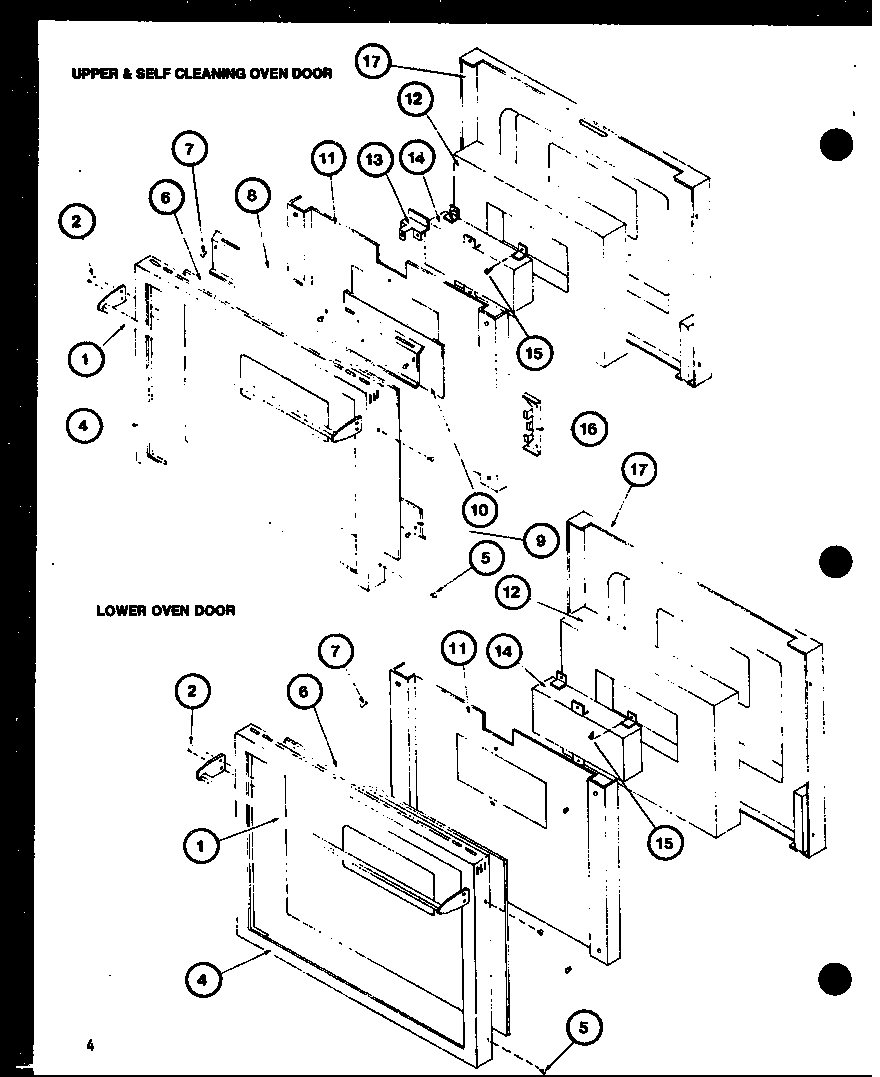

05 - UPPER & SELF CLEANING OVEN DOOR
01 - Page 2

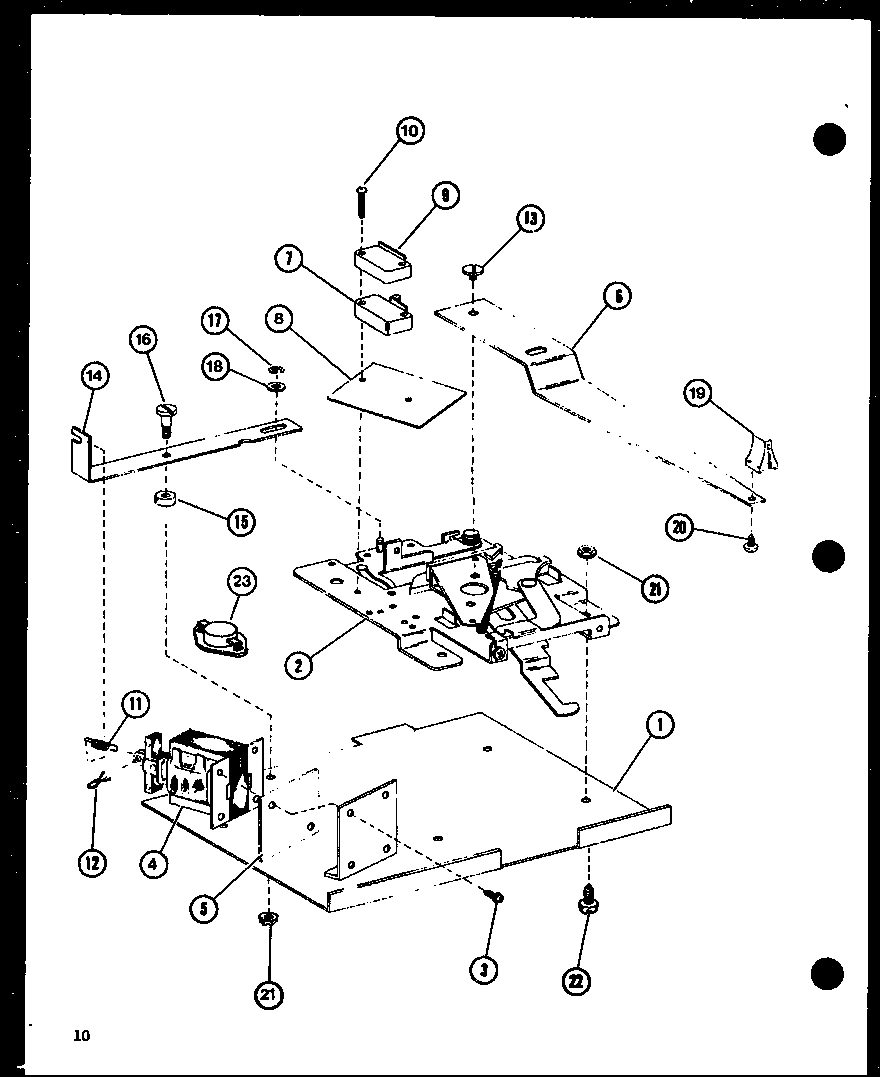

03 - Page 4
02 - Page 3

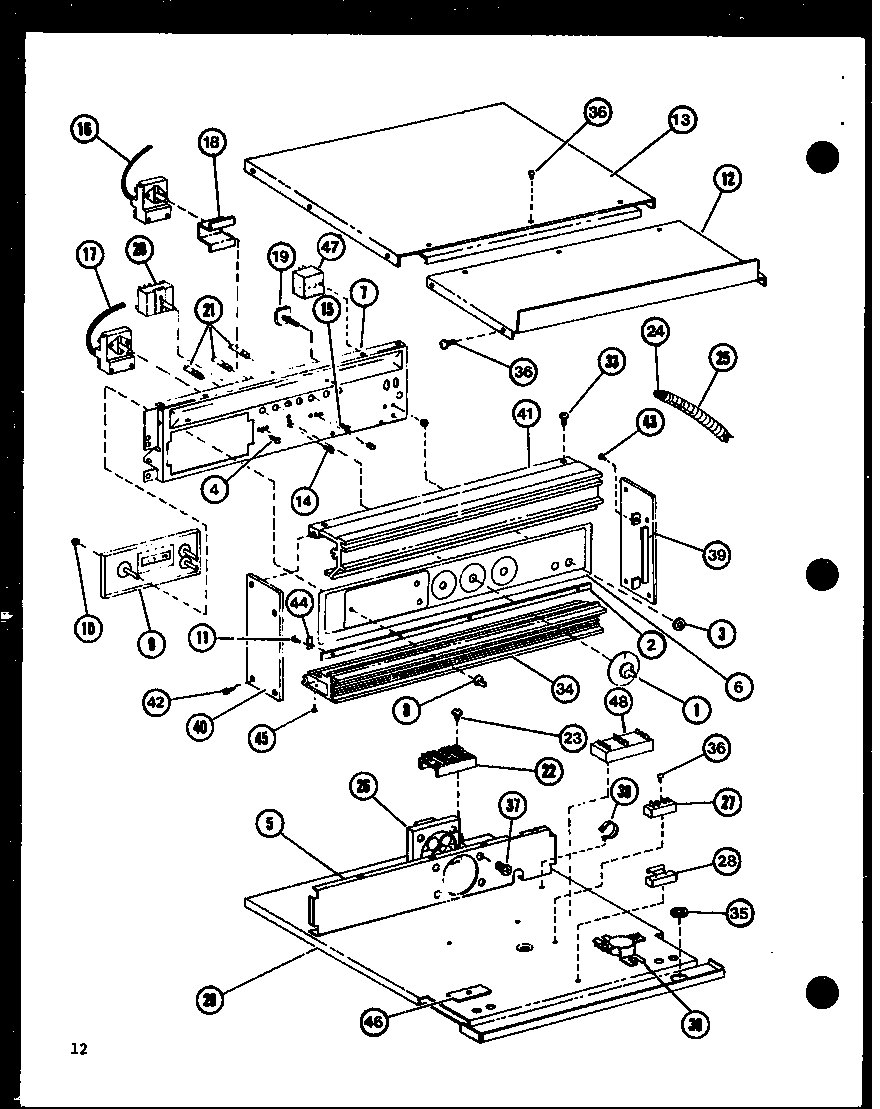

04 - Page 5
Common parts from model Whirlpool AO24DD ELECTRIC WALL OVEN
1
HANDLE DOOR WPL R0705565 Contact Us For Availability
1
BAKE ELEMENT WPL R0710001 Contact Us For Availability
1
LATCH, MTG PLATE WPL R0706003 Contact Us For Availability
1
VENT PIPE UPPER WPL R0710010 Contact Us For Availability
1
KNOB SEL. SW. WPL R0703514 Contact Us For Availability
1
KNOB, THERMOSTAT WPL R0703515 Contact Us For Availability
1
KNOB, THERMOSTAT WPL R0703516 Contact Us For Availability
2
SCREW 8 32X3/8 WPL R0157713 Contact Us For Availability
2
VENT PIPE, LOWER WPL R0710009 Contact Us For Availability
2
RETAINER WPL R0157616 Contact Us For Availability
3
SUPPORT, CONT PNL WPL R0705516 Contact Us For Availability
3
BEZEL, LIGHT SWITCH WPL R0705519 Contact Us For Availability
4
DOOR FRAME WPL R0705659 Contact Us For Availability
4
SEAL-END COVER WPL R0157644 Contact Us For Availability
4
LATCH ASSY WPL R0706004 Contact Us For Availability
4
SOLENOID, LOCK WPL C2711701 Contact Us For Availability
4
SCREW WPL M0206116 Contact Us For Availability
5
SOLENOID SPACER WPL R0701504 Contact Us For Availability
5
VENT BOX ASSY WPL R0710013 Contact Us For Availability
6
DOOR GLASS WPL R0707515 Contact Us For Availability
6
SCREW WPL R0700012 Contact Us For Availability
6
LATCH LEVER ARM WPL R0705512 Contact Us For Availability
6
COLLECTOR BOX ASSY WPL R0710014 Contact Us For Availability
6
CONTROL PANL GLASS WPL R0707502 Contact Us For Availability
7
BUMPER WPL R0157698 Contact Us For Availability
7
RETAINER-LIGHT LENS WPL R0157647 Contact Us For Availability
7
SWITCH-SNAPACTION .1AMP WPL R0702503 Contact Us For Availability
7
MTG BRKT VENT BOX WPL R0705510 Contact Us For Availability
7
PLATE-CONTROL MTG WPL R0157611 Contact Us For Availability
8
AIR BAFFLE TOP WPL R0705567 Contact Us For Availability
8
GASKET,LIGHT LENS WPL R0704502 Contact Us For Availability
8
INSUL LATCH SWITCH WPL R0710019 Contact Us For Availability
8
KNOB, CLOCK WPL R0157612 Contact Us For Availability
9
AIR BAFFLE BOTTOM WPL R0705568 Contact Us For Availability
9
LENS WPL R0707503 Contact Us For Availability
9
LATCH SWITCH WPL R0702512 Contact Us For Availability
9
CLOCK-TIMER WPL R0704005 Contact Us For Availability
10
GLASS PANEL WPL R0707516 Contact Us For Availability
10
UPPER FRAME ASSY WPL R0157430 Contact Us For Availability
10
SCREW WPL R0700001 Contact Us For Availability
11
RETAINER, INSULATION WPL R0705575 Contact Us For Availability
11
FRONT FRAME WPL R0703001 Contact Us For Availability
11
SPRING SOLENOID WPL R0705518 Contact Us For Availability
11
SCREW WPL R0700010 Contact Us For Availability
12
PAD-INSULATION WPL R0157725 Contact Us For Availability
12
OVEN LINER, SINGLE WPL R0703006 Contact Us For Availability
12
COTTER PIN WPL R0700007 Contact Us For Availability
12
RETAINER WPL R0701503 Contact Us For Availability
12
CAB. TOP FRONT WPL R0703011 Contact Us For Availability
13
LOCK BRACKET WPL R0705573 Contact Us For Availability
13
OVEN LINER WPL R0703007 Contact Us For Availability
13
SCREW WPL R0700014 Contact Us For Availability
13
CAB TOP REAR WPL R0703010 Contact Us For Availability
14
DOOR WINDOW ASSY WPL R0705569 Contact Us For Availability
14
BROIL ELEMENT WPL R0710002 Contact Us For Availability
14
ACTUATING ARM WPL R0710020 Contact Us For Availability
14
CAB SIDE SUPPORT R WPL R0703003 Contact Us For Availability
14
CAB SIDE SUPPORT L WPL R0703004 Contact Us For Availability
14
SCREW WPL R0700011 Contact Us For Availability
15
SCREW, T.C. WPL R0700017 Contact Us For Availability
15
SUPT BOIL ELEMENT WPL R0701501 Contact Us For Availability
15
SUPT WELD BR ELEM WPL R0705506 Contact Us For Availability
15
SPACER ACTIVATOR WPL R0701505 Contact Us For Availability
15
CAB. SPACER WPL R0701506 Contact Us For Availability
15
SCREW WPL CG982073 Contact Us For Availability
16
BRACKET, GLASS MTG WPL R0705574 Contact Us For Availability
16
DOOR SEAL WPL R0157653 Contact Us For Availability
16
SCREW WPL R0700004 Contact Us For Availability
16
VENT TUBE EXT WPL R0710012 Contact Us For Availability
16
THERMOSTAT UPPER OVEN WPL R0711007 Contact Us For Availability
17
LINER, DOOR WPL R0705571 Contact Us For Availability
17
LINER, DOOR WPL R0705572 Contact Us For Availability
17
INSULATION-BACK WPL R0157671 Contact Us For Availability
17
RETAINER CLIP WPL R0701507 Contact Us For Availability
17
COMPARTMENT TOP UP WPL R0703008 Contact Us For Availability
17
COMPONET TOP. LOWER WPL R0703013 Contact Us For Availability
17
THERMOSTAT LW OVEN WPL R0711005 Contact Us For Availability
18
VENT TUBE, LOWER WPL R0710007 Contact Us For Availability
18
SMOKE ELEMENTOR WPL R0710008 Contact Us For Availability
18
WASHER WPL R0700501 Contact Us For Availability
18
CAB ASSY-UPPER WPL R0703017 Contact Us For Availability
18
BRKT. THERM. MTG WPL R0705517 Contact Us For Availability
19
INSULATION WPL R0157678 Contact Us For Availability
19
KNOB-LATCH WPL R0157662 Contact Us For Availability
19
CAB. SIDE LOWER WPL R0703016 Contact Us For Availability
19
SWITCH-OVEN LIGHT WPL R0157621 Contact Us For Availability
20
INSULATION-BTM WPL R0157685 Contact Us For Availability
20
SCREW WPL R0157660 Contact Us For Availability
20
OVEN LIGHT SHIELD WPL R0157673 Contact Us For Availability
20
SELECTOR SWITCH WPL R0702504 Contact Us For Availability
21
MAIN BOTTOM ASSY WPL R0703019 Contact Us For Availability
21
SOCKET, OVEN LIGHT WPL R0710018 Contact Us For Availability
21
SIGNAL LIGHT WPL R0712002 Contact Us For Availability
21
SIGNAL LIGHT (LOWER OVEN) WPL R0712004 Contact Us For Availability
22
LOCK SLIDE SCREW WPL R0199273 Contact Us For Availability
22
TERMINAL BLOCK WPL R0157631 Contact Us For Availability
23
SWITCH, SAFETY WPL R0702509 Contact Us For Availability
23
REAR ANCHOR WPL R0157679 Contact Us For Availability
24
OVEN RACK WPL R0199215 Contact Us For Availability
24
UPPER OVEN SUPPORT WPL R0703018 Contact Us For Availability
24
WIRING HARNESS WPL R0199227 Contact Us For Availability
25
BOTTOM TRIM WPL R0705515 Contact Us For Availability
25
FRONT FRAME SUPPORT WPL R0705520 Contact Us For Availability
25
CONDUIT WPL R0157633 Contact Us For Availability
26
CLIP WPL R0701509 Contact Us For Availability
26
CAM PLATE-R WPL R0157687 Contact Us For Availability
26
CAM PLATE-L WPL R0157688 Contact Us For Availability
26
BLOWER ASSY WPL R0707001 Contact Us For Availability
27
CAPILLARY COVER WPL R0705550 Contact Us For Availability
27
SCREW WPL R0700016 Contact Us For Availability
28
HINGE ASSY WPL R0157690 Contact Us For Availability
28
RESISTOR BLOCK WPL R0710016 Contact Us For Availability
29
DOOR SPRING-LOWER WPL R0157691 Contact Us For Availability
29
SANDWICH PNL DOUBLE WPL R0703015 Contact Us For Availability
30
OVEN DOOR SPRING WPL R0157696 Contact Us For Availability
31
ANCHOR SPRING WPL R0157692 Contact Us For Availability
32
CABINET BACK WPL R0703021 Contact Us For Availability
33
SCREW WPL R0700002 Contact Us For Availability
34
CLAMP-CONDUIT WPL R0157697 Contact Us For Availability
34
BOTTOM GRILLE EXT WPL R0705502 Contact Us For Availability
35
SCREW WPL R0700008 Contact Us For Availability
35
BUSHING WPL R0701502 Contact Us For Availability
36
SCREW WPL R0700019 Contact Us For Availability
36
SCREW WPL R0700020 Contact Us For Availability
37
EXT CABINET SIDE WPL R0703027 Contact Us For Availability
37
SCREW WPL R0700009 Contact Us For Availability
38
CLIP WPL R0701510 Contact Us For Availability
39
RIGHT END CAP WPL R0705505 Contact Us For Availability
40
LEFT END CAP WPL R0705504 Contact Us For Availability
41
TOP EXTRUSION WPL R0705503 Contact Us For Availability
42
SCREW WPL R0700021 Contact Us For Availability
43
SCREW WPL R0700015 Contact Us For Availability
44
CLIP WPL R0701511 Contact Us For Availability
45
SCREW WPL R0700013 Contact Us For Availability
46
HOLE COVER WPL R0705549 Contact Us For Availability
47
RELAY WPL R0709501 Contact Us For Availability
48
TERMINAL BLOCK WPL R0710015 Contact Us For Availability
× ![]()
