Model Maytag AMV6502REB1 MICROWAVE HOOD, 2.0 CUBIC FOOT – Common Parts & Diagrams

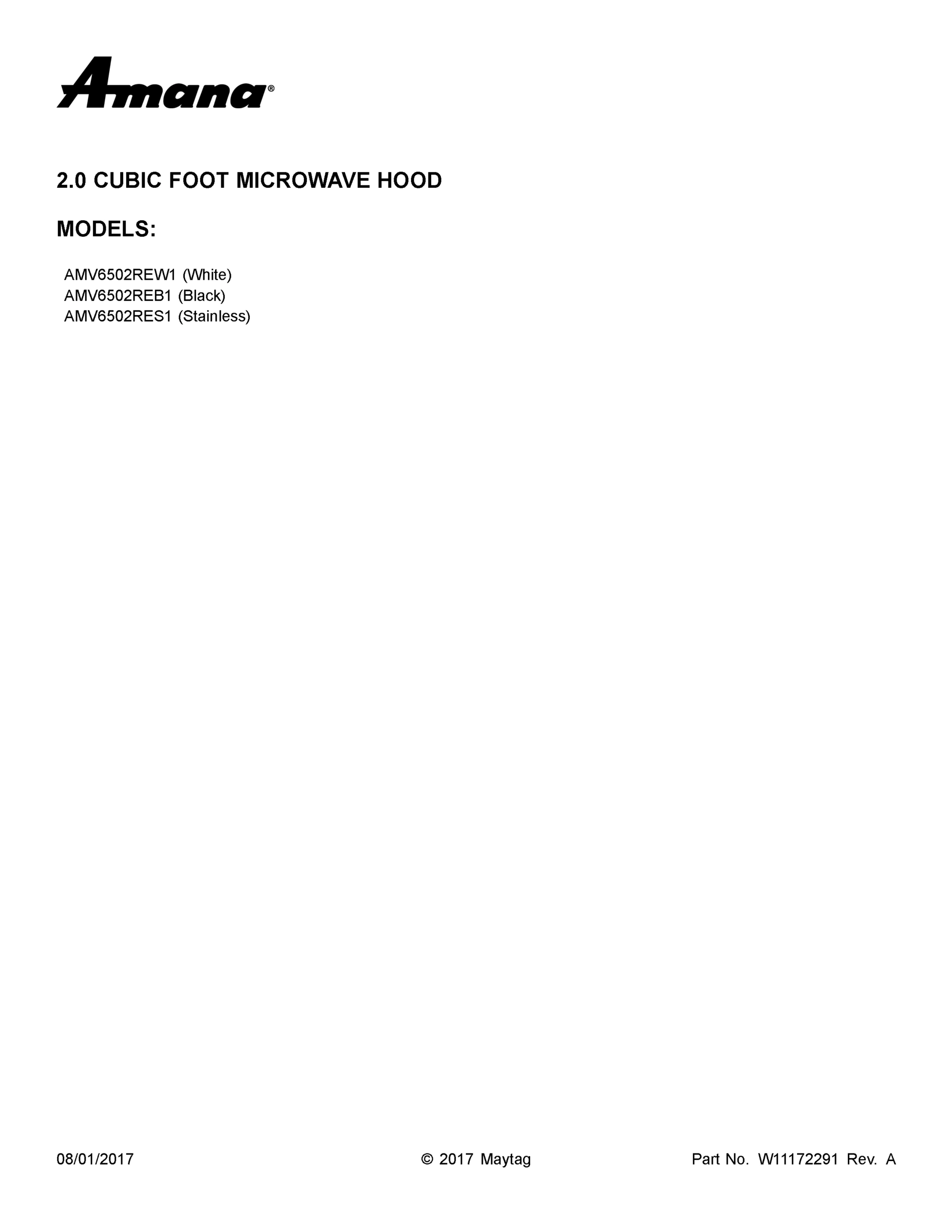

01 - COVER SHEET

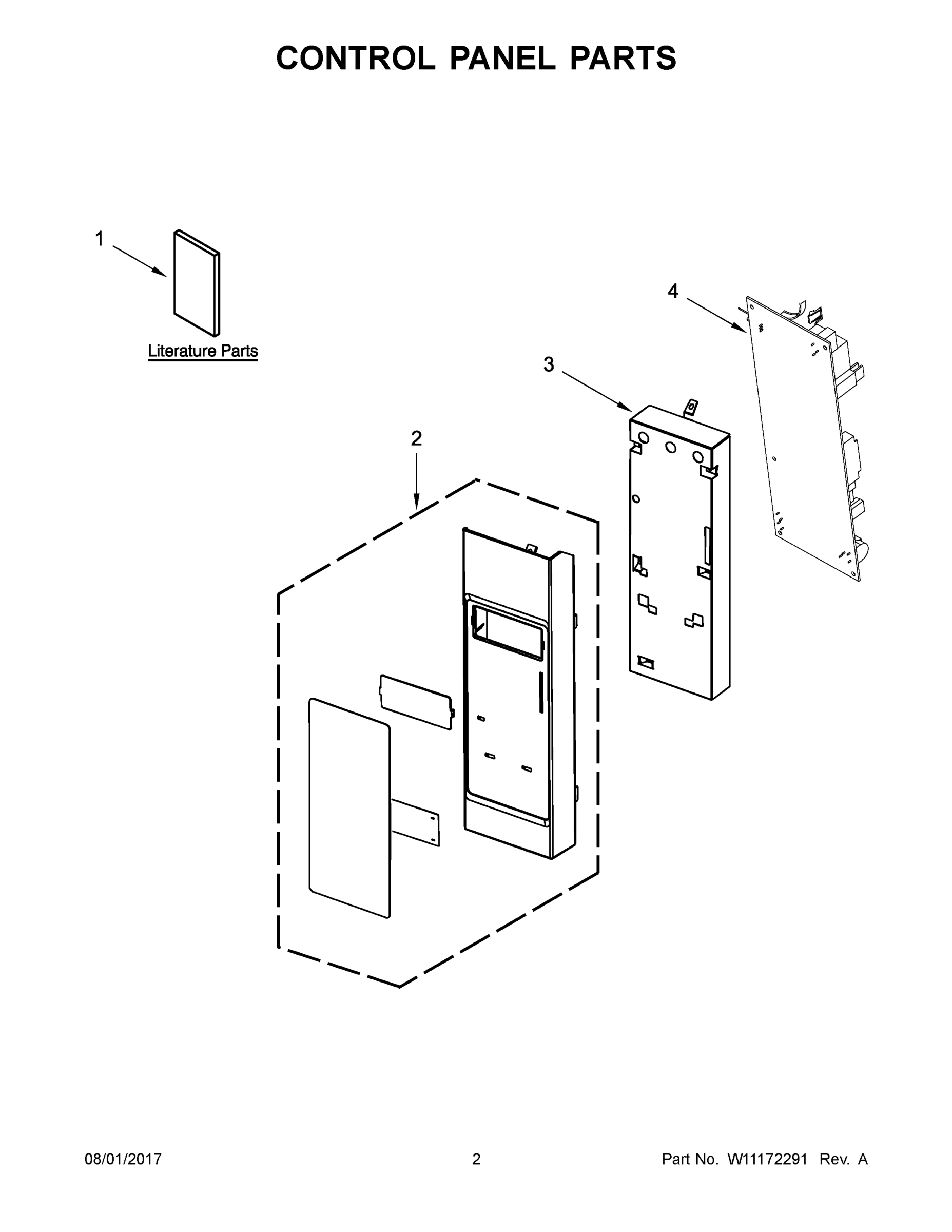

02 - CONTROL PANEL PARTS

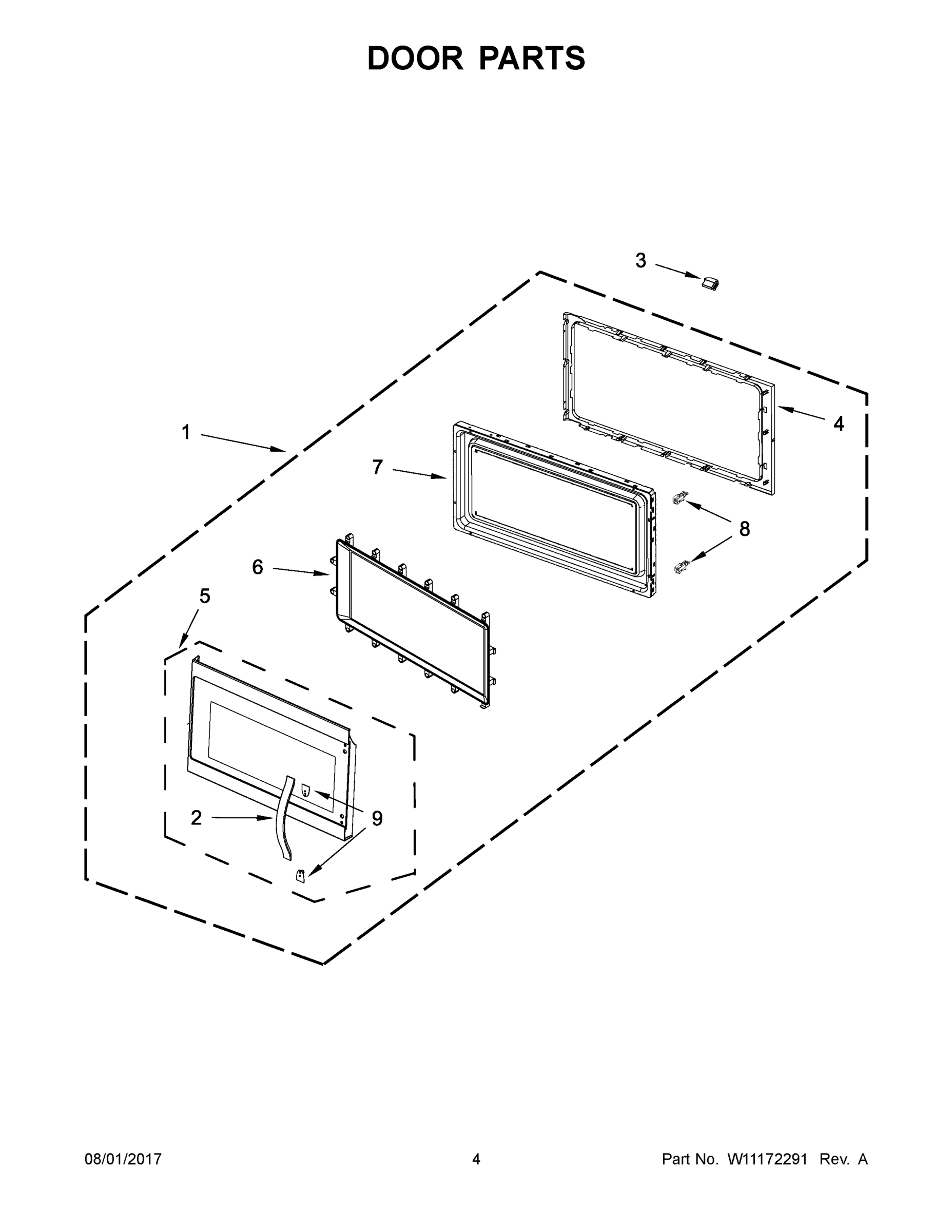

03 - DOOR PARTS

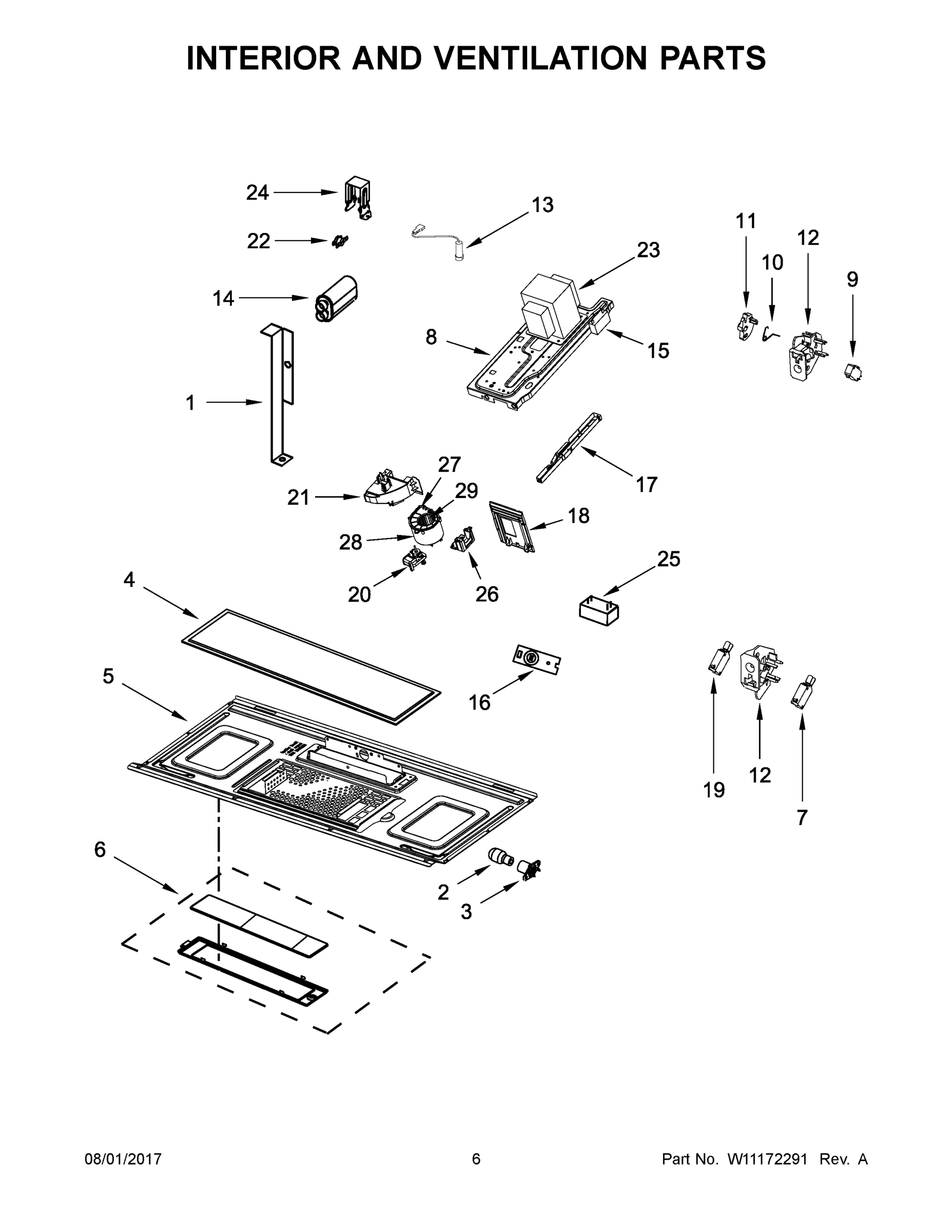

04 - INTERIOR AND VENTILATION PARTS

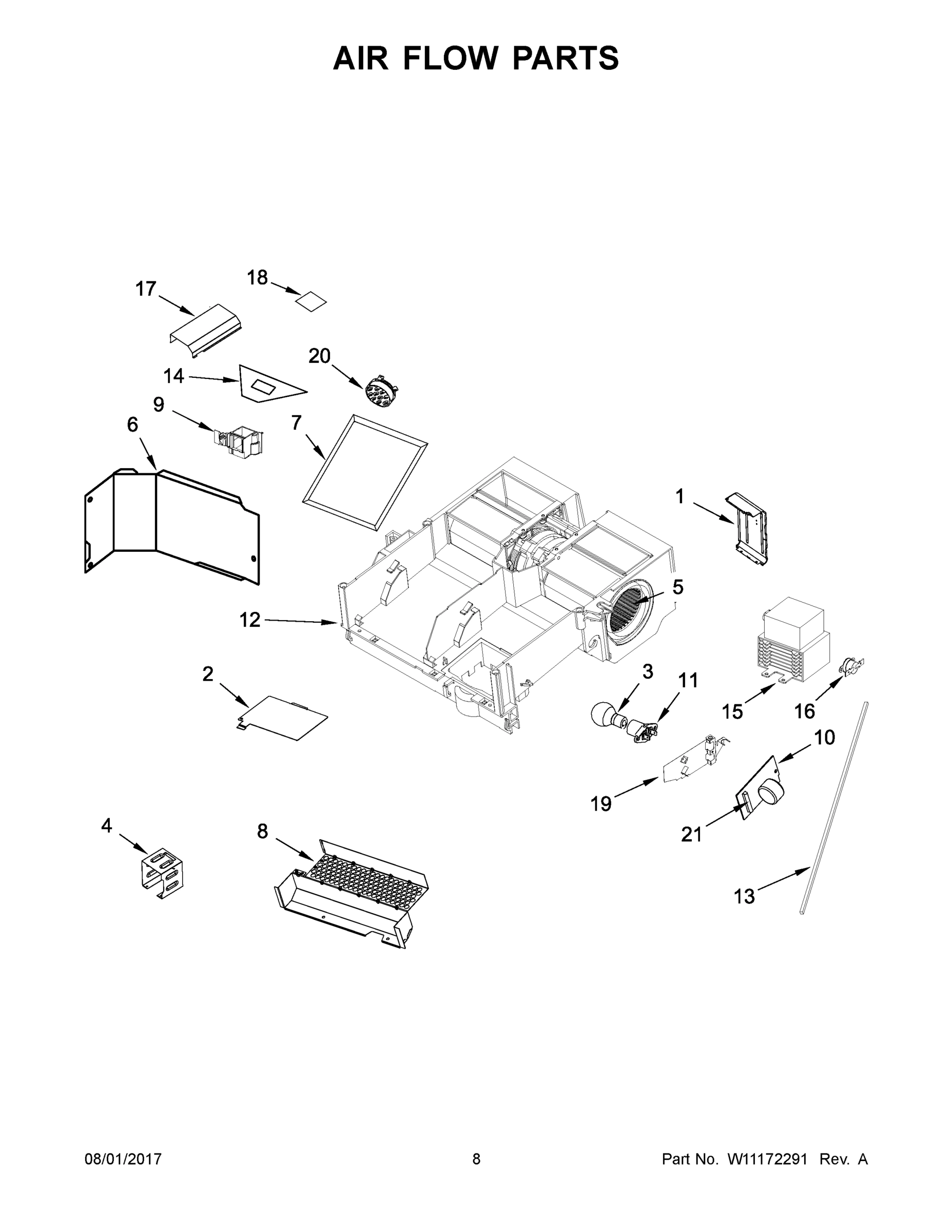

05 - AIR FLOW PARTS

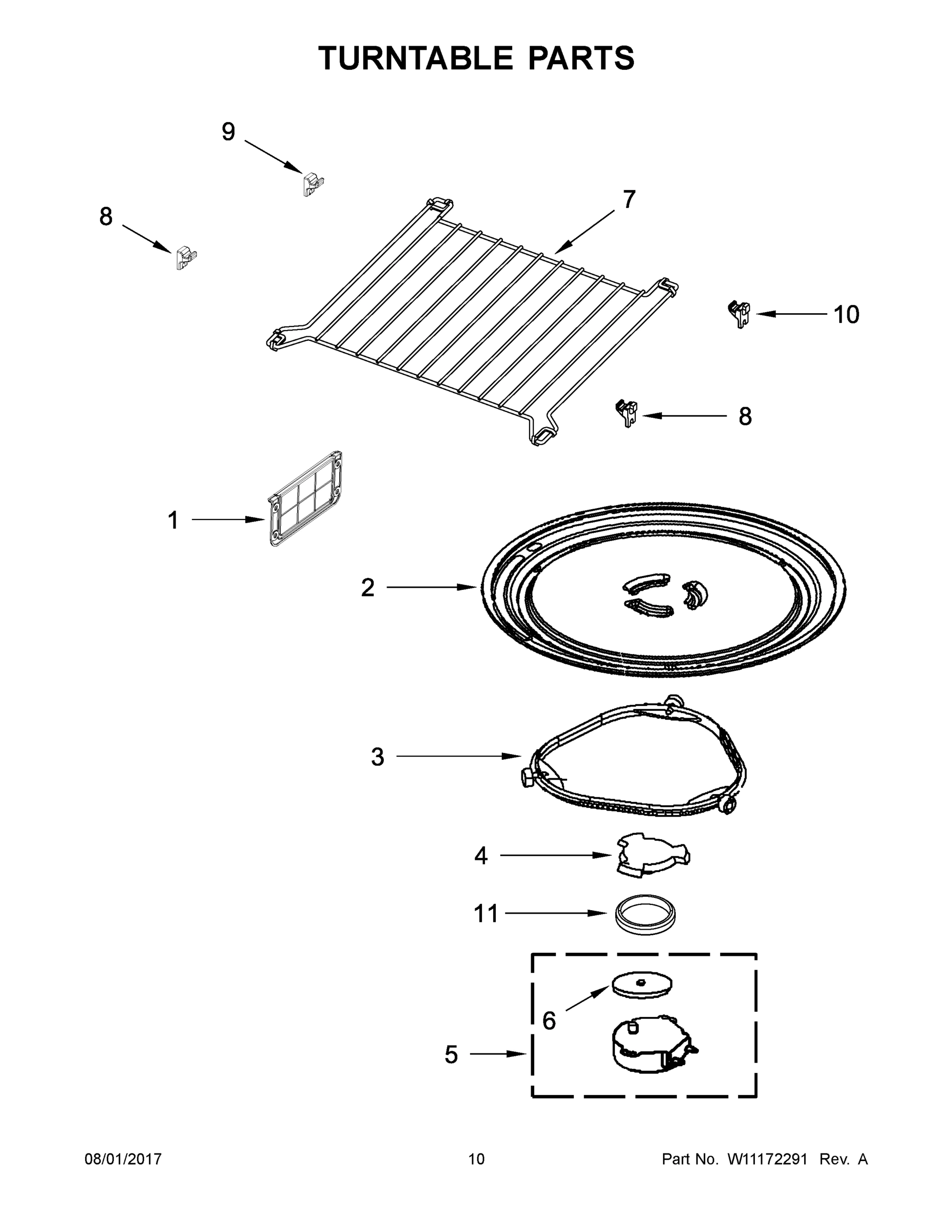

06 - TURNTABLE PARTS

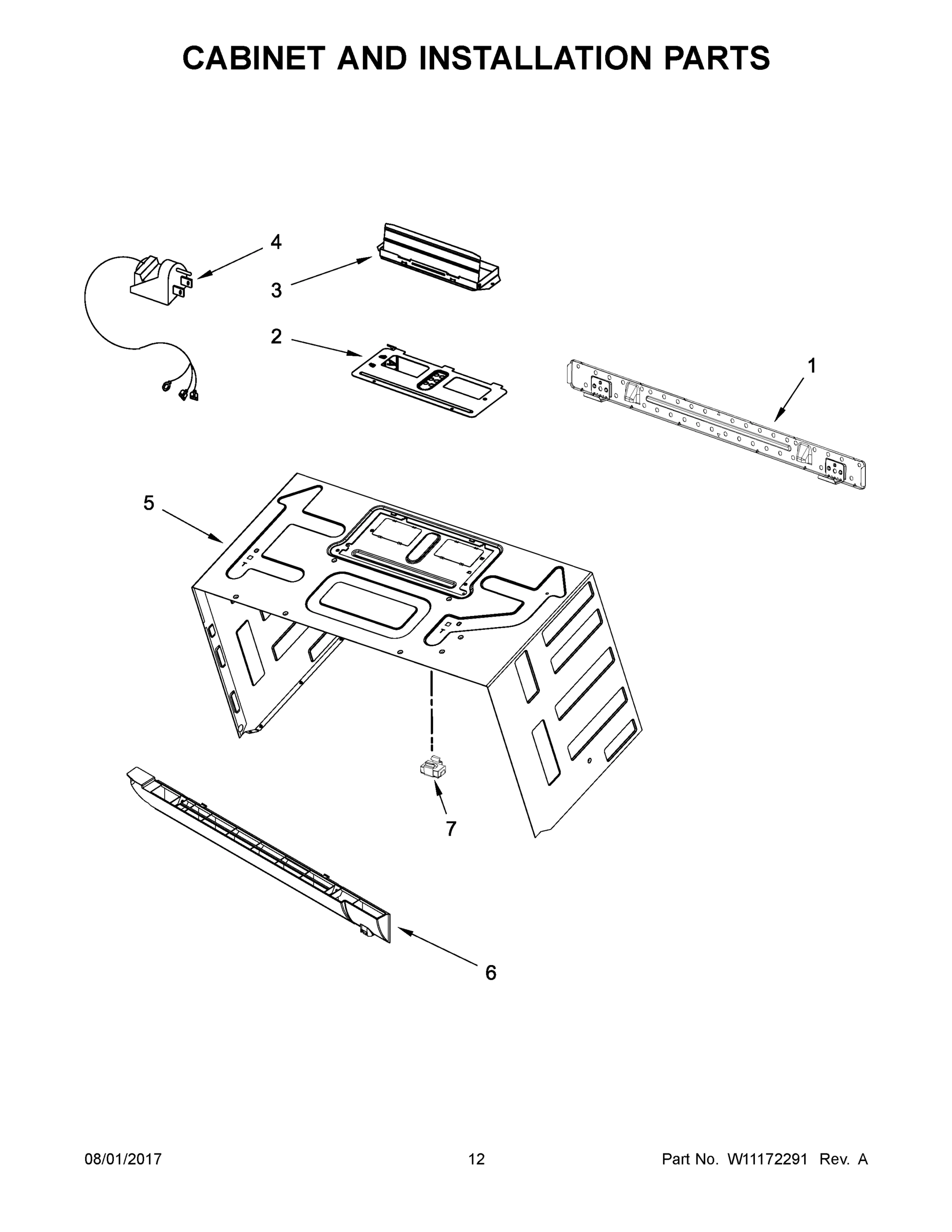

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV6502REB1 MICROWAVE HOOD, 2.0 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10724870 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) MAY W10802521 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10540715 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631697 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10533497 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10792832 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) MAY W10802522 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10792842 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) MAY W10802523 Contact Us For Availability
1C
TECH SHEET MAY W10799435 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (WHITE) MAY W10802516 Contact Us For Availability
2
HANDLE (WHITE) MAY W10445124 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10531726 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK) MAY W10802517 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10445138 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10798052 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10506378 Contact Us For Availability
3
BACKER, CONTROL PANEL MAY W10771573 Contact Us For Availability
3
STOPPER, DOOR (FOR WHITE MODELS) MAY W10643975 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RING, TURNTABLE MAY W10679311 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
3A
STOPPER, DOOR (BLACK AND STAINLESS MODELS) MAY W10643974 Contact Us For Availability
4
MICROCOMPUTER MAY W10678766 Contact Us For Availability
4
FRAME, INNER (FOR WHITE MODELS) MAY W10647773 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
4A
FRAME, INNER (BLACK AND STAINLESS MODELS) MAY W10647772 Contact Us For Availability
5
ASSEMBLY, DOOR FRAME (WHITE) MAY W10802518 Contact Us For Availability
5
PLATE, BOTTOM MAY W10571127 Contact Us For Availability
5
MOTOR, FAN MAY W10726505 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10571409 Contact Us For Availability
5A
ASSEMBLY, DOOR FRAME (BLACK) MAY W10802519 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10571408 Contact Us For Availability
5B
ASSEMBLY, DOOR FRAME (STAINLESS) MAY W10802520 Contact Us For Availability
6
PLATE, STEAM PROTECTION (FOR WHITE MODELS) MAY W10562560 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
PLATE, AIR DEFLECTOR MAY W10889794 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10701696 Contact Us For Availability
6A
PLATE, STEAM PROTECTION (BLACK AND STAINLESS MAY W10514243 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10701697 Contact Us For Availability
7
FOIL, DOOR (FOR WHITE MODELS) MAY W10647794 Contact Us For Availability
7
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
7
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
7A
FOIL, DOOR (BLACK AND STAINLESS MODELS) MAY W10647793 Contact Us For Availability
8
HOOK, DOOR MAY W10740455 Contact Us For Availability
8
CHASSIS MAY W10908575 Contact Us For Availability
8
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10740485 Contact Us For Availability
9
BASE, HANDLE (STAINLESS) MAY W10473991 Contact Us For Availability
9
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
9
OUTLET, CAVITY (FRONT) MAY W10570208 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) MAY W10749119 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) MAY W10749120 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK MAY W10568148 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10533096 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SEAL MAY W10626457 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W10754514 Contact Us For Availability
16
THERMISTOR, PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, CAVITY 125/-35 CELCIUS MAY W10476901 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533111 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533481 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10869222 Contact Us For Availability
20
MOTOR, COOLING MAY W10536556 Contact Us For Availability
20
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
21
AIR GUIDE, MAGNETRON MAY W10631700 Contact Us For Availability
21
FUSE MAY W10138793 Contact Us For Availability
22
THERMOSTAT MAY W10598693 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W10880342 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
25
RESISTOR, CEMENT MAY W10568805 Contact Us For Availability
26
HOLDER, NTC MAY W10533480 Contact Us For Availability
27
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
28
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
29
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10629733 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T MAY W10710692 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
× ![]()
