Model Maytag AMV1150VAS5 MICROWAVE – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

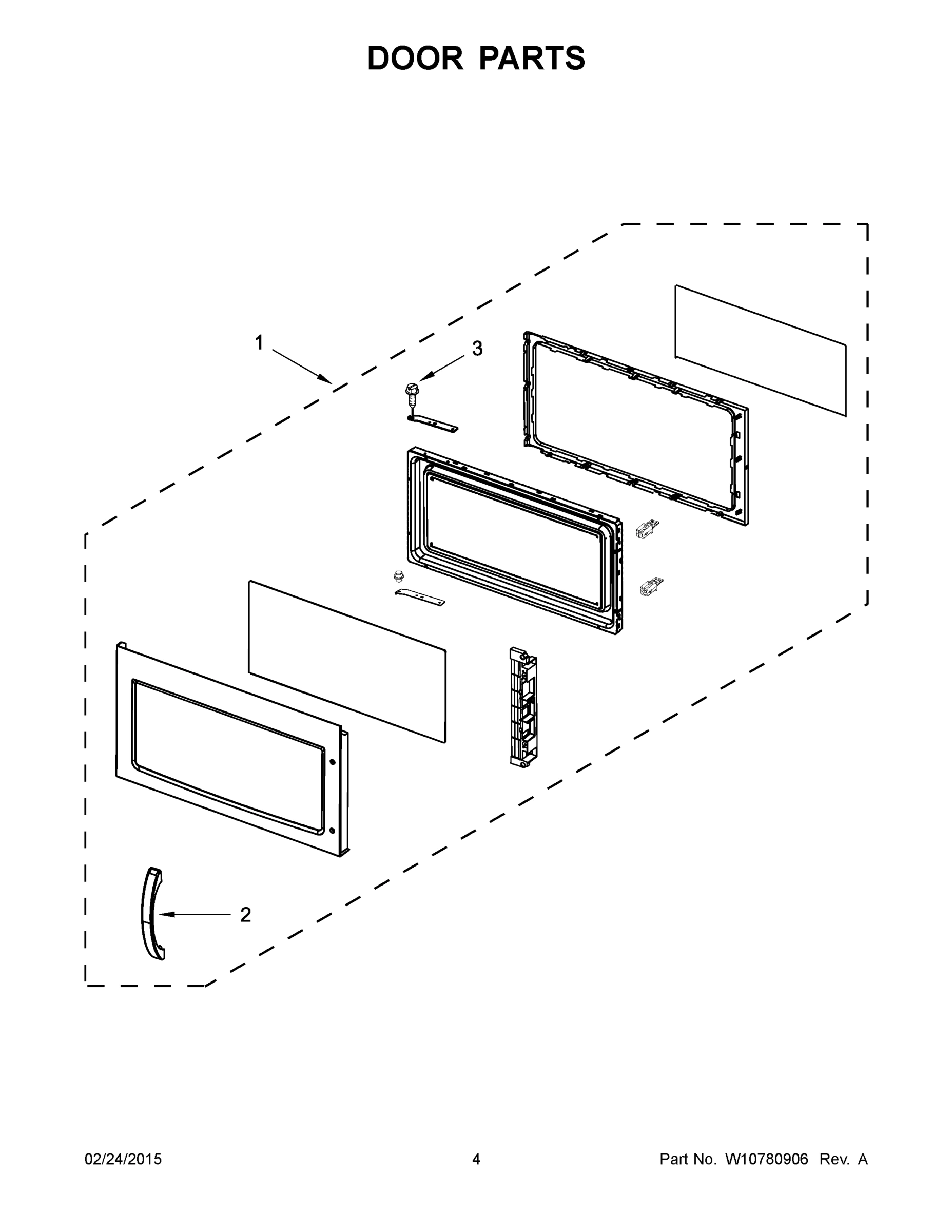

03 - DOOR PARTS

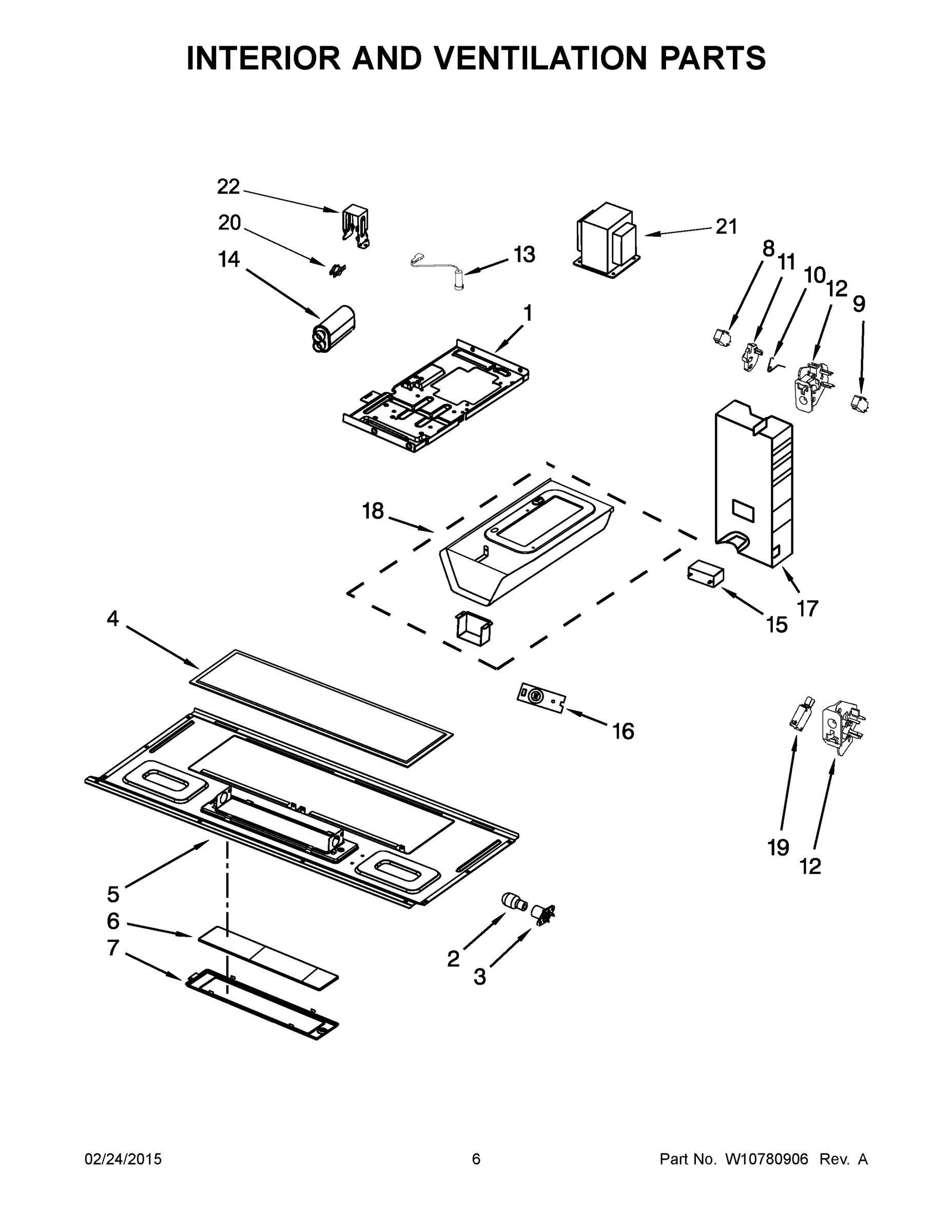

04 - INTERIOR AND VENTILATION PARTS

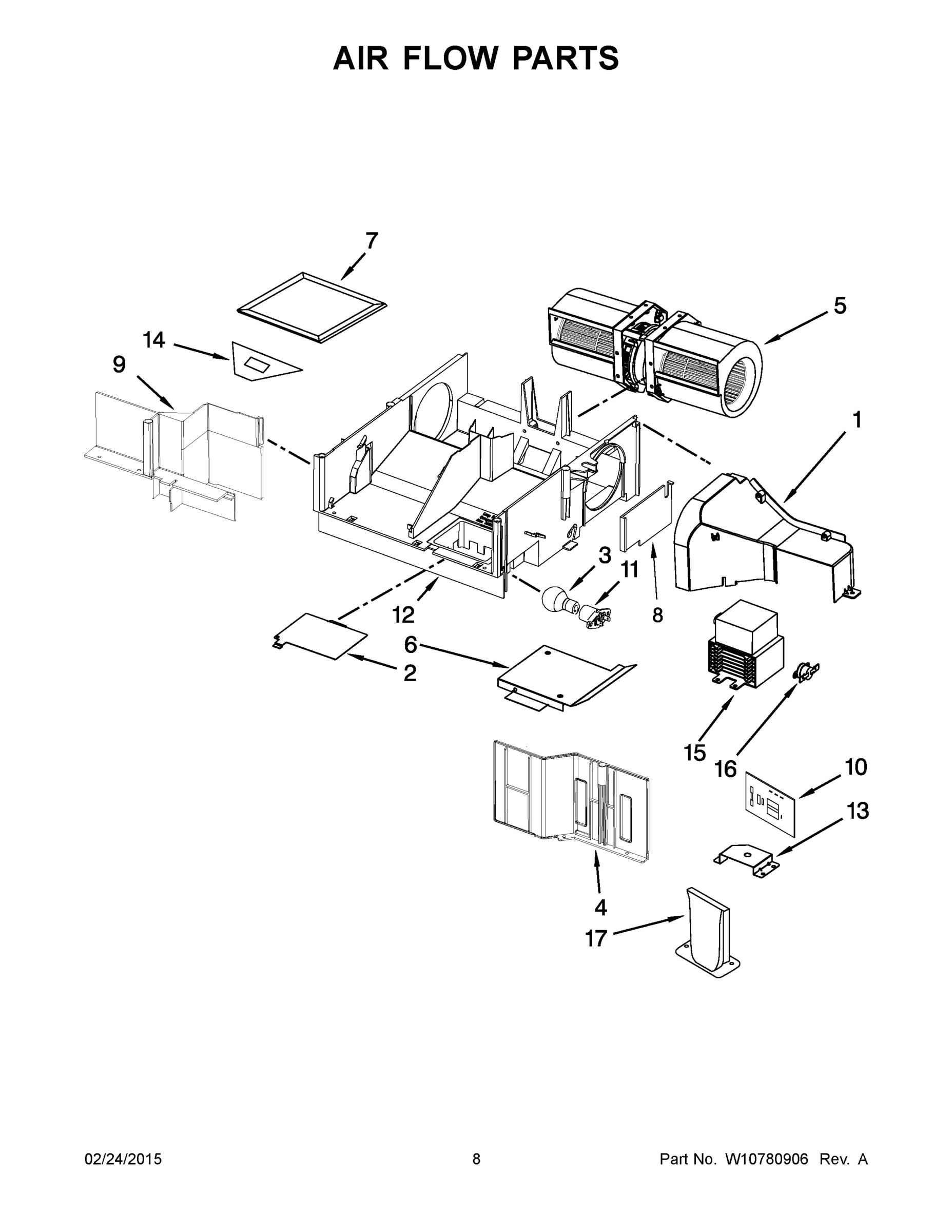

05 - AIR FLOW PARTS

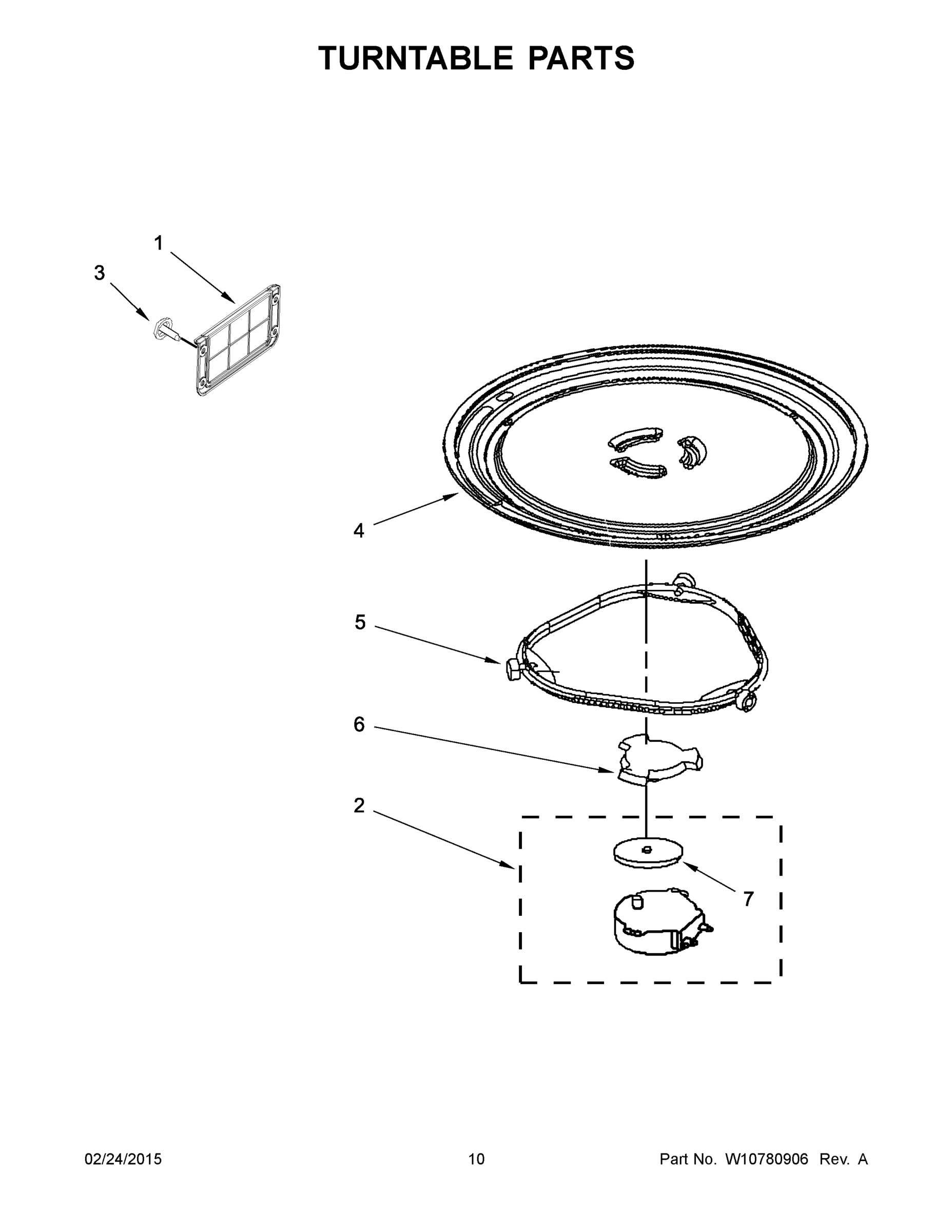

06 - TURNTABLE PARTS

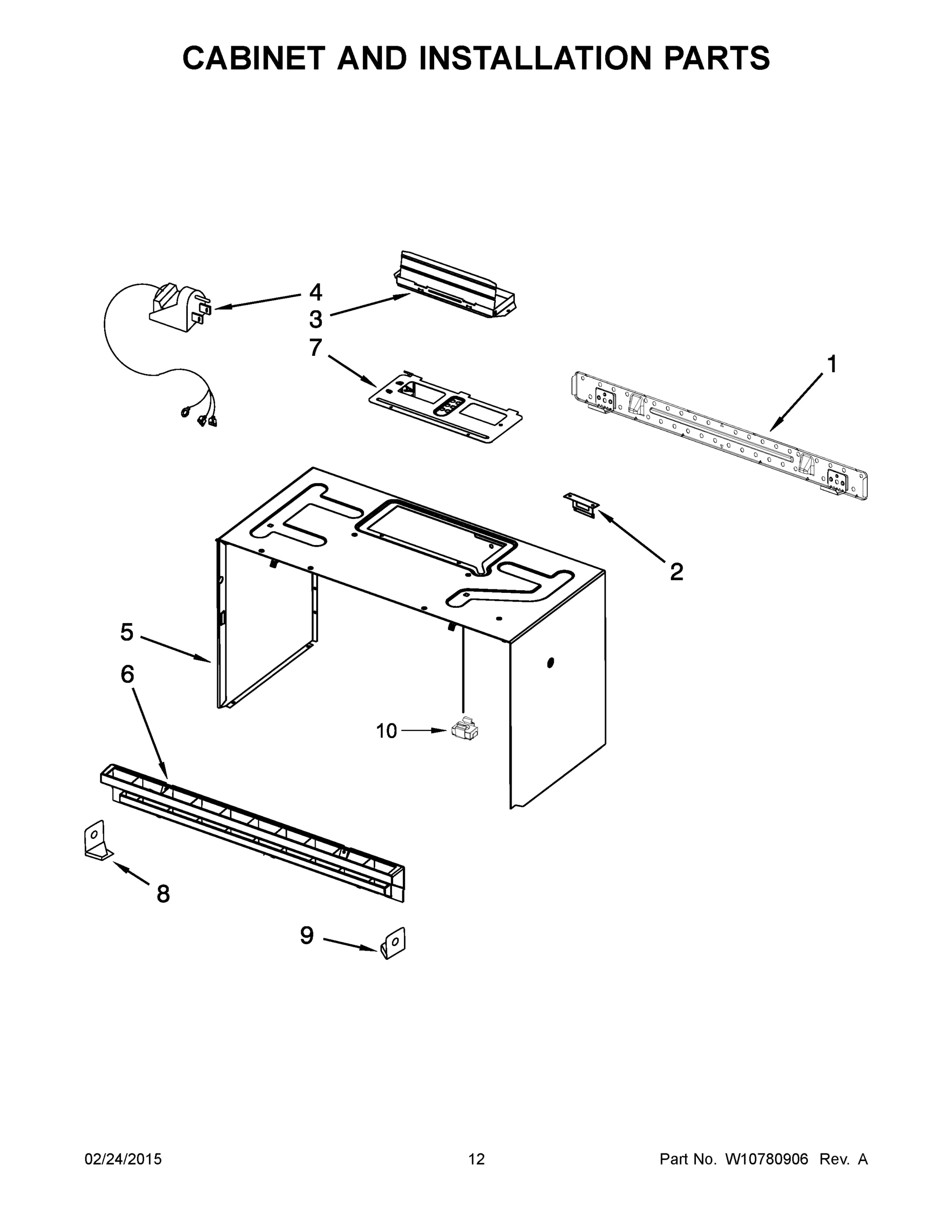

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV1150VAS5 MICROWAVE
1
MAY W10724866 MAY W10724866 Contact Us For Availability
1
MAY W10111666 MAY W10111666 Contact Us For Availability
1
MAY W10269456 MAY W10269456 Contact Us For Availability
1
MAY 8206340 MAY 8206340 Contact Us For Availability
1
MAY W10313272 MAY W10313272 Contact Us For Availability
1
MAY W10440498 MAY W10440498 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10327331 Contact Us For Availability
1A
MAY W10111667 MAY W10111667 Contact Us For Availability
1B
MAY W10197630 MAY W10197630 Contact Us For Availability
1B
MAY W10333874 MAY W10333874 Contact Us For Availability
1C
MAY W10487519 MAY W10487519 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333859 Contact Us For Availability
2
HANDLE (WHITE) MAY W10445116 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
MAY 8206382 MAY 8206382 Contact Us For Availability
2
MAY W10466420 MAY W10466420 Contact Us For Availability
2
MAY 8206385 MAY 8206385 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333863 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10445120 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (INCLUDES LENS AND ME MAY W10333865 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY 8206404 Contact Us For Availability
3
MAY W10447235 MAY W10447235 Contact Us For Availability
3
MAY W10138802 MAY W10138802 Contact Us For Availability
3
MAY W10210871 MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RIVETS MAY W10138801 Contact Us For Availability
3
MAY W10748710 MAY W10748710 Contact Us For Availability
4
MAY W10676698 MAY W10676698 Contact Us For Availability
4
MAY W10208631 MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
MAY W10337247 MAY W10337247 Contact Us For Availability
4
MAY W10654511 MAY W10654511 Contact Us For Availability
5
MAY W10245196 MAY W10245196 Contact Us For Availability
5
MAY W10755866 MAY W10755866 Contact Us For Availability
5
MAY W10654906 MAY W10654906 Contact Us For Availability
5
MAY W10462003 MAY W10462003 Contact Us For Availability
5A
MAY W10462001 MAY W10462001 Contact Us For Availability
6
MAY W10210875 MAY W10210875 Contact Us For Availability
6
GUIDE, AIR MAY W10138797 Contact Us For Availability
6
MAY W10337248 MAY W10337248 Contact Us For Availability
6
MAY W10269471 MAY W10269471 Contact Us For Availability
6A
MAY W10259625 MAY W10259625 Contact Us For Availability
7
MAY W10210873 MAY W10210873 Contact Us For Availability
7
MAY 8206230 MAY 8206230 Contact Us For Availability
7
MAY 8184109 MAY 8184109 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
8
MAY W10700156 MAY W10700156 Contact Us For Availability
8
HOLDER, VENT LEFT SIDE (BLACK) MAY W10703285 Contact Us For Availability
8A
HOLDER, VENT LEFT SIDE (STAINLESS) MAY W10703284 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
MAY W10448769 MAY W10448769 Contact Us For Availability
9
HOLDER, VENT RIGHT SIDE (BLACK) MAY W10703283 Contact Us For Availability
9A
HOLDER, VENT RIGHT SIDE (STAINLESS) MAY W10703282 Contact Us For Availability
10
MAY W10156812 MAY W10156812 Contact Us For Availability
10
FILTER, NOISE MAY W10422269 Contact Us For Availability
10
MAY W10596040 MAY W10596040 Contact Us For Availability
11
MAY W10156811 MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
12
MAY 8206419 MAY 8206419 Contact Us For Availability
12
MAY W10448773 MAY W10448773 Contact Us For Availability
12A
MAY W10156813 MAY W10156813 Contact Us For Availability
13
MAY W10492276 MAY W10492276 Contact Us For Availability
13
BRACKET, MOUNTING FILTER BOARD MAY W10313270 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10138798 Contact Us For Availability
14
MAY W10139750 MAY W10139750 Contact Us For Availability
15
MAY W10605896 MAY W10605896 Contact Us For Availability
15
MAY W10693025 MAY W10693025 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
17
AIR GUIDE, LOWER MAY W10448770 Contact Us For Availability
17
MAY W10269467 MAY W10269467 Contact Us For Availability
18
MAY W10315759 MAY W10315759 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
21
MAY W10681123 MAY W10681123 Contact Us For Availability
22
MAY W10532063 MAY W10532063 Contact Us For Availability
NI
MISCELLANEOUS PARTS, INSTALLATION, HARDWARE MAY 8206614 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT MAY W10470168 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W10539842 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MESSAGE WIRE MAY W10539846 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10540464 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HDLAMP/TT WIRE ASSEMBLY MAY W10540465 Contact Us For Availability
NI
MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY MAY W10563144 Contact Us For Availability
× ![]()
