Model Accelerated Cooking Products AMSO35-P2009106M Amana Menumaster AMSO35 – Common Parts & Diagrams

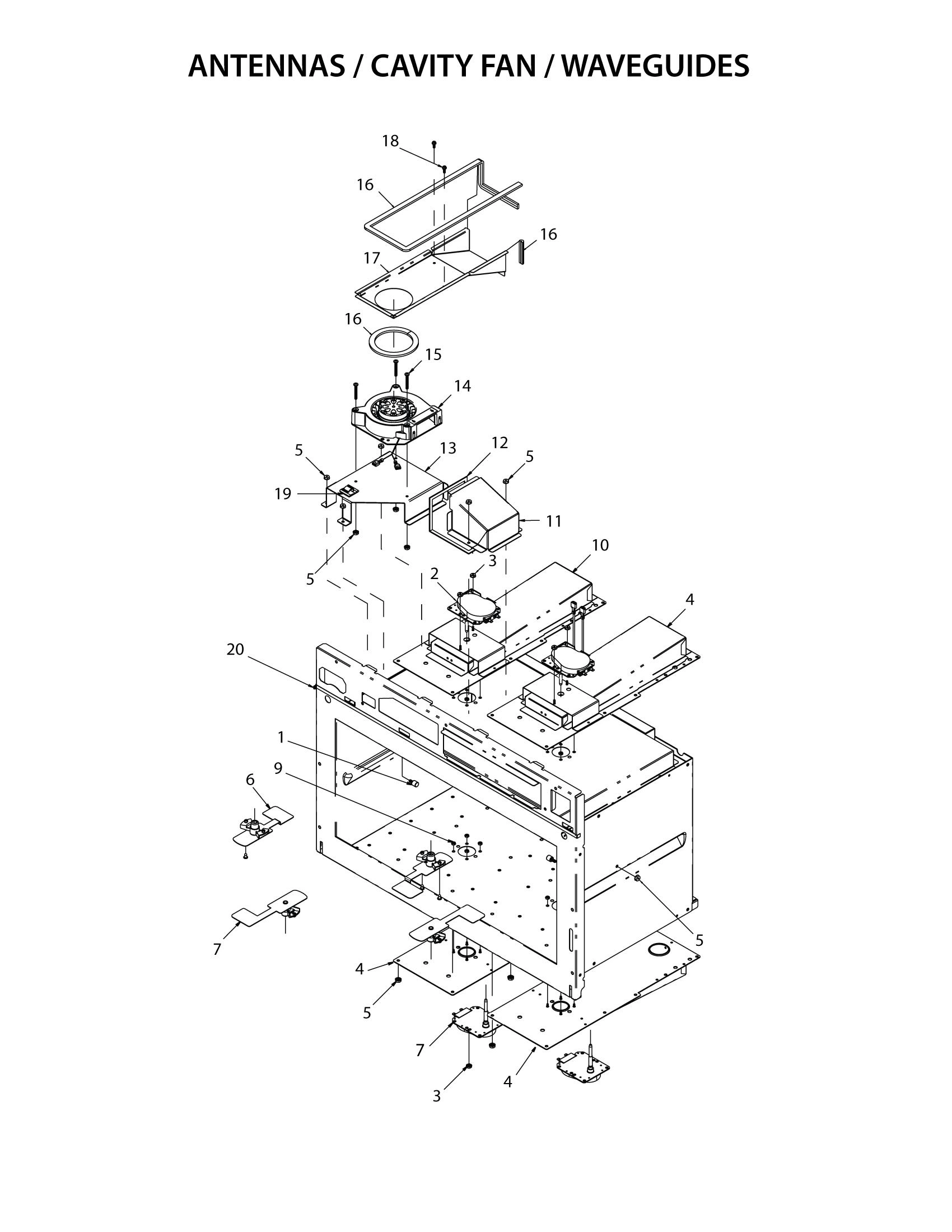

ANTENNAS / CAVITY FAN / WAVEGUIDES

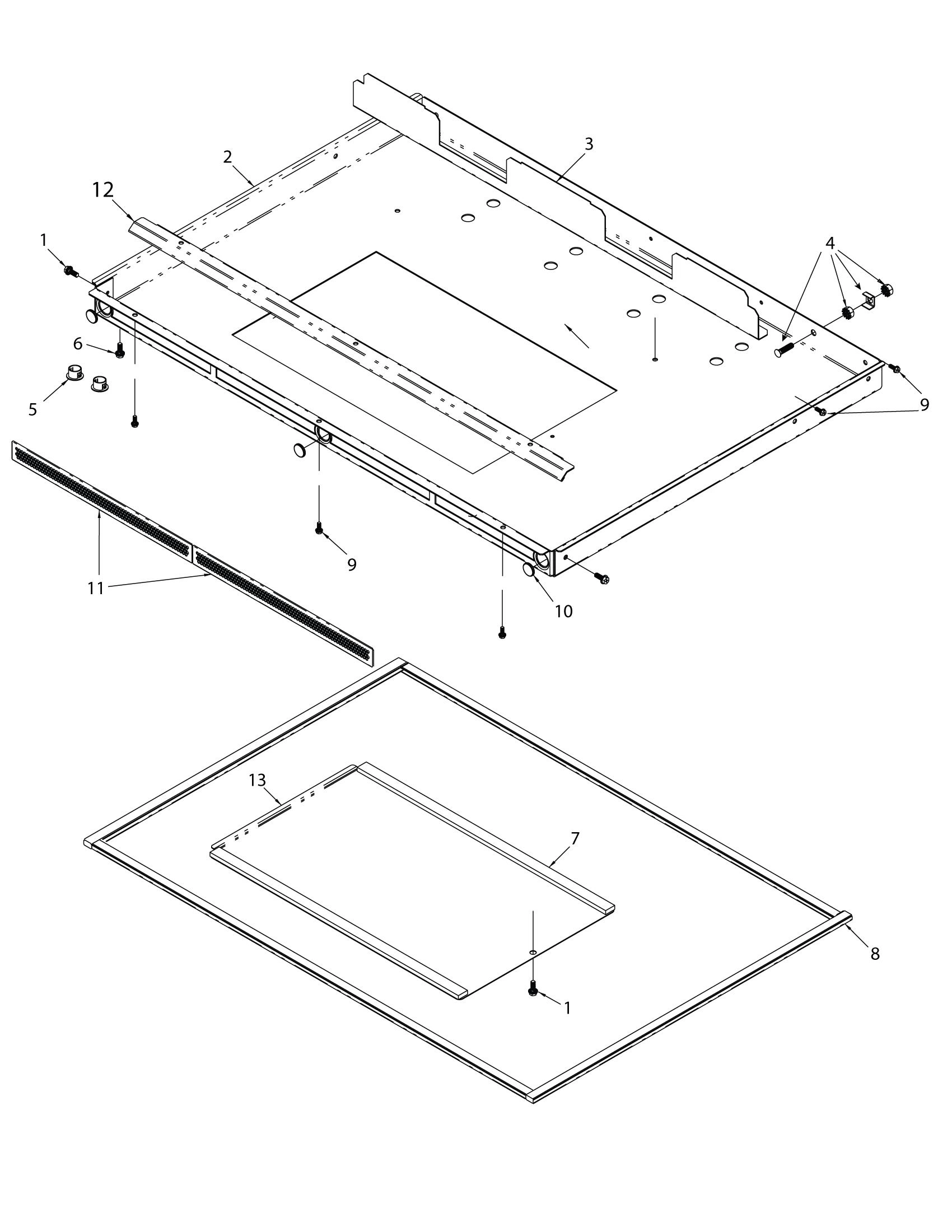

BASEPAN

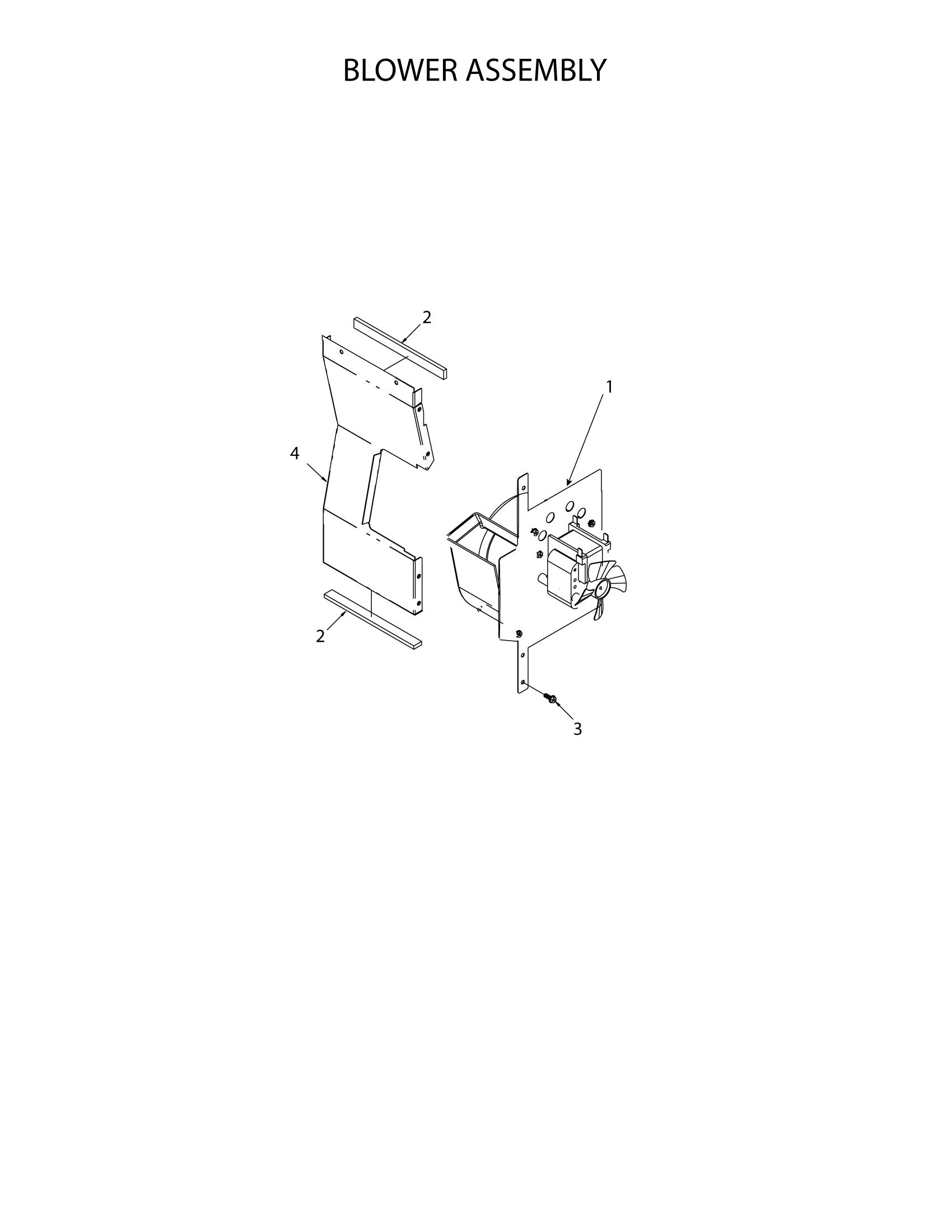

BLOWER

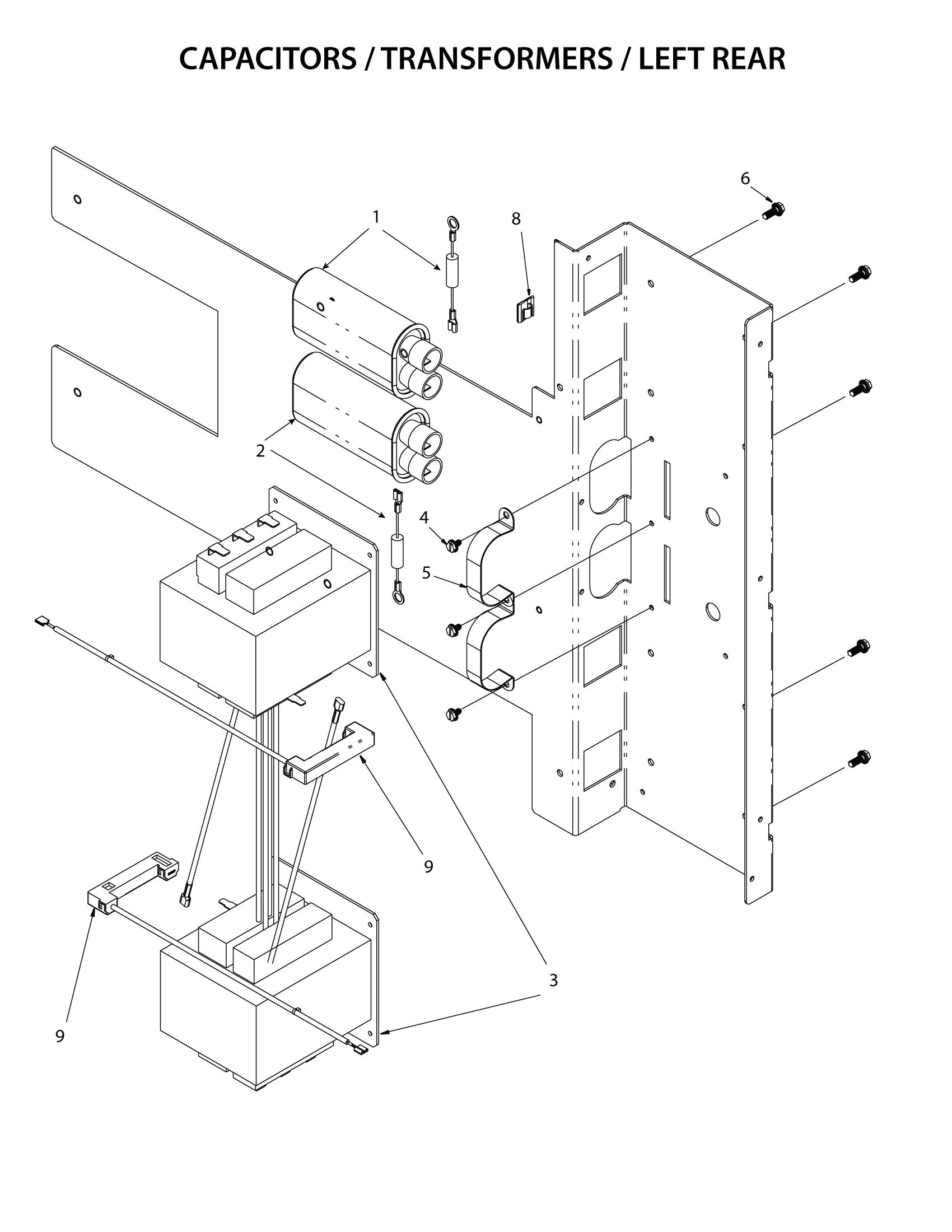

CAPACITORS / TRANSFORMERS - LEFT REAR

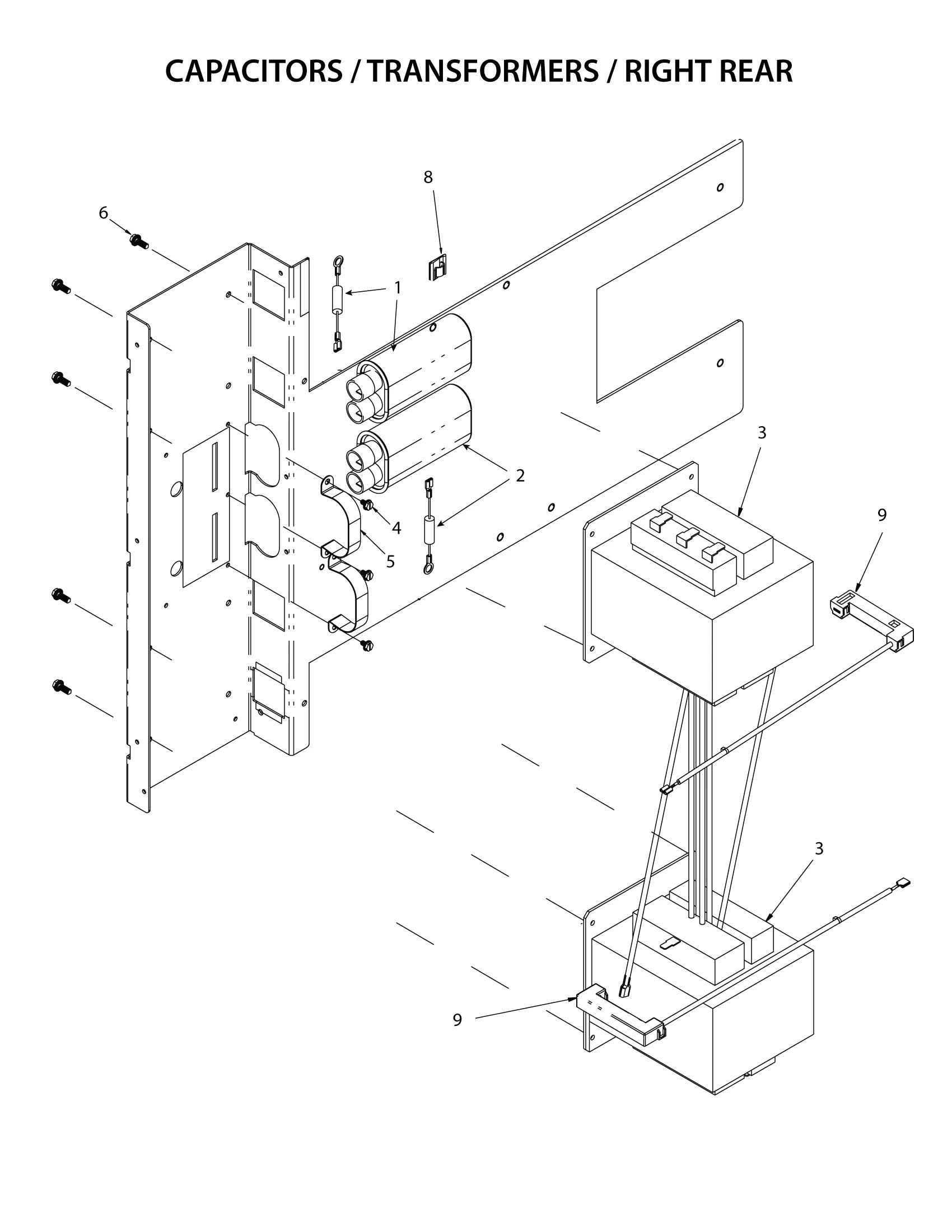

CAPACITORS / TRANSFORMERS - RIGHT REAR

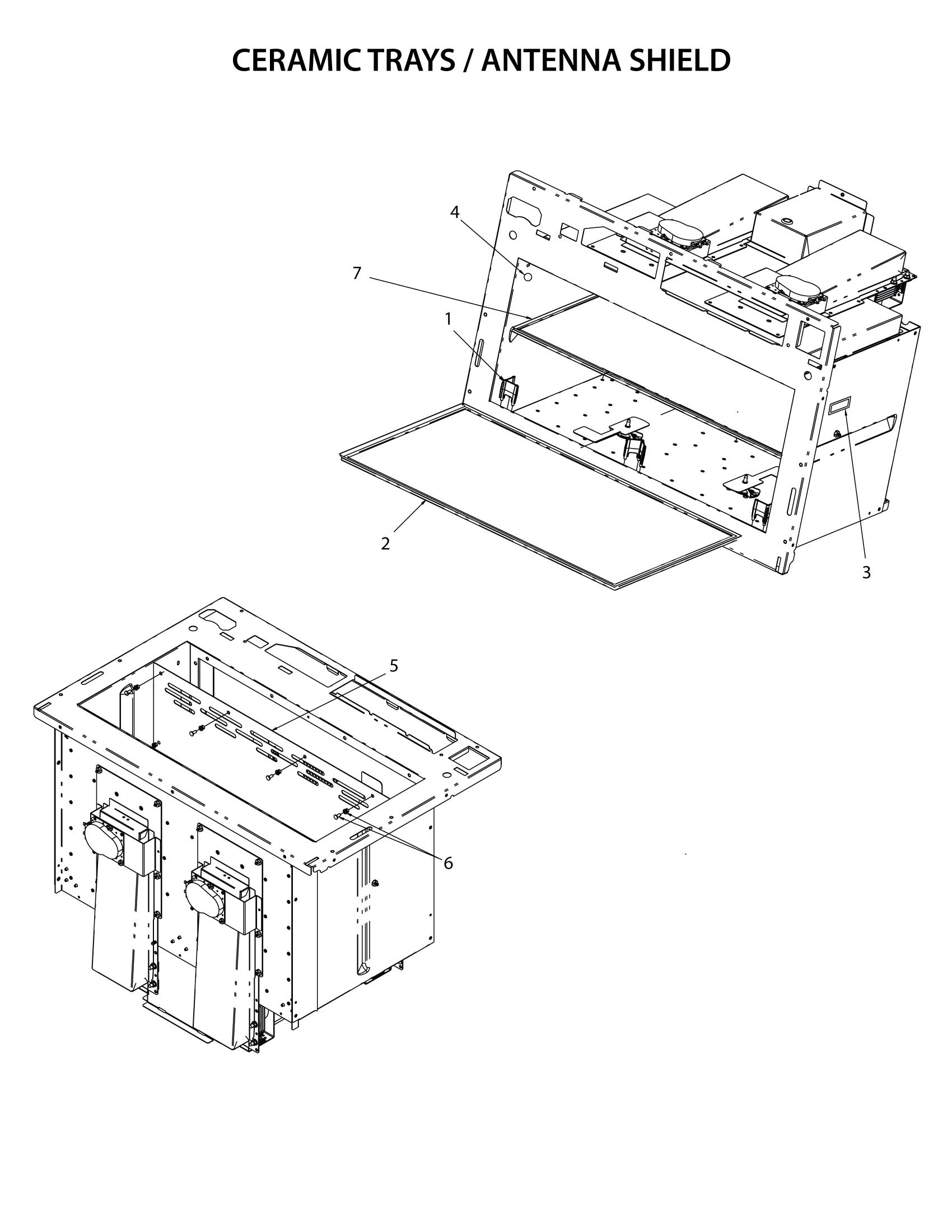

CERAMIC TRAYS / ANTENNA SHIELD

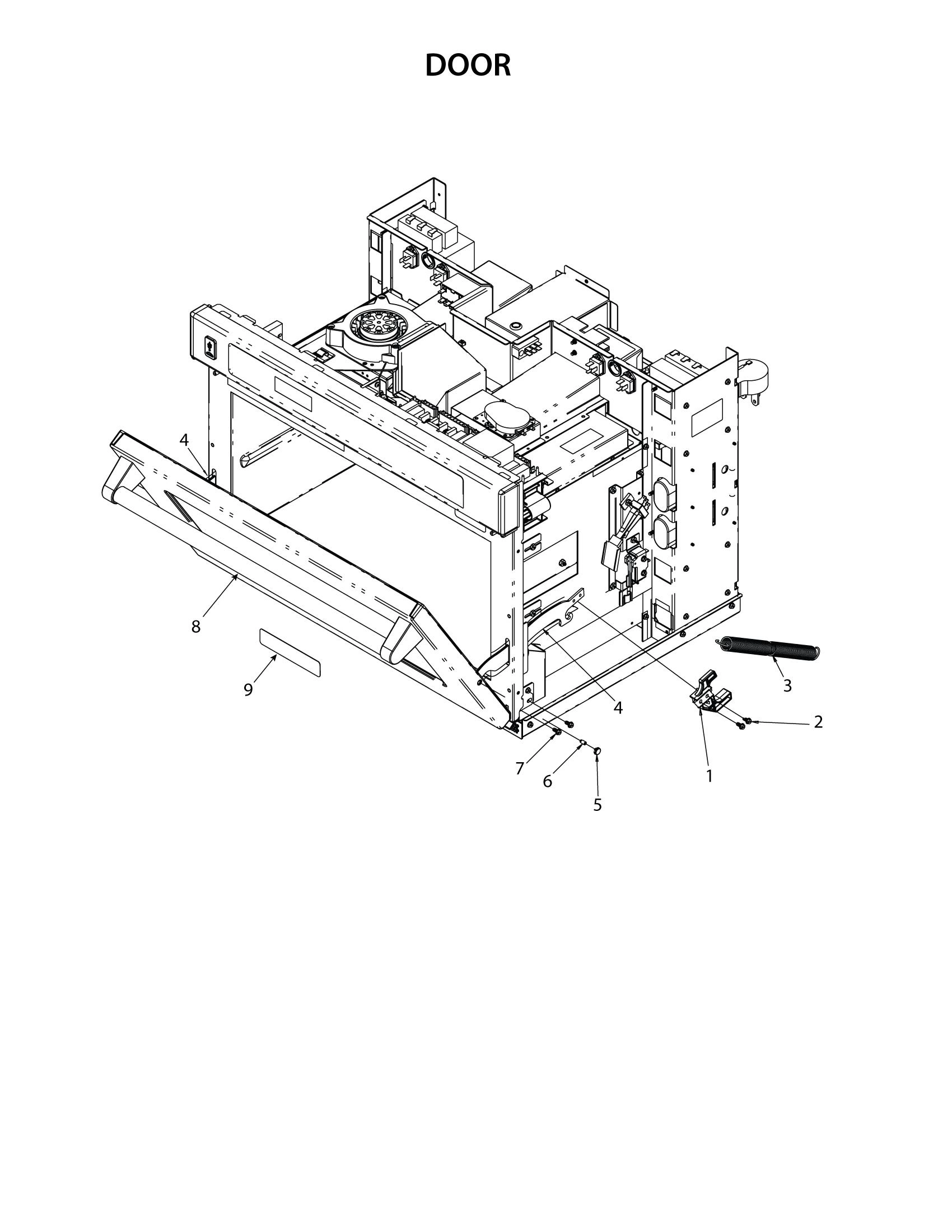

DOOR

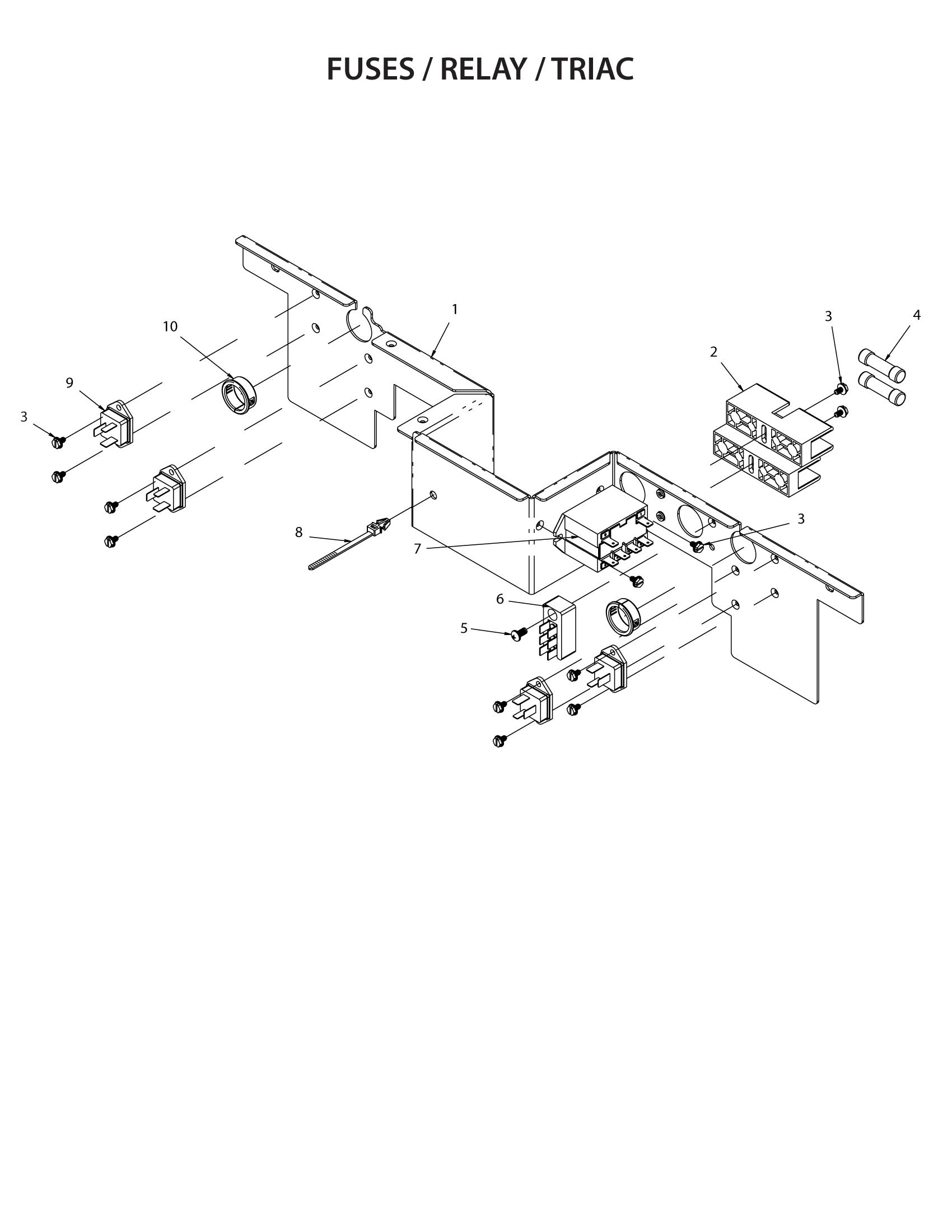

FUSES / RELAY / TRIACS

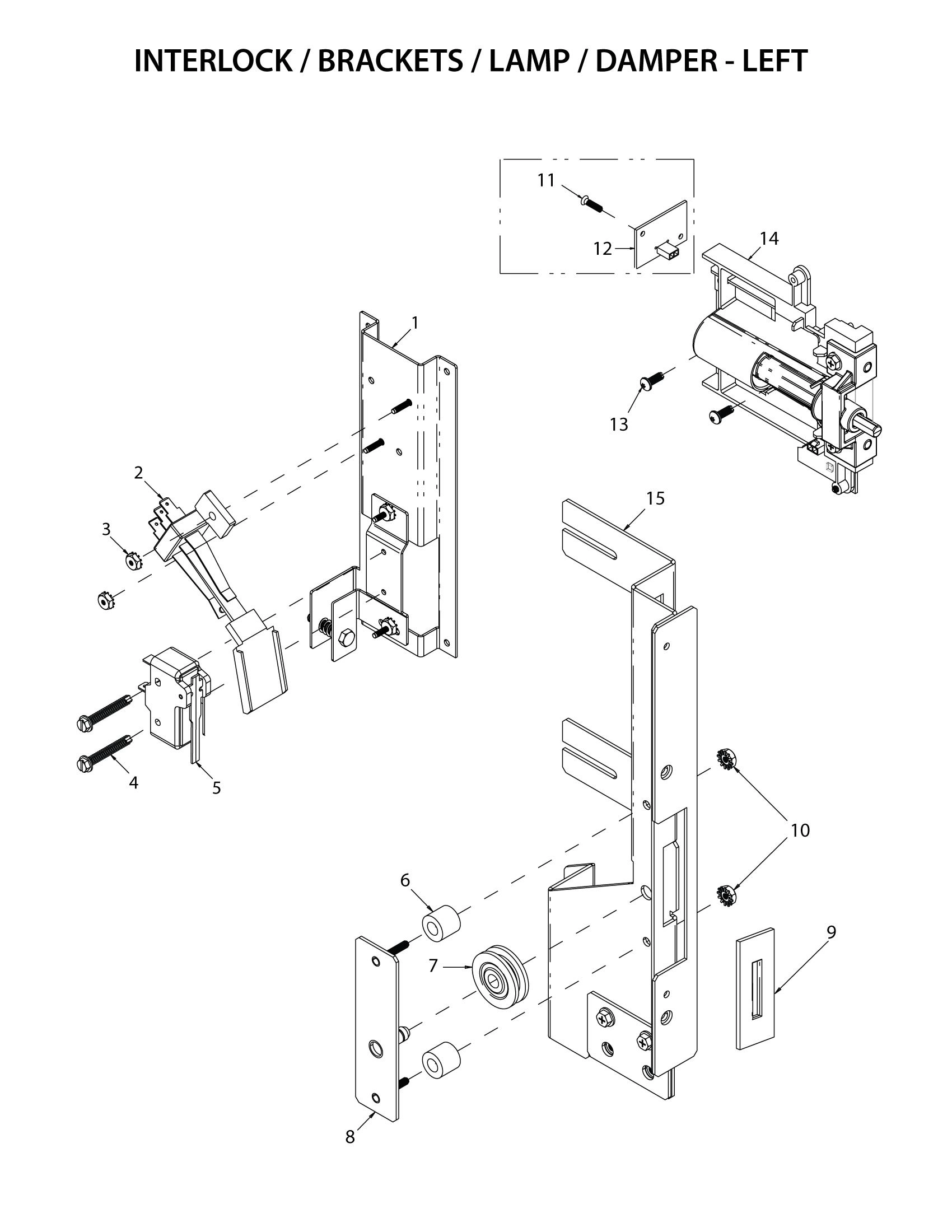

INTERLOCK / BRACKETS / LAMP / DAMPER - LEFT

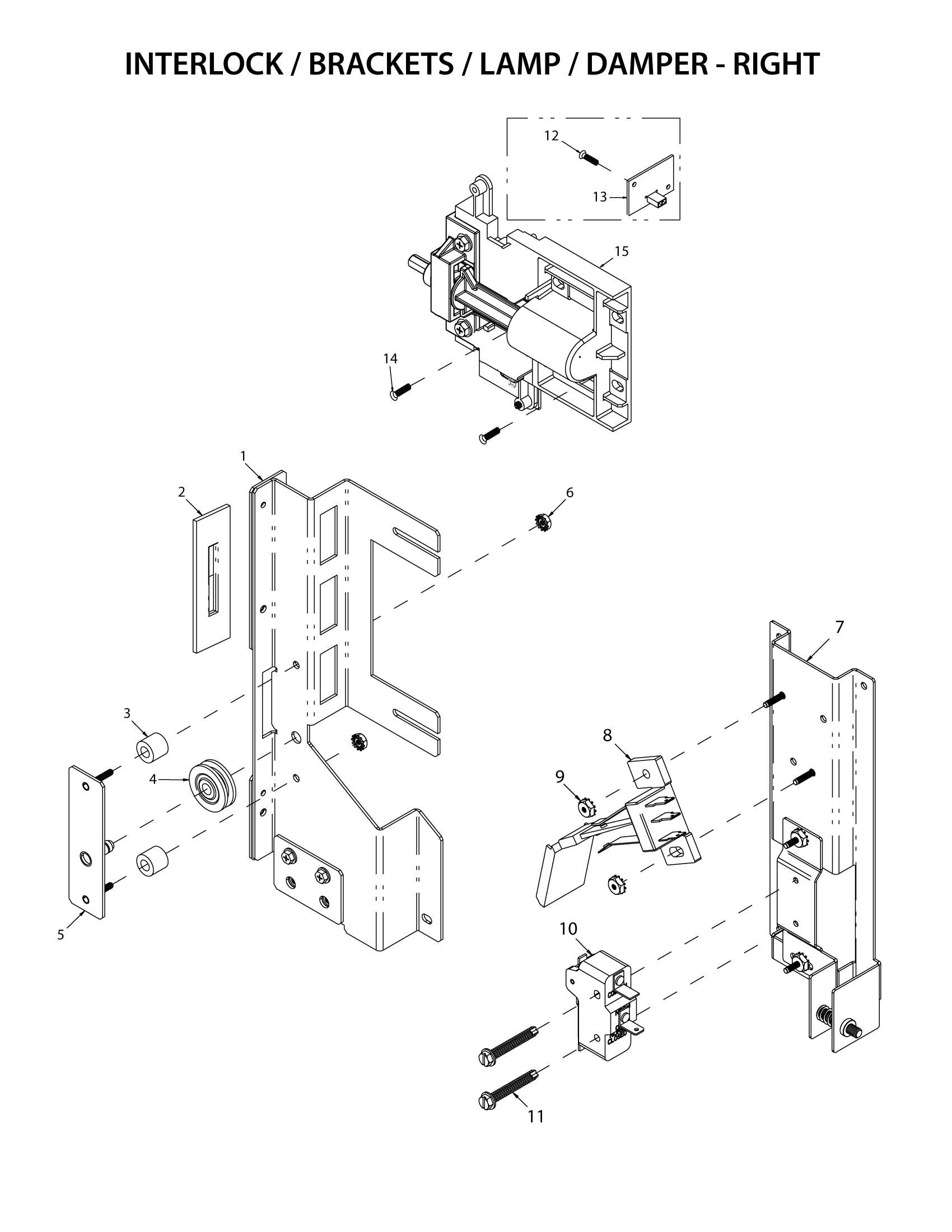

INTERLOCK / BRACKETS / LAMP / DAMPER - RIGHT

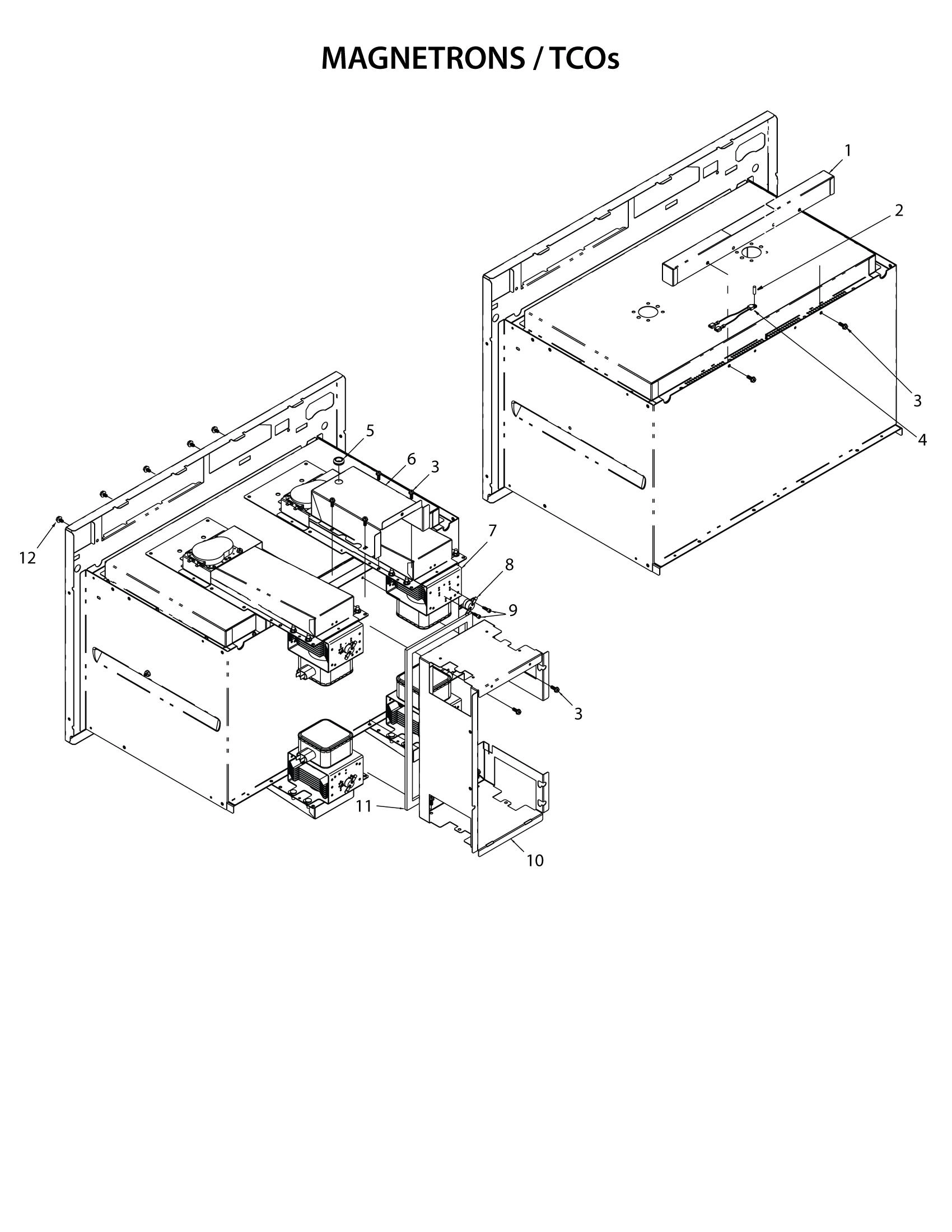

MAGNETRONS / TCOs

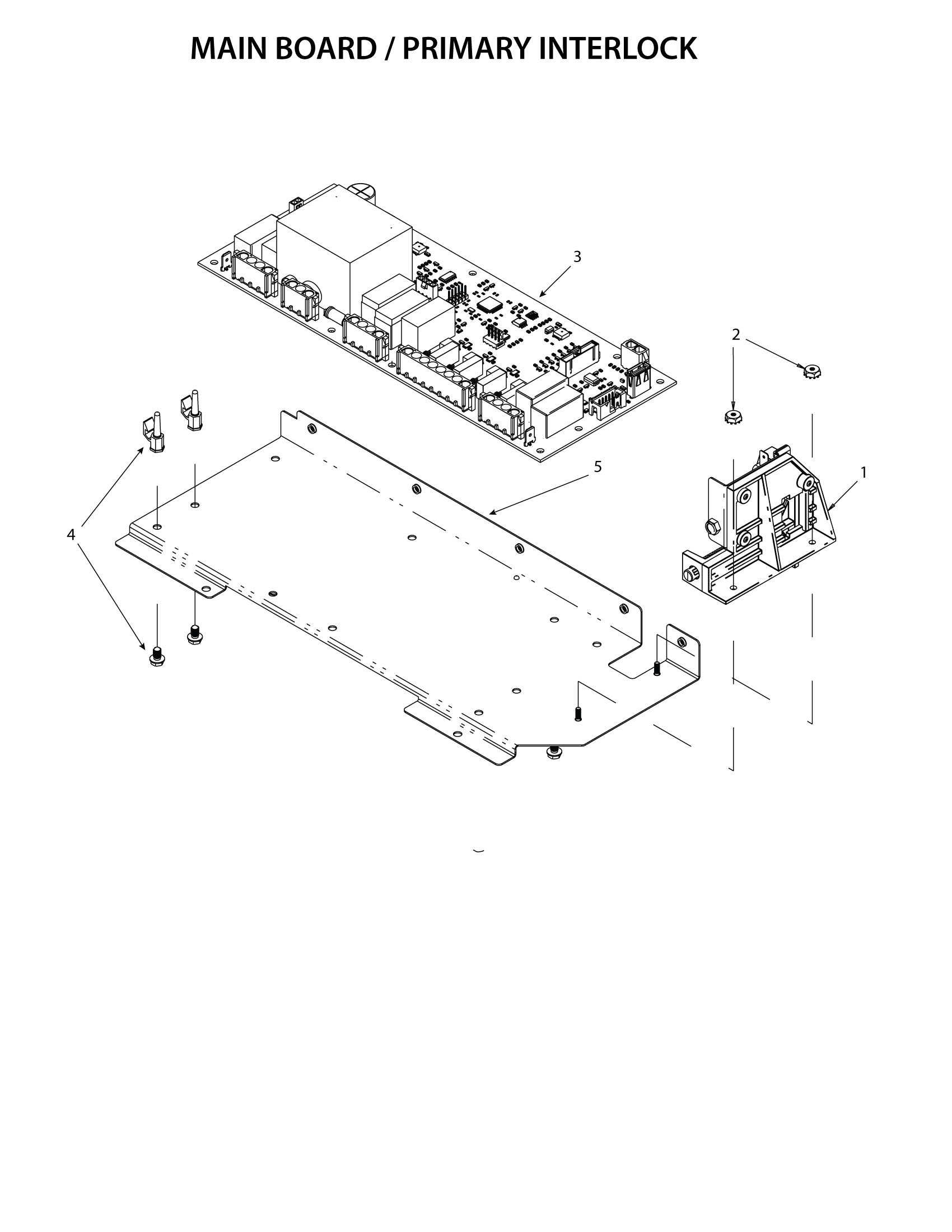

MAIN BOARD / PRIMARY INTERLOCK
SUPPLEMENTAL INFORMATION

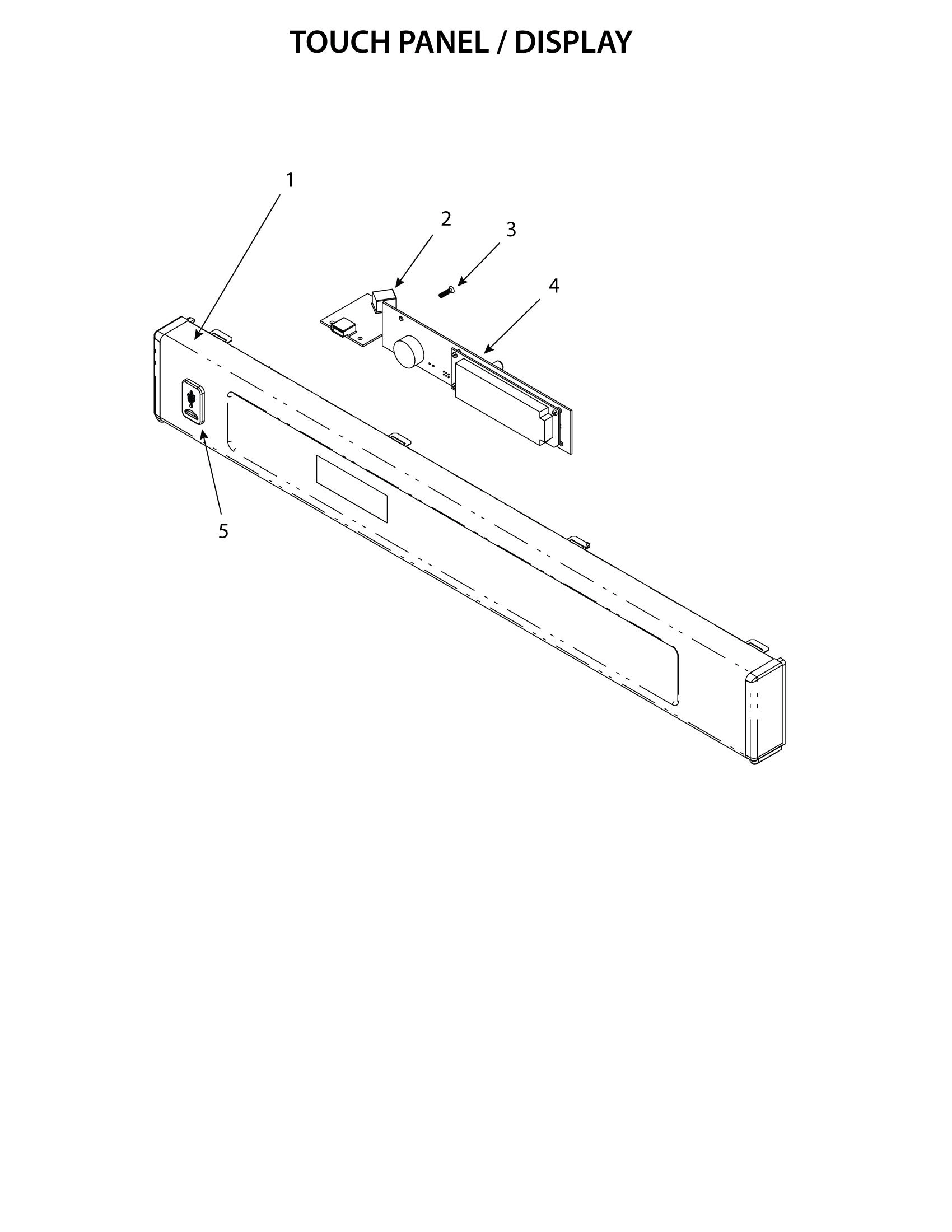

TOUCH PANEL / DISPLAY

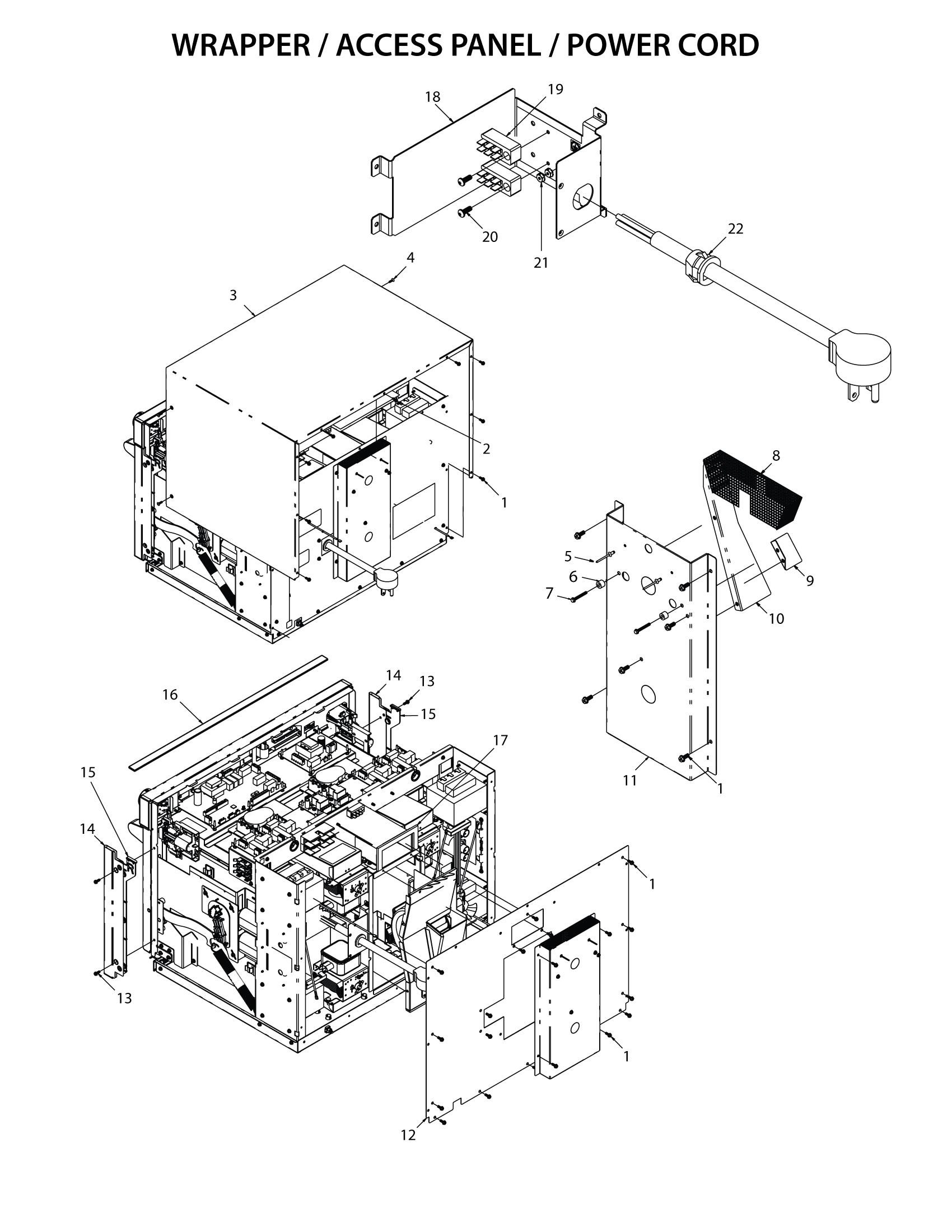

WRAPPER / ACCESS PANEL / POWER CORD
Common parts from model Accelerated Cooking Products AMSO35-P2009106M Amana Menumaster AMSO35
1
ACTUATOR-SWITCH ACP 20168301 Contact Us For Availability
1
BRKT-DIVIDER ACP 21032002 Contact Us For Availability
1
INTLK BRKT ASSY-LEFT ACP 59164495 Contact Us For Availability
1
PLENUM ACP 21027102 Contact Us For Availability
1
HARNESS, MAIN ACP 20309201 Contact Us For Availability
1
TOUCH PANEL ASSY- AMSO ACP 59224806 Contact Us For Availability
2
SCREW ACP 12876603 Contact Us For Availability
2
SEAL-DOOR ARM ACP 20148501 Contact Us For Availability
2
CAP-SCREW ACP M0308801 Contact Us For Availability
2
HARNESS-LV ACP 20303201 Contact Us For Availability
2
BOARD, USB- MSO ACP 59224809 Contact Us For Availability
3
COVER-DIAPHRAM ACP 10990601 Contact Us For Availability
3
SPRING-HINGE ACP 20142301 Contact Us For Availability
3
SPACER-.44 NYLON ACP 20020106 Contact Us For Availability
3
SCREW-SM/FLAT ACP 20021702 Contact Us For Availability
3
BOARD, MAIN CONTROL ACP 59224801 Contact Us For Availability
3
HARNESS-PC BOARD ACP 20168901 Contact Us For Availability
3
WRAPPER ACP 59144401 Contact Us For Availability
4
COVER-EXH BLOWER ACP 21079602 Contact Us For Availability
4
COVER-HOLE ACP 20151801 Contact Us For Availability
4
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
4
CABLE-USB,MSO ACP 20301201 Contact Us For Availability
4
SCREW-SM/OVAL ACP 20151701 Contact Us For Availability
5
PLUG-HOLE ACP 20147401 Contact Us For Availability
5
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
5
ROLLER BRKT ASSY ACP 20152701 Contact Us For Availability
5
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
5
PCB BRKT ASSY ACP 20168201 Contact Us For Availability
5
HEX KEY- 2mm ACP 59144402 Contact Us For Availability
5
COVER, USB ACP 59144391 Contact Us For Availability
6
DUCT-EXHAUST ACP 21025402 Contact Us For Availability
6
SEALANT-THREAD LOCK ACP M0910008 Contact Us For Availability
6
SPACER-.38 NYLON ACP 20020102 Contact Us For Availability
7
SCREW-MACH/HEX ACP 20163302 Contact Us For Availability
7
INTLK BRKT ASSY-RIGHT ACP 59164494 Contact Us For Availability
7
WIRE, JUMPER-RED (12 in / 30 cm) ACP 13017723 Contact Us For Availability
7
SCREW-SM/HEX RoHS ACP 12990512 Contact Us For Availability
8
CLIP-CORD ACP M0104106 Contact Us For Availability
8
WIRE, JUMPER- WHITE (18 in / 45 cm) ACP 13017725 Contact Us For Availability
8
SCREEN-EXH DUCT ACP 20152501 Contact Us For Availability
9
NAMEPLATE,AM ACP 20272708 Contact Us For Availability
9
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
9
CHANNEL-EXH DUCT ACP 21027302 Contact Us For Availability
10
BOX-BLOWER ACP 21025002 Contact Us For Availability
10
CHANNEL-EXH DUCT ACP 21027202 Contact Us For Availability
11
AIR DUCT-E CT ACP 21025303 Contact Us For Availability
12
BRKT-ANTI INTRUSION ACP 21024102 Contact Us For Availability
12
SCREW-TF/HEX ACP 12992309 Contact Us For Availability
12
ACCESS PANEL-E CT ACP 21031502 Contact Us For Availability
13
ACCESS-BOTTOM ACP 20172101 Contact Us For Availability
14
RAIL-SIDE ACP 21026802 Contact Us For Availability
15
SPACER-OC SIDE ACP 20145501 Contact Us For Availability
18
PWR CORD BRKT ASSY ACP 20150301 Contact Us For Availability
× ![]()
