Model LG AMNW24GNJA0.AWHBEMS – Common Parts & Diagrams

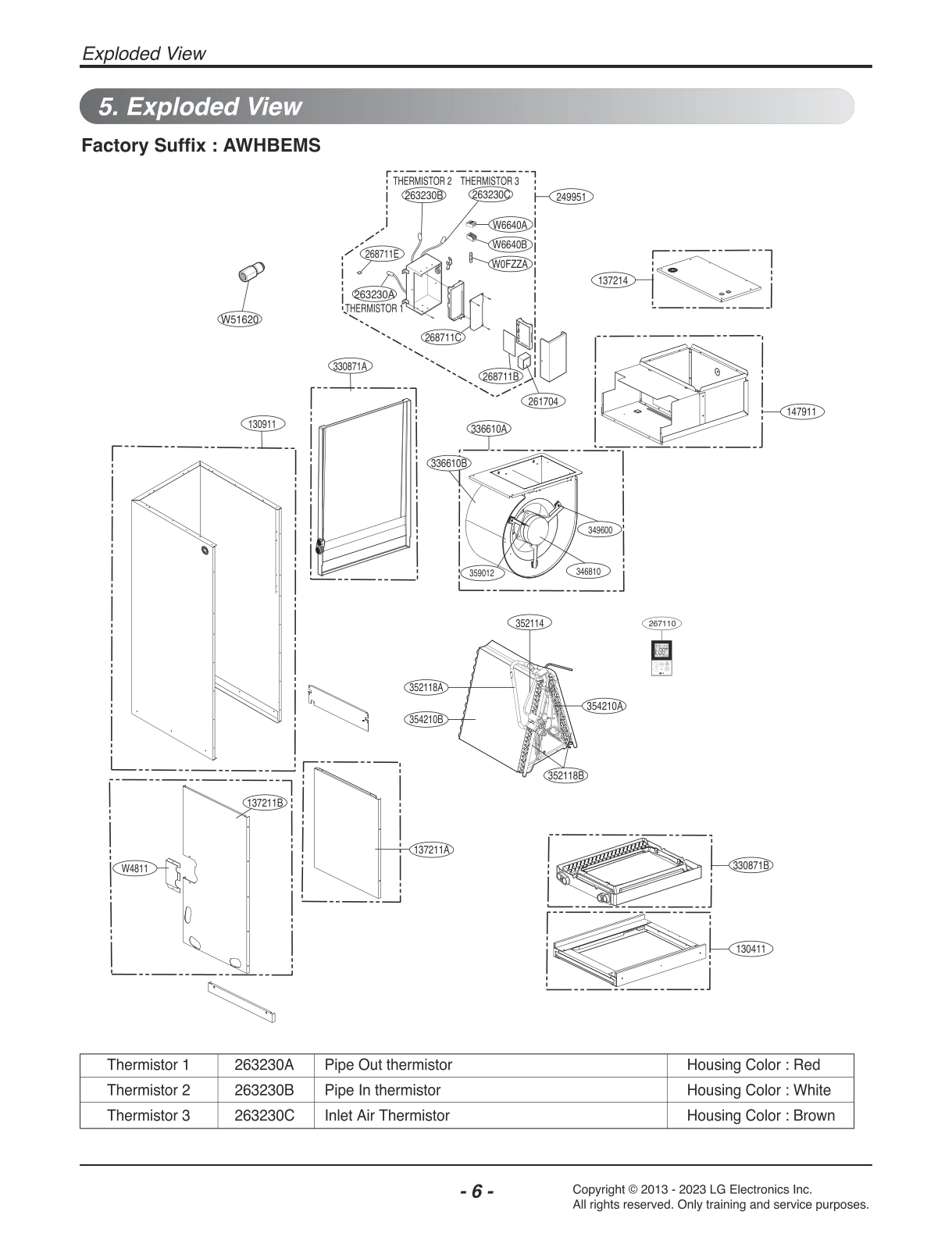

DIAGRAM 1
Common parts from model LG AMNW24GNJA0.AWHBEMS
130411
Base Assembly,Indoor LGE AAN73350803 Contact Us For Availability
130911
Cabinet Assembly,Indoor LGE ABJ73227107 Contact Us For Availability
137211A
Panel Assembly,Front(Indoor) LGE AGL73252604 Contact Us For Availability
137211B
Panel Assembly,Front(Indoor) LGE AGL73252701 Contact Us For Availability
137211B
Panel Assembly,Front(Indoor) LGE AGL73252704 Contact Us For Availability
137214
Panel Assembly,Upper LGE AGL73252801 Contact Us For Availability
147911
Barrier Assembly,Indoor LGE AAM73111202 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ59260719 Contact Us For Availability
261704
Transformer,Reactor LGE 5874FR2112F Contact Us For Availability
267110
Remote Controller Assembly LGE AKB72955816 Contact Us For Availability
268711C
PCB Assembly,Main LGE EBR66367419 Contact Us For Availability
268711E
PCB Assembly,Sub LGE EBR61161612 Contact Us For Availability
330871A
Pan Assembly,Drain LGE AGK73050502 Contact Us For Availability
330871B
Pan Assembly,Drain LGE AGK74530401 Contact Us For Availability
330871B
Pan Assembly,Drain LGE AGK73050601 Contact Us For Availability
336610A
Housing Assembly LGE AEN55797602 Contact Us For Availability
336610B
Housing Assembly LGE 3661AP1139L Contact Us For Availability
346810
Motor, DC Indoor LGE EAU50642902 Contact Us For Availability
352114
Tube Assembly,Distributor LGE AJR74266001 Contact Us For Availability
W4811
Bracket Assembly LGE ABA73488301 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG38884412 Contact Us For Availability
× ![]()
