Model LG AMNW12GTRA0.EWHBFRD – Common Parts & Diagrams

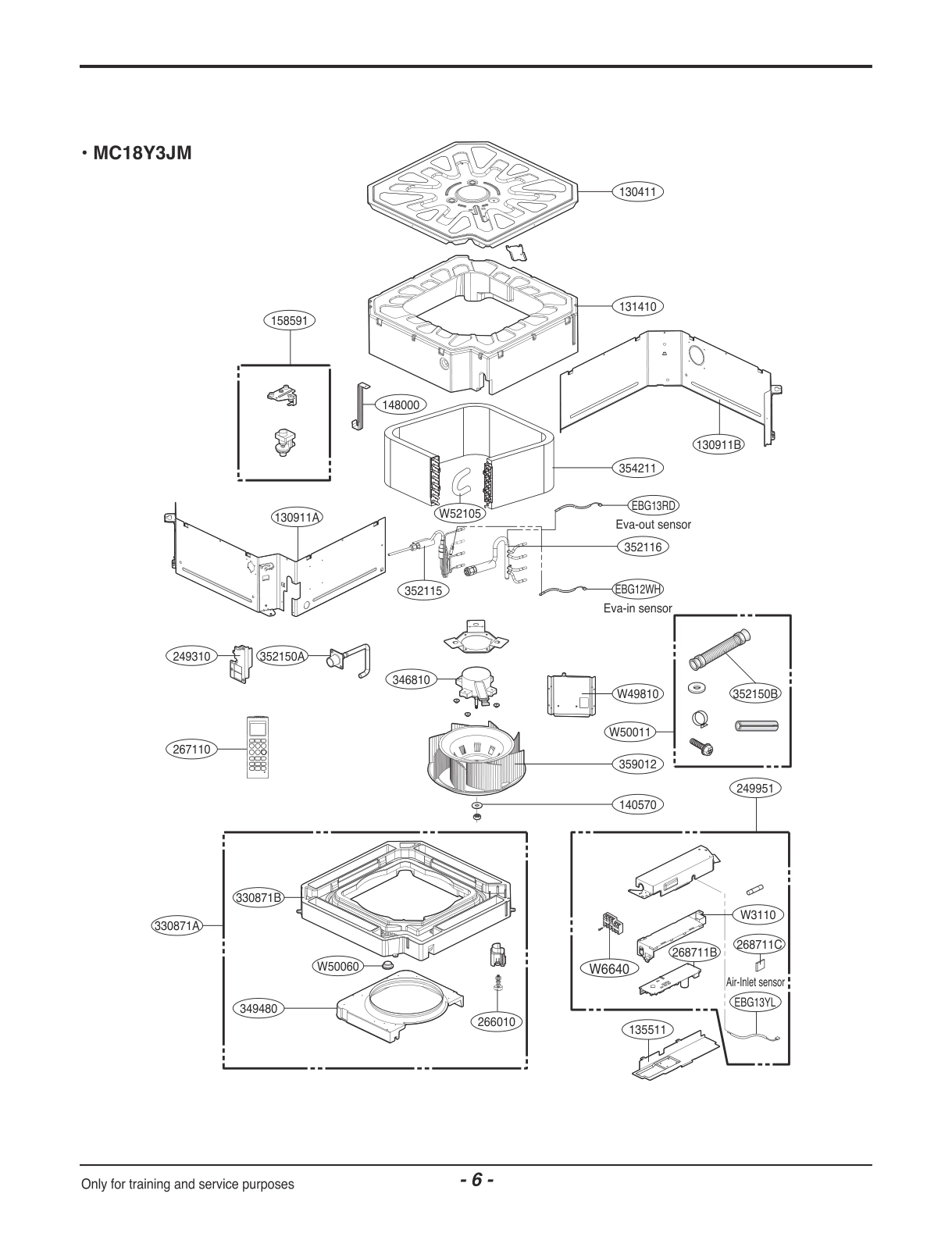

DIAGRAM 1
Common parts from model LG AMNW12GTRA0.EWHBFRD
130911A
Cabinet Assembly,Indoor LGE ABJ36864804 Contact Us For Availability
130911B
Cabinet Assembly,Indoor LGE ABJ36864904 Contact Us For Availability
131410
Cabinet Assembly LGE ABJ52692103 Contact Us For Availability
135511
Cover Assembly,Control(Indoor) LGE ACQ59999201 Contact Us For Availability
148000
Supporter LGE MJH62282301 Contact Us For Availability
249310
Holder Assembly LGE AEJ36877601 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ36680023 Contact Us For Availability
266010
Switch Assembly LGE 6601A20013T Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73757608 Contact Us For Availability
268711C
PCB Assembly,Sub LGE EBR44202623 Contact Us For Availability
330871A
Pan Assembly,Drain LGE AGK36759812 Contact Us For Availability
330871B
Pan Assembly,Drain LGE AGK73110501 Contact Us For Availability
349480
Orifice LGE MFX42382101 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR56006701 Contact Us For Availability
352116
Tube Assembly,Evaporator(Out) LGE AJR53980903 Contact Us For Availability
352150A
Hose Assembly,Drain LGE AEM36871901 Contact Us For Availability
354211
Evaporator Assembly,Bending LGE ADL55996002 Contact Us For Availability
359012
Fan,Turbo LGE MDG42451401 Contact Us For Availability
EBG12WH
Thermistor,NTC LGE 6323AQ3226F Contact Us For Availability
EBG12WH
Thermistor Assembly,NTC LGE EBG61106552 Contact Us For Availability
EBG13RD
Thermistor Assembly,NTC LGE EBG60661701 Contact Us For Availability
EBG13YL
Thermistor,NTC LGE 6323A10002E Contact Us For Availability
W3110
Case LGE MBN42288301 Contact Us For Availability
W6640
Connector,Terminal Block LGE EAG38884443 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ36865004 Contact Us For Availability
W50011
Accessory Assembly,Final(Indoor) LGE AAA56892903 Contact Us For Availability
W50060
Cap LGE MBL36236701 Contact Us For Availability
× ![]()
