Model Whirlpool AMC7159TAB0 CONVECTION MICROWAVE – Common Parts & Diagrams
02 - OVEN INTERIOR PARTS

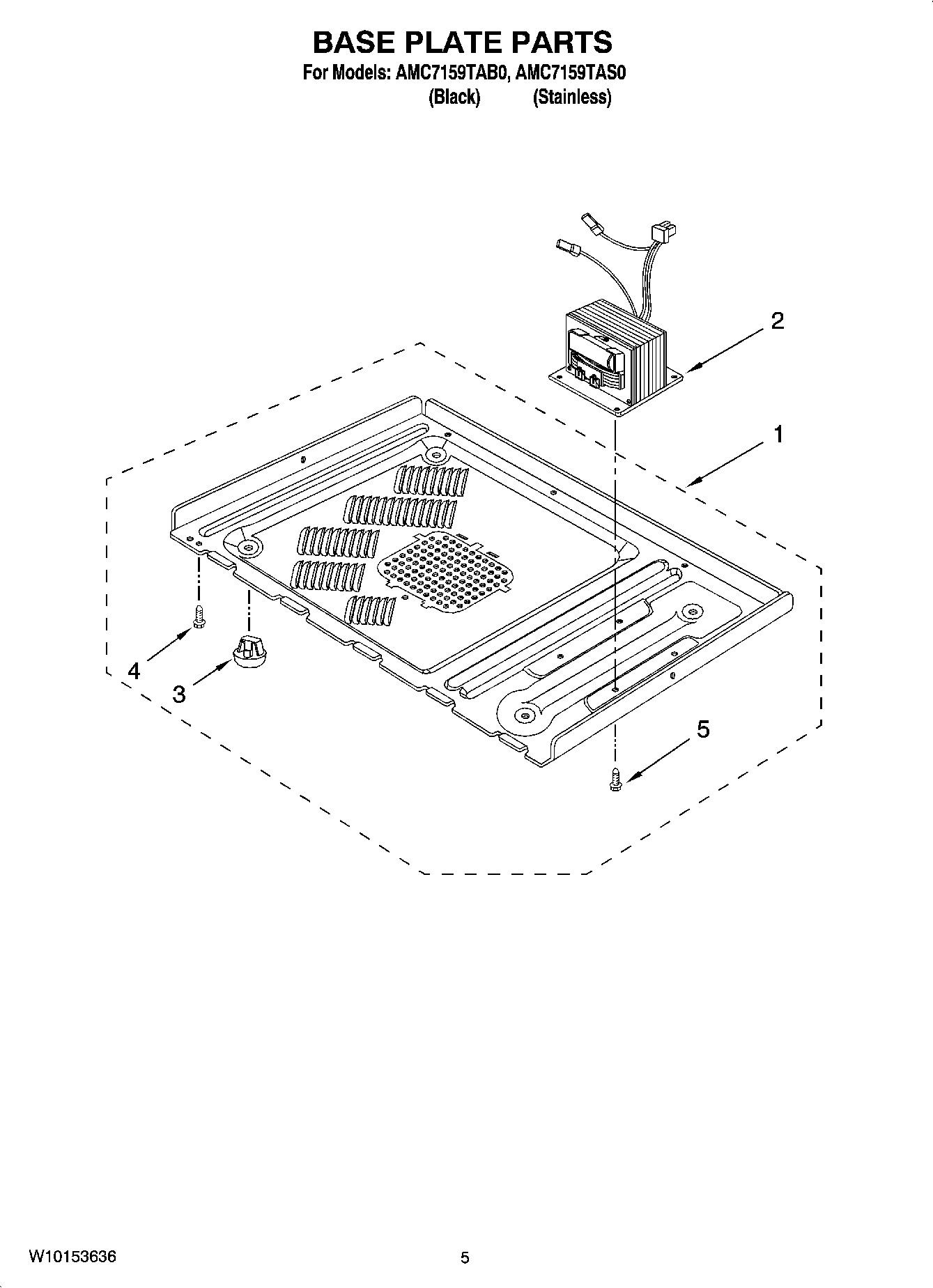

04 - BASE PLATE PARTS

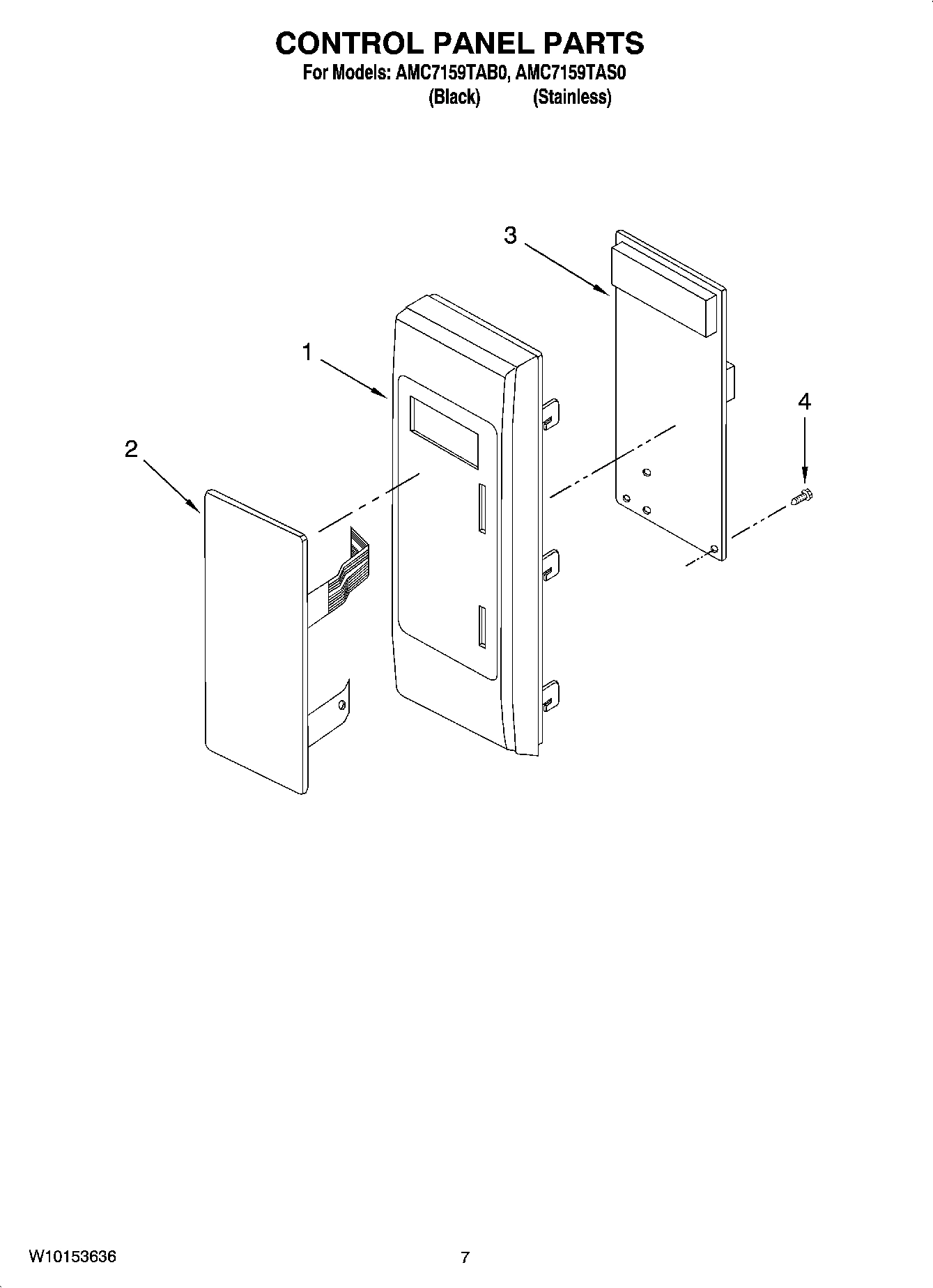

06 - CONTROL PANEL PARTS

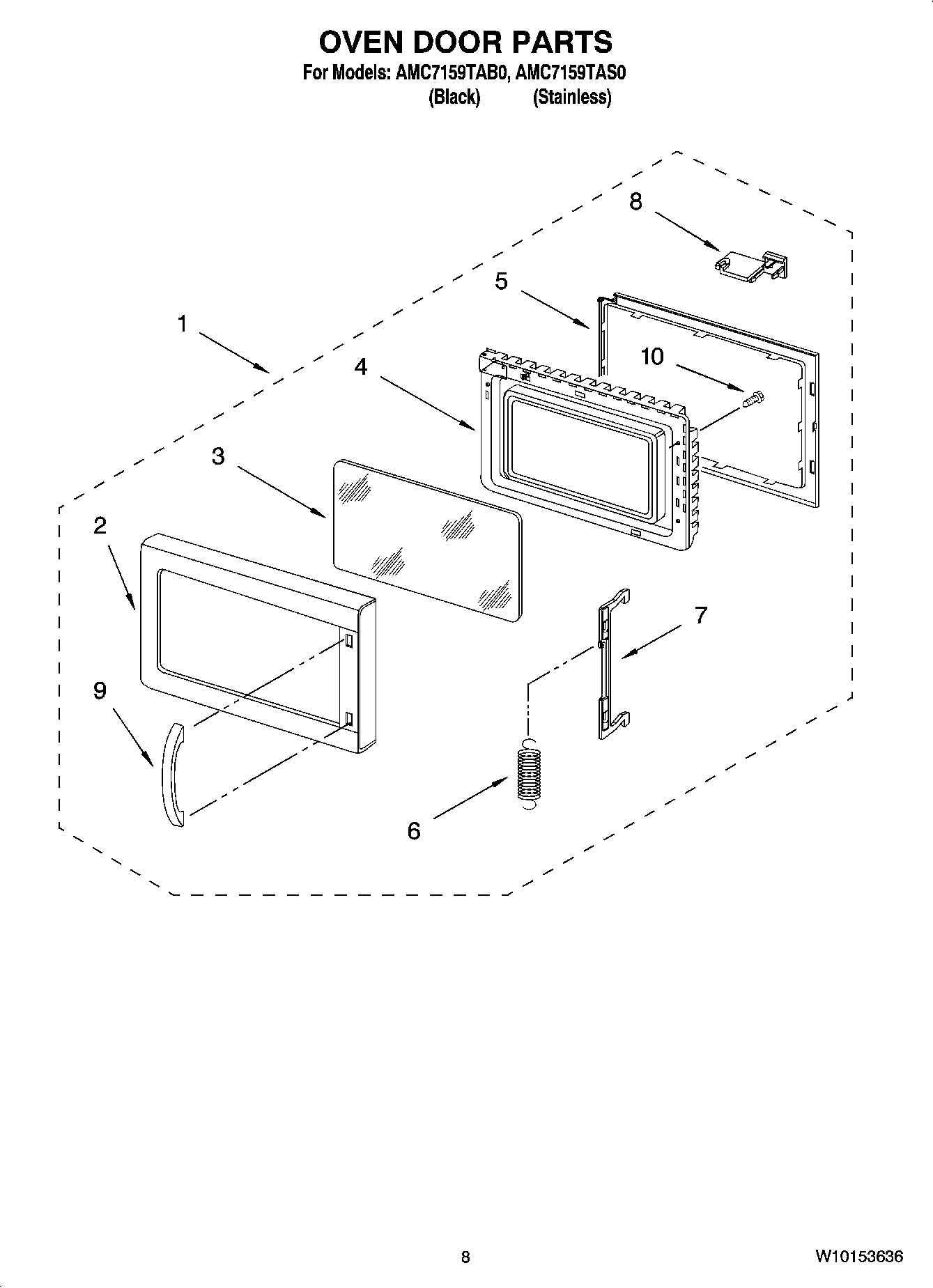

07 - OVEN DOOR PARTS

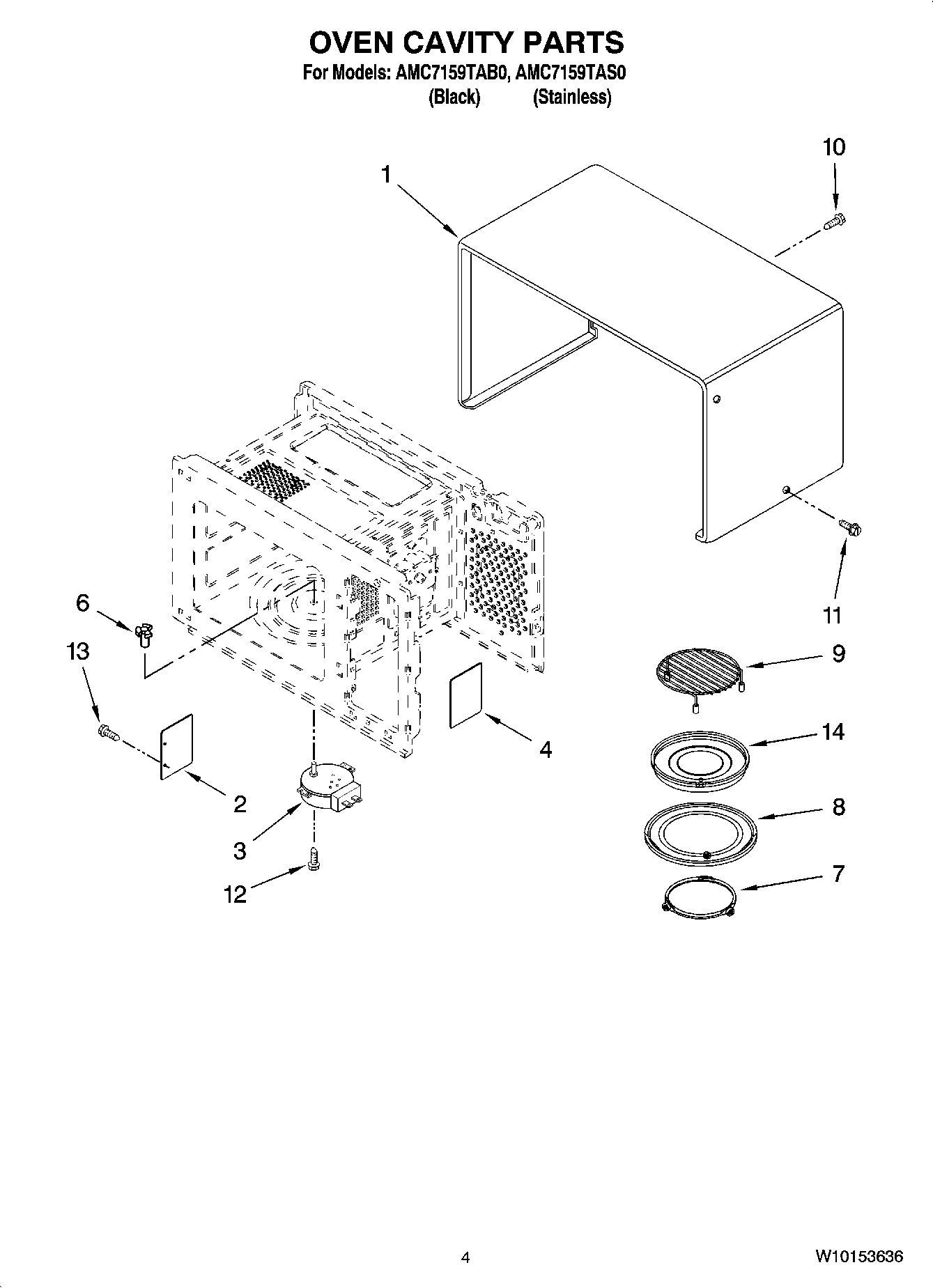

03 - OVEN CAVITY PARTS

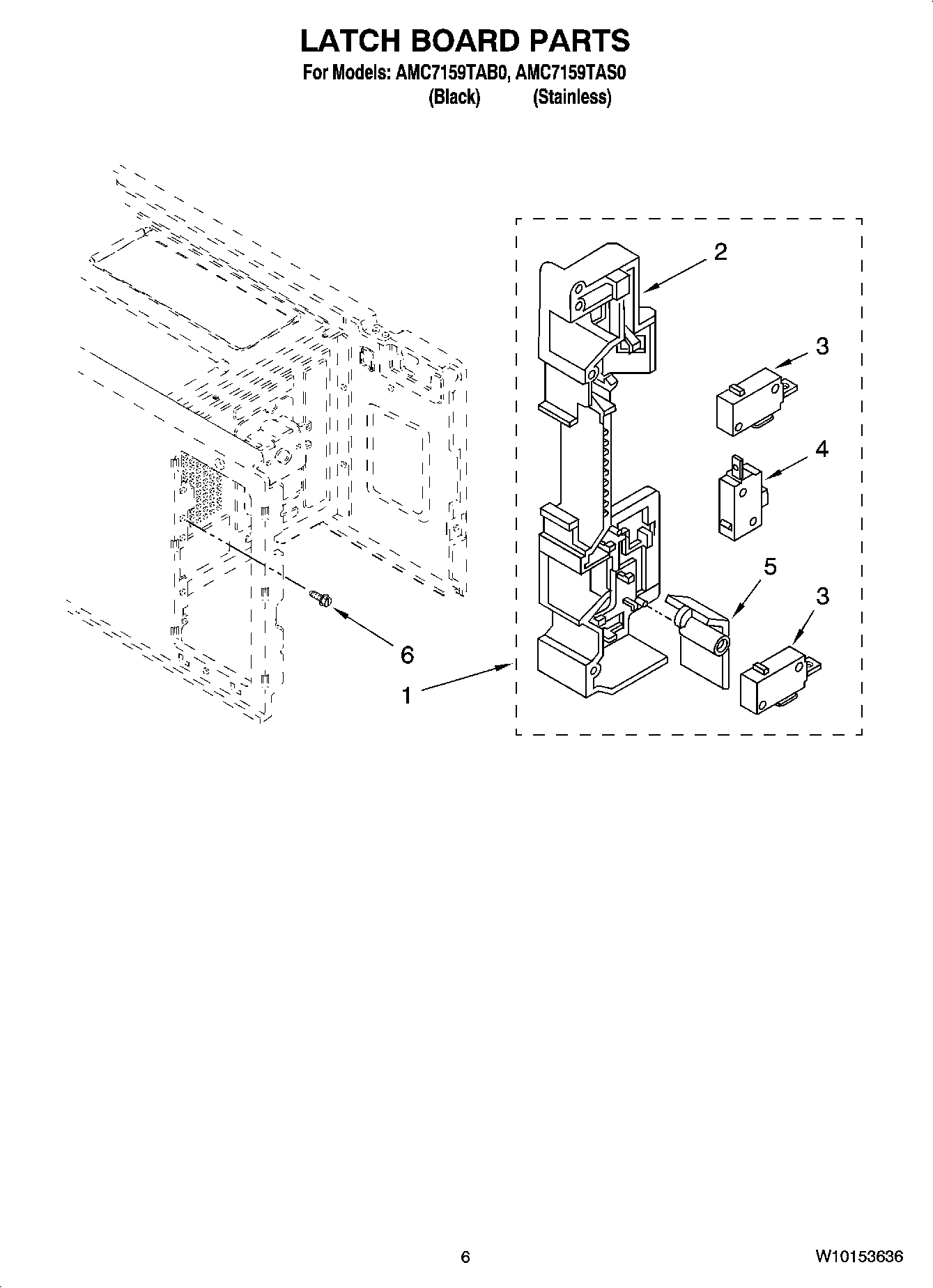

05 - LATCH BOARD PARTS

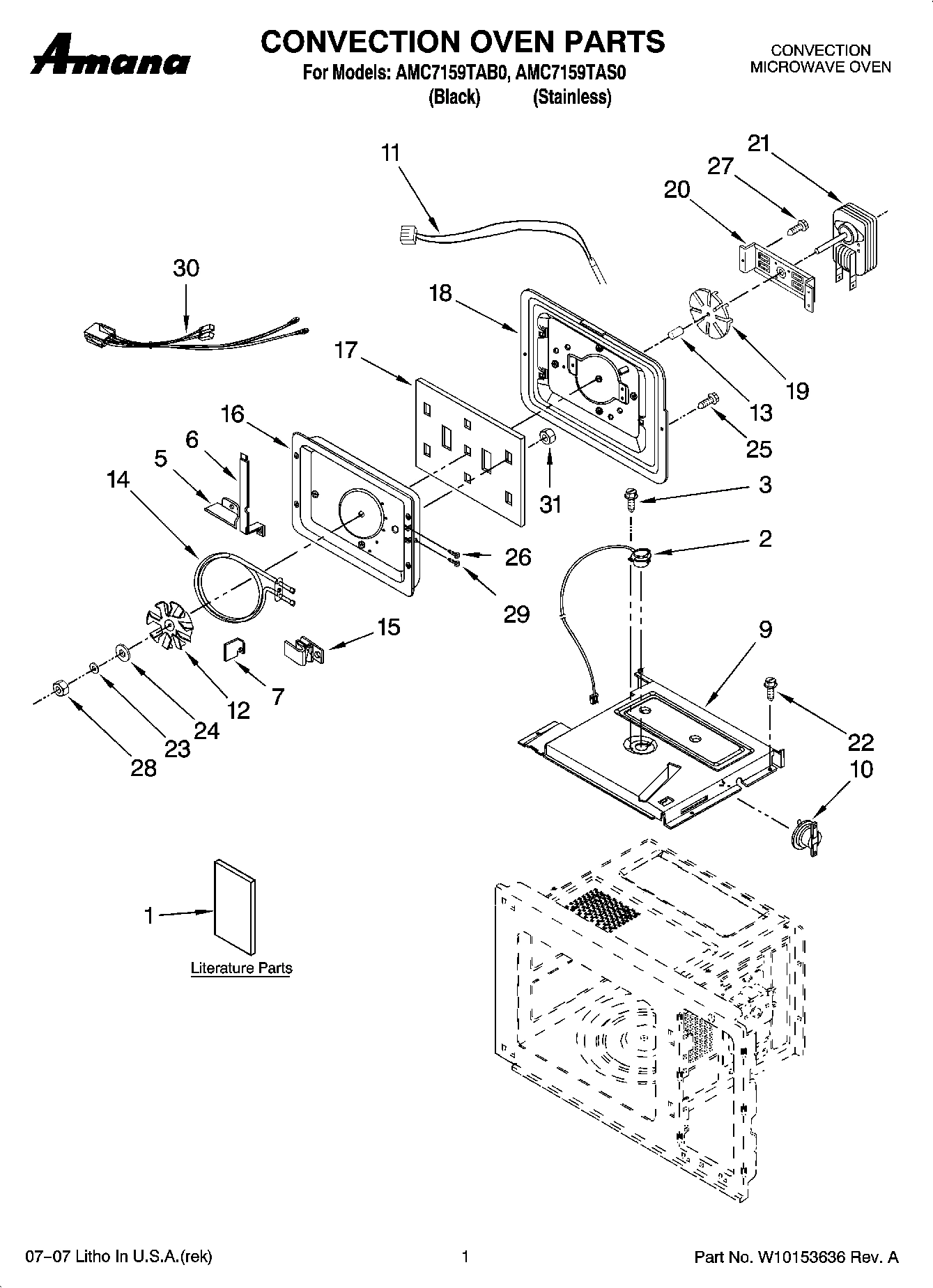

01 - CONVECTION OVEN PARTS
Common parts from model Whirlpool AMC7159TAB0 CONVECTION MICROWAVE
1
Plate, Base WPL 8183568 Contact Us For Availability
1
Control Panel (Black) WPL W10153229 Contact Us For Availability
1
Door Assembly (Black) WPL W10153223 Contact Us For Availability
1
Door Assembly (Stainless) WPL W10153237 Contact Us For Availability
1
Outer Case (Black) WPL W10153233 Contact Us For Availability
1
Cooking Guide (English) WPL W10134321 Contact Us For Availability
1
Tech Sheet WPL W10134324 Contact Us For Availability
1
U & C Guide WPL W10134751 Contact Us For Availability
1
Service Manual WPL W10153569 Contact Us For Availability
2
Transformer WPL 8172082 Contact Us For Availability
2
Membrane (Black) WPL W10153227 Contact Us For Availability
2
Panel, Door (Black) WPL W10153195 Contact Us For Availability
2
Panel, Door (Stainless) WPL W10153239 Contact Us For Availability
2
Canopy WPL 8183557 Contact Us For Availability
2
Latch Board WPL 8183558 Contact Us For Availability
2
Sensor WPL 8171878 Contact Us For Availability
3
Cap WPL 8171902 Contact Us For Availability
3
Microcomputer WPL W10153231 Contact Us For Availability
3
Glass WPL W10153224 Contact Us For Availability
3
Motor, Turntable WPL 8183554 Contact Us For Availability
3
Screw WPL 4358450 Contact Us For Availability
4
Screw WPL 4358451 Contact Us For Availability
4
Frame, Door WPL 8183543 Contact Us For Availability
4
Glass, Lamp WPL 8183559 Contact Us For Availability
5
Membrane/Panel (Stnls. Mdl.Only) WPL W10153243 Contact Us For Availability
5
Choke Cover WPL 8183544 Contact Us For Availability
5
Lever, Switch WPL 4358795 Contact Us For Availability
5
Bracket, Center WPL 8183575 Contact Us For Availability
6
Shaft, Turntable WPL 8171863 Contact Us For Availability
6
Screw WPL 4358271 Contact Us For Availability
6
Spring WPL 8183882 Contact Us For Availability
6
Bracket, Left WPL 8183574 Contact Us For Availability
7
Latch WPL 8171850 Contact Us For Availability
7
Ring Assembly WPL 8183560 Contact Us For Availability
7
Bracket, Lower WPL 8183576 Contact Us For Availability
8
Screw WPL 4358381 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
9
Handle (Black) WPL W10153225 Contact Us For Availability
9
Handle (Stainless) WPL W10153238 Contact Us For Availability
9
Rack WPL 8172251 Contact Us For Availability
9
Insulator WPL W10153234 Contact Us For Availability
10
Screw WPL W10153236 Contact Us For Availability
10
Thermostat WPL 8183694 Contact Us For Availability
11
Screw WPL 4358829 Contact Us For Availability
11
Thermistor WPL 8183583 Contact Us For Availability
12
Screw WPL 4358188 Contact Us For Availability
12
Fan WPL 8183582 Contact Us For Availability
13
Power Cord WPL 8183584 Contact Us For Availability
13
Bushing WPL 4358460 Contact Us For Availability
14
Pan, Drip WPL 8172250 Contact Us For Availability
14
Cover, Back WPL 8183569 Contact Us For Availability
14
Convection Element WPL 8183581 Contact Us For Availability
15
Clip, Conv Element WPL 8183577 Contact Us For Availability
16
Guide, Suction WPL 8183579 Contact Us For Availability
16
Duct, Magnetron WPL 8183567 Contact Us For Availability
17
Insulation WPL W10153235 Contact Us For Availability
18
Motor, Fan WPL 8183585 Contact Us For Availability
18
Shield, Back Insul WPL 8183566 Contact Us For Availability
19
Fan Blade WPL 4358466 Contact Us For Availability
20
Bracket, H.V.C. WPL 4359161 Contact Us For Availability
20
Bracket, Convection Motor WPL 4358467 Contact Us For Availability
21
Fan WPL 4358379 Contact Us For Availability
21
Convection Motor WPL 8183565 Contact Us For Availability
22
Screw WPL 4358192 Contact Us For Availability
24
Screw WPL 8184815 Contact Us For Availability
24
Washer WPL 4358478 Contact Us For Availability
25
Screw WPL 4359792 Contact Us For Availability
26
Screw WPL 8183572 Contact Us For Availability
27
Screw WPL 4358380 Contact Us For Availability
27
Screw WPL 4358357 Contact Us For Availability
28
Harness, Main WPL 8206266 Contact Us For Availability
28
Nut WPL 4358476 Contact Us For Availability
29
Screw WPL 8171862 Contact Us For Availability
30
Harness, Wire WPL 8183591 Contact Us For Availability
31
Nut WPL 4358475 Contact Us For Availability
× ![]()
