Model Maytag AMC5143AAQ MICROWAVE – Common Parts & Diagrams
01 - BODY/CAVITY
02 - CONTROL PANEL/DOOR ASSEMBLY

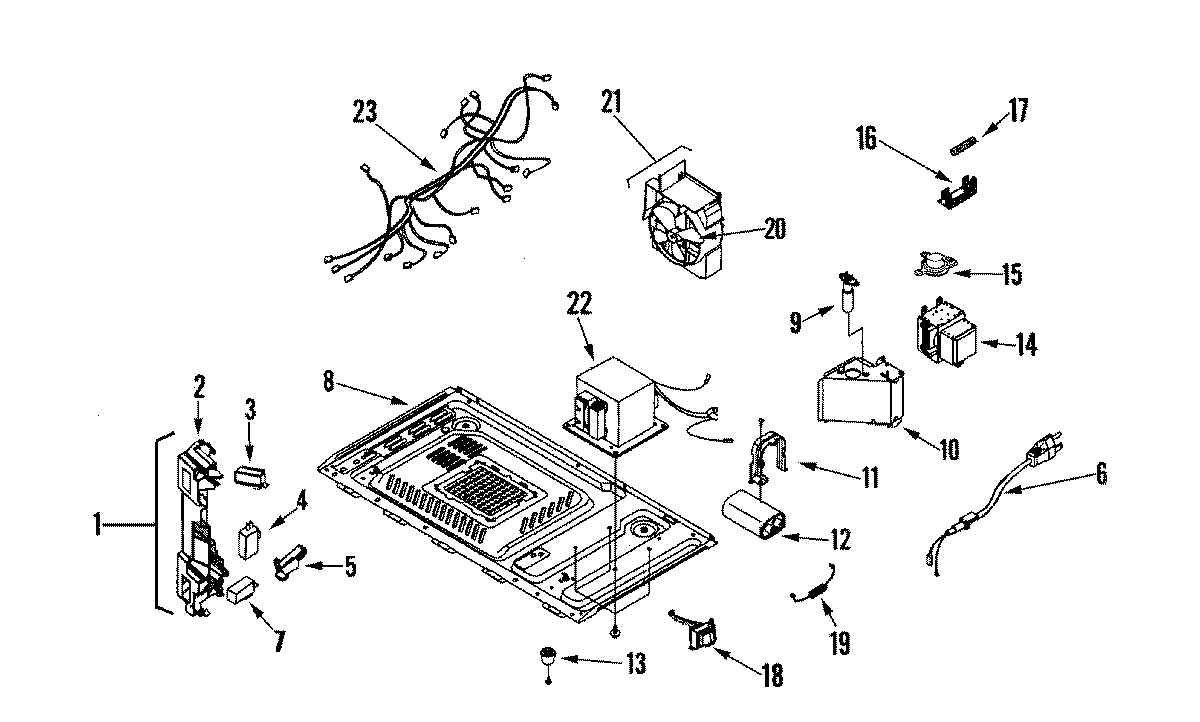

03 - INTERNAL CONTROLS/LATCH ASY./BASE
04 - SUPPLEMENTAL INFORMATION
Common parts from model Maytag AMC5143AAQ MICROWAVE
1
MAY W10127140 MAY W10127140 Contact Us For Availability
1
MAY DE96-00115Q MAY DE96-00115Q Contact Us For Availability
1
MAY W10177950 MAY W10177950 Contact Us For Availability
2
MAY DE72-00138A MAY DE72-00138A Contact Us For Availability
2
SPRING-BUTTON MAY DE61-70026A Contact Us For Availability
3
PANEL, CONTROL (BSQ) MAY DE94-00444D Contact Us For Availability
3
MAY 3405-001055 MAY 3405-001055 Contact Us For Availability
4
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
4
LEVER-DOOR MAY DE66-90113A Contact Us For Availability
4
DOOR ASSEMBLY (BSQ) MAY DE94-00443M Contact Us For Availability
5
BUTTON, PUSH (BSQ) MAY DE67-00087E Contact Us For Availability
5
MAY DE66-00088A MAY DE66-00088A Contact Us For Availability
5
LATCH-STOPPER MAY DE66-00117A Contact Us For Availability
6
MOTOR-DRIVE MAY DE31-10154A Contact Us For Availability
6
MAY DE39-00040B MAY DE39-00040B Contact Us For Availability
7
MAY 3405-001042 MAY 3405-001042 Contact Us For Availability
8
MAY DE80-10002M MAY DE80-10002M Contact Us For Availability
9
MAY DE47-20016A MAY DE47-20016A Contact Us For Availability
10
MAY DE71-60458A MAY DE71-60458A Contact Us For Availability
11
MAY DE61-50106A MAY DE61-50106A Contact Us For Availability
12
MAY DE61-90111A MAY DE61-90111A Contact Us For Availability
13
FOOT MAY DE61-40066A Contact Us For Availability
16
MAY 3602-001025 MAY 3602-001025 Contact Us For Availability
18
MAY DE26-20151A MAY DE26-20151A Contact Us For Availability
19
MAY DE91-70063A MAY DE91-70063A Contact Us For Availability
20
BLADE, FAN MAY DE31-90051A Contact Us For Availability
21
MAY DE31-00001G MAY DE31-00001G Contact Us For Availability
23
HARNESS, WIRE MAY DE96-00392A Contact Us For Availability
× ![]()
