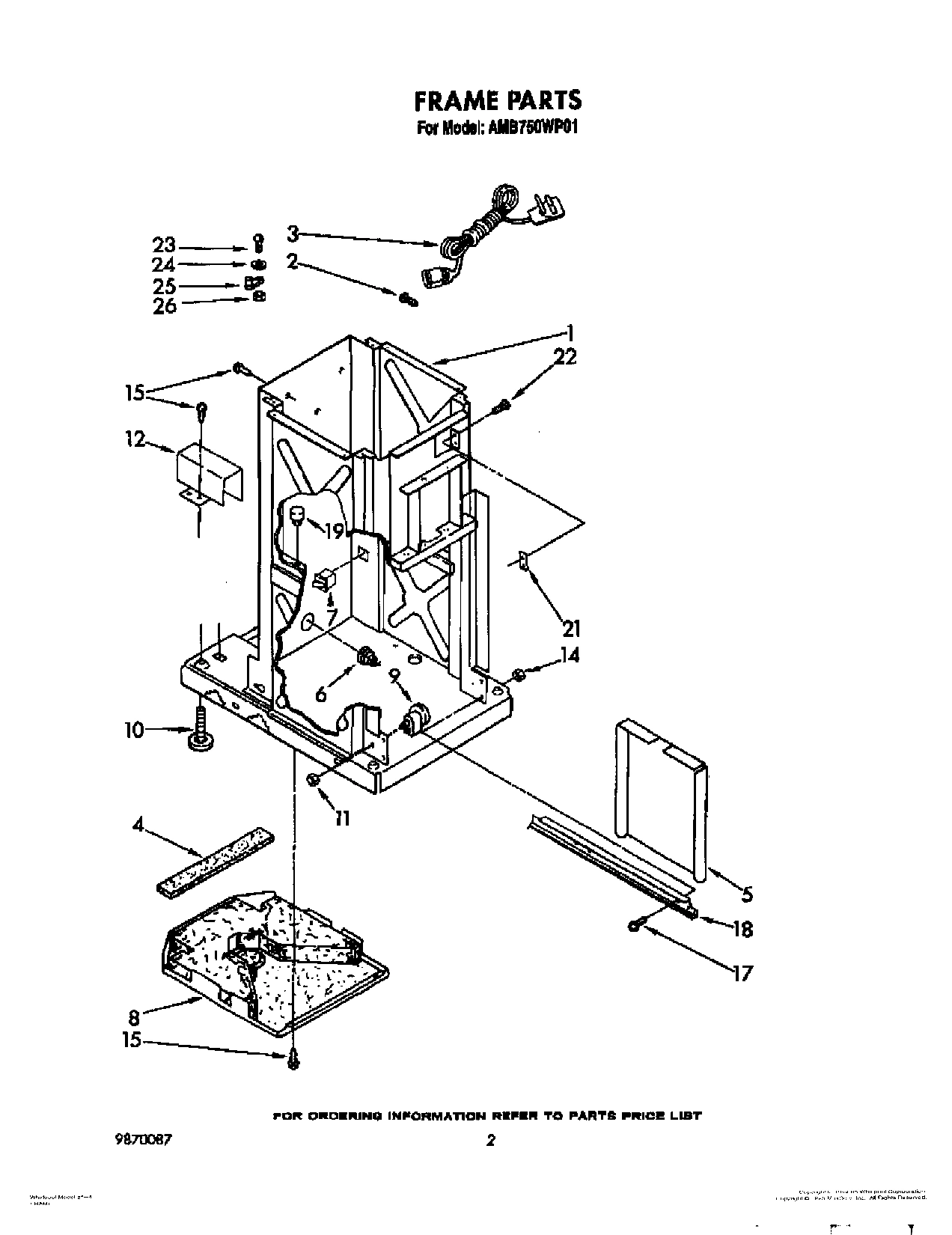

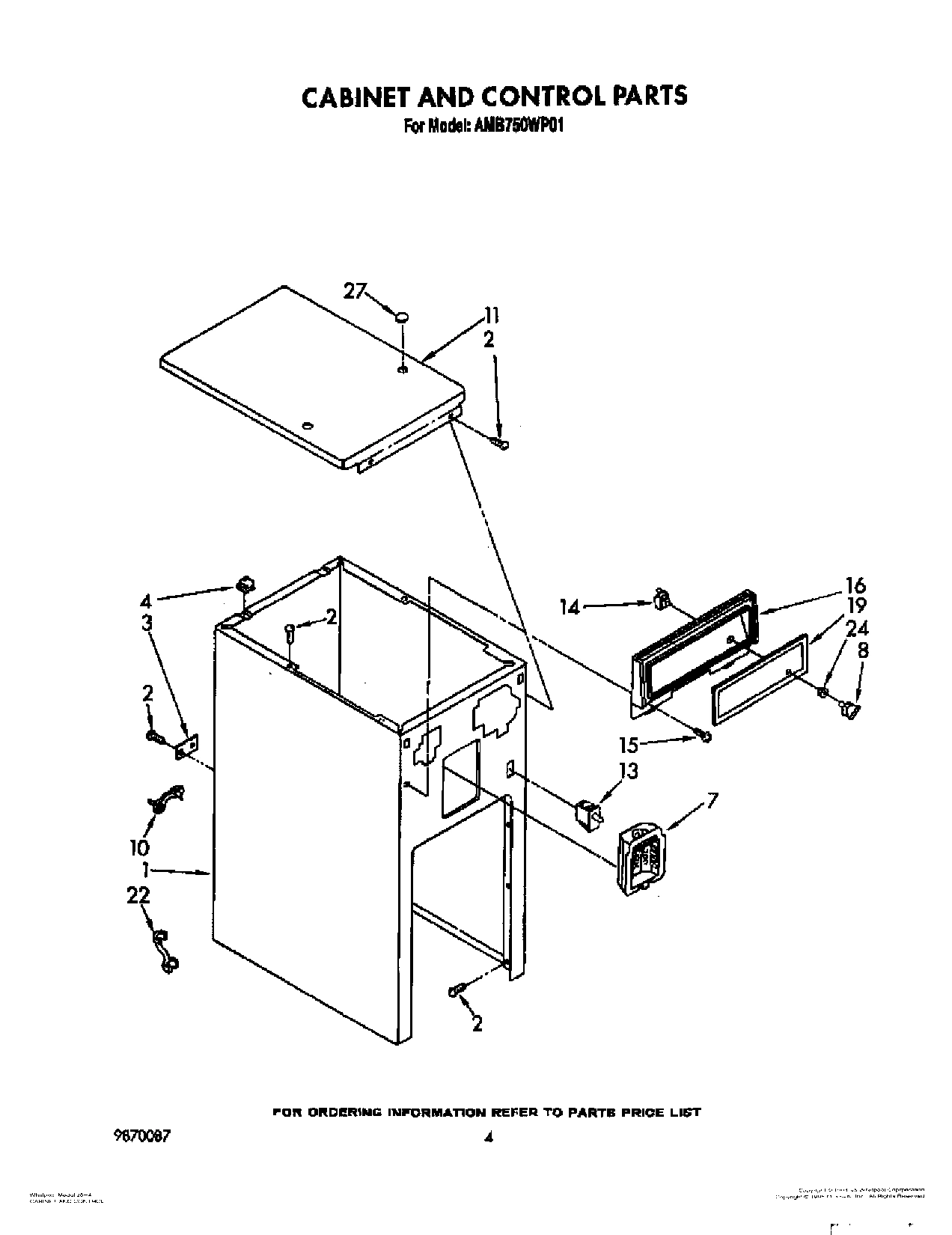

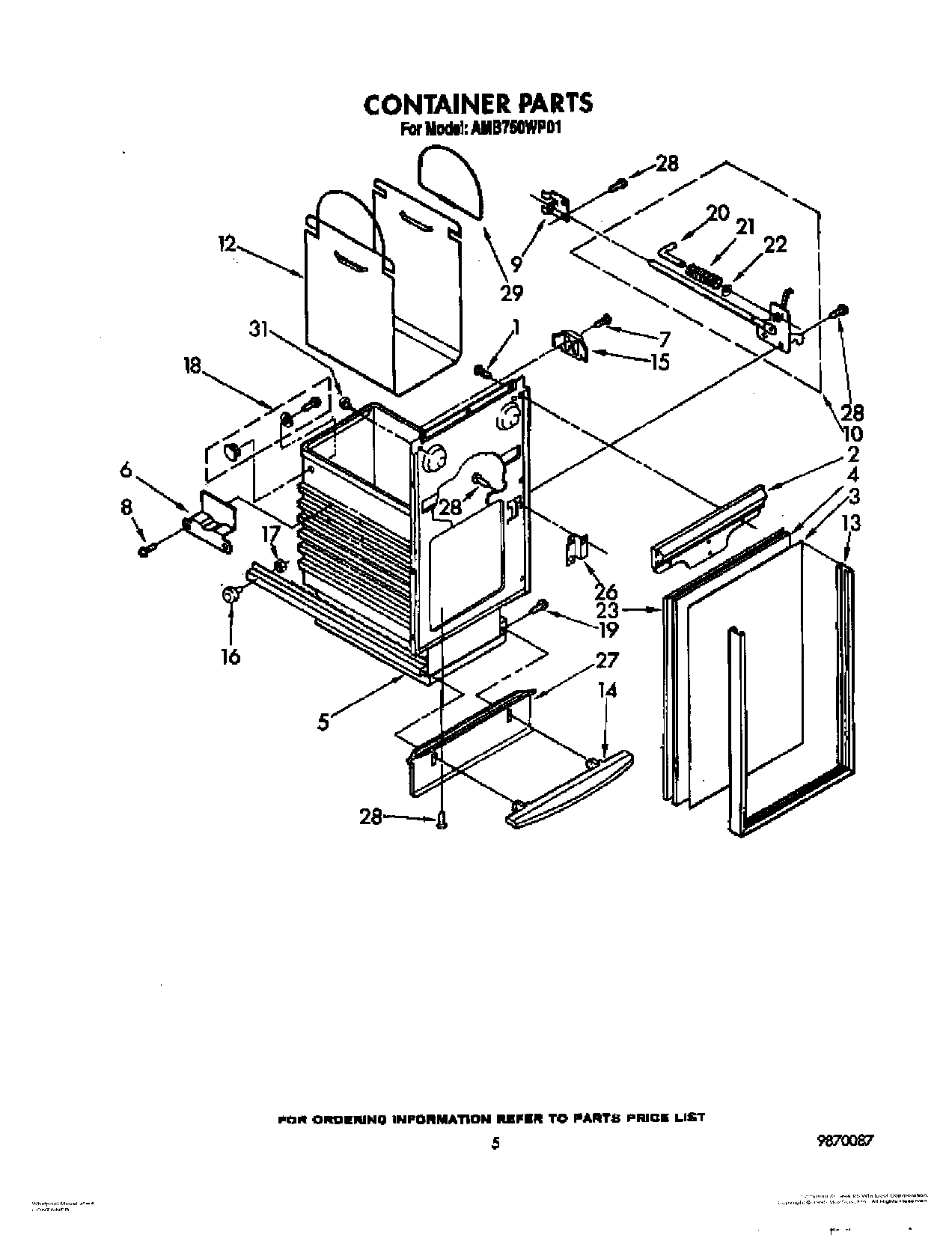

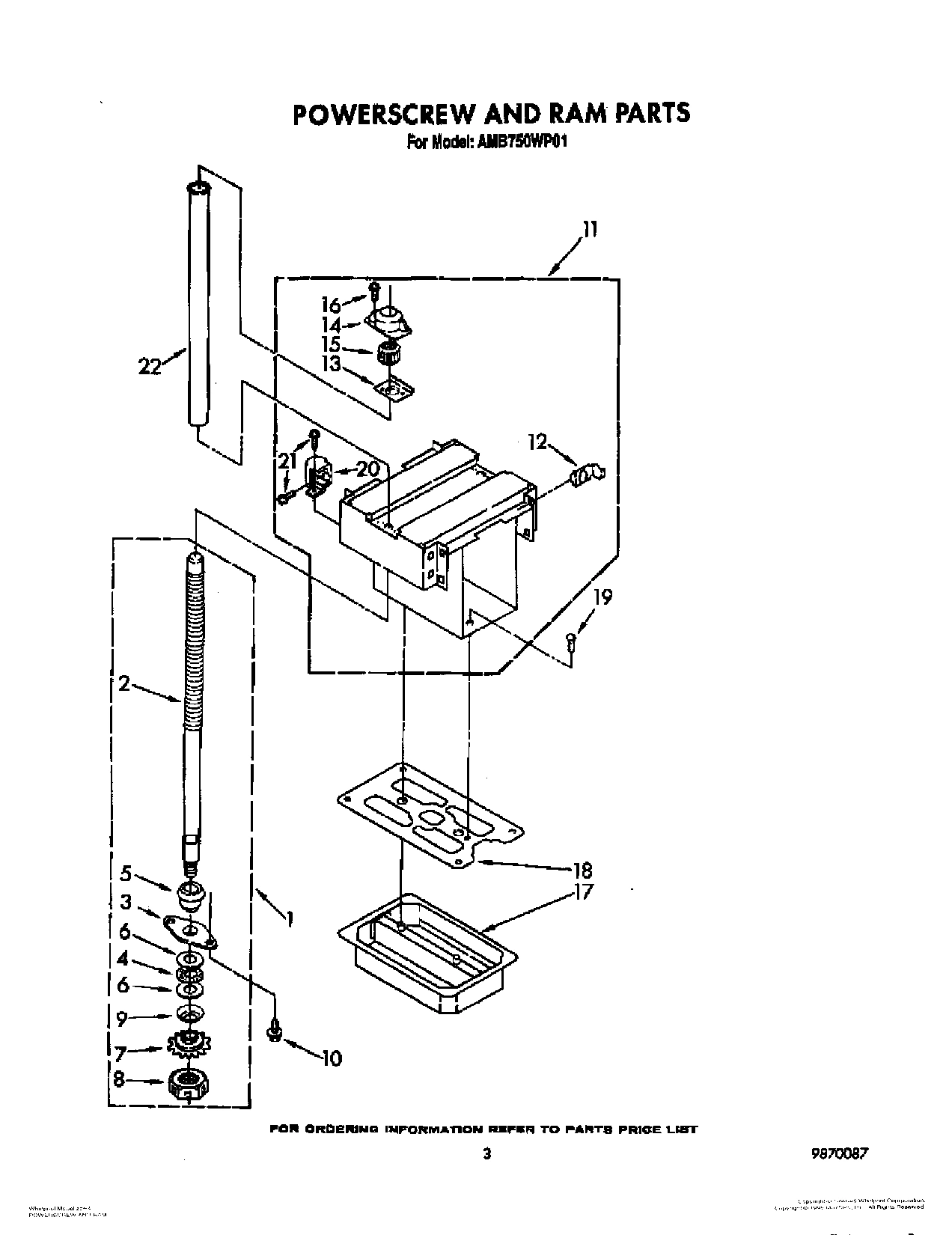

Model Whirlpool AMB750WP01 COMPACTOR – Common Parts &amp; Diagrams

1

Cabinet WPL 9870028 Contact Us For Availability

1

Frame (Not a Serviceable Part) WPL ARI20374A7 Contact Us For Availability

1

Screw, Power Complete Assembly (2) WPL 777506 Contact Us For Availability

2

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

2

WP608732 Whirlpool Compactor Handle In Stock WPL WP608732 $90.05

2

Motor, Drive (Includes No.1) WPL 4149847 Contact Us For Availability

2

Screw, Power (Available Only As Complete Asse WPL ARI20375A9 Contact Us For Availability

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability

3

Plate, Power Cord WPL 608336 Contact Us For Availability

3

Cord, Power WPL 778583 Contact Us For Availability

3

Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability

3

Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $42.93

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

4

Clip, Toe Mount WPL 776017 Contact Us For Availability

4

Barrier, Glass WPL 776780 Contact Us For Availability

4

Spacer, Center Panel WPL 777784 Contact Us For Availability

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

5

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

5

Insulation, Inner Panel WPL 780412 Contact Us For Availability

5

Container Assembly WPL 882671 Contact Us For Availability

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $31.22

6

882699 Whirlpool Trash Compactor Gear Drive K In Stock WPL 882699 $65.50

6

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16

6

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $30.25

6

Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability

7

675351 Whirlpool Compactor Grease Backorder WPL 675351 $35.90

7

W11679164 Whirlpool Sprocket In Stock WPL W11679164 $10.07

7

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

7

Holder, Deodorant Storage WPL 608533 Contact Us For Availability

7

Screw (2) WPL 4149395 Contact Us For Availability

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $30.56

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

8

WP780437 Whirlpool Compactor Bottom Pan Backorder WPL WP780437 $120.60

8

Knob, Switch WPL 780191 Contact Us For Availability

9

882688 Whirlpool Compactor Bearing Backorder WPL 882688 $12.37

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP776395 Whirlpool Compactor Guide Backorder WPL WP776395 $30.89

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

675379 Whirlpool Compactor Drawer Latch Backorder WPL 675379 $60.36

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

W11705832 Whirlpool Clamp Backorder WPL W11705832 $12.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Screw, 1/4-20 x 3/4 (4) WPL 775071 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WP776036 Whirlpool Compactor Clip Backorder WPL WP776036 $3.70

Top, Cabinet Storage WPL 608815 Contact Us For Availability

Ram Assembly WPL 608729 Contact Us For Availability

13030RP Whirlpool Compactor Bag Caddy In Stock WPL 13030RP $22.11

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $84.02

Harness, Wiring WPL 4152077 Contact Us For Availability

Shield, Slide Track (2) WPL 608375 Contact Us For Availability

Pad, Ram (8) WPL 777758 Contact Us For Availability

13

Plate, Doubler (2) WPL 9870138 Contact Us For Availability

13

Trim, Container WPL 777345 Contact Us For Availability

675382 Whirlpool Trash Compactor On/Off Start In Stock WPL 675382 $85.97

W11679165 Whirlpool Foot Pedal Backorder WPL W11679165 $23.06

Nut, 6-32 WPL 776188 Contact Us For Availability

Retainer, Nut (2) WPL 780036 Contact Us For Availability

15

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

15

WP777533 Whirlpool Trash Compactor Power Nut In Stock WPL WP777533 $47.54

15

Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability

16

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

16

WP9871602 Whirlpool Compactor Bearing In Stock WPL WP9871602 $7.01

16

Escutcheon, Control WPL 4151493 Contact Us For Availability

17

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

17

Cover, Ram WPL 608723 Contact Us For Availability

W11722978 Whirlpool Slide Backorder WPL W11722978 $53.56

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $34.59

Wiper, Ram WPL 780021 Contact Us For Availability

Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

Insert, Decorative WPL 4151481 Contact Us For Availability

Bumper, Ram (4) WPL 775643 Contact Us For Availability

20

Block, Container Stop WPL 777691 Contact Us For Availability

20

Pin WPL 776654 Contact Us For Availability

21

775736 Whirlpool Compactor Spring Backorder WPL 775736 $30.25

21

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

21

Plate, Nut WPL 777850 Contact Us For Availability

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

W11679168 Whirlpool Clip Backorder WPL W11679168 $8.11

Bushing, Power Cord WPL 776519 Contact Us For Availability

Protector, Powerscrew (2) WPL 780413 Contact Us For Availability

23

Screw, 10-24 x 1 WPL 776516 Contact Us For Availability

23

Spacer, Back Panel WPL 777783 Contact Us For Availability

24

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

24

Washer WPL 138479 Contact Us For Availability

25

Lug, Grounding WPL 236278 Contact Us For Availability

26

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $37.04

26

Nut WPL 776515 Contact Us For Availability

27

WPW10242557 Whirlpool Compactor Guard Backorder WPL WPW10242557 $54.86

27

Plug, Hole WPL 4152349 Contact Us For Availability

28

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

31

Bumper, Container (2) WPL 775785 Contact Us For Availability
