Model LG AM501YWM1 Air Cleaner – Common Parts & Diagrams

5EBRPP
PCB Assembly,Power
PCB Assembly,Power LGE EBR82396102 Contact Us For Availability
View on Model
2687E
PCB Assembly,Sensor
PCB Assembly,Sensor LGE EBR83215402 Contact Us For Availability
View on Model
2687S
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82396409 Contact Us For Availability
View on Model
130401
Base,Single
Base,Single LGE MAM64245201 Contact Us For Availability
View on Model
131110
Case,Upper
Case,Upper LGE MBN64624601 Contact Us For Availability
View on Model
135080
Decor
Decor LGE MCR66588501 Contact Us For Availability
View on Model
135500A
Cover,Top
Cover,Top LGE MCK69119502 Contact Us For Availability
View on Model
135500C
Cover,Sensor
Cover,Sensor LGE MCK69254601 Contact Us For Availability
View on Model
135500D
Cover
Cover LGE MCK69291701 Contact Us For Availability
View on Model
135500H
Cover
Cover LGE MCK69291302 Contact Us For Availability
View on Model
135500T
Cover
Cover LGE MCK69291402 Contact Us For Availability
View on Model
135500Z
Cover,Terminal
Cover,Terminal LGE MCK69094601 Contact Us For Availability
View on Model
135509
Case,PCB
Case,PCB LGE MBN64446601 Contact Us For Availability
View on Model

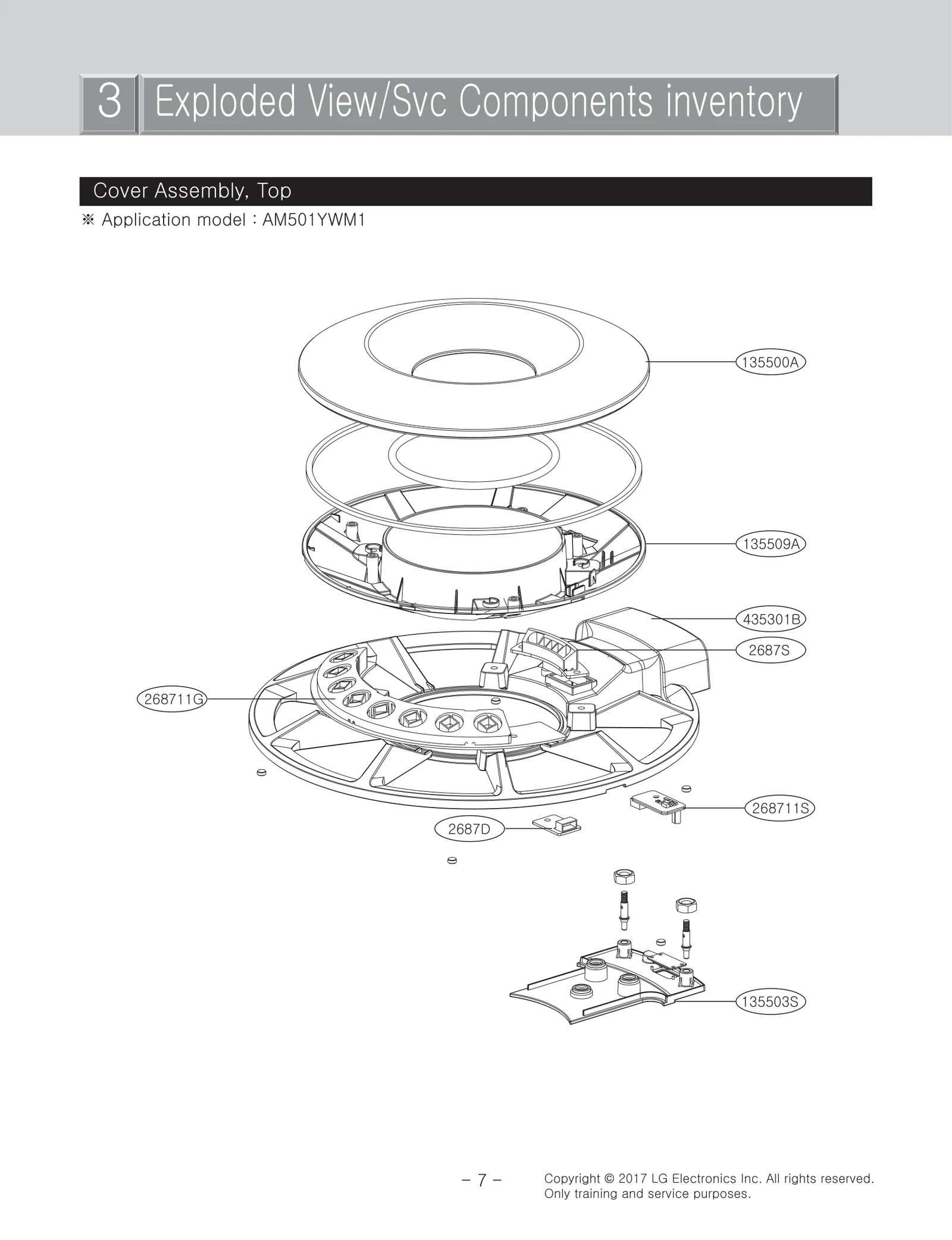

135515
Cover Assembly,Top
Cover Assembly,Top LGE ACQ88609002 Contact Us For Availability
View on Model
144710A
Modular Assembly,Mechanical
Modular Assembly,Mechanical LGE AFP75045202 Contact Us For Availability
View on Model
147680
Float
Float LGE MDN62261001 Contact Us For Availability
View on Model
148380
Tray,Water
Tray,Water LGE MJS63873702 Contact Us For Availability
View on Model

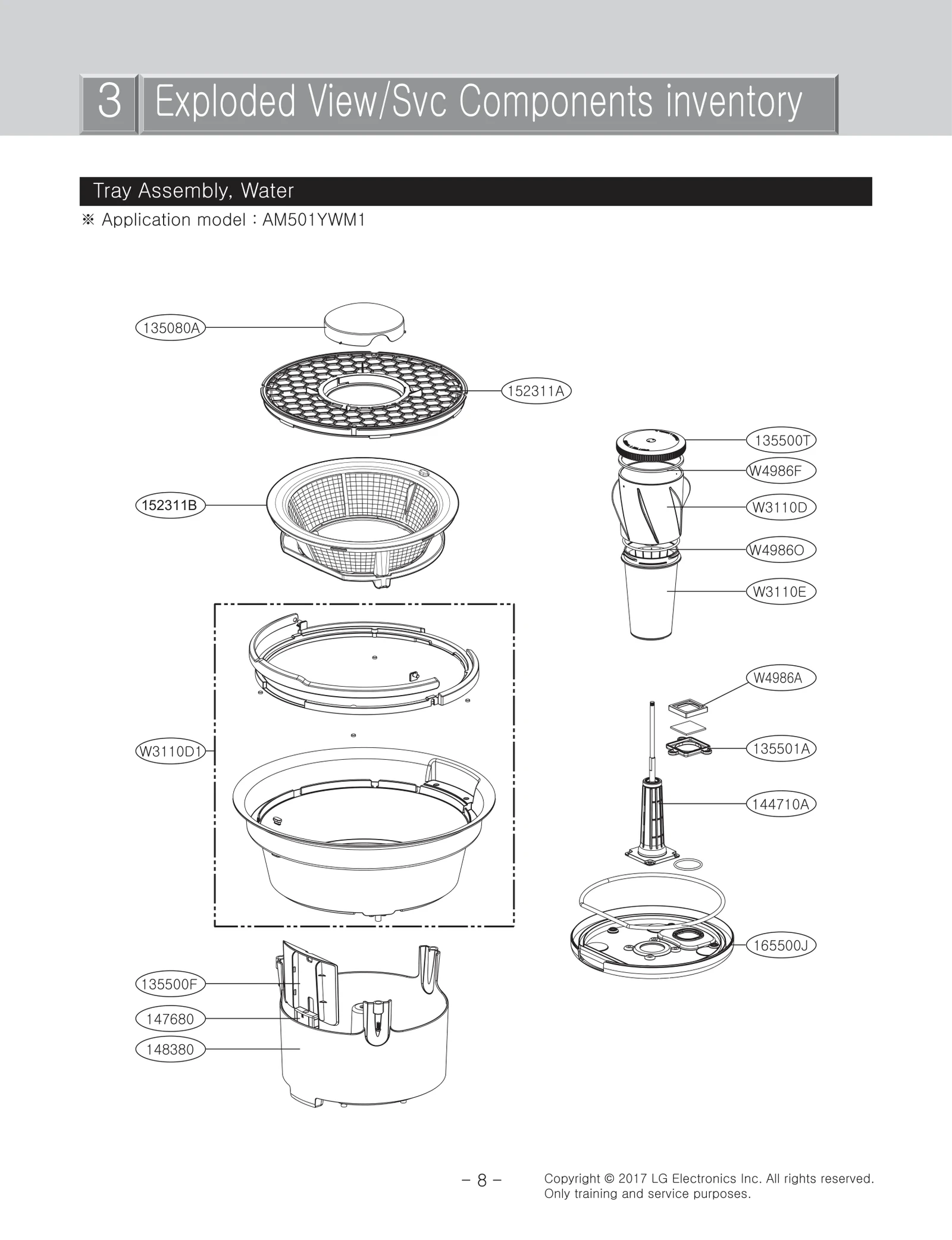

148391
Tray Assembly,Water
Tray Assembly,Water LGE AJP74855010 Contact Us For Availability
View on Model
148391
Tray Assembly,Water
Tray Assembly,Water LGE AJP74855015 Contact Us For Availability
View on Model
152302
Filter,Air
Filter,Air LGE MDJ64884702 Contact Us For Availability
View on Model
152311A
Filter Assembly,Water
Filter Assembly,Water LGE ADQ74753302 Contact Us For Availability
View on Model
152311B
Filter Assembly,Water
Filter Assembly,Water LGE ADQ74593304 Contact Us For Availability
View on Model
159830
Filter Assembly,Air Purifier
Filter Assembly,Air Purifier LGE ADQ74813202 Contact Us For Availability
View on Model
165000B
Sensor,Position
Sensor,Position LGE EBD60320512 Contact Us For Availability
View on Model
165010A
Sensor Assembly
Sensor Assembly LGE EBD61345301 Contact Us For Availability
View on Model
165010D
LED Assembly
LED Assembly LGE EAV62892502 Contact Us For Availability
View on Model
165500J
Cover,Tray
Cover,Tray LGE MCK69119701 Contact Us For Availability
View on Model

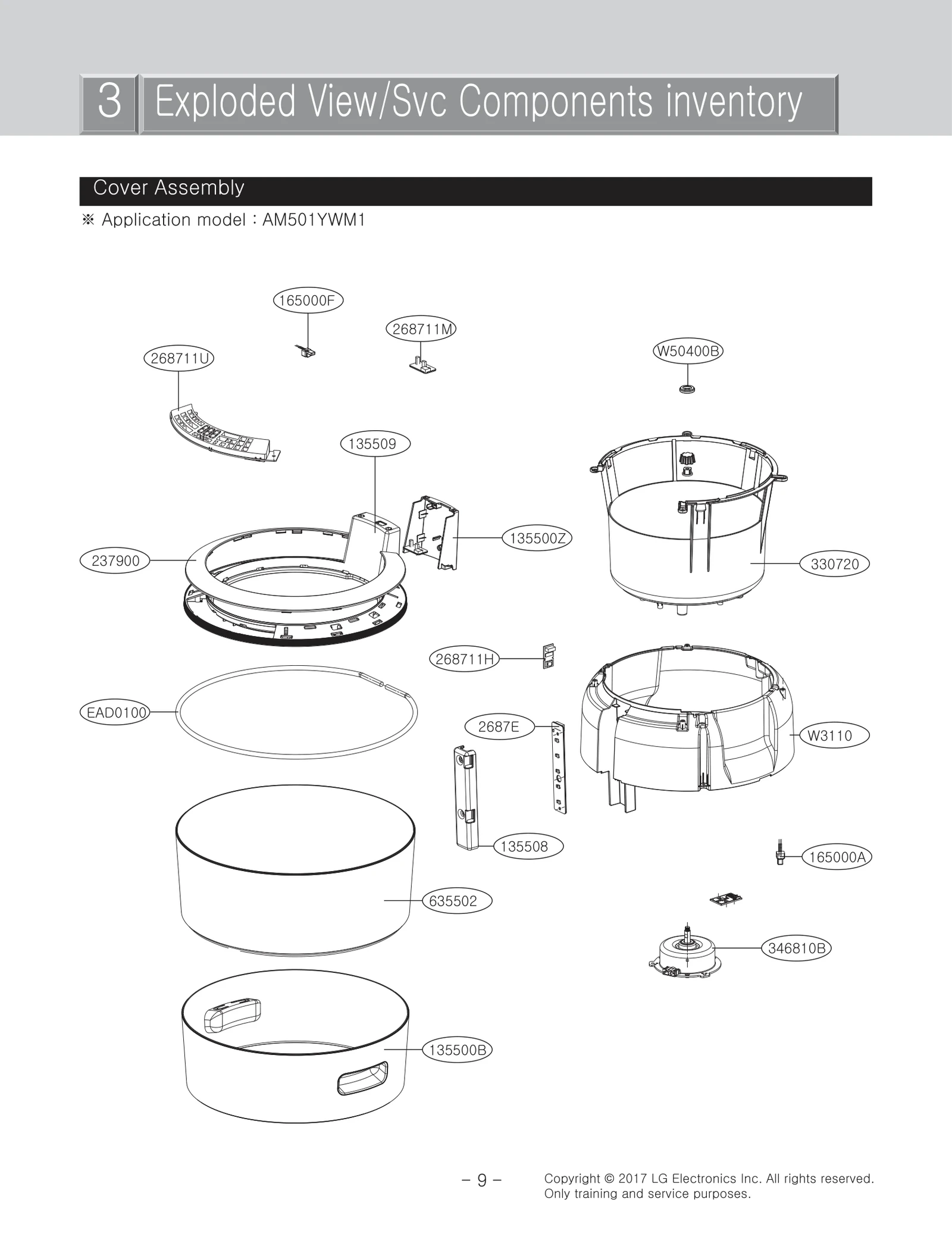

235512
Cover Assembly
Cover Assembly LGE ACQ88907502 Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE MKC66119501 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD63948504 Contact Us For Availability
View on Model
266010
Switch Assembly
Switch Assembly LGE EBF60693502 Contact Us For Availability
View on Model
266090
HVPS,DC/DC
HVPS,DC/DC LGE EAY64469201 Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE AKB75055403 Contact Us For Availability
View on Model
268711
PCB Assembly,Display
PCB Assembly,Display LGE EBR82396307 Contact Us For Availability
View on Model
268711B
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR72287202 Contact Us For Availability
View on Model
268711C
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82207402 Contact Us For Availability
View on Model
268711D
PCB Assembly,Display
PCB Assembly,Display LGE EBR83267003 Contact Us For Availability
View on Model
268711E
PCB Assembly,Main
PCB Assembly,Main LGE EBR81257128 Contact Us For Availability
View on Model
268711U
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82396501 Contact Us For Availability
View on Model
330720
Housing
Housing LGE MEK63767301 Contact Us For Availability
View on Model
346810A
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE EAU62543504 Contact Us For Availability
View on Model
346810B
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE EAU63503501 Contact Us For Availability
View on Model
349480
Orifice
Orifice LGE MFX62861901 Contact Us For Availability
View on Model
352380
Guide,Air
Guide,Air LGE MEA64690601 Contact Us For Availability
View on Model
435301
Grille,Discharge
Grille,Discharge LGE MDX63993201 Contact Us For Availability
View on Model
437213A
Tray Assembly
Tray Assembly LGE AJP74854902 Contact Us For Availability
View on Model
W3110A
Case,PCB
Case,PCB LGE MBN64624701 Contact Us For Availability
View on Model
W3110B
Case
Case LGE MBN64466901 Contact Us For Availability
View on Model
W3110C
Case
Case LGE MBN64624501 Contact Us For Availability
View on Model
W3110D
Case,Upper
Case,Upper LGE MBN64407701 Contact Us For Availability
View on Model
W3110D1
Case,Upper
Case,Upper LGE MBN64624602 Contact Us For Availability
View on Model
W3110E
Case,Lower
Case,Lower LGE MBN64446402 Contact Us For Availability
View on Model
W6631B
Harness,Multi
Harness,Multi LGE EAD63889801 Contact Us For Availability
View on Model
W6851
Cable,Assembly
Cable,Assembly LGE EAD63893901 Contact Us For Availability
View on Model
W50140A
Gasket,Sealing
Gasket,Sealing LGE MDS65678901 Contact Us For Availability
View on Model
W50140B
Gasket,Sealing
Gasket,Sealing LGE MDS65679001 Contact Us For Availability
View on Model
W50140C
Gasket,Sealing
Gasket,Sealing LGE MDS65673902 Contact Us For Availability
View on Model
W50400A
Damper
Damper LGE MCQ68873701 Contact Us For Availability
View on Model
W50400B
Damper
Damper LGE MCQ68888301 Contact Us For Availability
View on Model
W50400C
Damper
Damper LGE MCQ69107401 Contact Us For Availability
View on Model
