Model Electrolux AM09C6EVA ROOM AIR CONDITIONER – Common Parts & Diagrams

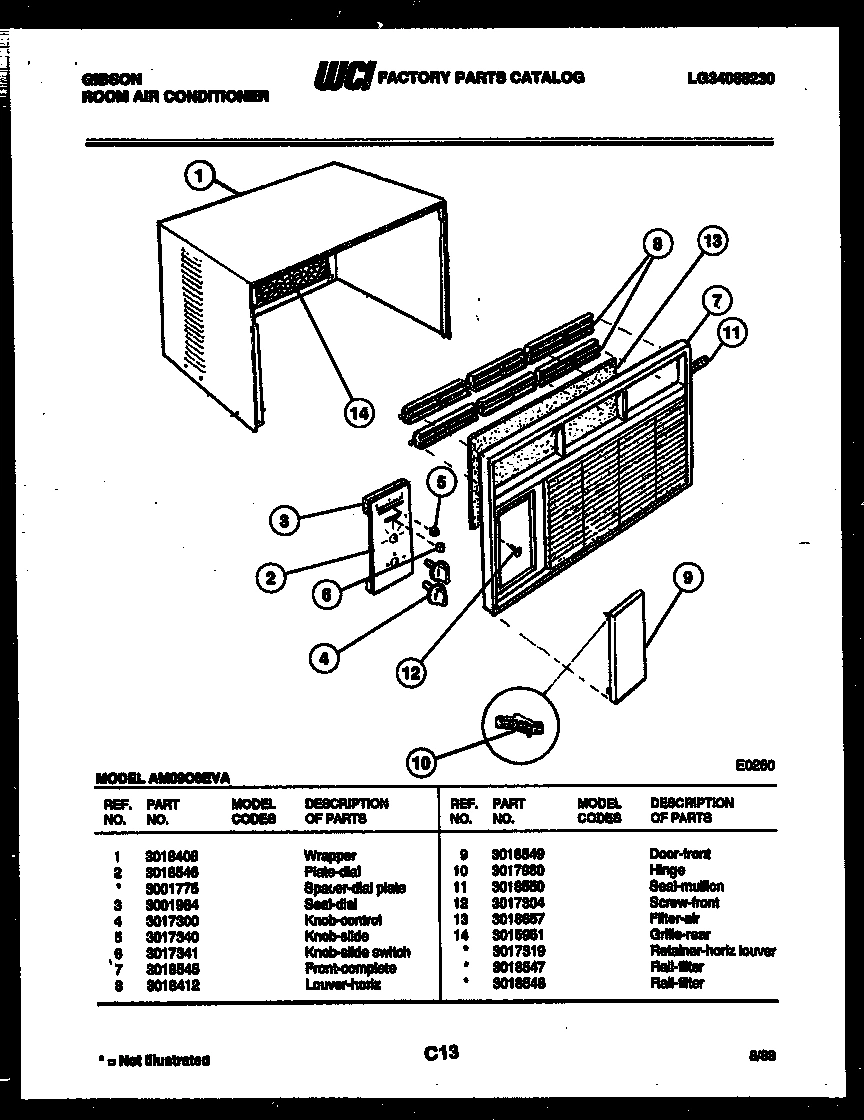

02 - CABINET PARTS

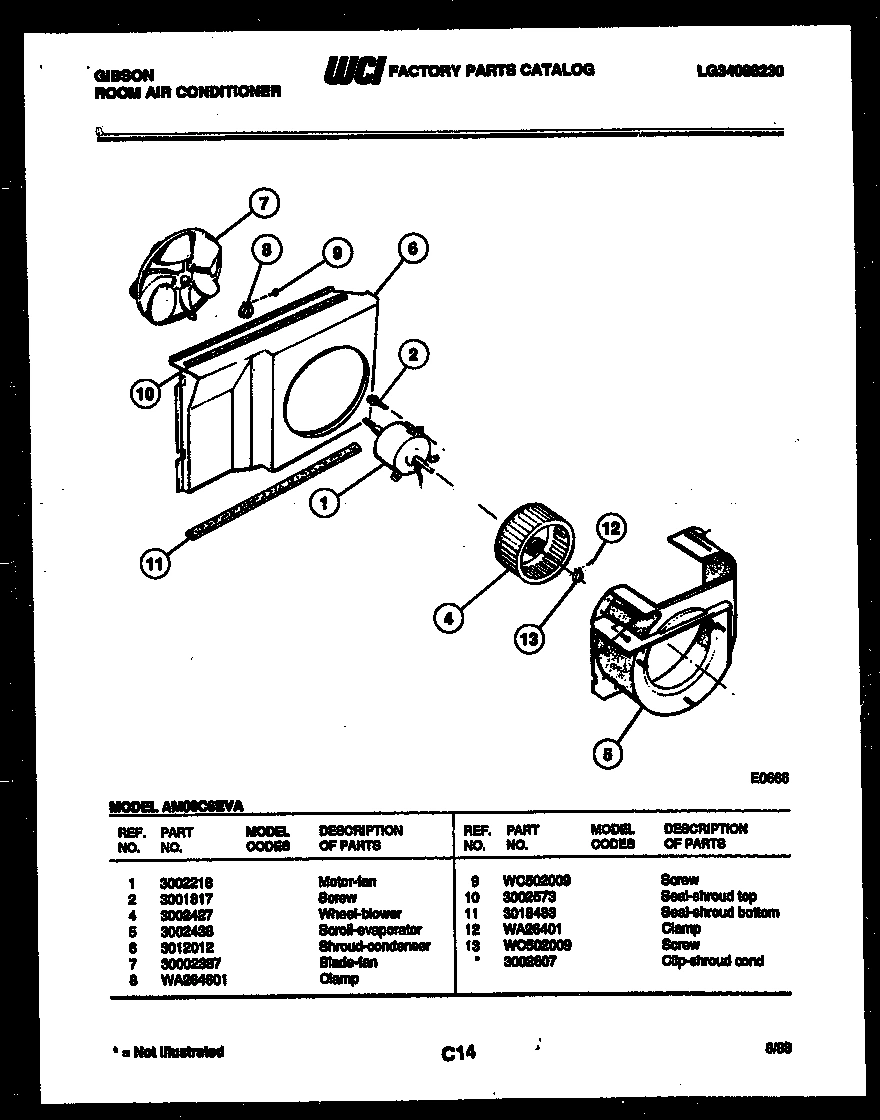

03 - AIR HANDLING PARTS

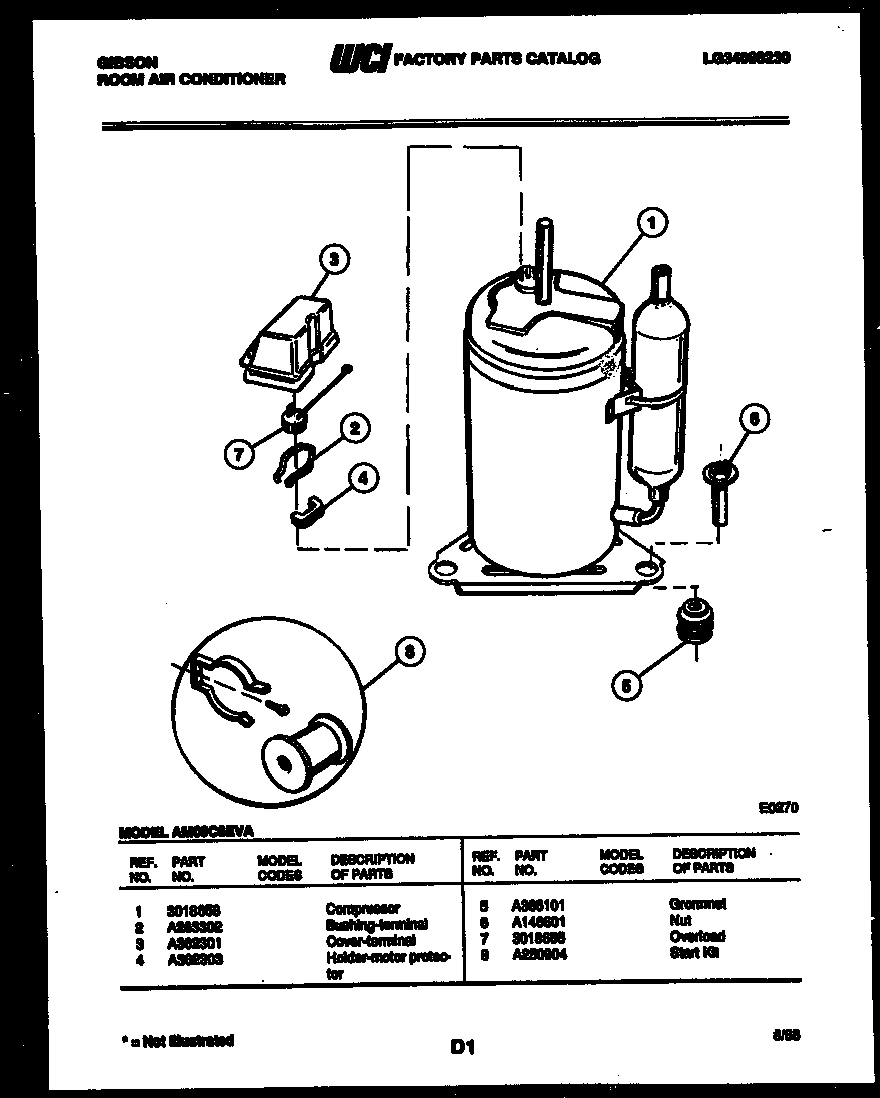

04 - COMPRESSOR PARTS

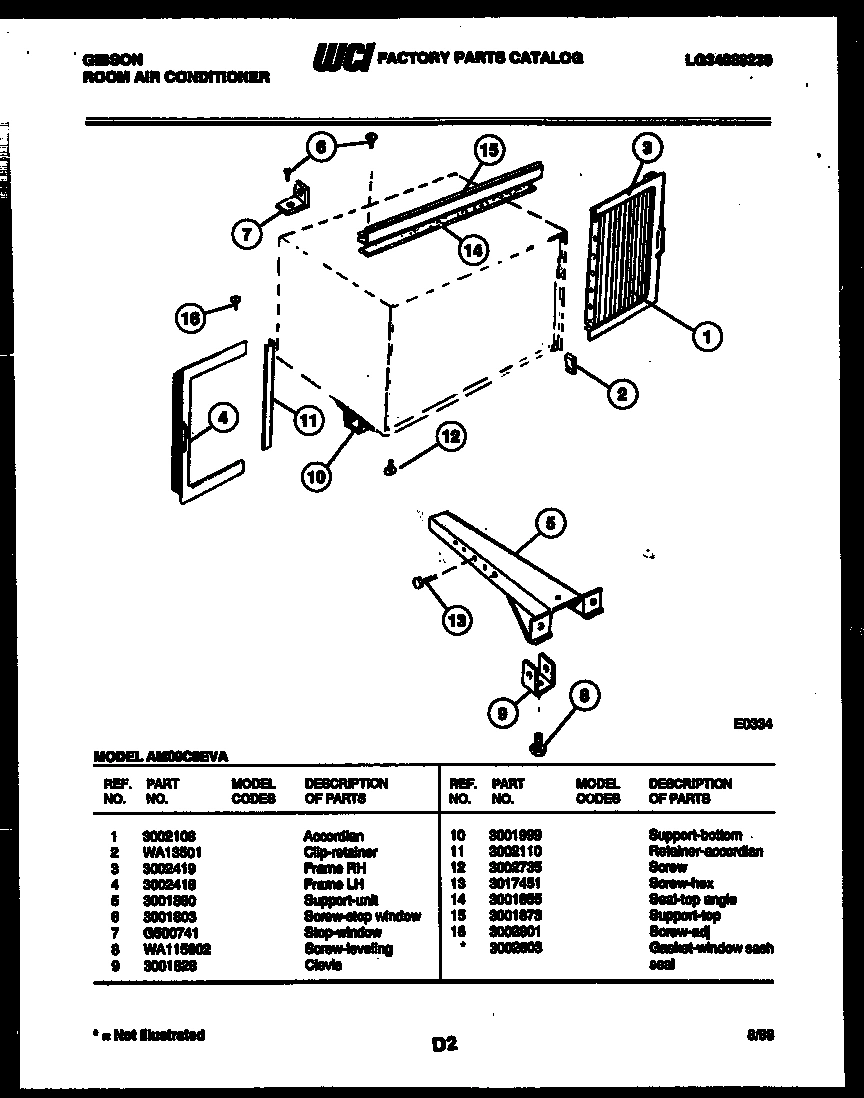

05 - CABINET AND INSTALLATION PARTS

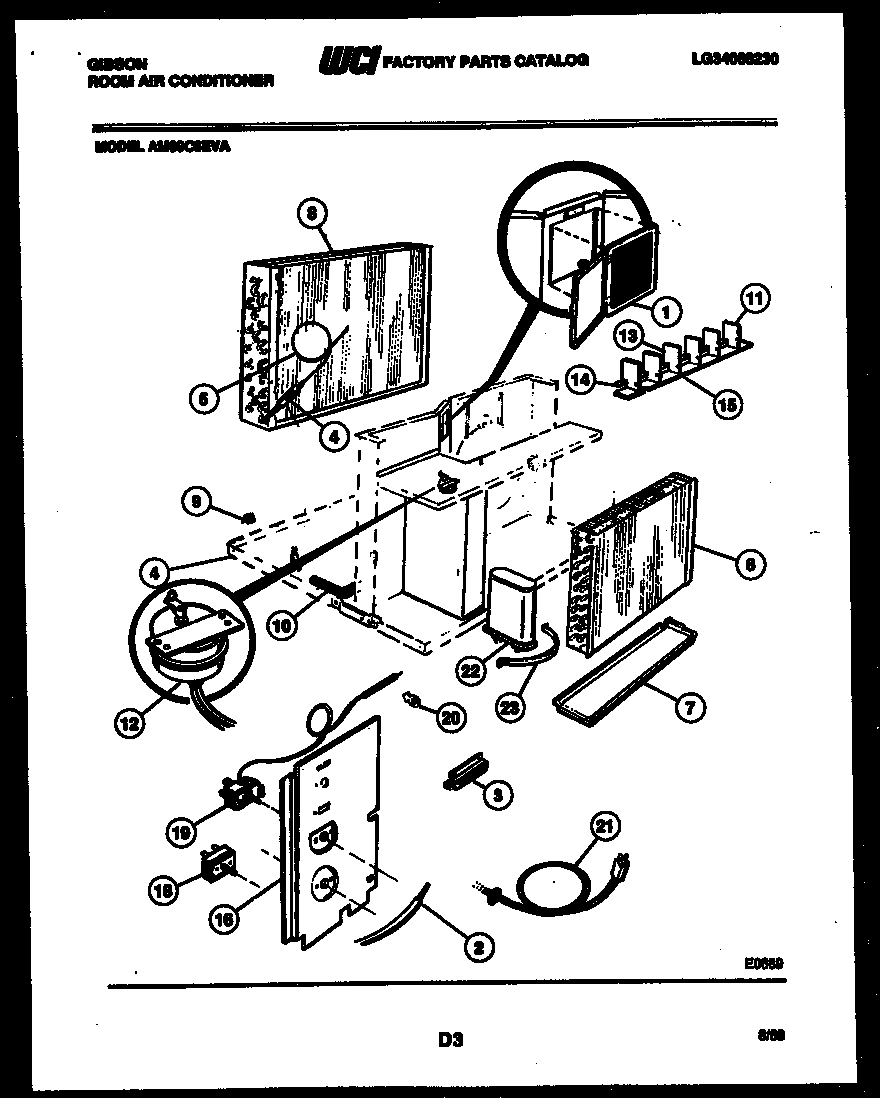

06 - ELECTRICAL PARTS
Common parts from model Electrolux AM09C6EVA ROOM AIR CONDITIONER
*13986
RAIL-FILTER WCI 3018547 Contact Us For Availability
*13986
RAIL-FILTER WCI 3018548 Contact Us For Availability
*13987
CLIP-SHROUD COND WCI 3002607 Contact Us For Availability
*13992
WCI 3017342 WCI 3017342 Contact Us For Availability
*13992
WCI 3018414 WCI 3018414 Contact Us For Availability
1
WRAPPER WCI 3018408 Contact Us For Availability
1
WCI 3002218 WCI 3002218 Contact Us For Availability
1
WCI 3018658 WCI 3018658 Contact Us For Availability
1
WCI 3002108 WCI 3002108 Contact Us For Availability
1
WCI 3012455 WCI 3012455 Contact Us For Availability
2
WCI 3018546 WCI 3018546 Contact Us For Availability
2
SCREW WCI 3001817 Contact Us For Availability
2
WCI A263302 WCI A263302 Contact Us For Availability
2
WCI WA13501 WCI WA13501 Contact Us For Availability
2
WCI 3002132 WCI 3002132 Contact Us For Availability
2A
SPACER-DIAL PLATE, ( NON-ILLUSTRATED) WCI 3001775 Contact Us For Availability
3
SEAL-DIAL WCI 3001984 Contact Us For Availability
3
COVER TERMINAL WCI A362301 Contact Us For Availability
3
WCI 3002419 WCI 3002419 Contact Us For Availability
3
WCI 3001848 WCI 3001848 Contact Us For Availability
3A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 3002127 Contact Us For Availability
4
WCI 3017300 WCI 3017300 Contact Us For Availability
4
WCI 3002427 WCI 3002427 Contact Us For Availability
4
HOLDER-MOTOR PROTECTOR WCI A362303 Contact Us For Availability
4
WCI 3002418 WCI 3002418 Contact Us For Availability
5
WCI 3017340 WCI 3017340 Contact Us For Availability
5
SCROLL-EVAPORATOR WCI 3002438 Contact Us For Availability
5
WCI A366101 WCI A366101 Contact Us For Availability
5
SUPPORT UNIT WCI 3001880 Contact Us For Availability
5
TUBE-CAPILLARY (CUT TO 40``) WCI 3001746 Contact Us For Availability
6
KNOB - SLIDE, SWITCH WCI 3017341 Contact Us For Availability
6
SHROUD-CONDENSER WCI 3012012 Contact Us For Availability
6
NUT WCI A146601 Contact Us For Availability
6
SCREW-STOP WINDOW WCI 3001803 Contact Us For Availability
6
WCI 3002279 WCI 3002279 Contact Us For Availability
7
WCI 3018545 WCI 3018545 Contact Us For Availability
7
WCI 30002387 WCI 30002387 Contact Us For Availability
7
WCI 3018655 WCI 3018655 Contact Us For Availability
7
STOP-WINDOW WCI G500741 Contact Us For Availability
7
WCI 3002332 WCI 3002332 Contact Us For Availability
8
LOUVER-HORIZ WCI 3018412 Contact Us For Availability
8
WCI WA264601 WCI WA264601 Contact Us For Availability
8
WCI A250904 WCI A250904 Contact Us For Availability
8
SCREW-LEVELING WCI WA115602 Contact Us For Availability
8
WCI 3002243 WCI 3002243 Contact Us For Availability
9
WCI 3018549 WCI 3018549 Contact Us For Availability
9
CLEVIS WCI 3001828 Contact Us For Availability
9
WCI G521772 WCI G521772 Contact Us For Availability
9A
GROMMET-BASE DRAIN (NON-ILLUSTRATED) WCI 3014757 Contact Us For Availability
10
HINGE WCI 3017980 Contact Us For Availability
10
SEAL-SHROUD TOP WCI 3002573 Contact Us For Availability
10
SUPPORT-BOTTOM WCI 3001999 Contact Us For Availability
10
TUBE-DRAIN WCI 3001759 Contact Us For Availability
11
WCI 3018550 WCI 3018550 Contact Us For Availability
11
SEAL-SHROUD BOTTOM WCI 3018433 Contact Us For Availability
11
WCI 3002110 WCI 3002110 Contact Us For Availability
11
LOUVER & LINK ASSY WCI G158417 Contact Us For Availability
12
WCI 3017304 WCI 3017304 Contact Us For Availability
12
WCI WA26401 WCI WA26401 Contact Us For Availability
12
WCI 3002735 WCI 3002735 Contact Us For Availability
12
MOTOR-LOUVER ASSY WCI 3017538 Contact Us For Availability
13
FILTER-AIR WCI 3018657 Contact Us For Availability
13
SCREW-HEX WCI 3017451 Contact Us For Availability
13
LOUVER WCI 3002431 Contact Us For Availability
14
WCI 3015951 WCI 3015951 Contact Us For Availability
14
SEAL-TOP ANGLE WCI 3001855 Contact Us For Availability
14
WCI 3001835 WCI 3001835 Contact Us For Availability
15
SUPPORT-TOP WCI 3001873 Contact Us For Availability
15
LINK-CONNECTING WCI 3001834 Contact Us For Availability
16
SCREW-ADJ WCI 3002801 Contact Us For Availability
16
WCI 3018544 WCI 3018544 Contact Us For Availability
16A
WCI 3015318 WCI 3015318 Contact Us For Availability
16B
SPACER-SLIDE SWITCH (NON-ILLUSTRATED) WCI 3001773 Contact Us For Availability
18
WCI 3017344 WCI 3017344 Contact Us For Availability
19
WCI 3002079 WCI 3002079 Contact Us For Availability
19A
SLEEVE-CONTROL TUBE (NON-ILLUSTRATED) WCI 3002600 Contact Us For Availability
20
CLIP-RETAINING BULB WCI WA310003 Contact Us For Availability
21
WCI G521779 WCI G521779 Contact Us For Availability
22
WCI G521790 WCI G521790 Contact Us For Availability
23
WCI 3001770 WCI 3001770 Contact Us For Availability
× ![]()
