Model Electrolux AM09C5EWB ROOM AIR CONDITIONER – Common Parts & Diagrams

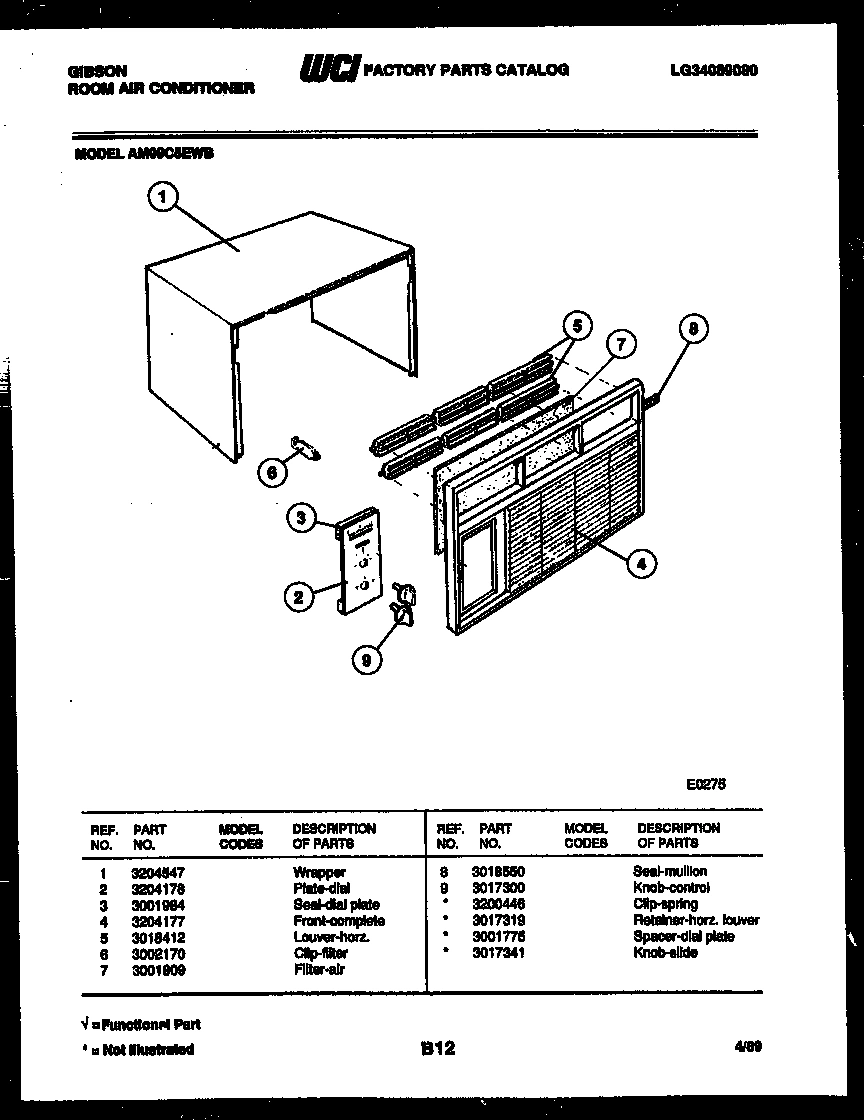

02 - CABINET PARTS

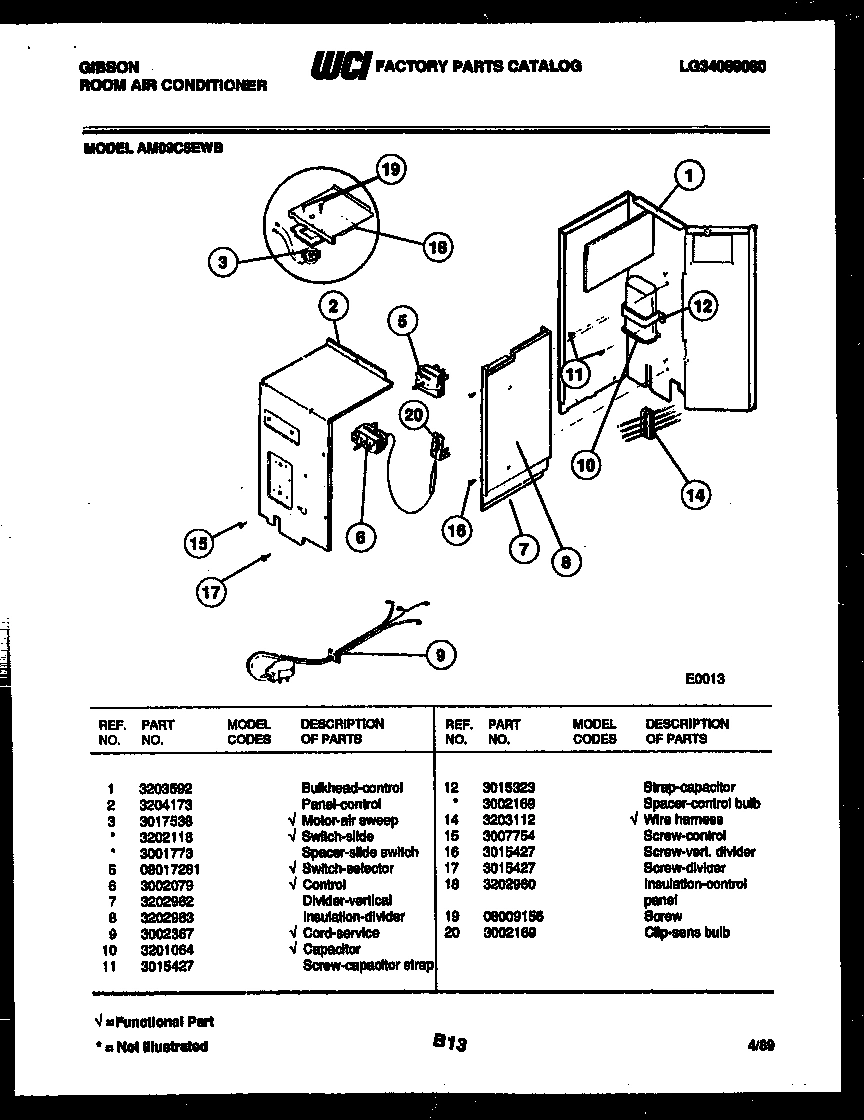

03 - ELECTRICAL PARTS

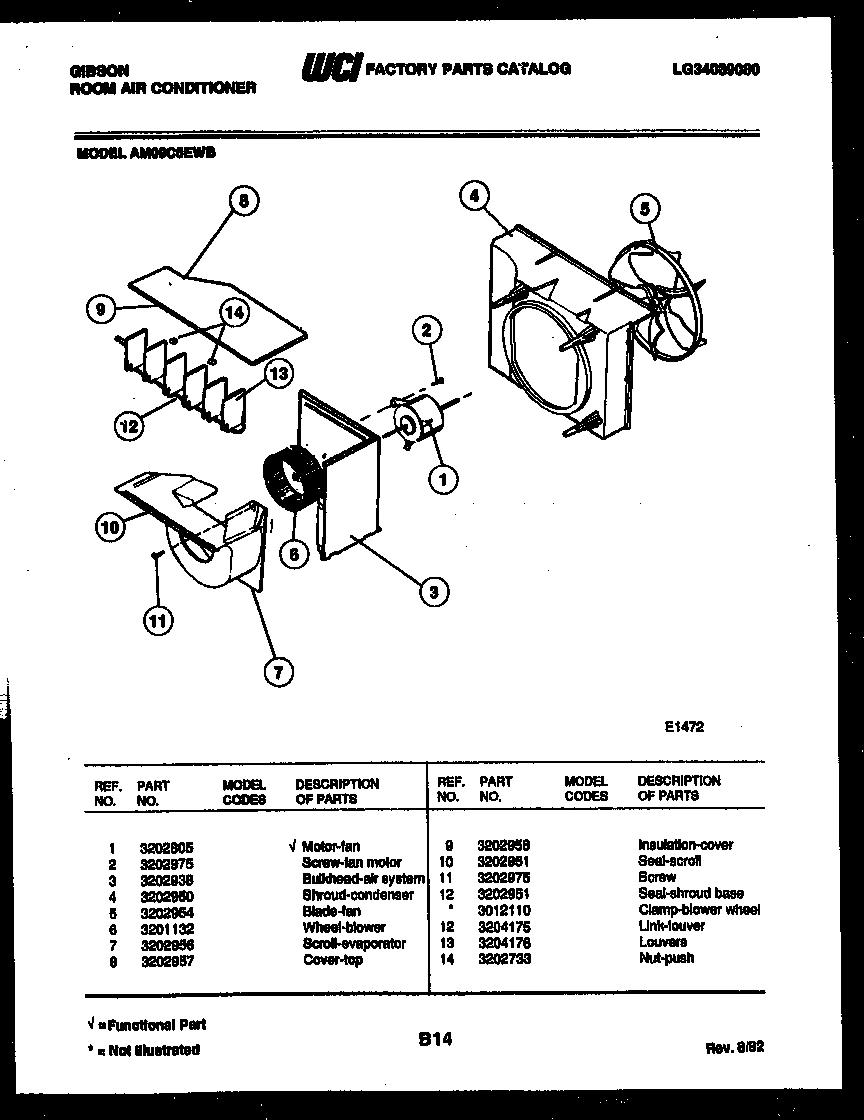

04 - AIR HANDLING PARTS

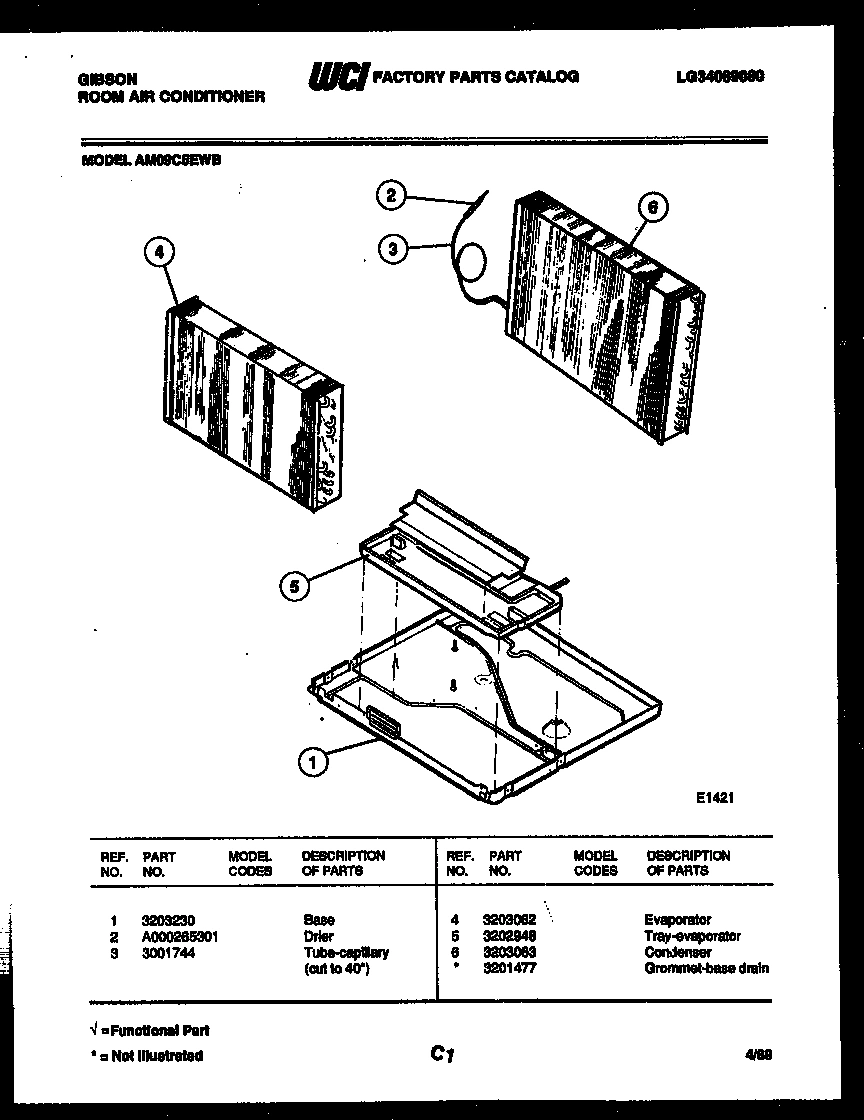

05 - UNIT PARTS

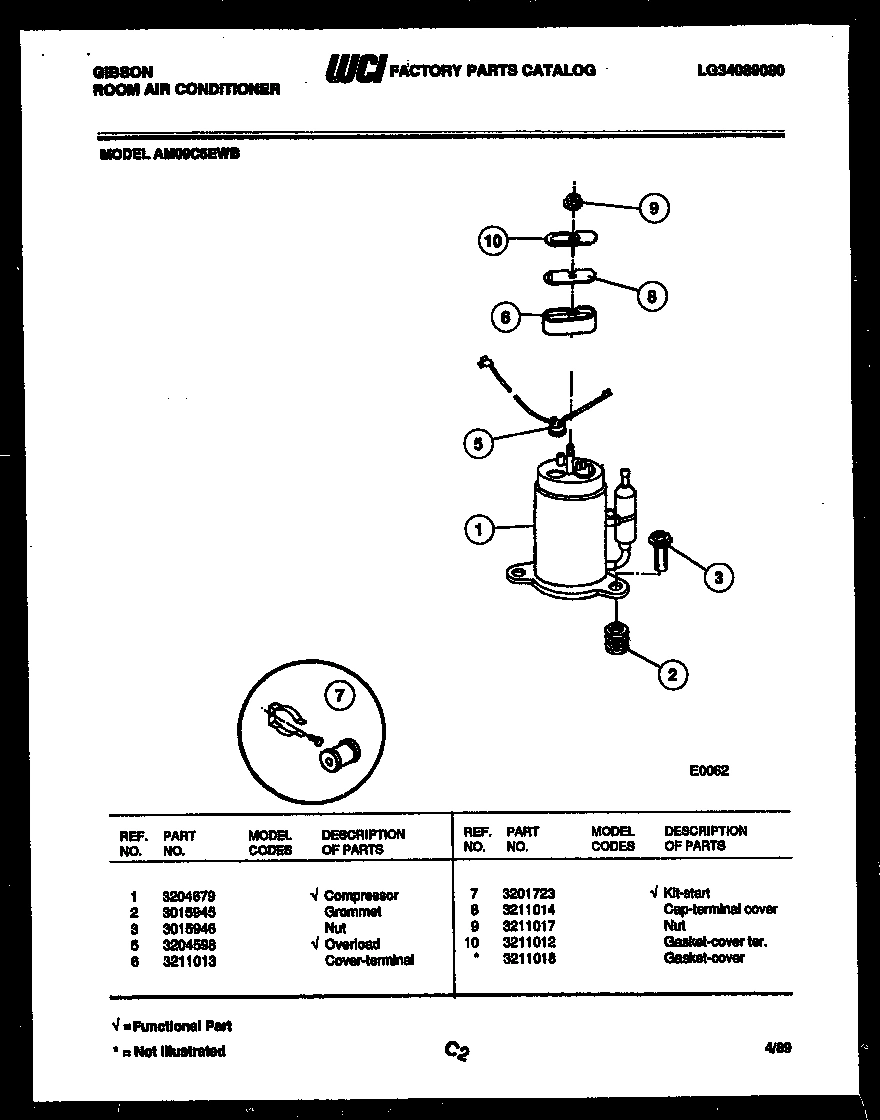

06 - COMPRESSOR PARTS

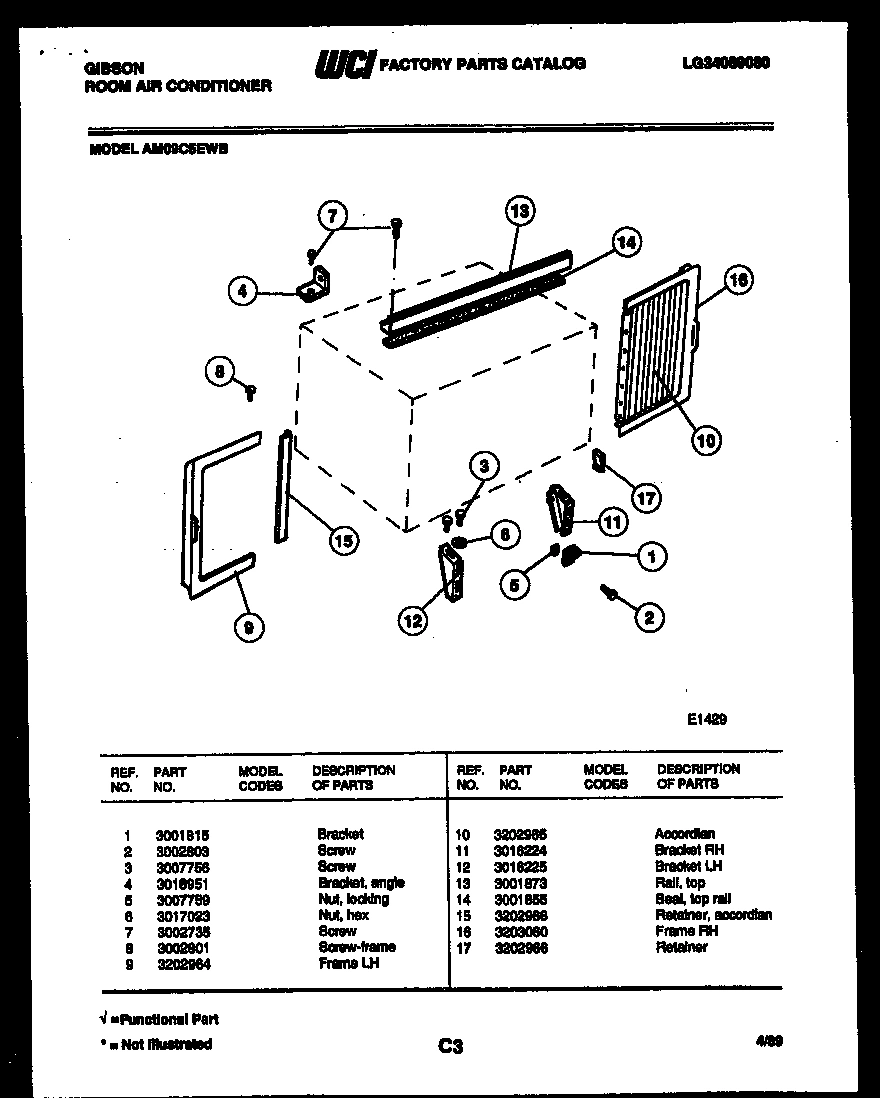

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AM09C5EWB ROOM AIR CONDITIONER
*15589
WCI 3001775 WCI 3001775 Contact Us For Availability
*15589
RETAINER-HORZ. LOUVER WCI 3017319 Contact Us For Availability
*15589
WCI 3017341 WCI 3017341 Contact Us For Availability
*15589
CLIP-SPRING WCI 3200446 Contact Us For Availability
*15595
WCI 3201477 WCI 3201477 Contact Us For Availability
*15597
GASKET-COVER WCI 3211018 Contact Us For Availability
1
WCI 3204547 WCI 3204547 Contact Us For Availability
1
WCI 3203592 WCI 3203592 Contact Us For Availability
1
WCI 3202805 WCI 3202805 Contact Us For Availability
1
WCI 3203230 WCI 3203230 Contact Us For Availability
1
WCI 3204679 WCI 3204679 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
WCI 3204178 WCI 3204178 Contact Us For Availability
2
WCI 3204173 WCI 3204173 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
3
WCI 3017538 WCI 3017538 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
TUBE-CAPILLARY (CUT TO 40``) WCI 3001744 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
3A
WCI 3202118 WCI 3202118 Contact Us For Availability
3B
SPACER-SLIDE SWITCH (NON-ILLUSTRATED) WCI 3001773 Contact Us For Availability
4
WCI 3204177 WCI 3204177 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 3203062 WCI 3203062 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
5
LOUVER-HORZ. WCI 3018412 Contact Us For Availability
5
WCI 08017261 WCI 08017261 Contact Us For Availability
5
WCI 3202954 WCI 3202954 Contact Us For Availability
5
WCI 3202948 WCI 3202948 Contact Us For Availability
5
WCI 3204598 WCI 3204598 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
6
WCI 3002170 WCI 3002170 Contact Us For Availability
6
WCI 3002079 WCI 3002079 Contact Us For Availability
6
WHEEL-BLOWER WCI 3201132 Contact Us For Availability
6
WCI 3203063 WCI 3203063 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
7
WCI 3001809 WCI 3001809 Contact Us For Availability
7
WCI 3202962 WCI 3202962 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
KIT-START WCI 3201723 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
WCI 3018550 WCI 3018550 Contact Us For Availability
8
WCI 3202963 WCI 3202963 Contact Us For Availability
8
WCI 3202957 WCI 3202957 Contact Us For Availability
8
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
WCI 3017300 WCI 3017300 Contact Us For Availability
9
WCI 3002367 WCI 3002367 Contact Us For Availability
9
INSULATION-COVER WCI 3202958 Contact Us For Availability
9
NUT WCI 3211017 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
WCI 3201064 WCI 3201064 Contact Us For Availability
10
GASKET-COVER TER. WCI 3211012 Contact Us For Availability
10
ACCORDIAN WCI 3202965 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
12
WCI 3015323 WCI 3015323 Contact Us For Availability
12
SEAL-SHROUD/BASE WCI 3202951 Contact Us For Availability
12
WCI 3204175 WCI 3204175 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
12A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
13
WCI 3204176 WCI 3204176 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
14
WIRE HARNESS WCI 3203112 Contact Us For Availability
14
NUT-PUSH WCI 3202733 Contact Us For Availability
14
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
15
SCREW-CONTROL WCI 3007754 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
17
WCI 3202966 WCI 3202966 Contact Us For Availability
18
INSULATION - CONTROL PANEL WCI 3202960 Contact Us For Availability
19
WCI 08009156 WCI 08009156 Contact Us For Availability
20
WCI 3002169 WCI 3002169 Contact Us For Availability
× ![]()
