Model Electrolux AM09C4EYA ROOM AIR CONDITIONER – Common Parts & Diagrams

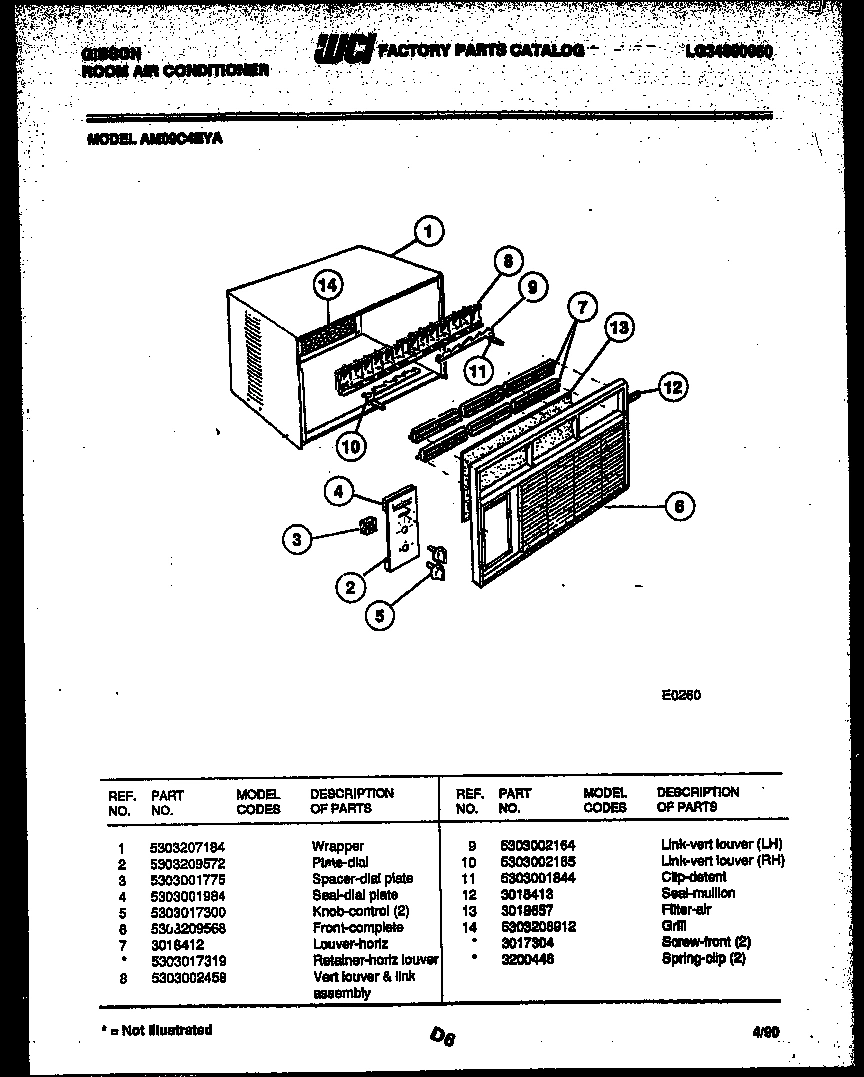

02 - CABINET PARTS

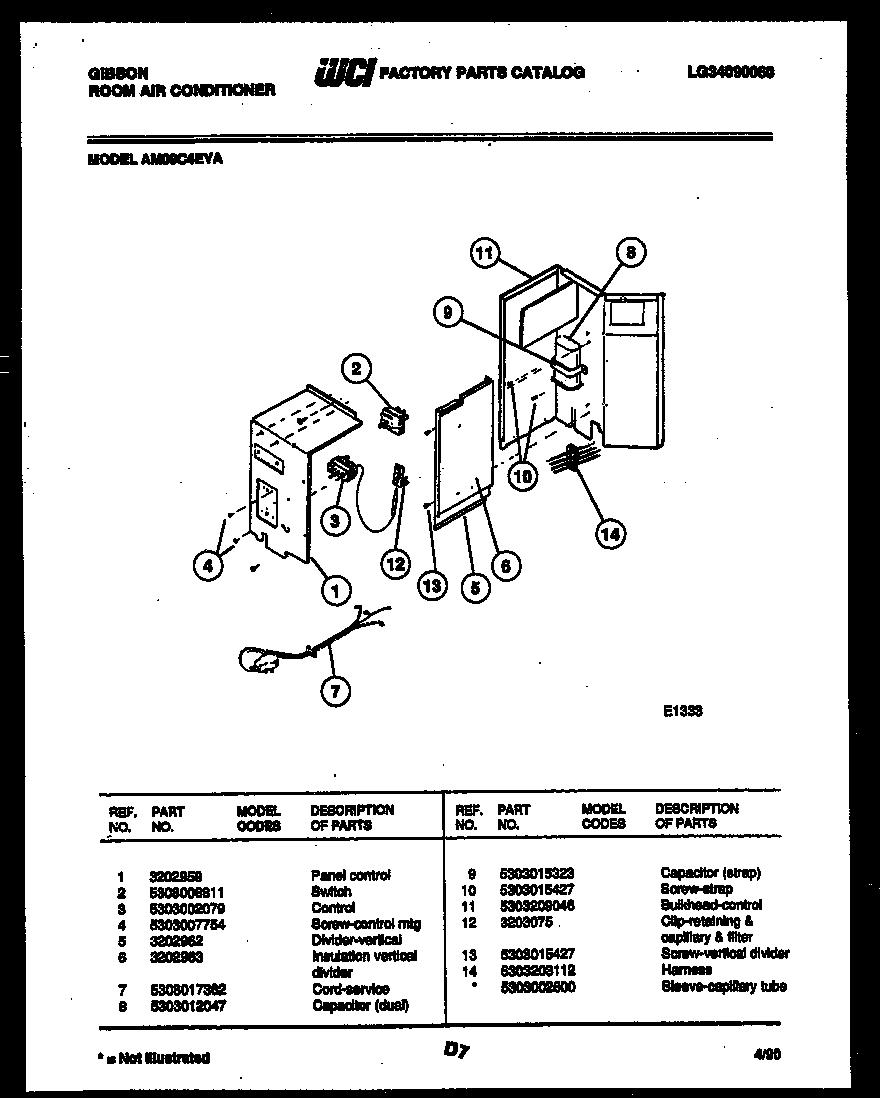

03 - ELECTRICAL PARTS

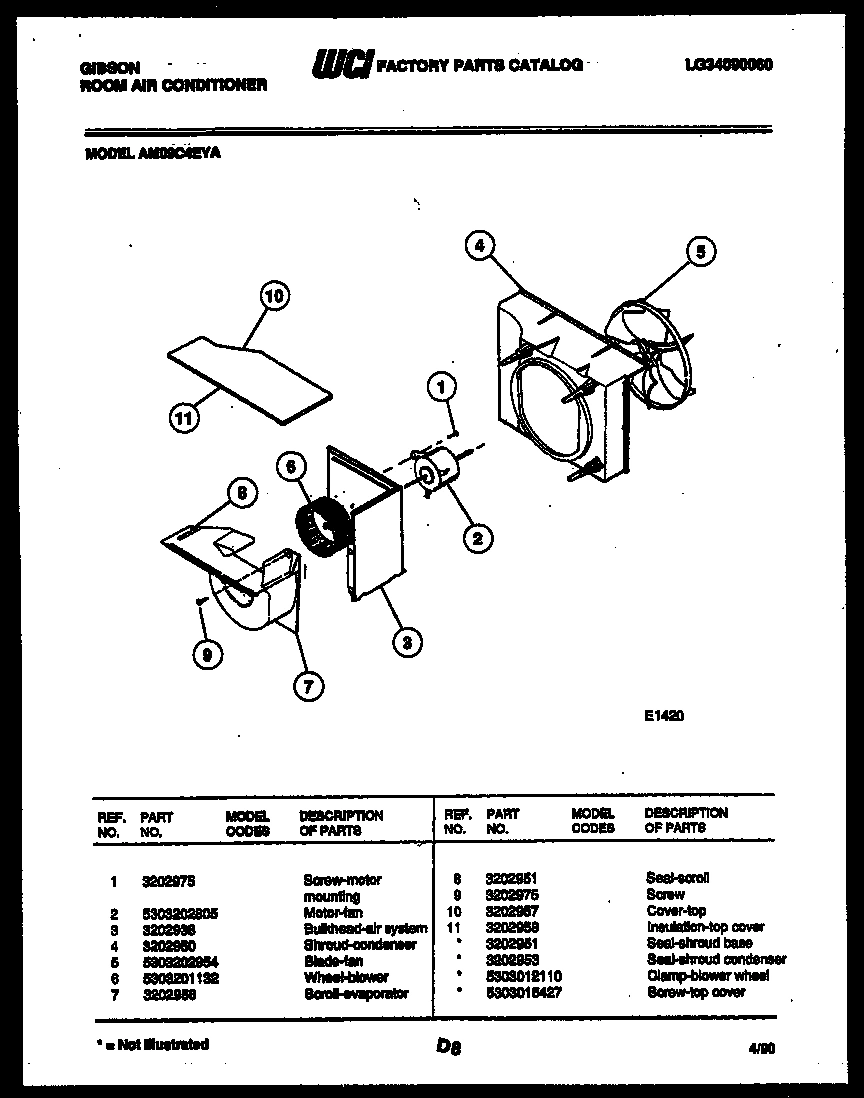

04 - AIR HANDLING PARTS

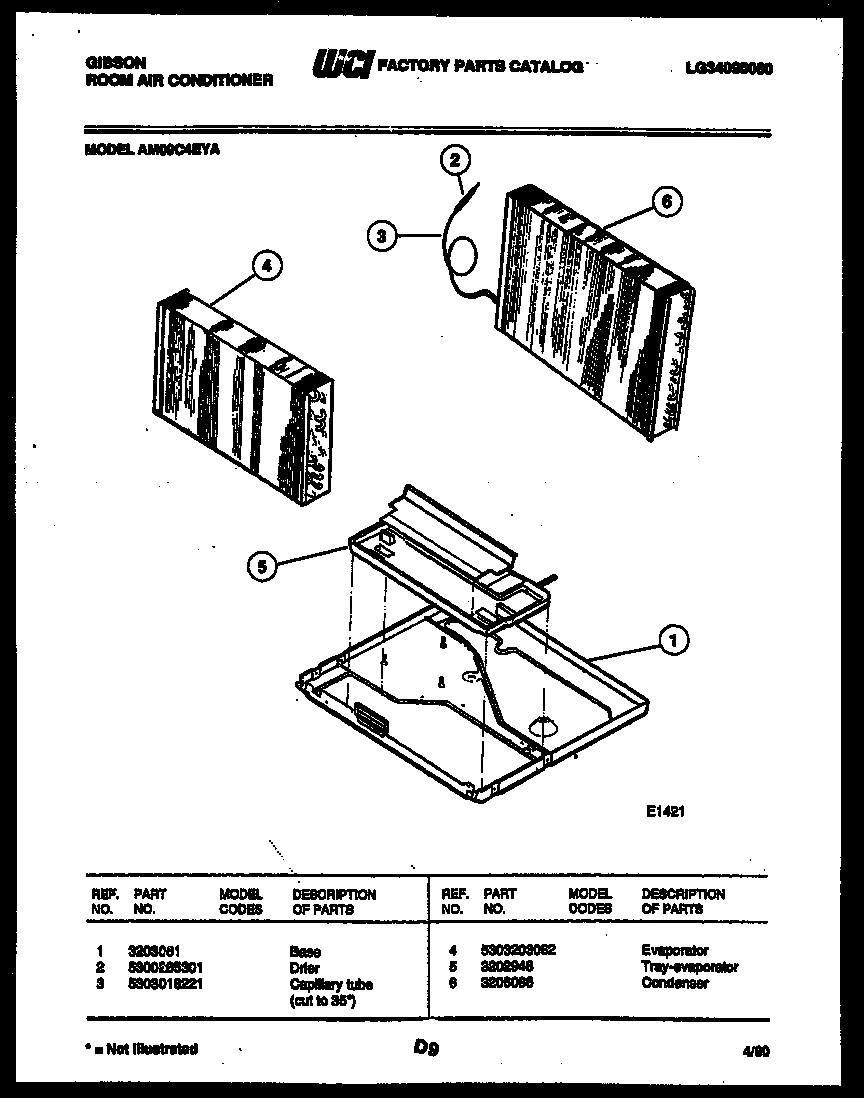

05 - UNIT PARTS

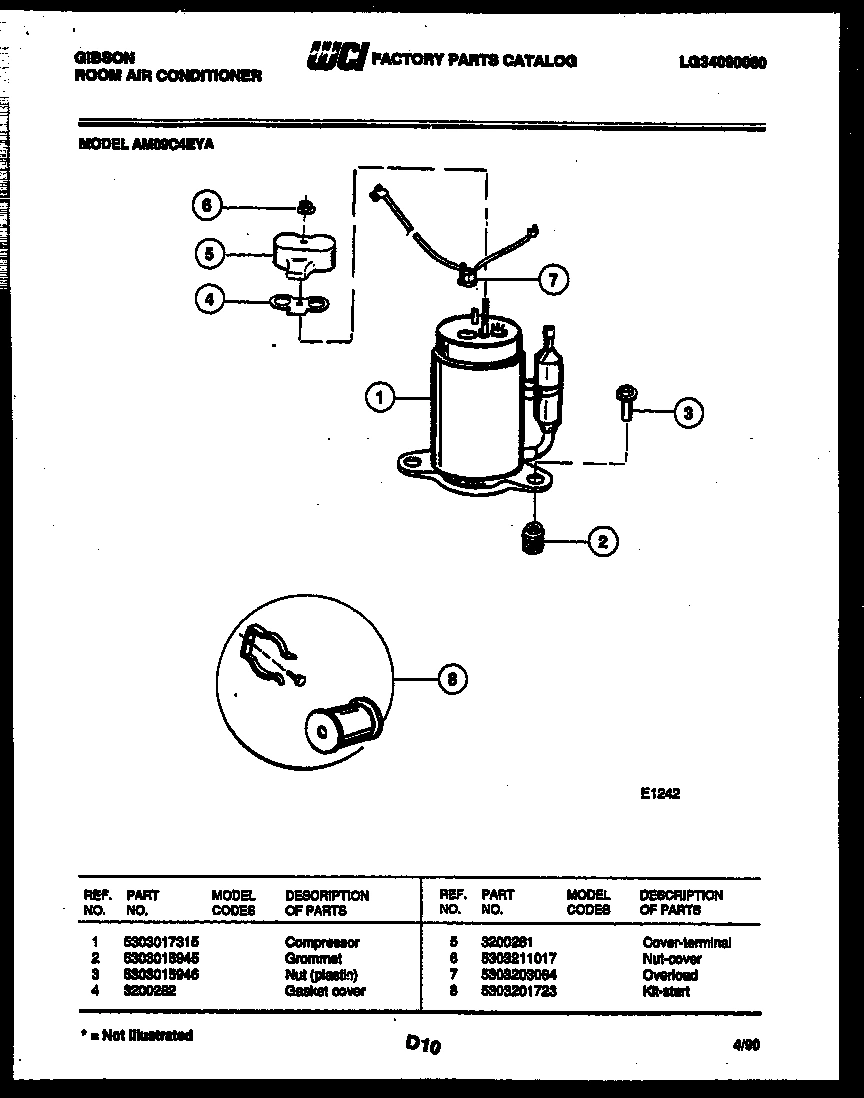

06 - COMPRESSOR PARTS

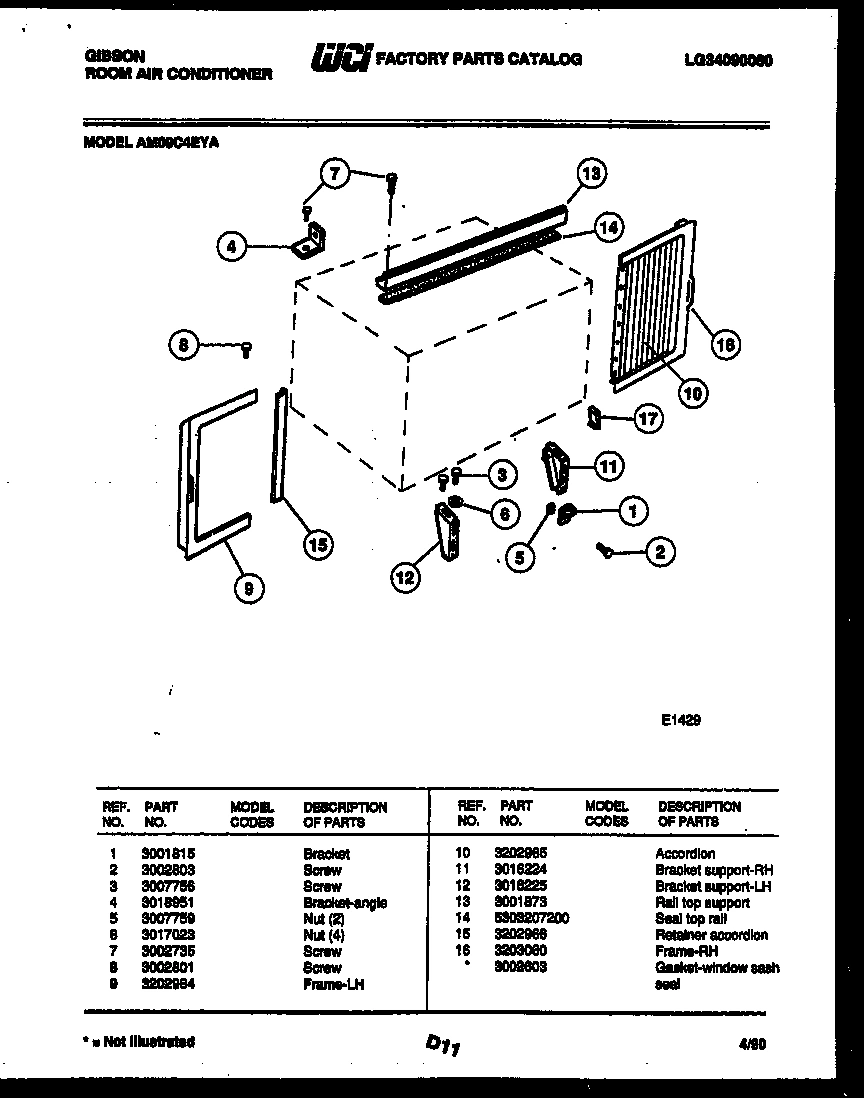

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AM09C4EYA ROOM AIR CONDITIONER
*25024
SPRING-CLIP (2) WCI 3200446 Contact Us For Availability
*25027
SLEEVE - CAPILLARY TUBE WCI 5303002600 Contact Us For Availability
*25030
WCI 3202953 WCI 3202953 Contact Us For Availability
*25030
WCI 5303012110 WCI 5303012110 Contact Us For Availability
1
WCI 5303207184 WCI 5303207184 Contact Us For Availability
1
WCI 3202959 WCI 3202959 Contact Us For Availability
1
WCI 3203061 WCI 3203061 Contact Us For Availability
1
WCI 5303017315 WCI 5303017315 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
WCI 5303209572 WCI 5303209572 Contact Us For Availability
2
SWITCH WCI 5308006811 Contact Us For Availability
2
WCI 5303202805 WCI 5303202805 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
CONTROL WCI 5303002079 Contact Us For Availability
3
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
WCI 5303018221 WCI 5303018221 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
4
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
4
SCREW-CONTROL MTG. WCI 5303007754 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 5303203062 WCI 5303203062 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
5
KNOB-CONTROL, (2) WCI 5303017300 Contact Us For Availability
5
WCI 3202962 WCI 3202962 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 3202948 WCI 3202948 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
NUT (2) WCI 3007759 Contact Us For Availability
6
WCI 5303209568 WCI 5303209568 Contact Us For Availability
6
INSULATION - VERTICAL DIVIDER WCI 3202963 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
WCI 3206086 WCI 3206086 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
LOUVER-HORIZ WCI 3018412 Contact Us For Availability
7
CORD-SERVICE WCI 5308017362 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 5303203064 WCI 5303203064 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
7A
RETAINER-HORIZ LOUVER (NON-ILLUSTRATED) WCI 5303017319 Contact Us For Availability
8
VERT LOUVER & LINK ASSEMBLY WCI 5303002458 Contact Us For Availability
8
WCI 5303012047 WCI 5303012047 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
KIT-START WCI 5303201723 Contact Us For Availability
8
WCI 3002801 WCI 3002801 Contact Us For Availability
9
LINK-VERT LOUVER (LH) WCI 5303002164 Contact Us For Availability
9
CAPACITOR (STRAP) WCI 5303015323 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
LINK-VERT LOUVER (RH) WCI 5303002165 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
ACCORDION WCI 3202965 Contact Us For Availability
11
CLIP-DETENT WCI 5303001844 Contact Us For Availability
11
WCI 5303209046 WCI 5303209046 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
BRACKET SUPPORT-RH WCI 3016224 Contact Us For Availability
12
WCI 3018413 WCI 3018413 Contact Us For Availability
12
CLIP - RETAINING & CAPILLARY & FILTER WCI 3203075 Contact Us For Availability
12
BRACKET SUPPORT-LH WCI 3016225 Contact Us For Availability
13
FILTER-AIR WCI 3018657 Contact Us For Availability
13
RAIL-TOP SUPPORT WCI 3001873 Contact Us For Availability
14
GRILL WCI 5303208912 Contact Us For Availability
14
HARNESS WCI 5303203112 Contact Us For Availability
14
WCI 5303207200 WCI 5303207200 Contact Us For Availability
15
RETAINER, ACCORDION WCI 3202966 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
× ![]()
