Model Maytag ALZ8580ADS14 GAS RANGE – Common Parts & Diagrams

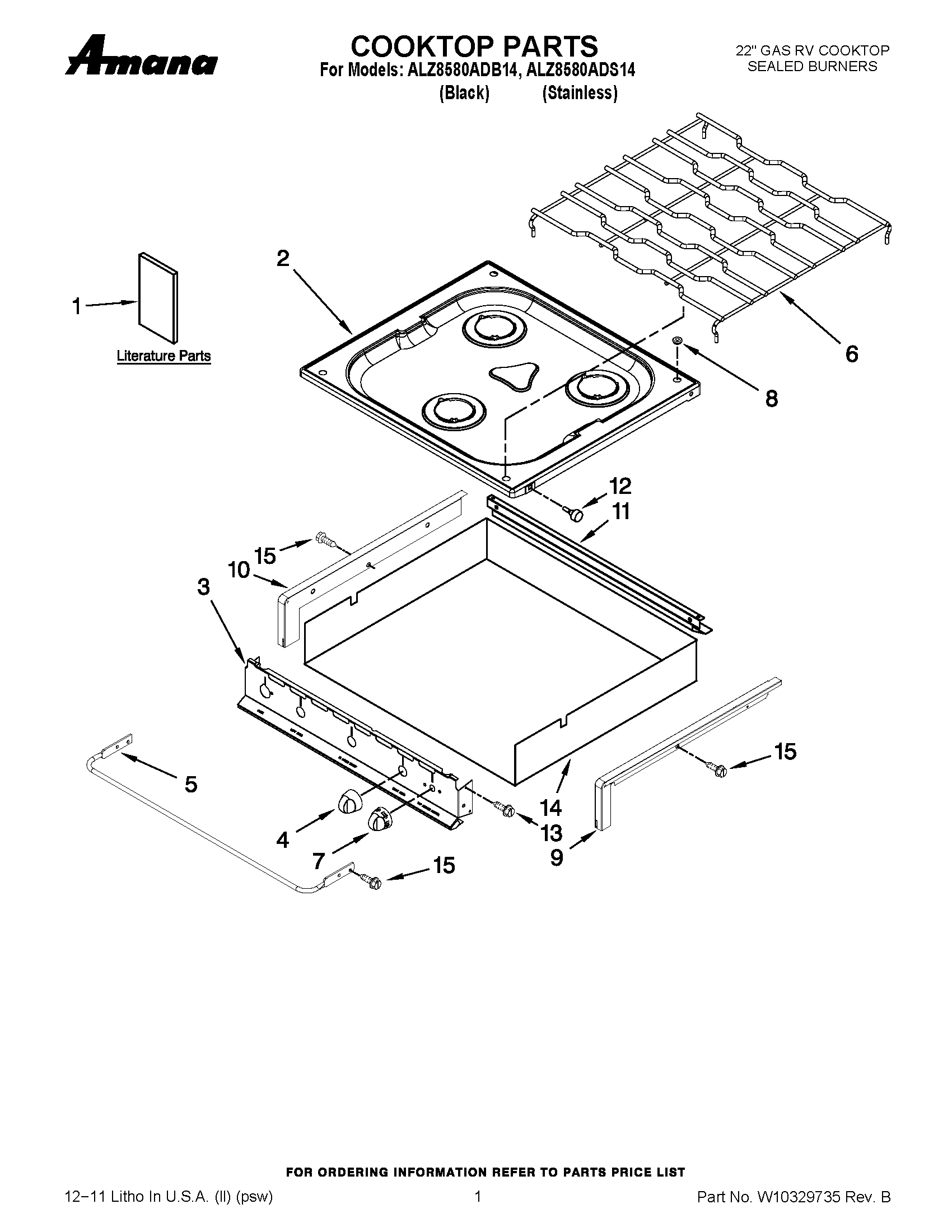

01 - COOKTOP PARTS

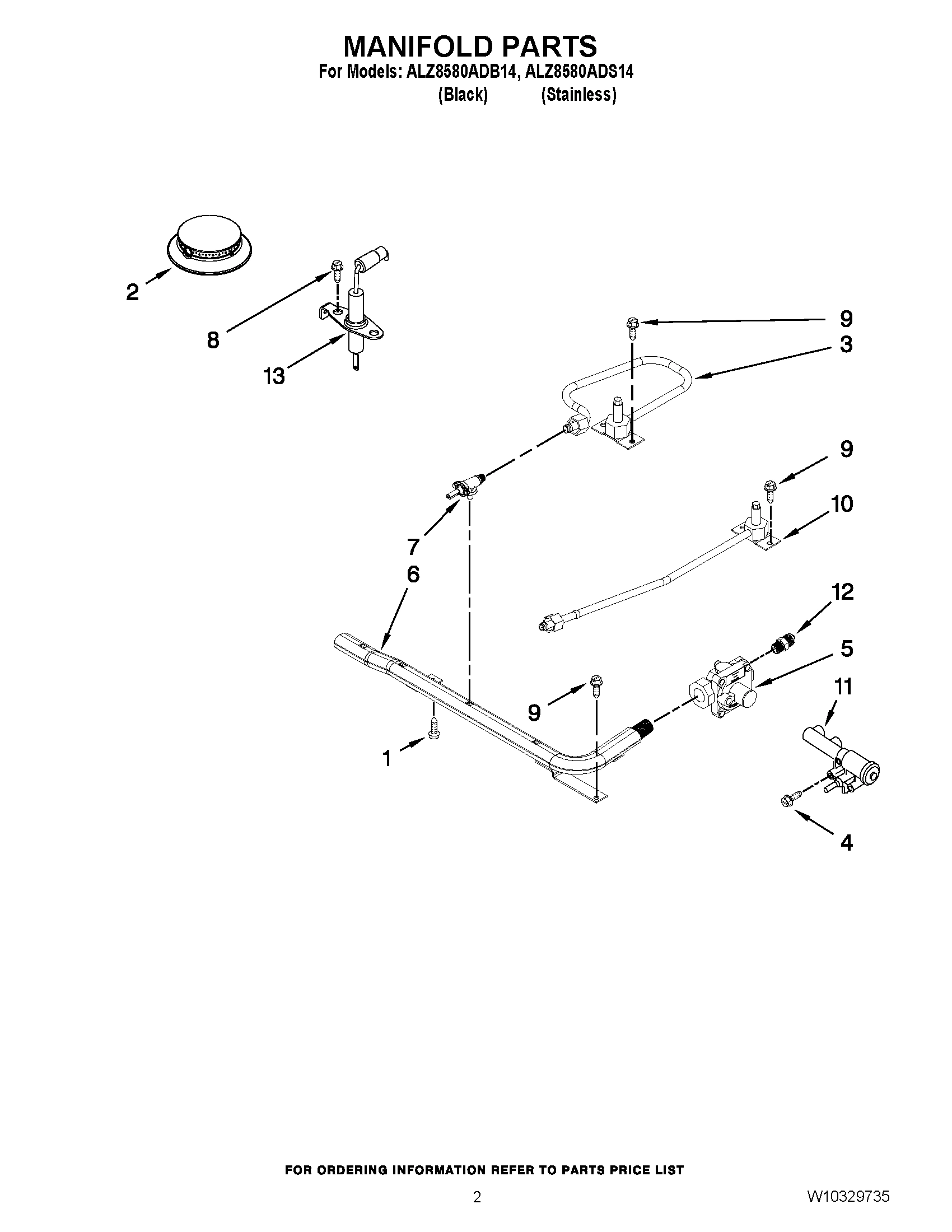

02 - MANIFOLD PARTS
03 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ALZ8580ADS14 GAS RANGE
1
MAY 8101P573-60 MAY 8101P573-60 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10381533 MAY W10381533 Contact Us For Availability
1
SCREW MAY 7101P639-60 Contact Us For Availability
2
COOKTOP (BLACK) MAY 2001F300-09 Contact Us For Availability
2
COOKTOP (STAINLESS) MAY 2001F301-50 Contact Us For Availability
2
MAY 3412D025-09 MAY 3412D025-09 Contact Us For Availability
3
MAY 2616F312-70 MAY 2616F312-70 Contact Us For Availability
3
MAY 7507P253-60 MAY 7507P253-60 Contact Us For Availability
4
KNOB, BURNER (FRONT) MAY 7733P199-60 Contact Us For Availability
4
KNOB, BURNER (LR, RR) MAY 7733P200-60 Contact Us For Availability
5
MAY 3609F006-70 MAY 3609F006-70 Contact Us For Availability
5
MAY 7510P078-60 MAY 7510P078-60 Contact Us For Availability
6
GRATE, BURNER MAY 7518P417-60 Contact Us For Availability
6
MAY 7513P476-60 MAY 7513P476-60 Contact Us For Availability
7
MAY 7739P117-60 MAY 7739P117-60 Contact Us For Availability
7
VALVE, BURNER (FRONT) MAY 7502P525-60 Contact Us For Availability
7
VALVE, BURNER (LR, RR) MAY 7502P526-60 Contact Us For Availability
8
MAY W10308285 MAY W10308285 Contact Us For Availability
8
MAY 7101P335-60 MAY 7101P335-60 Contact Us For Availability
9
MAY 3608W051-70 MAY 3608W051-70 Contact Us For Availability
9
MAY 7101P229-60 MAY 7101P229-60 Contact Us For Availability
10
MAY 3608W052-70 MAY 3608W052-70 Contact Us For Availability
10
MAY 7507P401-60 MAY 7507P401-60 Contact Us For Availability
11
MAY 3608F074-70 MAY 3608F074-70 Contact Us For Availability
11
IGNITOR, PIEZO MAY 7432P097-60 Contact Us For Availability
12
MAY 8003P008-60 MAY 8003P008-60 Contact Us For Availability
12
MAY 7507P280-60 MAY 7507P280-60 Contact Us For Availability
13
MAY 7432P100-60 MAY 7432P100-60 Contact Us For Availability
14
MAY 4011W355-51 MAY 4011W355-51 Contact Us For Availability
15
SCREW MAY 7101P141-60 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 5112P614-60 MAY 5112P614-60 Contact Us For Availability
NI
MAY 98015022 MAY 98015022 Contact Us For Availability
× ![]()
