Model Whirlpool ALJ10020 AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
02 - SECTION
03 - SECTION

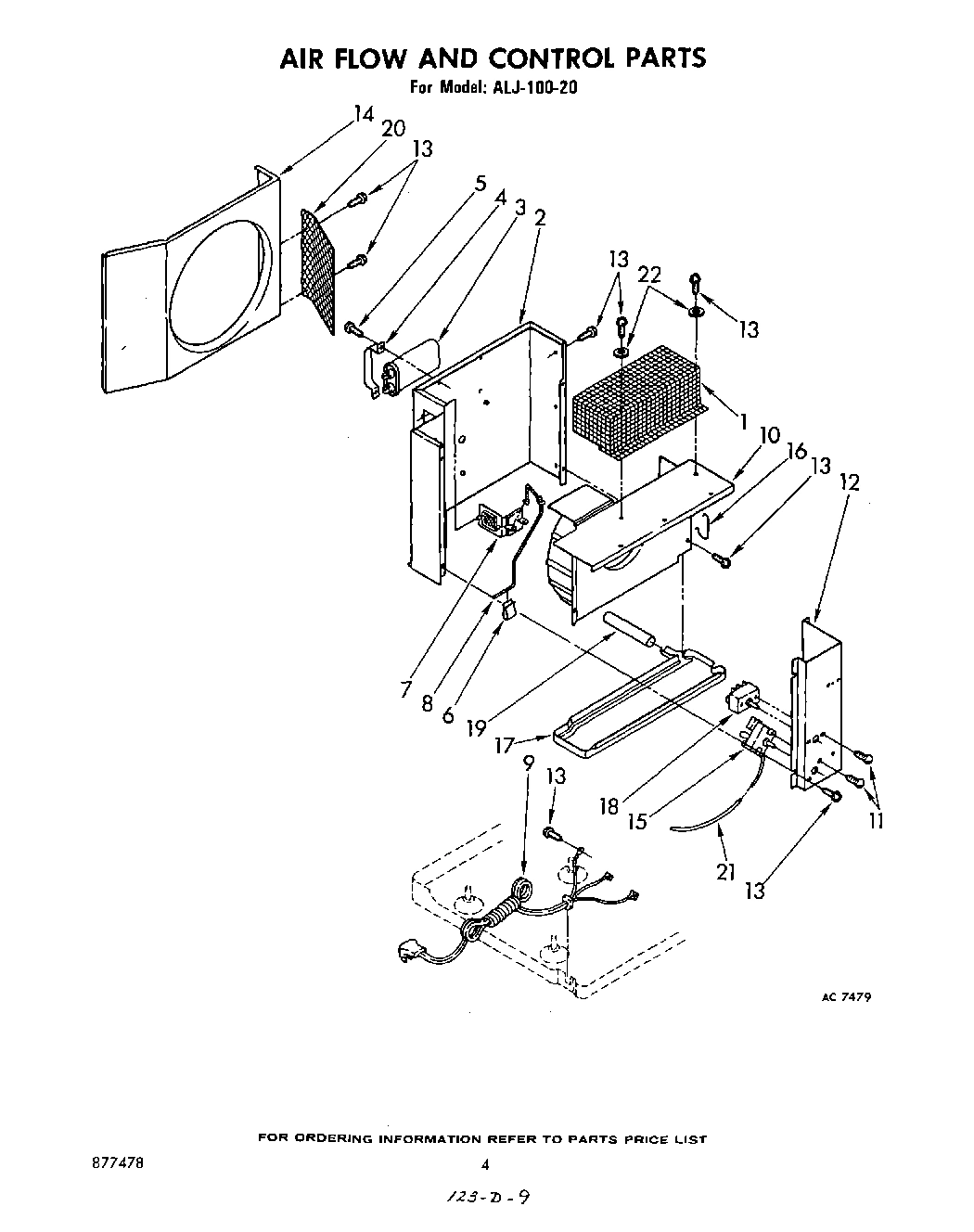

Common parts from model Whirlpool ALJ10020 AIR CONDITIONER
1
Base WPL 980766 Contact Us For Availability
1
Guard, Evaporator Impeller WPL 980781 Contact Us For Availability
2
Compressor WPL 980767 Contact Us For Availability
2
Wall, Dividing WPL 977935 Contact Us For Availability
3
Overload WPL 977621 Contact Us For Availability
3
capacitor WPL 980763 Contact Us For Availability
4
Spring, Overload WPL 977622 Contact Us For Availability
4
Bracket, Capacitor WPL 980762 Contact Us For Availability
5
spring, compressor mounting WPL 977440 Contact Us For Availability
6
Plate, Compressor Mounting WPL 832161 Contact Us For Availability
6
Clip, Arm WPL 980743 Contact Us For Availability
7
Curtain Housing Assembly (Left Side) WPL 980785 Contact Us For Availability
7
Curtain Housing Assembly (Right Side) WPL 980786 Contact Us For Availability
7
Grommet, Compressor Mounting (3) WPL 980726 Contact Us For Availability
7
Door, Exhaust WPL 977891 Contact Us For Availability
8
Louver, Vertical WPL 832354 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 980725 Contact Us For Availability
8
Arm, Exhaust Door WPL 980873 Contact Us For Availability
9
Handle, Louver WPL 980753 Contact Us For Availability
9
cable, appliance WPL 980764 Contact Us For Availability
10
Spring, Detent WPL 832051 Contact Us For Availability
10
gasket, terminal cover WPL 977833 Contact Us For Availability
10
Shroud, Evaporator WPL 980775 Contact Us For Availability
11
Escutcheon, Control WPL 980782 Contact Us For Availability
11
cover, terminal WPL 977834 Contact Us For Availability
11
Screw, Machine 6-32 x .175 (4) WPL 977838 Contact Us For Availability
12
Knob, Control (2) WPL 980828 Contact Us For Availability
12
Retainer, Terminal Cover WPL 977835 Contact Us For Availability
12
Panel, Control WPL 980779 Contact Us For Availability
13
Front, Cabinet (Complete Assembly) WPL 980787 Contact Us For Availability
13
Motor, Fan WPL 980777 Contact Us For Availability
14
Retainer, Filter (2) WPL 977850 Contact Us For Availability
14
Nut, Hex Keps 8-32 (4) WPL 977634 Contact Us For Availability
14
Shroud, Condenser WPL 980768 Contact Us For Availability
15
Filter WPL 980783 Contact Us For Availability
15
Clip, Temperature Anticipator WPL 832246 Contact Us For Availability
15
Control, Temperature WPL 980741 Contact Us For Availability
16
Seal, Meeting Rail WPL 977749 Contact Us For Availability
16
Wheel, Blower (Evaporator) WPL 977755 Contact Us For Availability
16
Clip, Retainer (3) WPL 980803 Contact Us For Availability
17
Screw, 6 x 1`` (2) WPL 980751 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 977713 Contact Us For Availability
17
Pan, Drain WPL 980792 Contact Us For Availability
18
Evaporator WPL 980770 Contact Us For Availability
18
Switch, Rotary WPL 977758 Contact Us For Availability
19
Tube, Restrictor WPL 980772 Contact Us For Availability
19
Tube, Drain WPL 977462 Contact Us For Availability
20
Condenser WPL 980771 Contact Us For Availability
20
Screen, Splash WPL 980769 Contact Us For Availability
21
Protector, Bulb WPL 980780 Contact Us For Availability
22
Screw, Machine 5/16-18 x 1-1/4 (3) WPL 980790 Contact Us For Availability
22
Washer, Flat (3) WPL 980778 Contact Us For Availability
23
Nut, 5/16-18 WPL 977792 Contact Us For Availability
24
Clip, Mounting WPL 980776 Contact Us For Availability
25
Harness, Wiring WPL 484136 Contact Us For Availability
28
Anticipator, Temperature WPL 977574 Contact Us For Availability
29
WPL 978029 WPL 978029 Contact Us For Availability
29
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
29
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
29
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
29
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
29
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
29
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
29
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
29
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
29
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
29
Mount, Motor (3) WPL 832217 Contact Us For Availability
29
List, Repair Parts WPL 877478 Contact Us For Availability
29
Guide, Energy WPL 950261 Contact Us For Availability
29
guide, use & care WPL 950265 Contact Us For Availability
29
Sheet, Service Tech (Service Information) WPL 950720 Contact Us For Availability
29
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
