Model Whirlpool ALJ00520 AIR CONDITIONER – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION

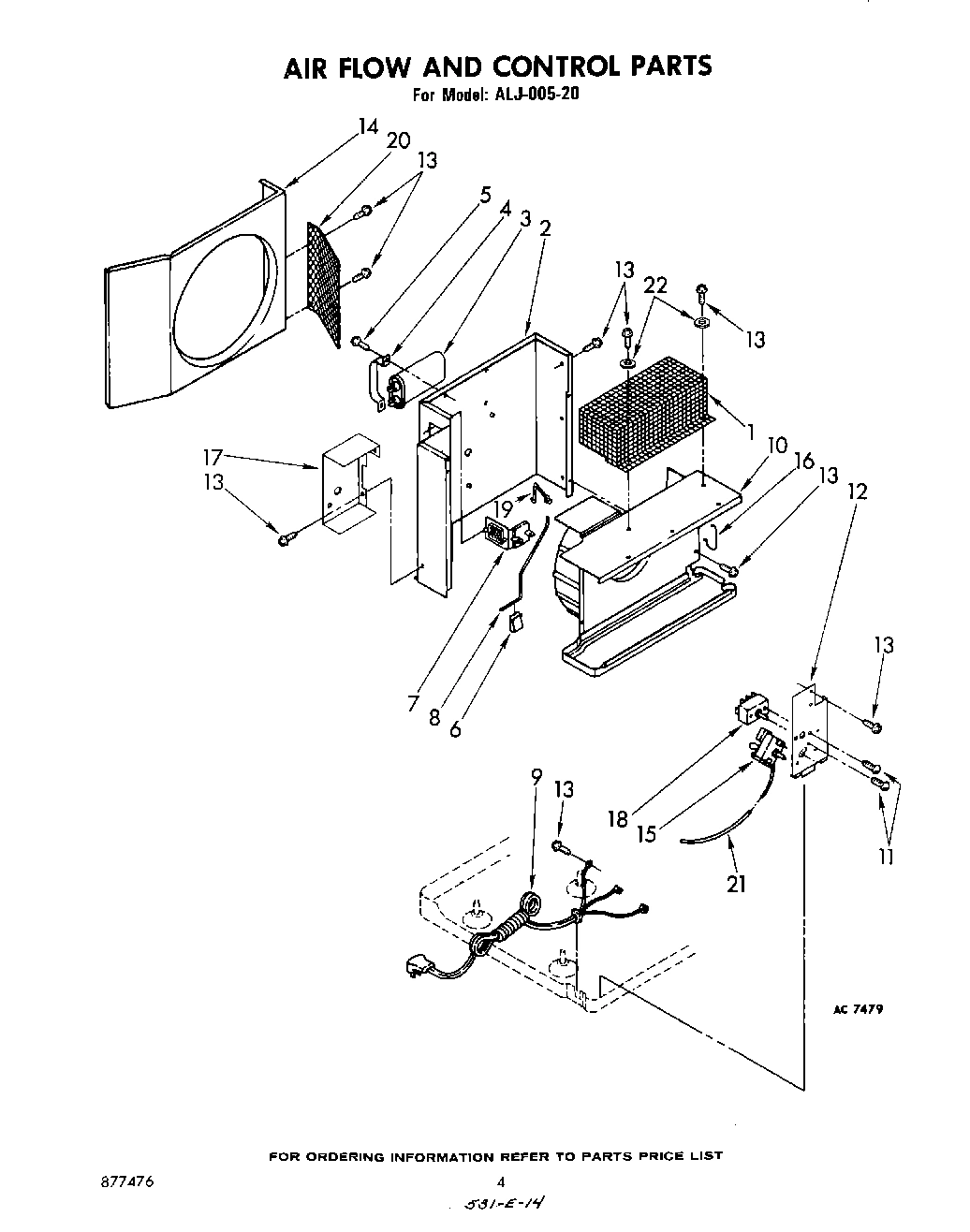

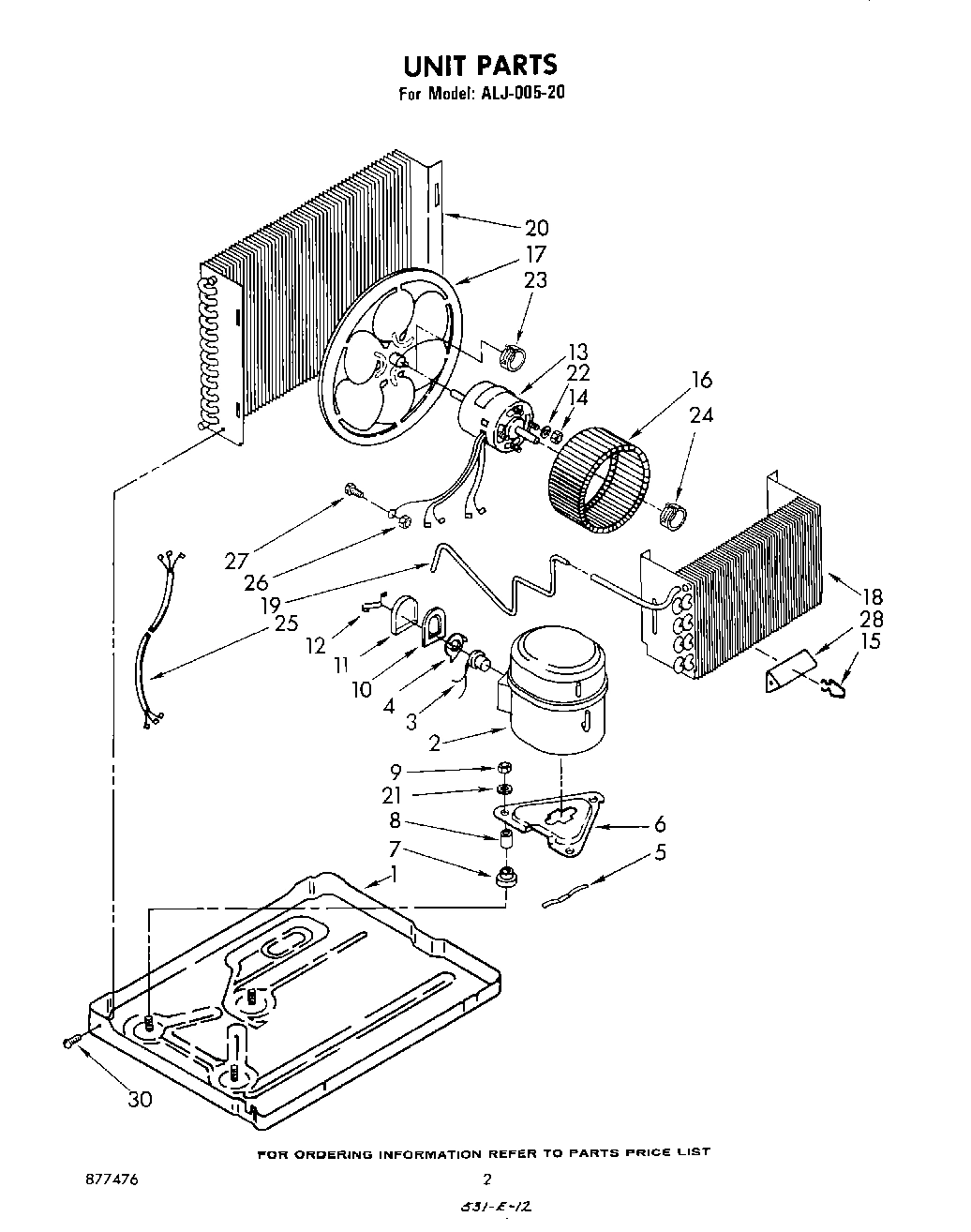

Common parts from model Whirlpool ALJ00520 AIR CONDITIONER
1
Guard, Evaporator Impeller WPL 980742 Contact Us For Availability
1
Clip, Front Mounting (2) WPL 798307 Contact Us For Availability
2
Wall, Dividing WPL 980760 Contact Us For Availability
2
Cabinet WPL 980746 Contact Us For Availability
3
Capacitor WPL 977941 Contact Us For Availability
4
Bracket, Running Capacitor WPL 977672 Contact Us For Availability
4
Seal, Strip (Top) WPL 977676 Contact Us For Availability
5
Channel, Top Mounting WPL 980747 Contact Us For Availability
6
Clip, Arm WPL 980743 Contact Us For Availability
7
Grommet, Compressor Mounting (3) WPL 980726 Contact Us For Availability
7
Door, Exhaust WPL 977891 Contact Us For Availability
7
Curtain Housing Assembly (Left Side) WPL 980748 Contact Us For Availability
7
Curtain Housing Assembly (Right Side) WPL 980749 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 980725 Contact Us For Availability
8
Arm, Exhaust Door WPL 980745 Contact Us For Availability
8
Louver, Vertical WPL 832049 Contact Us For Availability
9
nut, 5/16-18 (3) WPL 977792 Contact Us For Availability
9
Cable, Appliance WPL 980738 Contact Us For Availability
9
Handle, Louver WPL 980753 Contact Us For Availability
10
Gasket, Terminal Cover WPL 980700 Contact Us For Availability
10
shroud, evaporator WPL 980736 Contact Us For Availability
10
Spring, Detent WPL 832051 Contact Us For Availability
11
Cover, Terminal WPL 980701 Contact Us For Availability
11
Screw, Mach 6-32 x .175 (4) WPL 977838 Contact Us For Availability
11
Escutcheon, Control WPL 980750 Contact Us For Availability
12
Retainer, Terminal Cover WPL 977835 Contact Us For Availability
12
Panel, Control WPL 980740 Contact Us For Availability
12
Knob, Control (2) WPL 980752 Contact Us For Availability
13
Motor, Fan WPL 980731 Contact Us For Availability
13
Front, Cabinet (Complete Assembly) WPL 980754 Contact Us For Availability
14
Shroud, Condenser WPL 980876 Contact Us For Availability
14
Retainer, Filter (2) WPL 977850 Contact Us For Availability
15
Clip, Temperature Anticipator WPL 832246 Contact Us For Availability
15
Control, Temperature WPL 980741 Contact Us For Availability
15
Filter WPL 980739 Contact Us For Availability
16
Wheel, Blower (Evaporator) WPL 980735 Contact Us For Availability
16
Clip, Retainer (2) WPL 980774 Contact Us For Availability
16
Seal, Meeting Rail WPL 977749 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 980734 Contact Us For Availability
17
Box, Control WPL 980737 Contact Us For Availability
17
Screw, 6 x 1`` (2) WPL 980751 Contact Us For Availability
18
Evaporator WPL 980728 Contact Us For Availability
18
Switch, Rotary WPL 977758 Contact Us For Availability
18
Seal, Strip (Sides) WPL 832053 Contact Us For Availability
19
Tube, Restrictor WPL 980729 Contact Us For Availability
19
Linkage, Door WPL 977429 Contact Us For Availability
20
Condenser WPL 980727 Contact Us For Availability
20
Screen, Splash WPL 980769 Contact Us For Availability
21
Protector, Bulb WPL 980780 Contact Us For Availability
22
Spacer, Washer (4) WPL 980732 Contact Us For Availability
22
Washer, Flat (3) WPL 980778 Contact Us For Availability
23
Clip, Fan Mounting WPL 980773 Contact Us For Availability
24
Clip, Wheel Mounting WPL 977874 Contact Us For Availability
25
Harness, Wiring WPL 484136 Contact Us For Availability
28
Anticipator, Temperature WPL 977574 Contact Us For Availability
30
VALVE, ACCESS (5/ WPL 978029 Contact Us For Availability
30
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
30
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
30
Insulation, Fiberglass (1/4`` x 24`` x 48``) WPL 469938 Contact Us For Availability
30
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
30
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
30
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
30
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
30
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
30
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
30
List, Repair Parts WPL 877476 Contact Us For Availability
30
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
30
WPL 980718 WPL 980718 Contact Us For Availability
30
WPL 980755 WPL 980755 Contact Us For Availability
30
WPL 980756 WPL 980756 Contact Us For Availability
× ![]()
