Model Electrolux AL149N2C1 ROOM AIR CONDITIONER – Common Parts & Diagrams

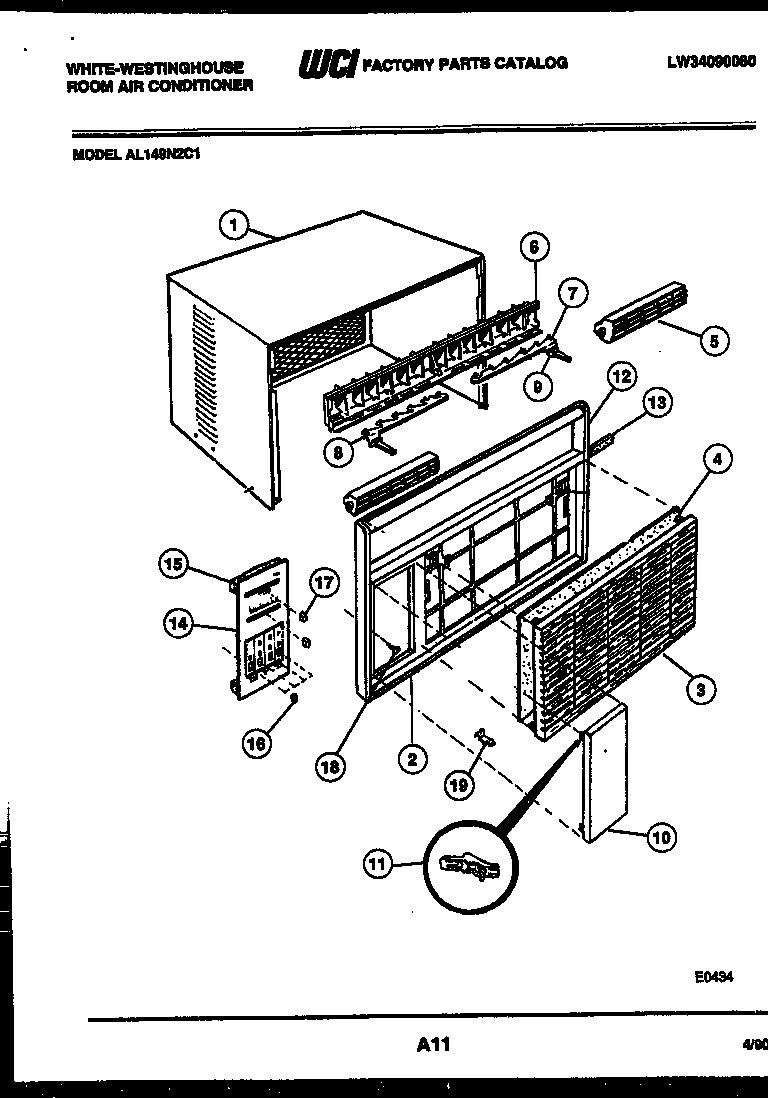

02 - CABINET PARTS

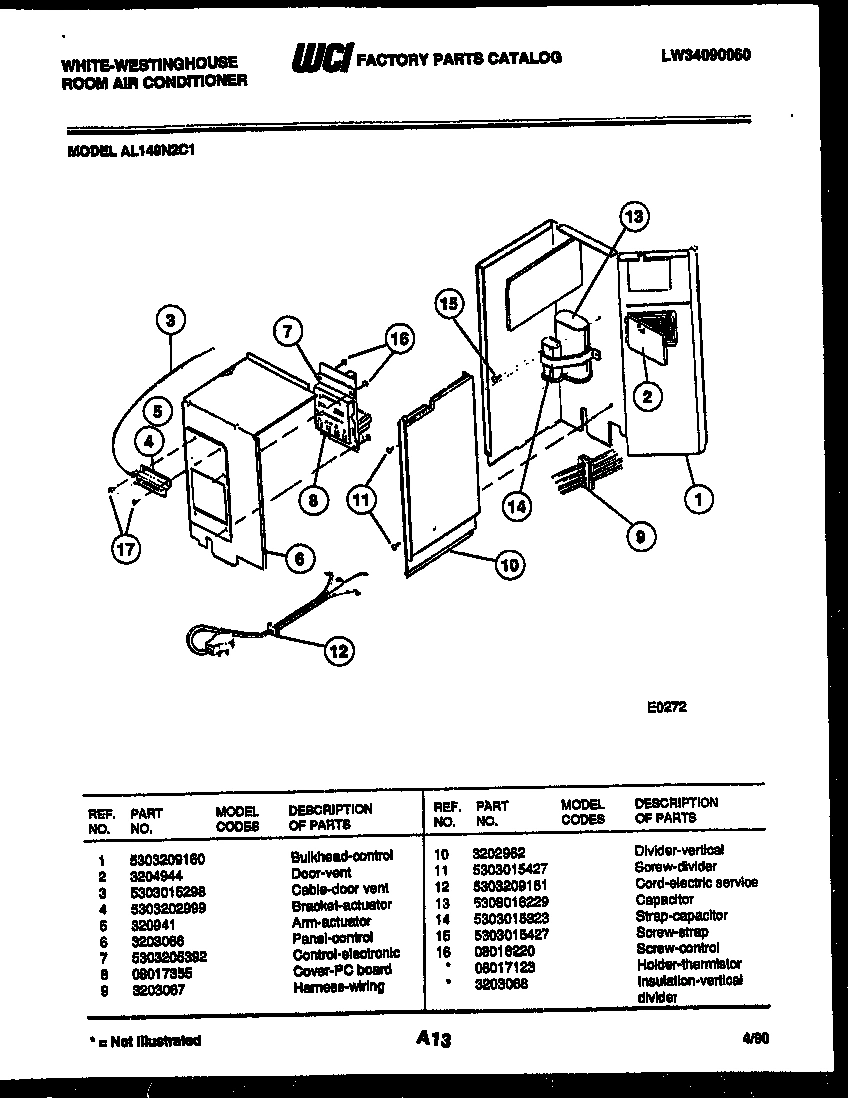

03 - ELECTRICAL PARTS

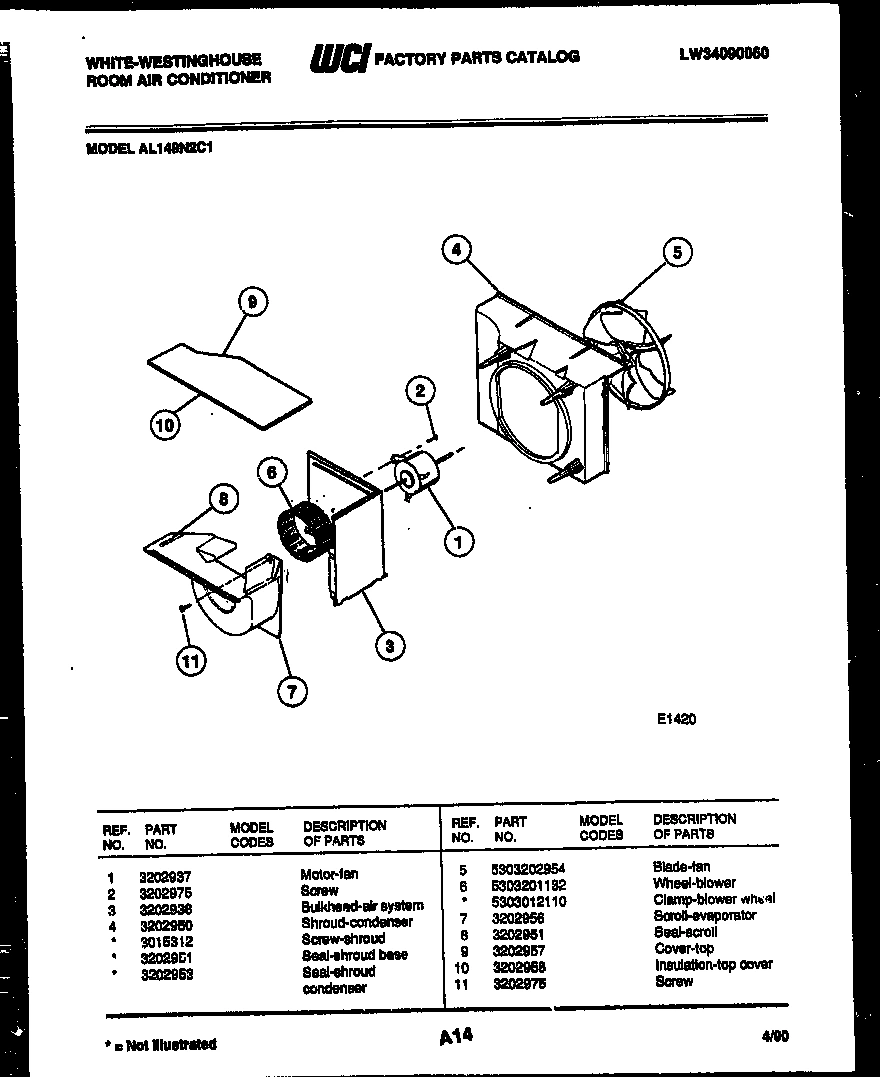

04 - AIR HANDLING PARTS

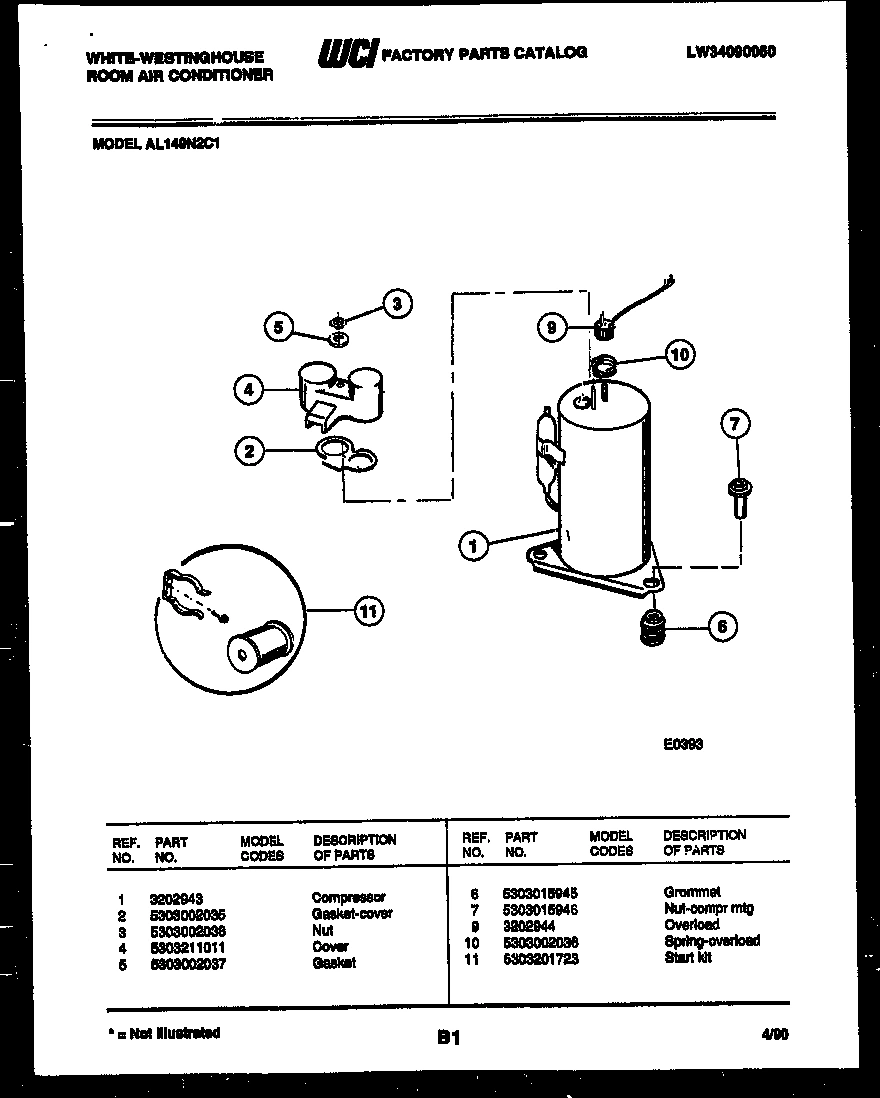

05 - COMPRESSOR PARTS

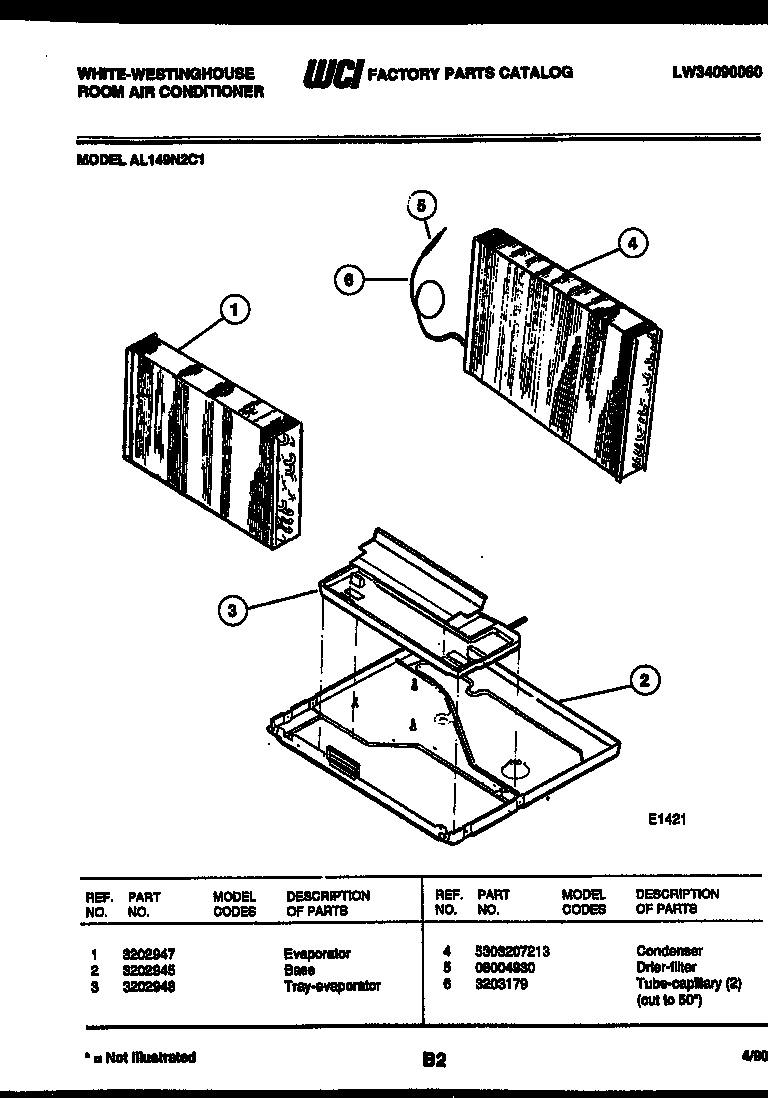

06 - UNIT PARTS
Common parts from model Electrolux AL149N2C1 ROOM AIR CONDITIONER
*28283
WCI 08017123 WCI 08017123 Contact Us For Availability
*28283
INSULATION-VERTICAL DIVIDER WCI 3203068 Contact Us For Availability
1
SLEEVE WCI 5303207184 Contact Us For Availability
1
BULKHEAD-CONTROL WCI 5303209160 Contact Us For Availability
1
WCI 3202937 WCI 3202937 Contact Us For Availability
1
WCI 3202943 WCI 3202943 Contact Us For Availability
1
WCI 3202947 WCI 3202947 Contact Us For Availability
2
WCI 5303202806 WCI 5303202806 Contact Us For Availability
2
WCI 3204944 WCI 3204944 Contact Us For Availability
2
WCI 5303002035 WCI 5303002035 Contact Us For Availability
2
WCI 3202945 WCI 3202945 Contact Us For Availability
3
WCI 5300454703 WCI 5300454703 Contact Us For Availability
3
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
NUT WCI 5303002038 Contact Us For Availability
3
WCI 3202948 WCI 3202948 Contact Us For Availability
3A
TRACK-FILTER (NON-ILLUSTRATED) WCI 5300346201 Contact Us For Availability
4
FILTER-AIR WCI 5300462201 Contact Us For Availability
4
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 5303211011 WCI 5303211011 Contact Us For Availability
4
WCI 5303207213 WCI 5303207213 Contact Us For Availability
4C
SEAL-SHROUD CONDENSER (NON-ILLUSTRATED) WCI 3202953 Contact Us For Availability
5
FRAME-HORIZ LOUVER WCI 5308017244 Contact Us For Availability
5
WCI 320941 WCI 320941 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
GASKET WCI 5303002037 Contact Us For Availability
6
VERT LOUVER & LINK ASSEMBLY WCI 5303002458 Contact Us For Availability
6
WCI 3203066 WCI 3203066 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
GROMMET WCI 5303015945 Contact Us For Availability
6
TUBE-CAPILLARY (2) (CUT TO 50``) WCI 3203179 Contact Us For Availability
6A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
7
LINK - VERT LOUVER RH WCI 5303002164 Contact Us For Availability
7
WCI 5303205392 WCI 5303205392 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
NUT-COMPR MTG WCI 5303015946 Contact Us For Availability
8
LINK - VERT LOUVER LH WCI 5303002165 Contact Us For Availability
8
WCI 08017355 WCI 08017355 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
9
CLIP-LINK DETENT WCI 5303001844 Contact Us For Availability
9
WCI 3203067 WCI 3203067 Contact Us For Availability
9
WCI 3202957 WCI 3202957 Contact Us For Availability
9
WCI 3202944 WCI 3202944 Contact Us For Availability
10
DOOR-FRONT WCI 5303201645 Contact Us For Availability
10
WCI 3202962 WCI 3202962 Contact Us For Availability
10
WCI 3202958 WCI 3202958 Contact Us For Availability
10
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
11
HINGE - DOOR WCI 5303017980 Contact Us For Availability
11
WCI 5303201723 WCI 5303201723 Contact Us For Availability
12
TRIM-FRONT WCI 5300344902 Contact Us For Availability
12
WCI 5303209161 WCI 5303209161 Contact Us For Availability
13
WCI 5300301157 WCI 5300301157 Contact Us For Availability
13
WCI 5308016229 WCI 5308016229 Contact Us For Availability
14
WCI 5303209138 WCI 5303209138 Contact Us For Availability
14
WCI 5303015323 WCI 5303015323 Contact Us For Availability
14A
SPACER-DIAL PLATE WCI 5308016088 Contact Us For Availability
15
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
16
KNOB-CNTRL PUSH BTN WCI 5308016116 Contact Us For Availability
16
WCI 08016220 WCI 08016220 Contact Us For Availability
17
WCI 5303002189 WCI 5303002189 Contact Us For Availability
18
SCREW-FRONT WCI 5308008175 Contact Us For Availability
19
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
× ![]()
