Model Electrolux AL125N1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

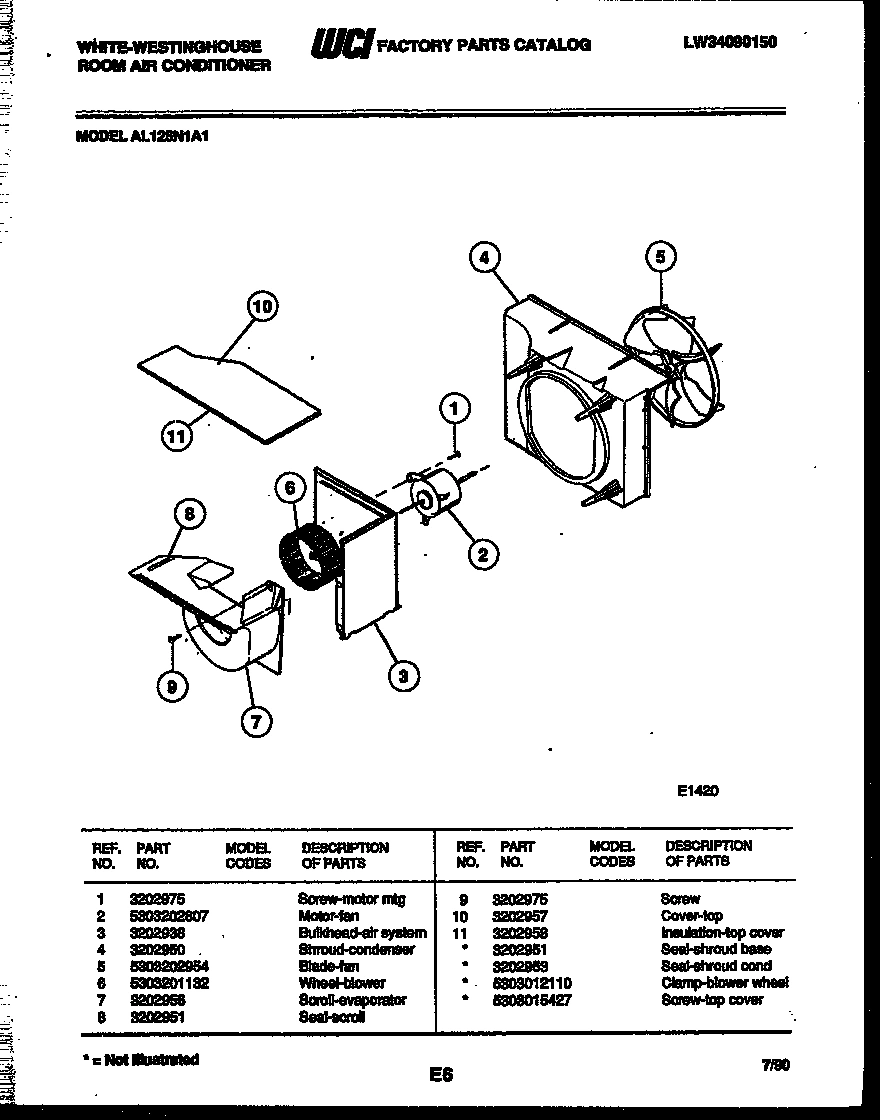

04 - AIR HANDLING PARTS

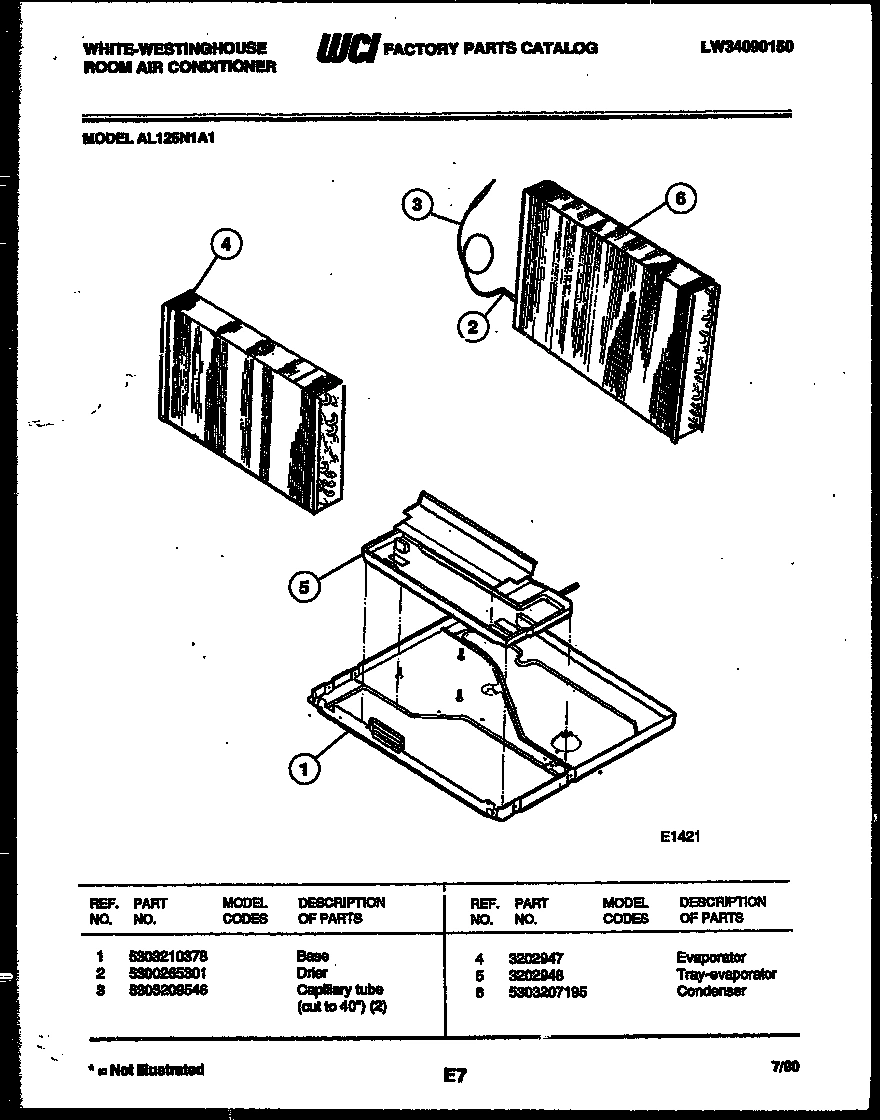

05 - UNIT PARTS

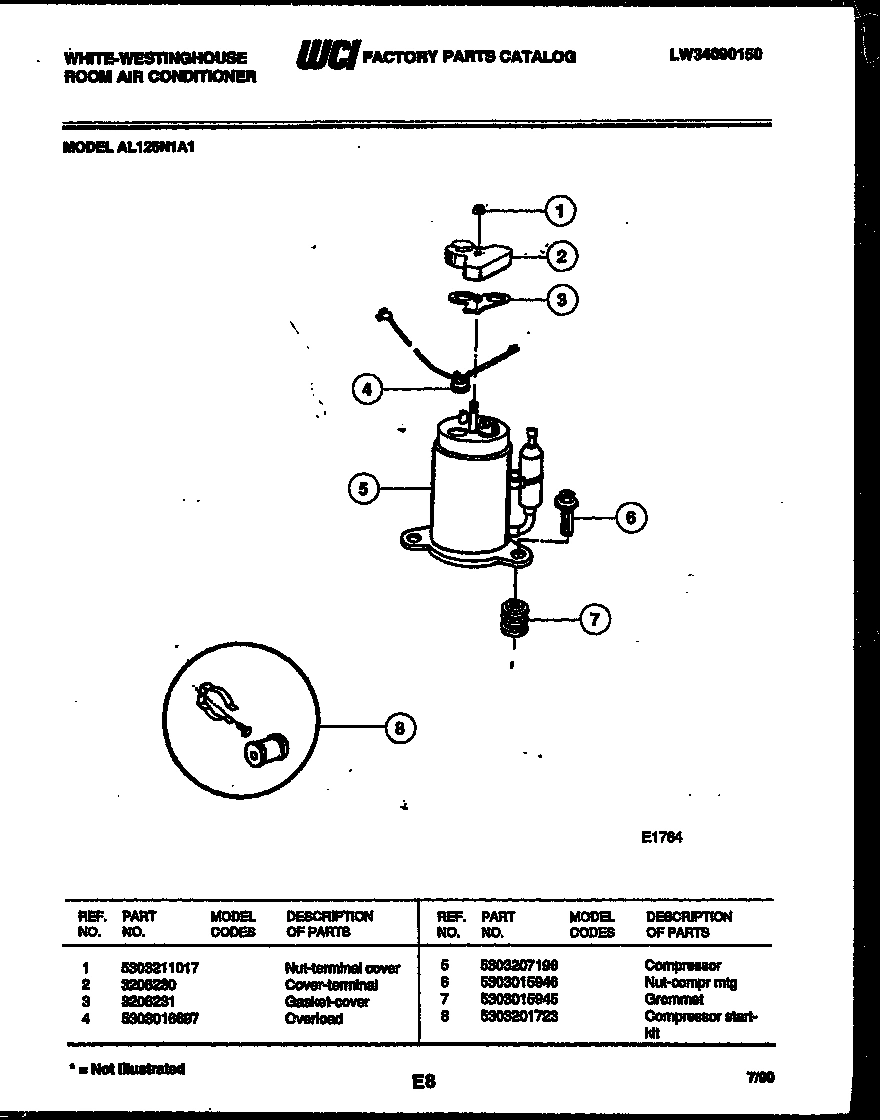

06 - COMPRESSOR PARTS

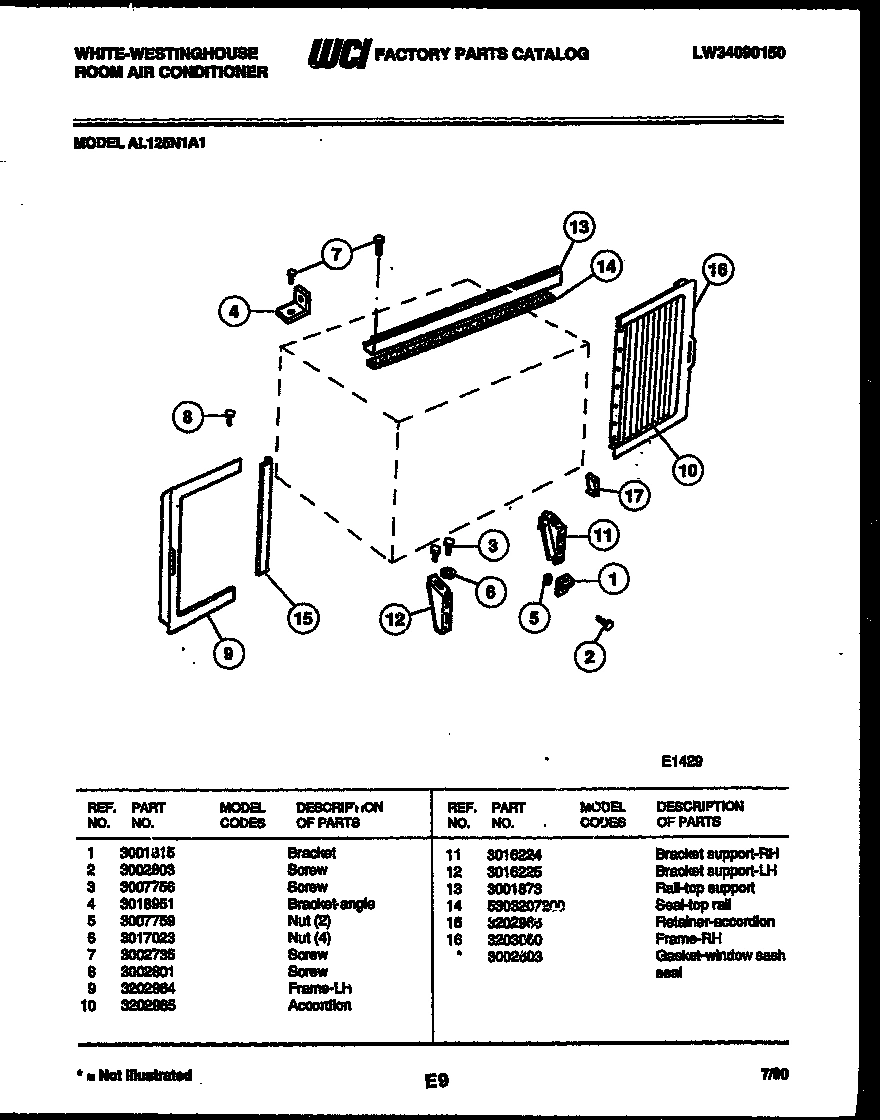

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL125N1A1 ROOM AIR CONDITIONER
*33797
INSULATION-CONTROL PANEL TOP WCI 3202960 Contact Us For Availability
*33797
SLEEVE - CAP TUBE WCI 5303002600 Contact Us For Availability
*33800
SEAL-SHROUD COND WCI 3202953 Contact Us For Availability
*33800
WCI 5303012110 WCI 5303012110 Contact Us For Availability
1
WCI 3202959 WCI 3202959 Contact Us For Availability
1
WCI 5303210378 WCI 5303210378 Contact Us For Availability
1
Nut,terminal cover WCI 5303211017 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
WCI 3016866 WCI 3016866 Contact Us For Availability
2
SWITCH WCI 5308006811 Contact Us For Availability
2
WCI 5303202807 WCI 5303202807 Contact Us For Availability
2
WCI 3206230 WCI 3206230 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
CONTROL WCI 5303002079 Contact Us For Availability
3
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
CAPILLARY TUBE-CUT TO 40`` (2) WCI 5303209546 Contact Us For Availability
3
GASKET-COVER WCI 3206231 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
3A
SPACER-DIAL PLATE (NON-ILLUSTRATED) WCI 5303001775 Contact Us For Availability
4
WCI 3203595 WCI 3203595 Contact Us For Availability
4
SCREW-CONTROL MTG. WCI 5303007754 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 3202947 WCI 3202947 Contact Us For Availability
4
WCI 5303016697 WCI 5303016697 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
5
VERT. LOUVER & LINK ASSY. WCI 5303002458 Contact Us For Availability
5
WCI 3202962 WCI 3202962 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 3202948 WCI 3202948 Contact Us For Availability
5
WCI 5303207198 WCI 5303207198 Contact Us For Availability
5
NUT (2) WCI 3007759 Contact Us For Availability
6
LINK - VERT LOUVER RH WCI 5303002164 Contact Us For Availability
6
INSULATION-VERT DIVIDER WCI 3202963 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
WCI 5303207195 WCI 5303207195 Contact Us For Availability
6
NUT-COMPR MTG WCI 5303015946 Contact Us For Availability
7
LINK - VERT LOUVER LH WCI 5303002165 Contact Us For Availability
7
CORD-SERVICE WCI 5308017362 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
GROMMET WCI 5303015945 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
CLIP-DETENT WCI 5303001844 Contact Us For Availability
8
WCI 5303012047 WCI 5303012047 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
COMPRESSOR START-KIT WCI 5303201723 Contact Us For Availability
8
WCI 3002801 WCI 3002801 Contact Us For Availability
9
WCI 5303201748 WCI 5303201748 Contact Us For Availability
9
CAPACITOR (STRAP) WCI 5303015323 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
HINGE - DOOR WCI 5303017980 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
ACCORDION WCI 3202965 Contact Us For Availability
11
WCI 5300301157 WCI 5300301157 Contact Us For Availability
11
BULKHEAD-CONTROL WCI 5303209160 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
BRACKET SUPPORT-RH WCI 3016224 Contact Us For Availability
12
SCREW-FRONT WCI 5308008175 Contact Us For Availability
12
CLIP SENS BULB WCI 3203075 Contact Us For Availability
12
BRACKET SUPPORT-LH WCI 3016225 Contact Us For Availability
13
WCI 5303016859 WCI 5303016859 Contact Us For Availability
13
RAIL-TOP SUPPORT WCI 3001873 Contact Us For Availability
14
PANEL-FRONT WCI 5303016860 Contact Us For Availability
14
WCI 5303210367 WCI 5303210367 Contact Us For Availability
14
WCI 5303207200 WCI 5303207200 Contact Us For Availability
15
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
15
HARNESS WCI 5303203112 Contact Us For Availability
15
RETAINER, ACCORDION WCI 3202966 Contact Us For Availability
16
WCI 5300331902 WCI 5300331902 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
× ![]()
