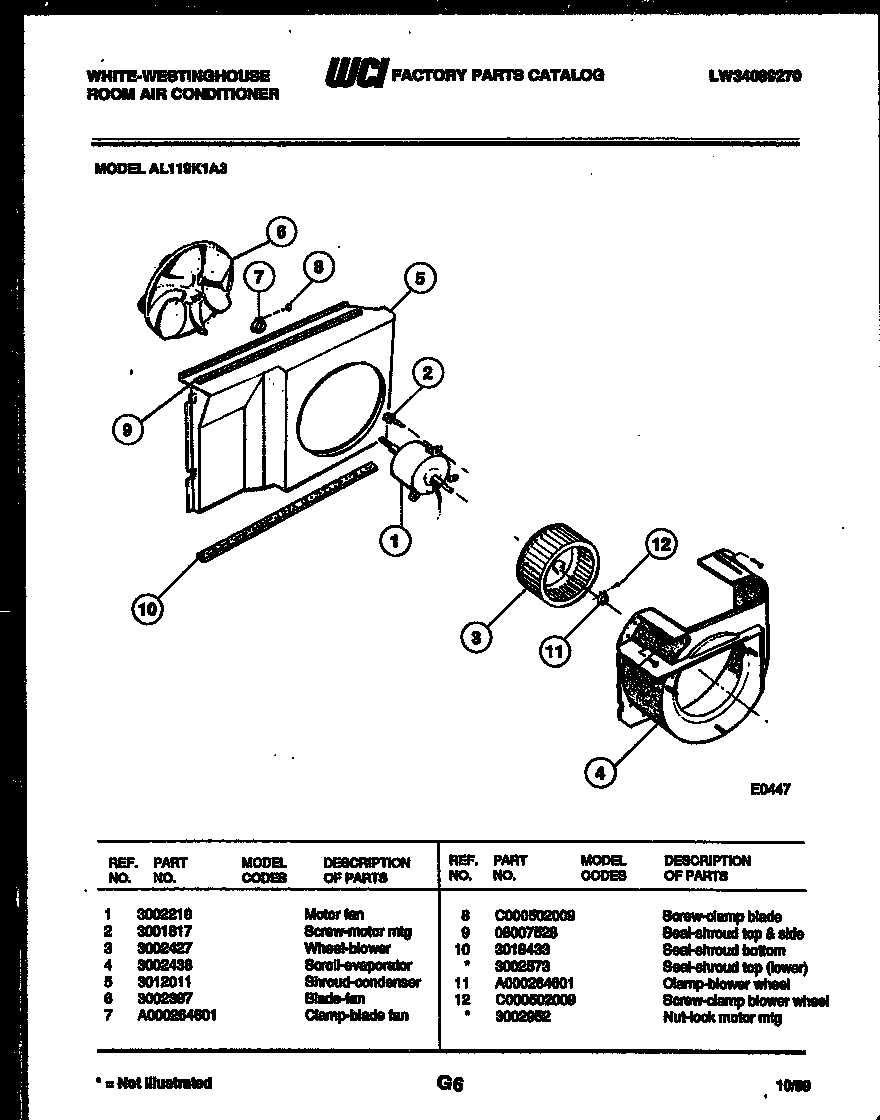

04 - AIR HANDLING PARTS

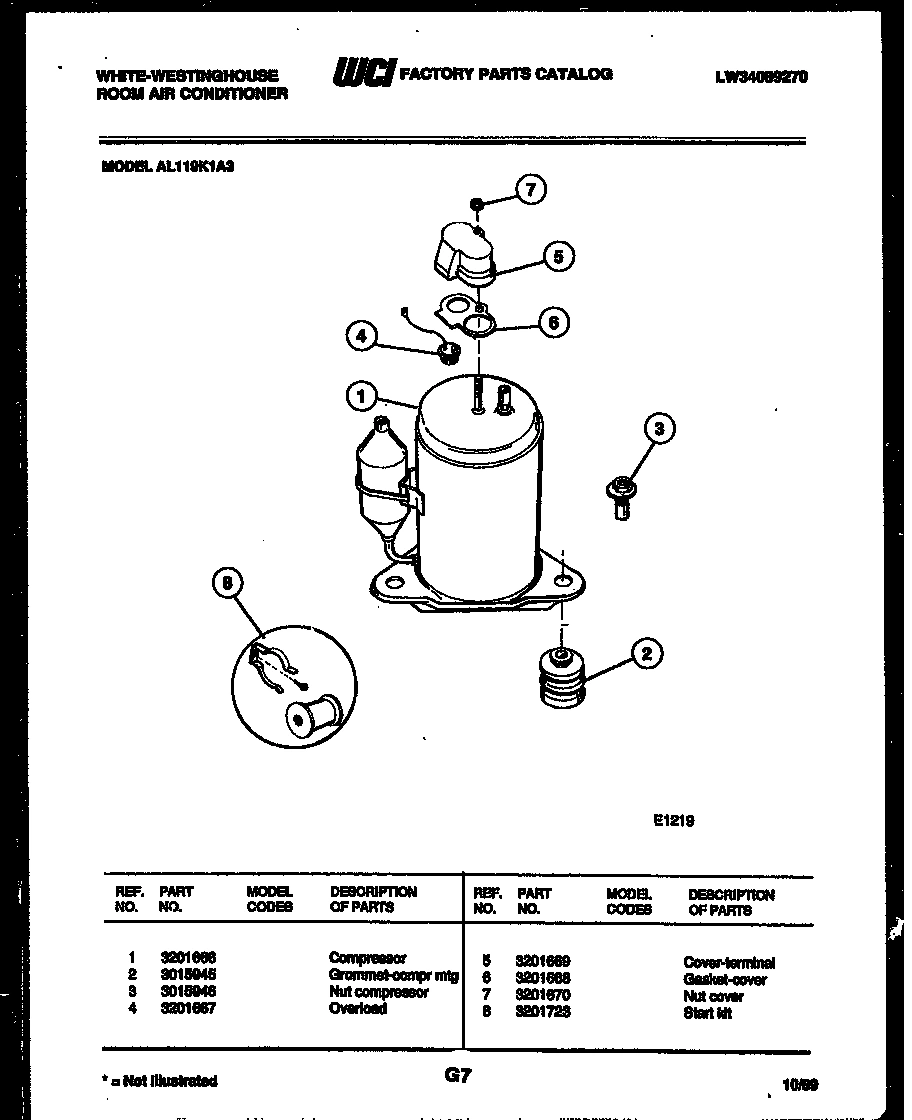

05 - COMPRESSOR PARTS

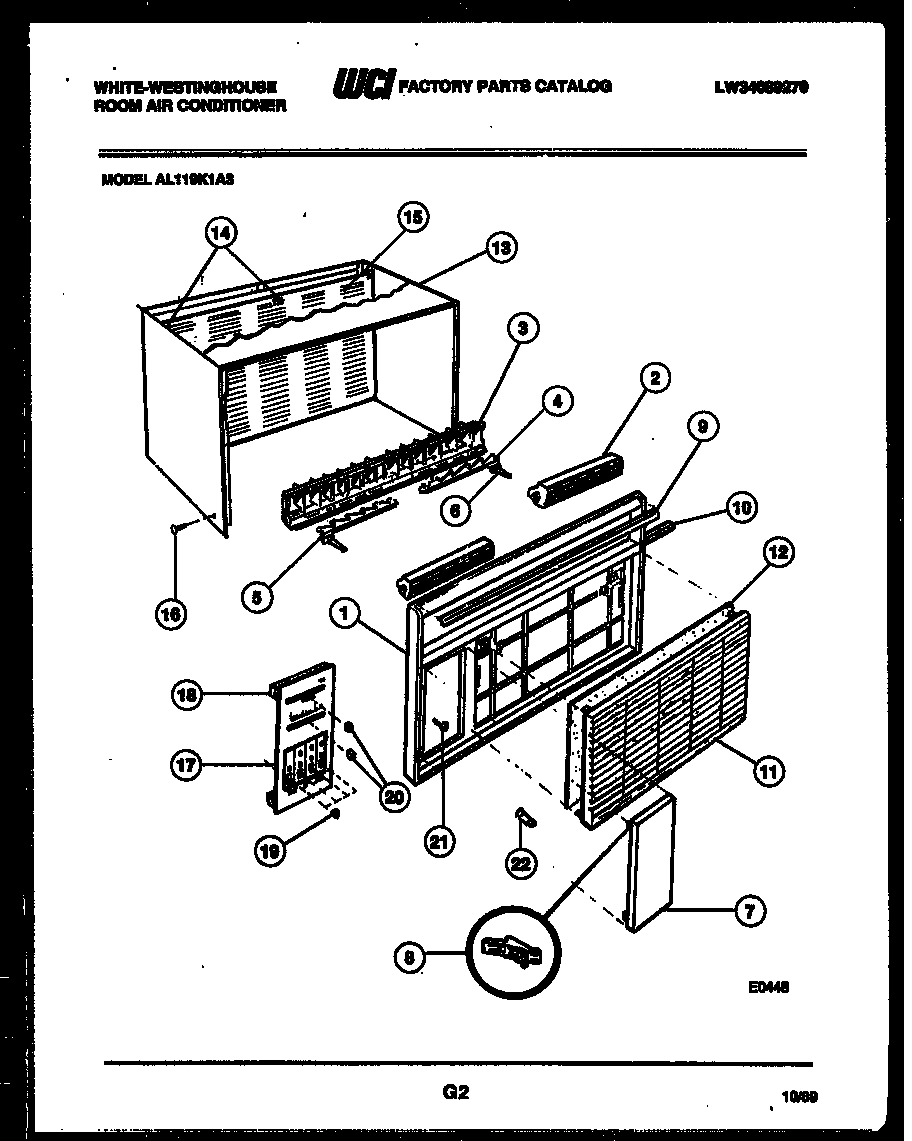

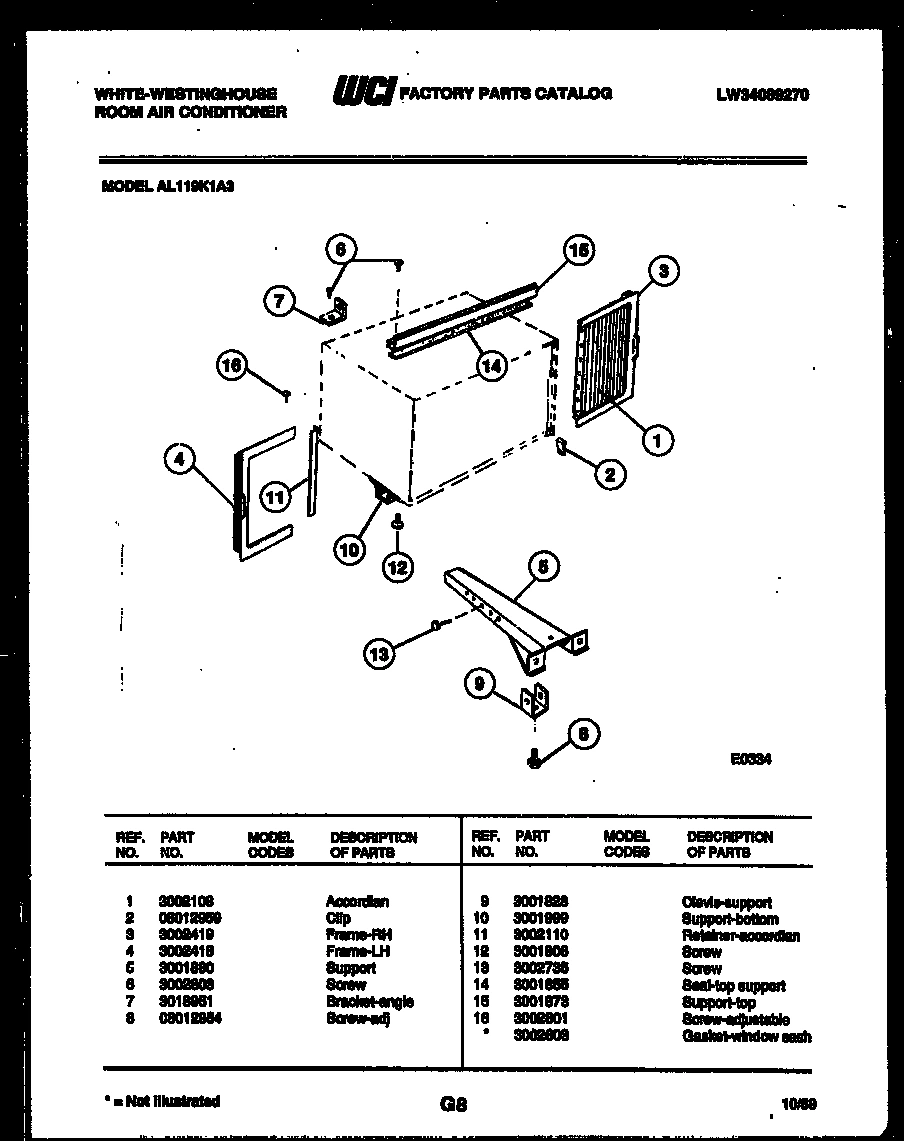

06 - CABINET AND INSTALLATION PARTS

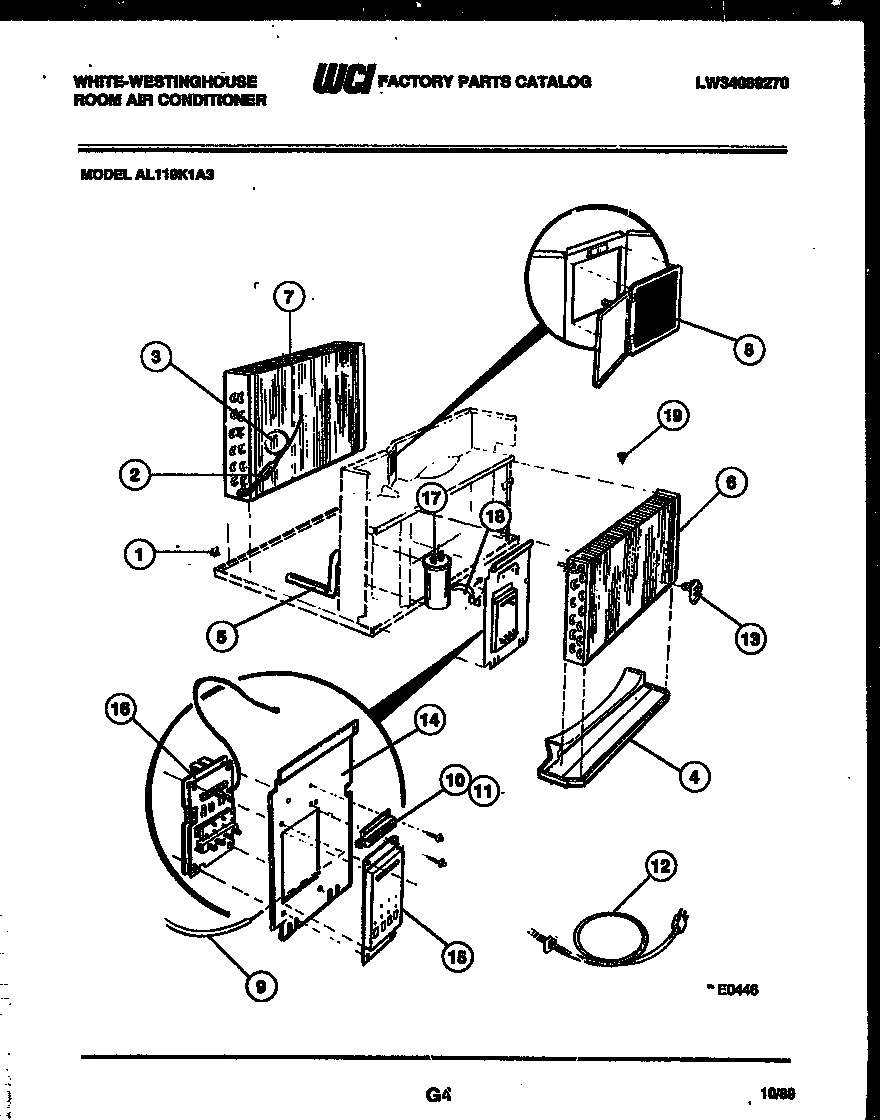

Common parts from model Electrolux AL119K1A3 ROOM AIR CONDITIONER
*24009
WCI A000346201 WCI A000346201 Contact Us For Availability
*24012
HOUSING-RECEPTACLE WCI 08016086 Contact Us For Availability
*24013
NUT-LOCK MOTOR MTG WCI 3002952 Contact Us For Availability
1
WCI A000462706 WCI A000462706 Contact Us For Availability
1
WCI 08002941 WCI 08002941 Contact Us For Availability
1
WCI 3002218 WCI 3002218 Contact Us For Availability
1
WCI 3201666 WCI 3201666 Contact Us For Availability
1
WCI 3002108 WCI 3002108 Contact Us For Availability
2
FRAME-LOUVERS WCI 08017244 Contact Us For Availability
2
SCREW-MOTOR MTG WCI 3001817 Contact Us For Availability
2
GROMMET COMPR MTG WCI 3015945 Contact Us For Availability
2
CLIP WCI 08012959 Contact Us For Availability
3
LOUVER & LINK ASSEMBLY WCI 3002458 Contact Us For Availability
3
WCI 3018221 WCI 3018221 Contact Us For Availability
3
WCI 3002427 WCI 3002427 Contact Us For Availability
3
WCI 3015946 WCI 3015946 Contact Us For Availability
3
WCI 3002419 WCI 3002419 Contact Us For Availability
4
LINK-VERTICAL LOUVER-RH WCI 3002164 Contact Us For Availability
4
WCI 3002332 WCI 3002332 Contact Us For Availability
4
SCROLL-EVAPORATOR WCI 3002438 Contact Us For Availability
4
WCI 3201667 WCI 3201667 Contact Us For Availability
4
WCI 3002418 WCI 3002418 Contact Us For Availability
5
LINK-VERTICAL LOUVER-LH WCI 3002165 Contact Us For Availability
5
TUBE-DRAIN WCI 3001759 Contact Us For Availability
5
SHROUD-CONDENSER WCI 3012011 Contact Us For Availability
5
WCI 3201669 WCI 3201669 Contact Us For Availability
5
WCI 3001880 WCI 3001880 Contact Us For Availability
6
WCI 3001844 WCI 3001844 Contact Us For Availability
6
WCI 5303206718 WCI 5303206718 Contact Us For Availability
6
BLADE-FAN WCI 3002387 Contact Us For Availability
6
WCI 3201668 WCI 3201668 Contact Us For Availability
6
WCI 3002803 WCI 3002803 Contact Us For Availability
7
WCI 3201645 WCI 3201645 Contact Us For Availability
7
WCI 5303206721 WCI 5303206721 Contact Us For Availability
7
WCI 3201670 WCI 3201670 Contact Us For Availability
7
WCI 3018951 WCI 3018951 Contact Us For Availability
8
WCI 3017980 WCI 3017980 Contact Us For Availability
8
WCI 3012455 WCI 3012455 Contact Us For Availability
8
WCI 3201723 WCI 3201723 Contact Us For Availability
8
SCREW-ADJ WCI 08012954 Contact Us For Availability
9
WCI A000344902 WCI A000344902 Contact Us For Availability
9
CABLE WCI 3002132 Contact Us For Availability
9
WCI 08007528 WCI 08007528 Contact Us For Availability
9
WCI 3001828 WCI 3001828 Contact Us For Availability
10
WCI A000301157 WCI A000301157 Contact Us For Availability
10
RETAINER-ACTUATOR WCI 3202999 Contact Us For Availability
10
SEAL-SHROUD BOTTOM WCI 3018433 Contact Us For Availability
10
SUPPORT-BOTTOM WCI 3001999 Contact Us For Availability
10A
SEAL-SHROUD TOP (LOWER) (NON-ILLUSTRATED) WCI 3002573 Contact Us For Availability
11
WCI 3015599 WCI 3015599 Contact Us For Availability
11
WCI 3002127 WCI 3002127 Contact Us For Availability
11
CLAMP-BLOWER WHEEL WCI A000264601 Contact Us For Availability
11
WCI 3002110 WCI 3002110 Contact Us For Availability
12
WCI A000462201 WCI A000462201 Contact Us For Availability
12
WCI 08017362 WCI 08017362 Contact Us For Availability
12
SCREW WCI 3001806 Contact Us For Availability
13
WCI 3016404 WCI 3016404 Contact Us For Availability
13
HOLDER-THERMISTAT WCI 08016082 Contact Us For Availability
13
WCI 3002735 WCI 3002735 Contact Us For Availability
14
WCI 08017206 WCI 08017206 Contact Us For Availability
14
WCI 08017245 WCI 08017245 Contact Us For Availability
14
WCI 3001855 WCI 3001855 Contact Us For Availability
15
WCI 3015951 WCI 3015951 Contact Us For Availability
15
WCI 08017139 WCI 08017139 Contact Us For Availability
15
SUPPORT-TOP WCI 3001873 Contact Us For Availability
16
SCREW-CABINET SHELL BOTTOM WCI 3211028 Contact Us For Availability
16
CONTROL WCI 3205734 Contact Us For Availability
16
SCREW-ADJUSTABLE WCI 3002801 Contact Us For Availability
17
ESCUTCHEON-PLATE DIAL WCI 3205735 Contact Us For Availability
17
CAPACITOR-DUAL WCI 08007201 Contact Us For Availability
18
WCI 08016088 WCI 08016088 Contact Us For Availability
18
WCI 3001770 WCI 3001770 Contact Us For Availability
19
WCI 08016116 WCI 08016116 Contact Us For Availability
19
GROMMET - BASE DRAIN WCI 3014757 Contact Us For Availability
20
KNOB-PUSH BUTTON FILTER WCI 08017143 Contact Us For Availability
20A
WCI 3002189 WCI 3002189 Contact Us For Availability
21
SCREW-RETAINER WCI 08008175 Contact Us For Availability
22
CLIP-FRONT TO BASE WCI 08010914 Contact Us For Availability
× ![]()
