Model Electrolux AL113L1A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

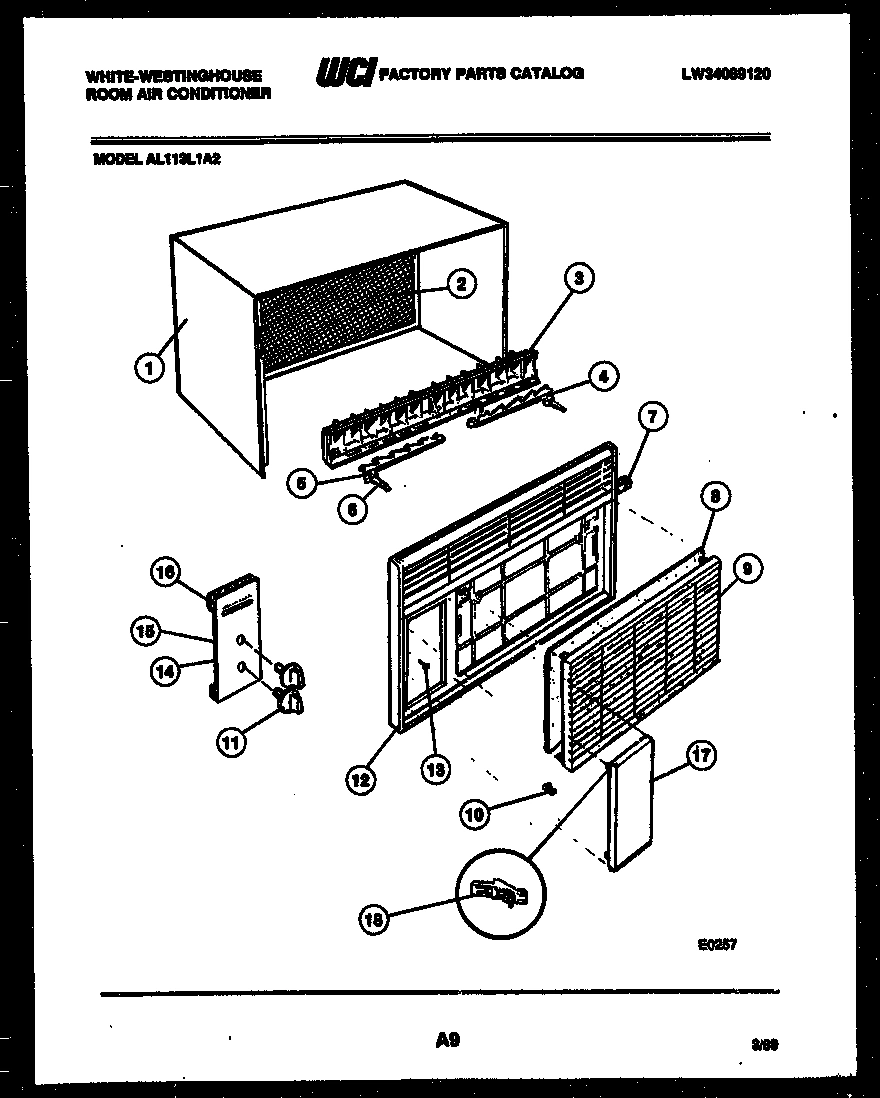

02 - CABINET PARTS

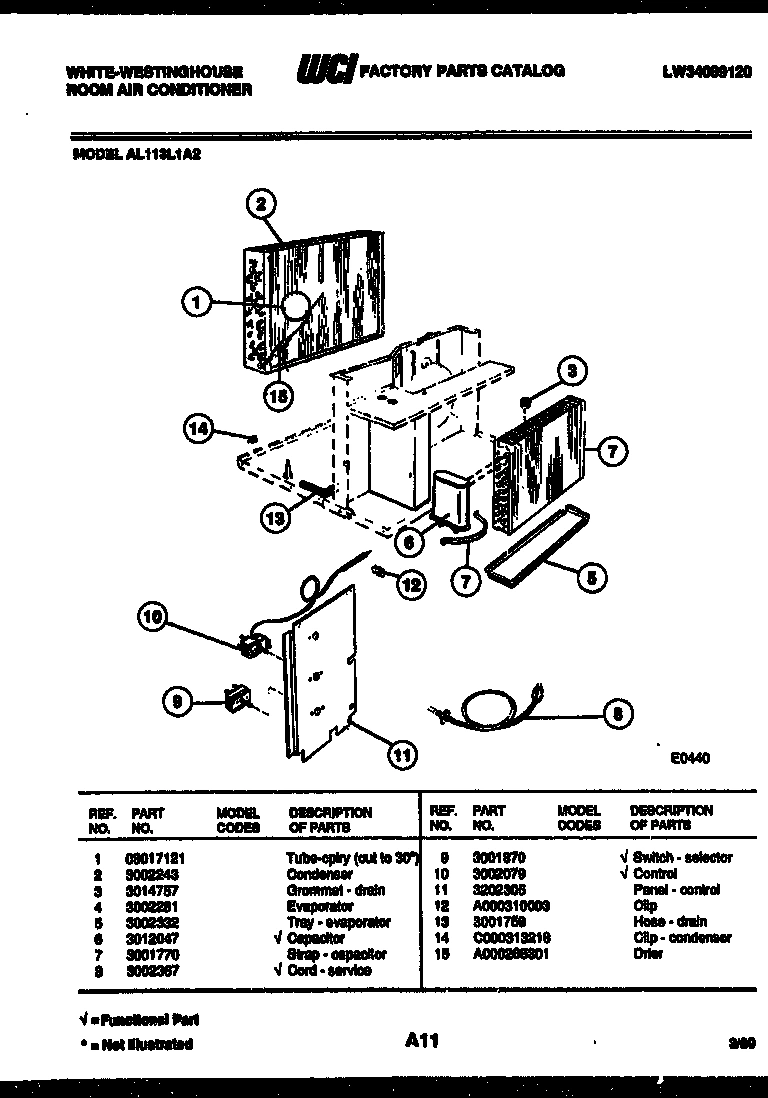

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL113L1A2 ROOM AIR CONDITIONER
*18986
NUT - LOCKING MTG. SCREW WCI 3002952 Contact Us For Availability
*18987
GASKET-COVER WCI 3211018 Contact Us For Availability
1
WRAPPER WCI 3016404 Contact Us For Availability
1
TUBE-CPLRY (CUT TO 30``) WCI 08017121 Contact Us For Availability
1
WCI 3002218 WCI 3002218 Contact Us For Availability
1
WCI 3002403 WCI 3002403 Contact Us For Availability
1
WCI 3002108 WCI 3002108 Contact Us For Availability
2
GRILL-REAR WCI 3015951 Contact Us For Availability
2
WCI 3002243 WCI 3002243 Contact Us For Availability
2
SCREW-MOTOR MTG WCI 3001817 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
CLIP WCI 08012959 Contact Us For Availability
3
LOUVER & LINK ASSY WCI 3002458 Contact Us For Availability
3
WCI 3014757 WCI 3014757 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI 3002419 WCI 3002419 Contact Us For Availability
4
LINK RH WCI 3002164 Contact Us For Availability
4
WCI 3002281 WCI 3002281 Contact Us For Availability
4
WCI 3002427 WCI 3002427 Contact Us For Availability
4
WCI 3002418 WCI 3002418 Contact Us For Availability
5
LINK LH WCI 3002165 Contact Us For Availability
5
WCI 3002332 WCI 3002332 Contact Us For Availability
5
SCROLL-EVAPORATOR WCI 3002438 Contact Us For Availability
5
WCI 3002136 WCI 3002136 Contact Us For Availability
5
WCI 3001880 WCI 3001880 Contact Us For Availability
6
CLIP-DETENT WCI 3001844 Contact Us For Availability
6
WCI 3012047 WCI 3012047 Contact Us For Availability
6
SHROUD-CONDENSER WCI 3012012 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
6
WCI 3002803 WCI 3002803 Contact Us For Availability
7
WCI A000301157 WCI A000301157 Contact Us For Availability
7
WCI 3001770 WCI 3001770 Contact Us For Availability
7
BLADE-FAN WCI 3002387 Contact Us For Availability
7
KIT-START WCI 3201723 Contact Us For Availability
7
WCI 3018951 WCI 3018951 Contact Us For Availability
8
WCI 3016859 WCI 3016859 Contact Us For Availability
8
WCI 3002367 WCI 3002367 Contact Us For Availability
8
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
8
SCREW-ADJ WCI 08012954 Contact Us For Availability
9
WCI 3016860 WCI 3016860 Contact Us For Availability
9
WCI 3001870 WCI 3001870 Contact Us For Availability
9
NUT WCI 3211017 Contact Us For Availability
9
WCI 3001828 WCI 3001828 Contact Us For Availability
10
CLIP - FRONT TO BASE WCI A000121403 Contact Us For Availability
10
WCI 3002079 WCI 3002079 Contact Us For Availability
10
SEAL WCI 3002573 Contact Us For Availability
10
GASKET-COVER TER. WCI 3211012 Contact Us For Availability
10
WCI 3001999 WCI 3001999 Contact Us For Availability
11
WCI A000331902 WCI A000331902 Contact Us For Availability
11
WCI 3202305 WCI 3202305 Contact Us For Availability
11
SEAL WCI 3018433 Contact Us For Availability
11
WCI 3002110 WCI 3002110 Contact Us For Availability
12
WCI 3016867 WCI 3016867 Contact Us For Availability
12
WCI A000310003 WCI A000310003 Contact Us For Availability
12
CLAMP WCI 08011040 Contact Us For Availability
12
SCREW WCI 3001806 Contact Us For Availability
13
SCREW - FRONT WCI A000111606 Contact Us For Availability
13
HOSE - DRAIN WCI 3001759 Contact Us For Availability
13
WCI 3002735 WCI 3002735 Contact Us For Availability
14
WCI 3001775 WCI 3001775 Contact Us For Availability
14
CLIP - CONDENSER WCI C000313218 Contact Us For Availability
14
WCI 3001855 WCI 3001855 Contact Us For Availability
15
WCI 3016866 WCI 3016866 Contact Us For Availability
15
SUPPORT-TOP WCI 3001873 Contact Us For Availability
16
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
16
SCREW-ADJ WCI 3002801 Contact Us For Availability
17
WCI 3201748 WCI 3201748 Contact Us For Availability
18
WCI 3017980 WCI 3017980 Contact Us For Availability
× ![]()
