Model Electrolux AL095N1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

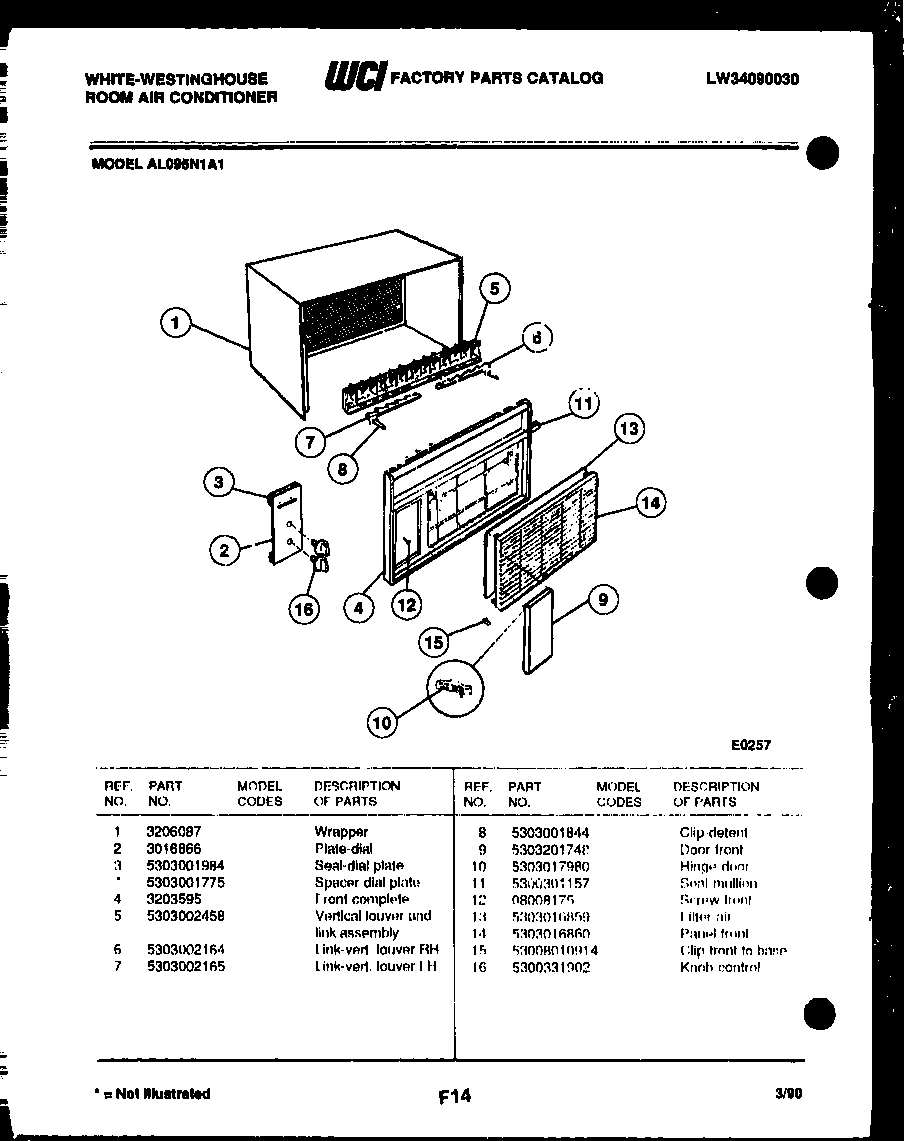

02 - CABINET PARTS

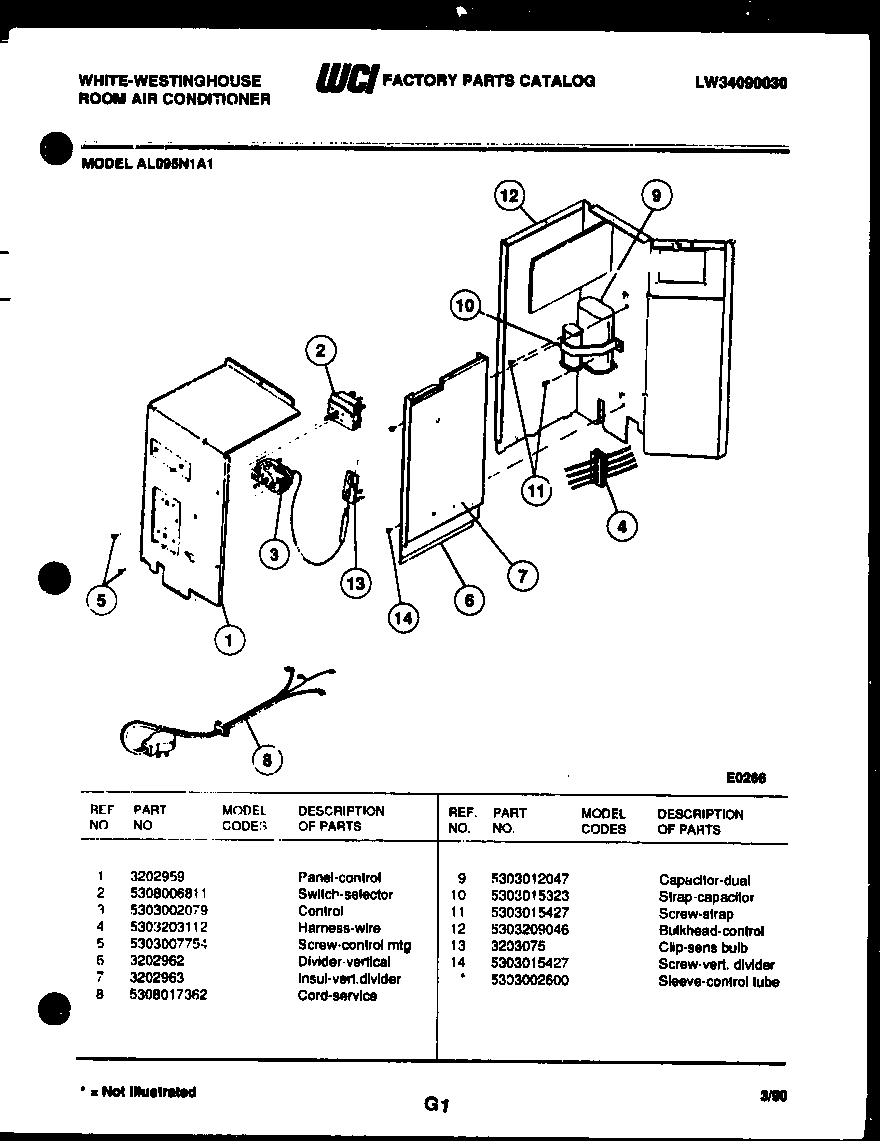

03 - ELECTRICAL PARTS

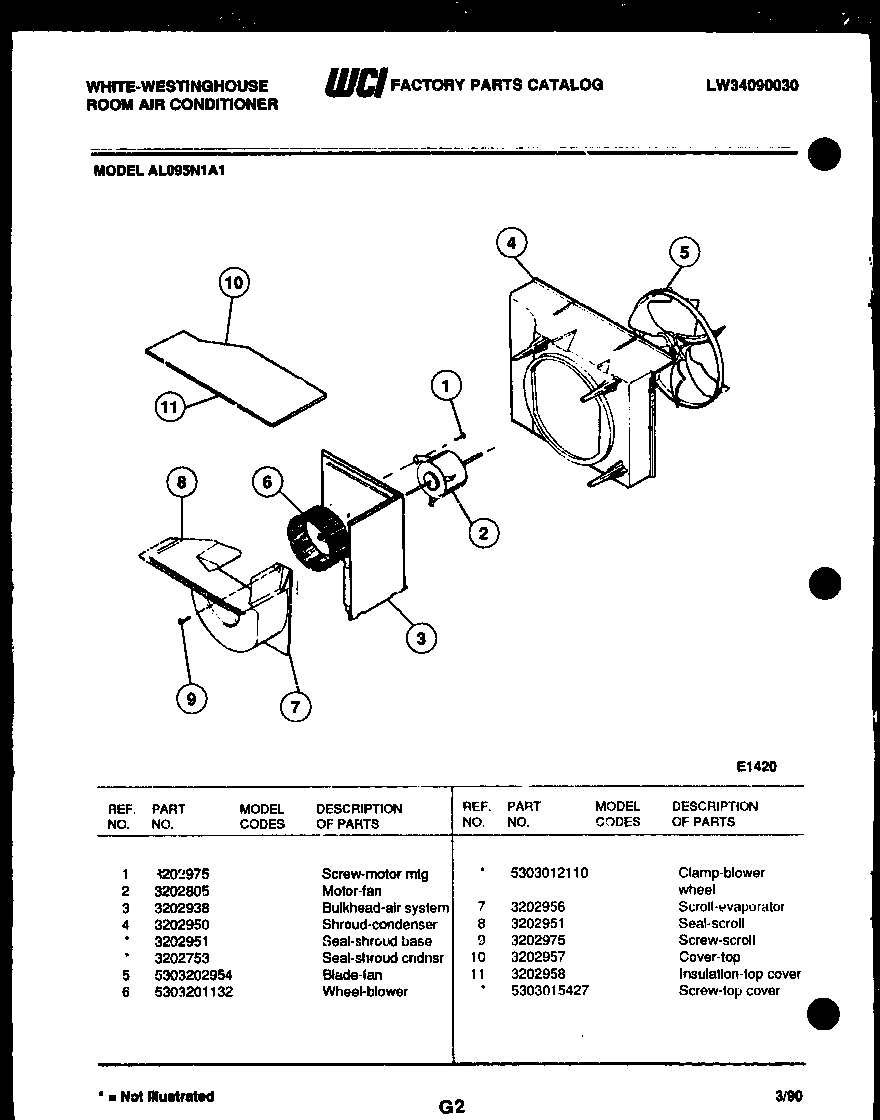

04 - AIR HANDLING PARTS

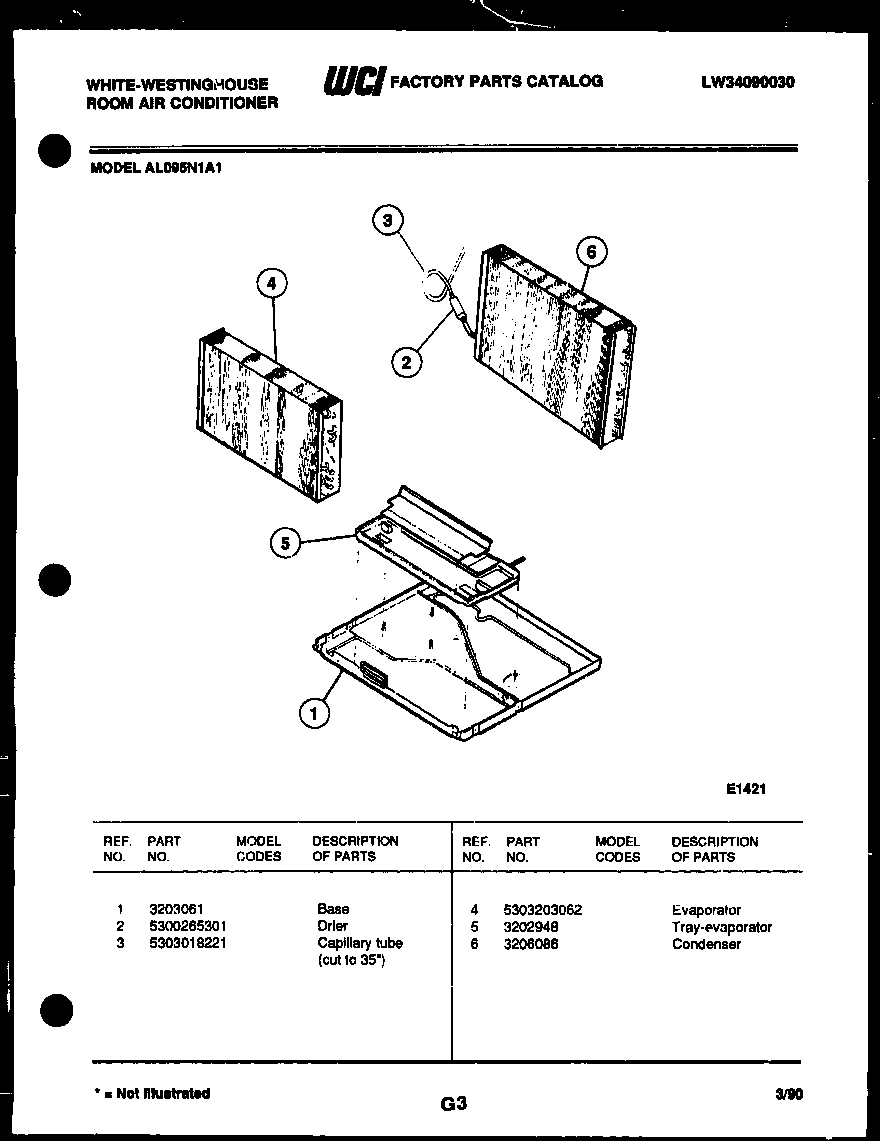

05 - UNIT PARTS

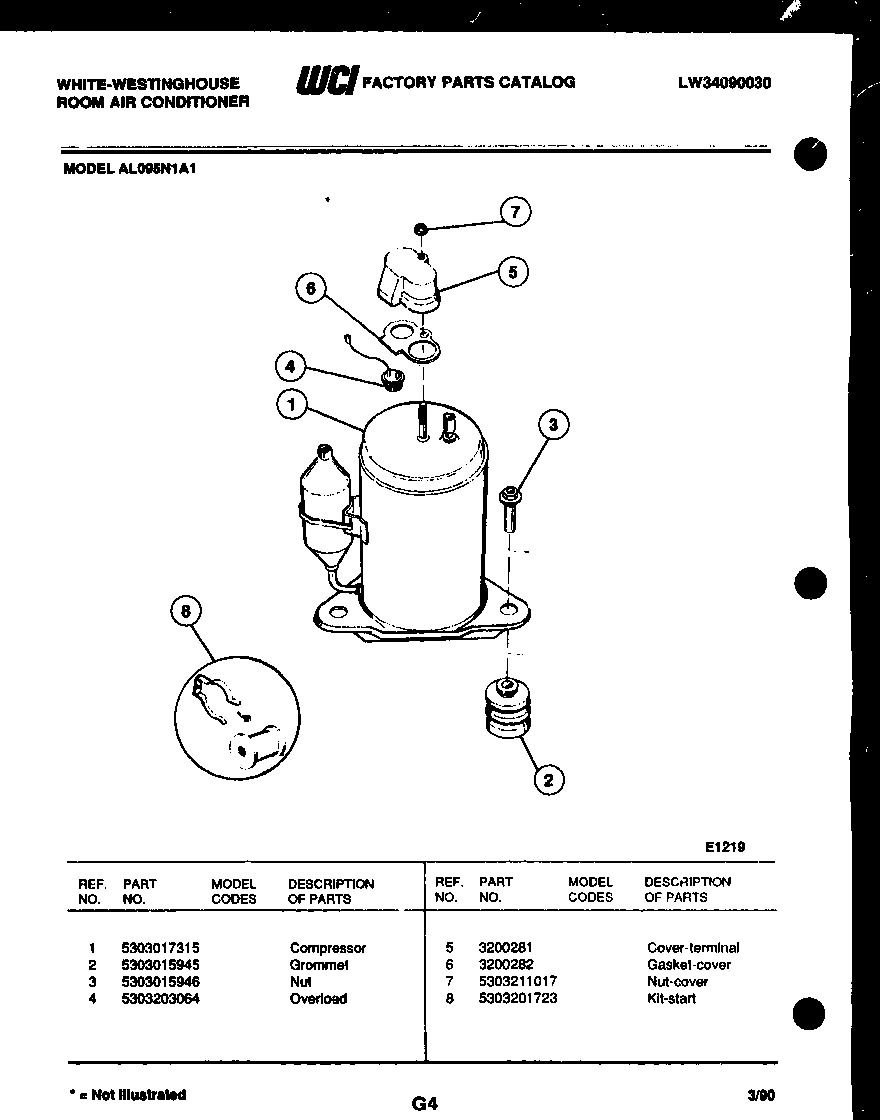

06 - COMPRESSOR PARTS

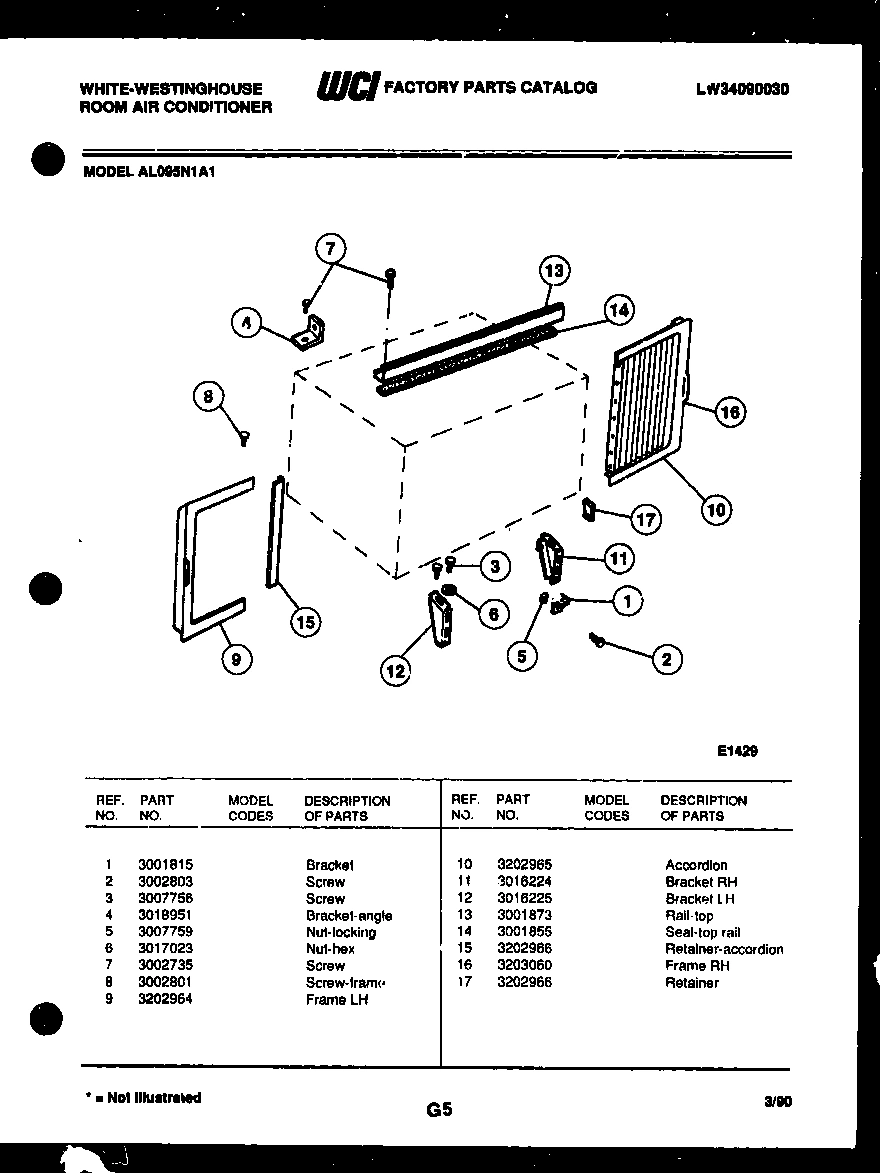

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL095N1A1 ROOM AIR CONDITIONER
*28054
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
1
WCI 3202959 WCI 3202959 Contact Us For Availability
1
WCI 3203061 WCI 3203061 Contact Us For Availability
1
WCI 5303017315 WCI 5303017315 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
WCI 3016866 WCI 3016866 Contact Us For Availability
2
WCI 5308006811 WCI 5308006811 Contact Us For Availability
2
WCI 3202805 WCI 3202805 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
CONTROL WCI 5303002079 Contact Us For Availability
3
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
WCI 5303018221 WCI 5303018221 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
3A
SPACER-DIAL PLATE (NON-ILLUSTRATED) WCI 5303001775 Contact Us For Availability
4
WCI 3203595 WCI 3203595 Contact Us For Availability
4
WCI 5303203112 WCI 5303203112 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 5303203062 WCI 5303203062 Contact Us For Availability
4
WCI 5303203064 WCI 5303203064 Contact Us For Availability
4
WCI 3018951 WCI 3018951 Contact Us For Availability
4B
SEAL-SHROUD CNDNSR (NON-ILLUSTRATED) WCI 3202753 Contact Us For Availability
5
VERTICAL LOUVER AND LINK ASSEMBLY WCI 5303002458 Contact Us For Availability
5
SCREW-CONTROL MTG. WCI 5303007754 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 3202948 WCI 3202948 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
6
LINK - VERT LOUVER RH WCI 5303002164 Contact Us For Availability
6
WCI 3202962 WCI 3202962 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
WCI 3206086 WCI 3206086 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
7
LINK - VERT LOUVER LH WCI 5303002165 Contact Us For Availability
7
INSUL - VERT. DIVIDER WCI 3202963 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
CLIP-DETENT WCI 5303001844 Contact Us For Availability
8
CORD-SERVICE WCI 5308017362 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
KIT-START WCI 5303201723 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
WCI 5303201748 WCI 5303201748 Contact Us For Availability
9
WCI 5303012047 WCI 5303012047 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
HINGE - DOOR WCI 5303017980 Contact Us For Availability
10
WCI 5303015323 WCI 5303015323 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
ACCORDION WCI 3202965 Contact Us For Availability
11
WCI 5300301157 WCI 5300301157 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
12
SCREW-FRONT WCI 08008175 Contact Us For Availability
12
WCI 5303209046 WCI 5303209046 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
13
WCI 5303016859 WCI 5303016859 Contact Us For Availability
13
CLIP SENS BULB WCI 3203075 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
14
PANEL-FRONT WCI 5303016860 Contact Us For Availability
14
SEAL-TOP RAIL WCI 3001855 Contact Us For Availability
15
WCI 53008010914 WCI 53008010914 Contact Us For Availability
16
WCI 5300331902 WCI 5300331902 Contact Us For Availability
16
WCI 3203060 WCI 3203060 Contact Us For Availability
17
WCI 3202966 WCI 3202966 Contact Us For Availability
× ![]()
