Model Electrolux AL08B6EYA ROOM AIR CONDITIONER – Common Parts & Diagrams

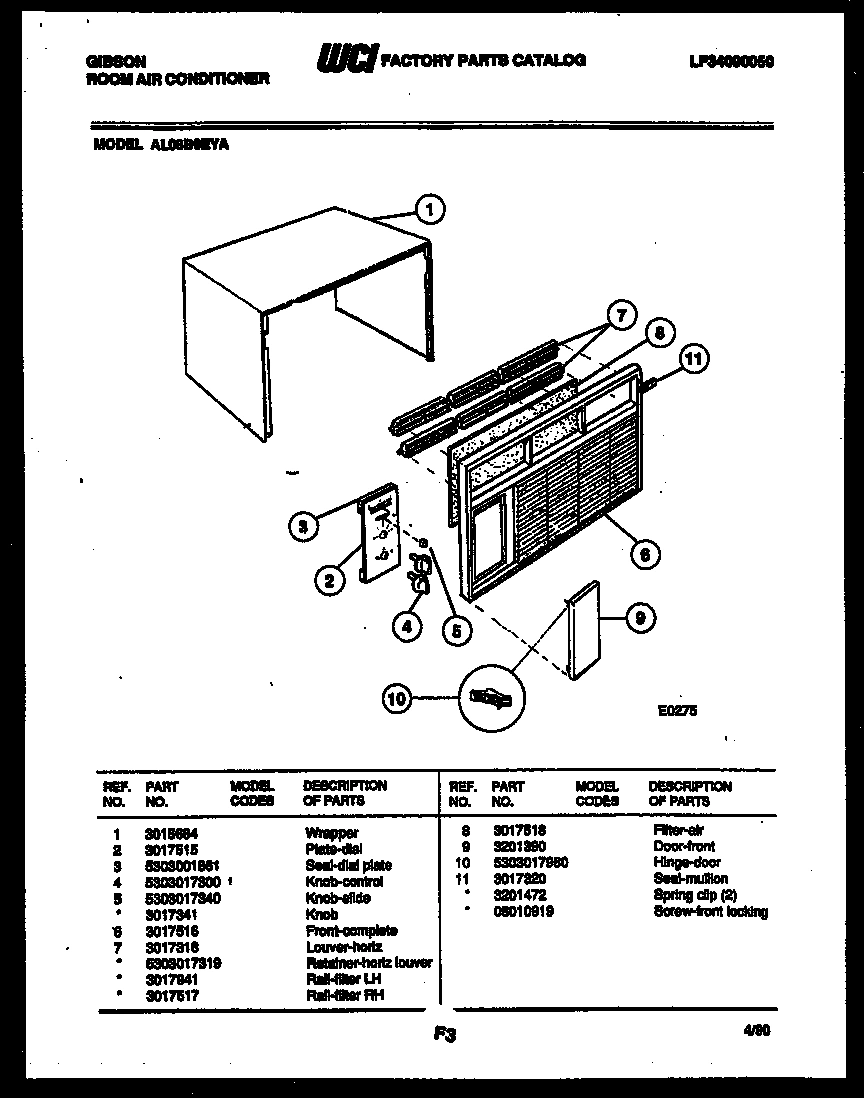

02 - CABINET PARTS

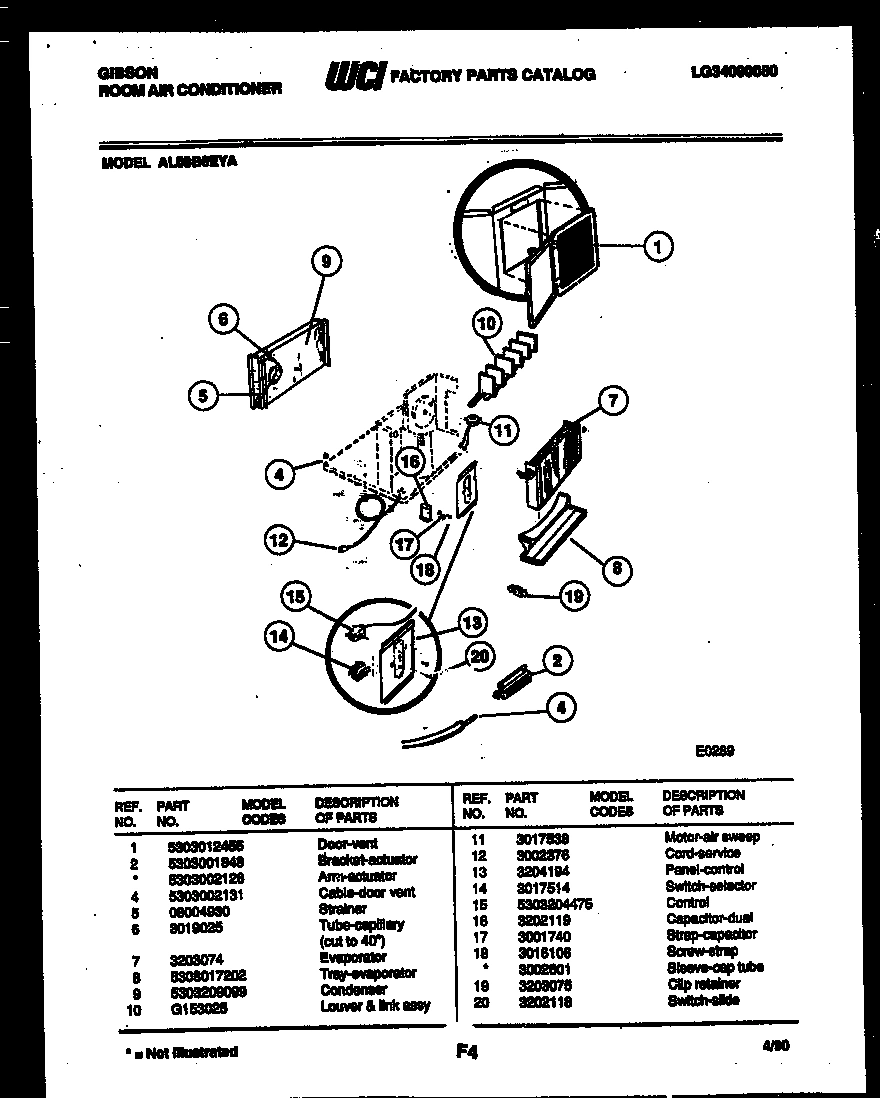

03 - ELECTRICAL PARTS

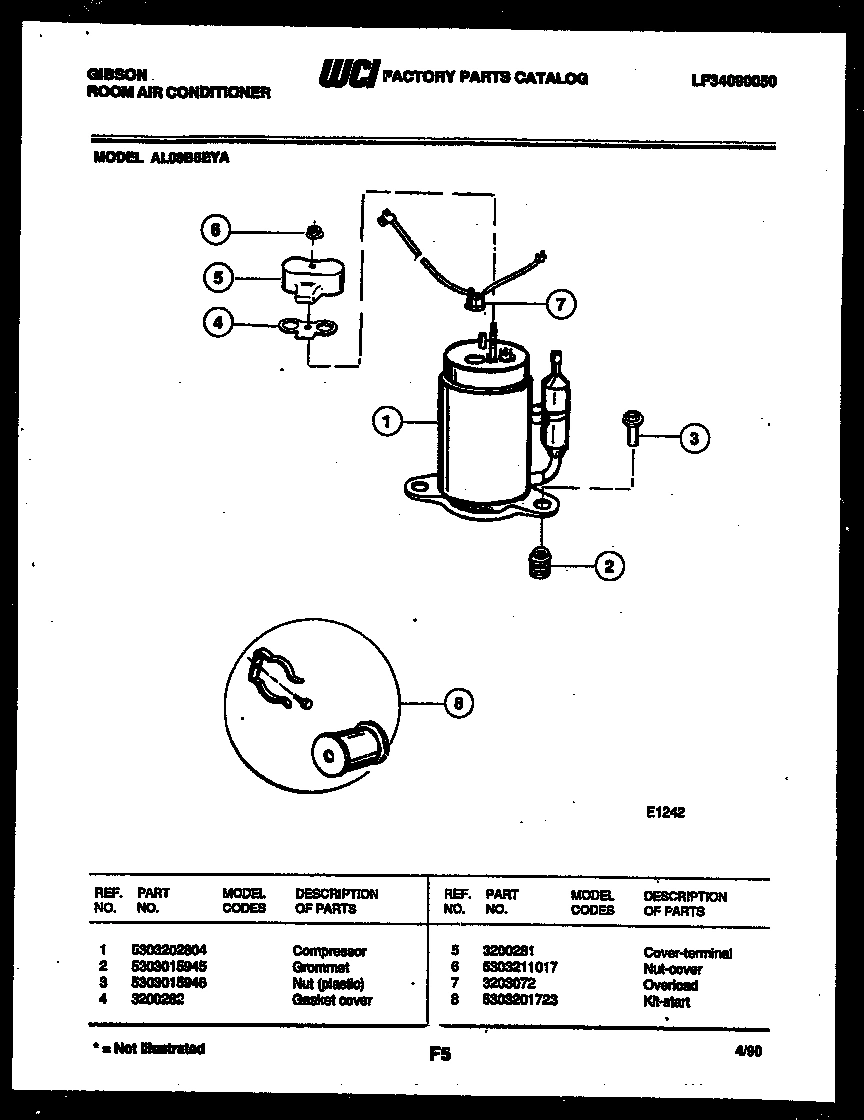

04 - COMPRESSOR PARTS

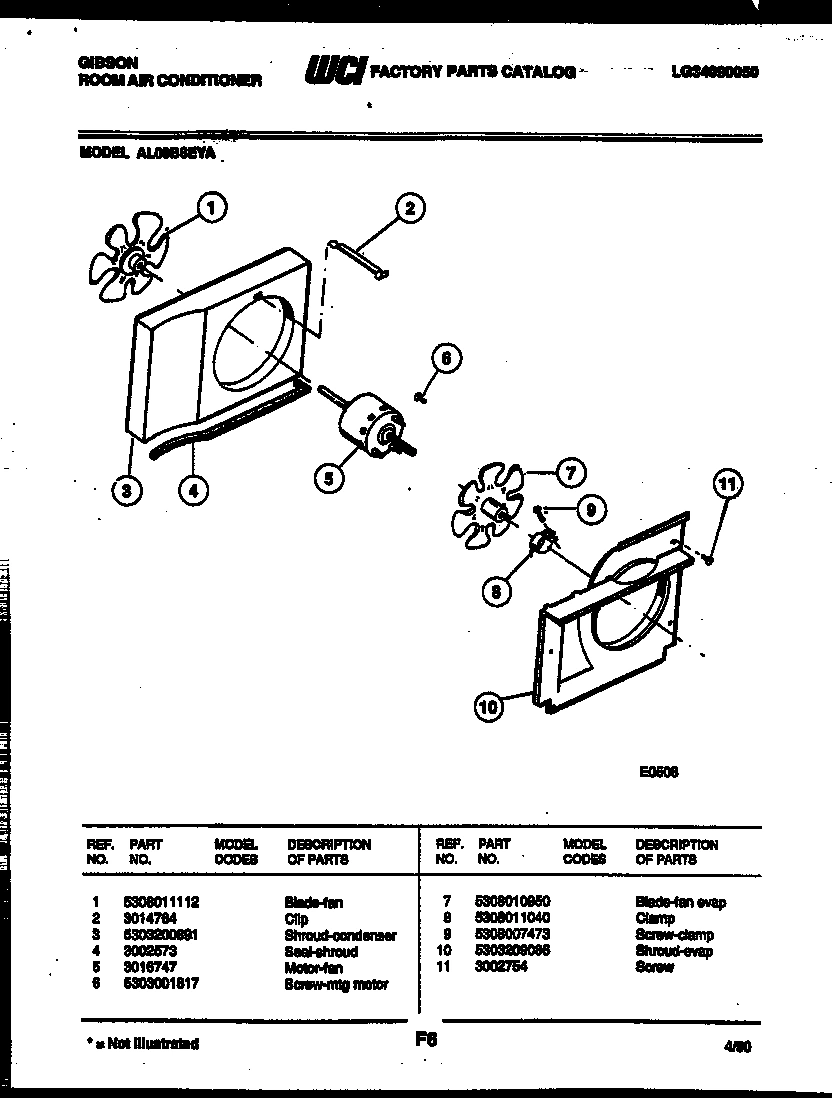

05 - AIR HANDLING PARTS

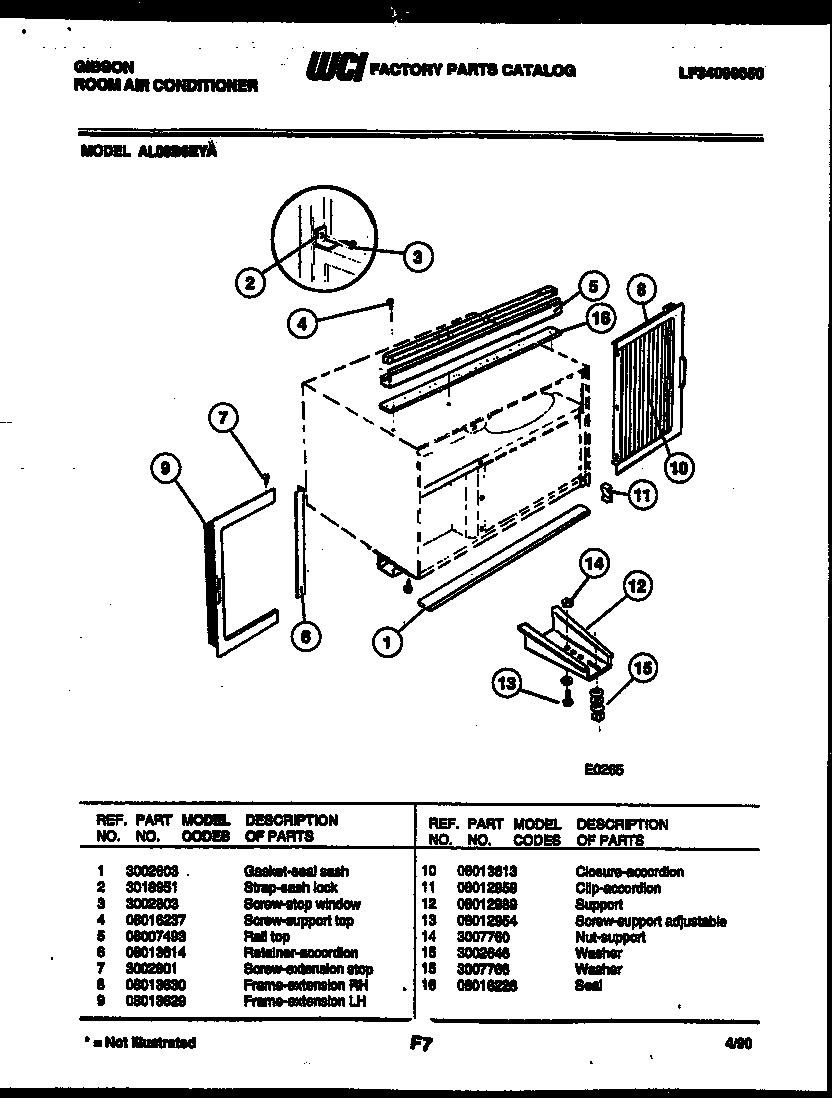

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL08B6EYA ROOM AIR CONDITIONER
*27142
SCREW-FRONT LOCKING WCI 08010919 Contact Us For Availability
*27142
SPRING CLIP (2) WCI 3201472 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
WCI 5303012455 WCI 5303012455 Contact Us For Availability
1
WCI 5303202804 WCI 5303202804 Contact Us For Availability
1
BLADE-FAN WCI 5308011112 Contact Us For Availability
2
WCI 3017515 WCI 3017515 Contact Us For Availability
2
BRACKET-ACTUATOR WCI 5303001848 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
CLIP WCI 3014764 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
2A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303002126 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
3
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
WCI 5303017300 WCI 5303017300 Contact Us For Availability
4
CABLE-DOOR VENT WCI 5303002131 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
4
WCI 3002573 WCI 3002573 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
5
WCI 5303017340 WCI 5303017340 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
WCI 3016747 WCI 3016747 Contact Us For Availability
5
RAIL-TOP WCI 08007493 Contact Us For Availability
5A
KNOB (NON-ILLUSTRATED) WCI 3017341 Contact Us For Availability
6
WCI 3017516 WCI 3017516 Contact Us For Availability
6
TUBE-CAPILLARY (CUT TO 40``) WCI 3019025 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
6
SCREW-MTG MOTOR WCI 5303001817 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
WCI 3017318 WCI 3017318 Contact Us For Availability
7
WCI 3203074 WCI 3203074 Contact Us For Availability
7
WCI 3203072 WCI 3203072 Contact Us For Availability
7
WCI 5308010950 WCI 5308010950 Contact Us For Availability
7
SCREW-EXTENSION STOP WCI 3002801 Contact Us For Availability
7A
RETAINER-HORIZ LOUVER (NON-ILLUSTRATED) WCI 5303017319 Contact Us For Availability
7B
RAIL-FILTER LH (NON-ILLUSTRATED) WCI 3017941 Contact Us For Availability
7C
RAIL-FILTER RH (NON-ILLUSTRATED) WCI 3017517 Contact Us For Availability
8
FILTER-AIR WCI 3017518 Contact Us For Availability
8
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
8
KIT-START WCI 5303201723 Contact Us For Availability
8
WCI 5308011040 WCI 5308011040 Contact Us For Availability
8
FRAME-EXTENSION RH WCI 08013630 Contact Us For Availability
9
DOOR-FRONT WCI 3201390 Contact Us For Availability
9
WCI 5303209099 WCI 5303209099 Contact Us For Availability
9
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
10
HINGE - DOOR WCI 5303017980 Contact Us For Availability
10
LOUVER & LINK ASSY WCI G153025 Contact Us For Availability
10
SHROUD-EVAP WCI 5303209086 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
11
WCI 3017320 WCI 3017320 Contact Us For Availability
11
WCI 3017538 WCI 3017538 Contact Us For Availability
11
WCI 3002754 WCI 3002754 Contact Us For Availability
11
WCI 08012959 WCI 08012959 Contact Us For Availability
12
WCI 3002376 WCI 3002376 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
WCI 3204194 WCI 3204194 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
14
SWITCH-SELECTOR WCI 3017514 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
CONTROL WCI 5303204475 Contact Us For Availability
15
WASHER WCI 3002646 Contact Us For Availability
16
CAPACITOR-DUAL WCI 3202119 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
17
STRAP-CAPACITOR WCI 3001740 Contact Us For Availability
18
SCREW-STRAP WCI 3016106 Contact Us For Availability
18A
SLEEVE-CAP TUBE (NON-ILLUSTRATED) WCI 3002601 Contact Us For Availability
19
CLIP-RETAINER WCI 3203075 Contact Us For Availability
20
SWITCH - SLIDE WCI 3202118 Contact Us For Availability
× ![]()
