Model Electrolux AL06A5EYA ROOM AIR CONDITIONER – Common Parts & Diagrams

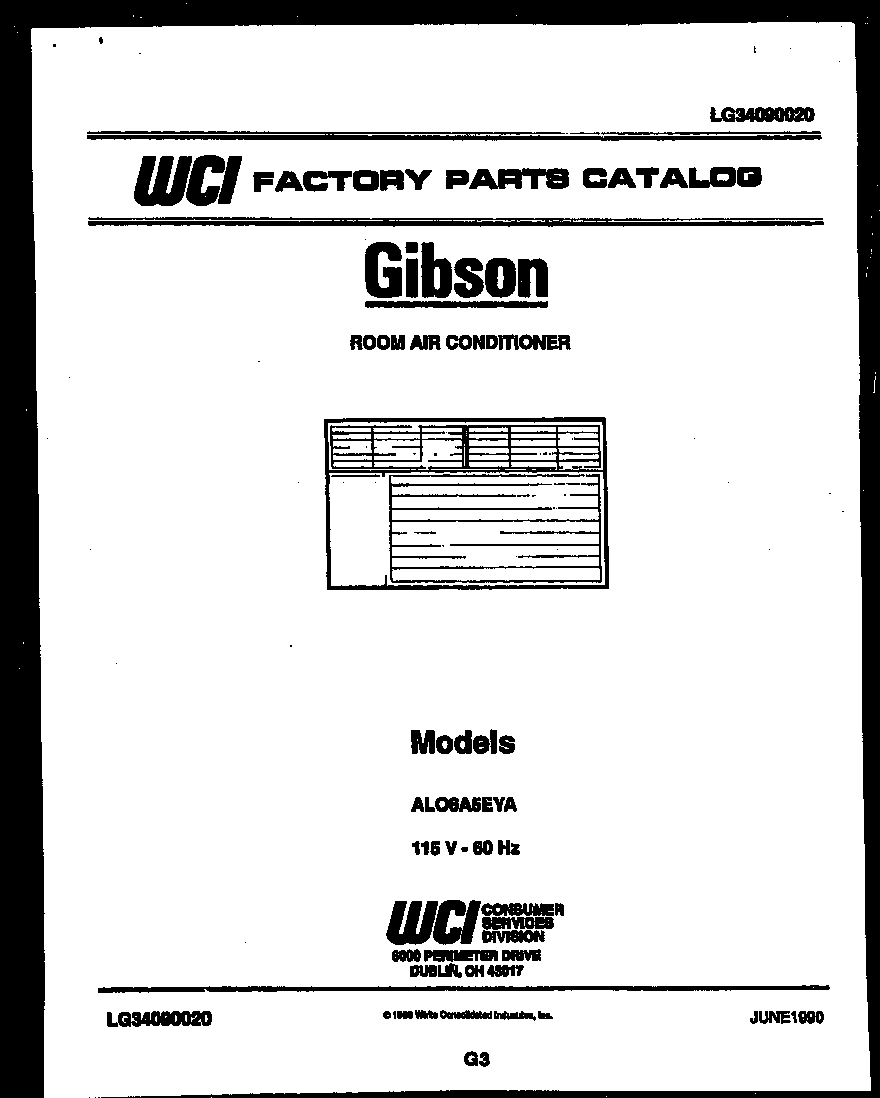

01 - COVER

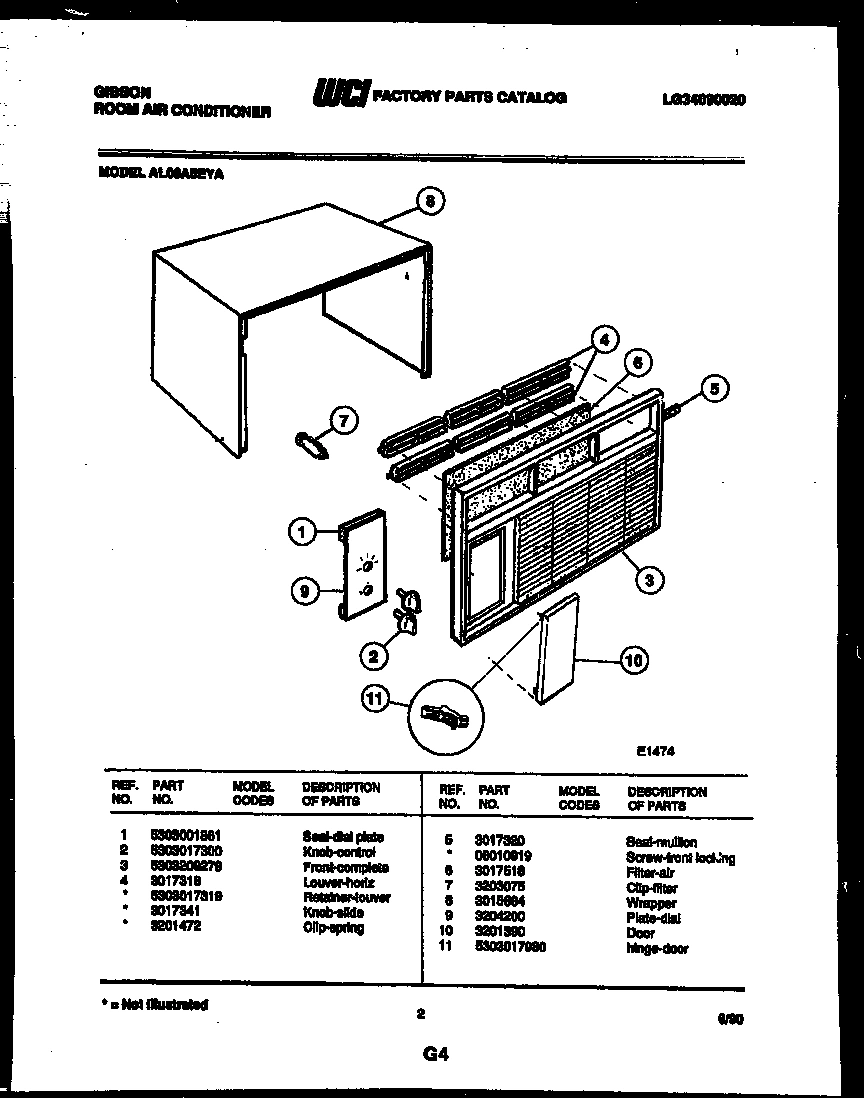

02 - CABINET PARTS

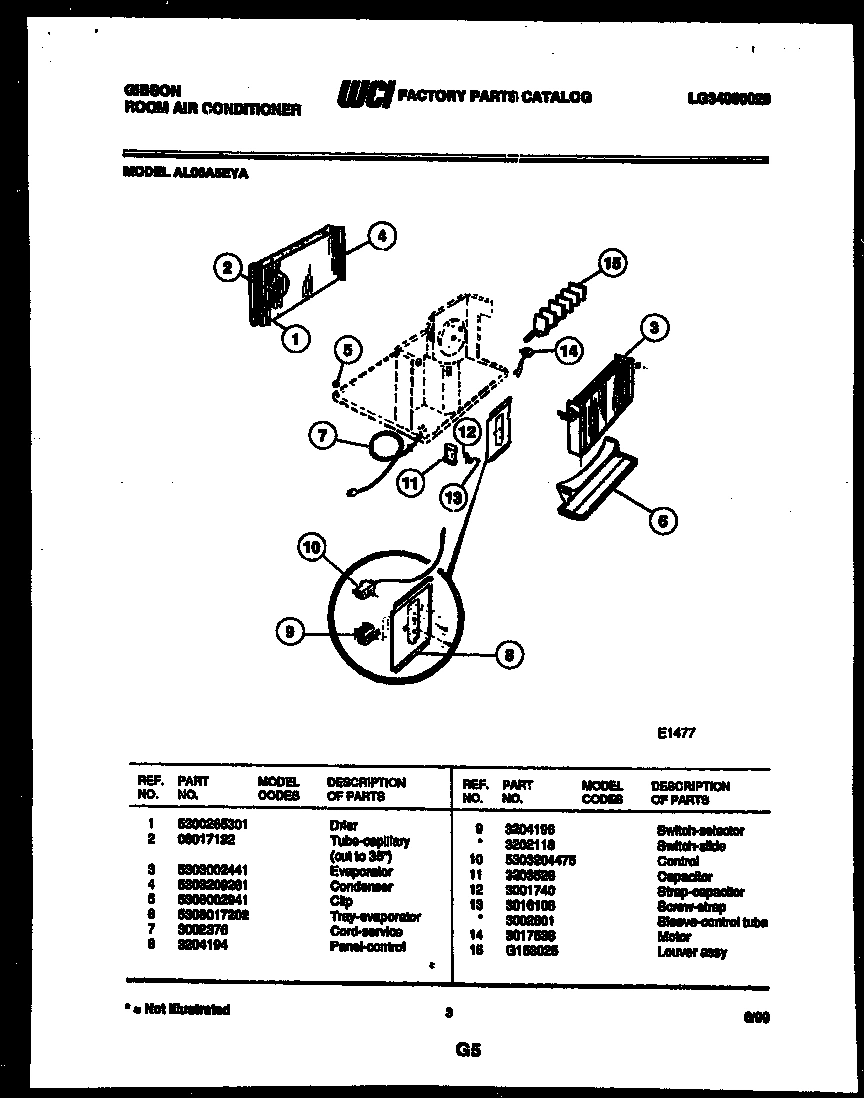

03 - ELECTRICAL PARTS

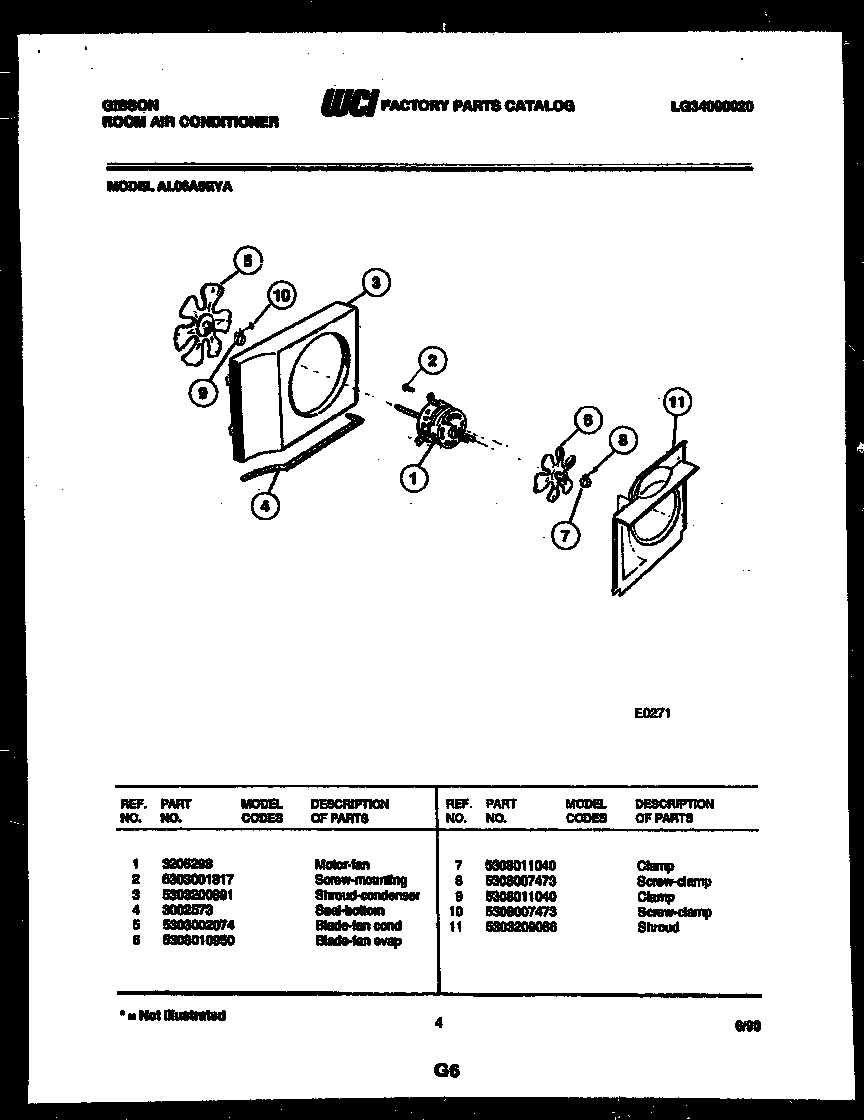

04 - AIR HANDLING PARTS

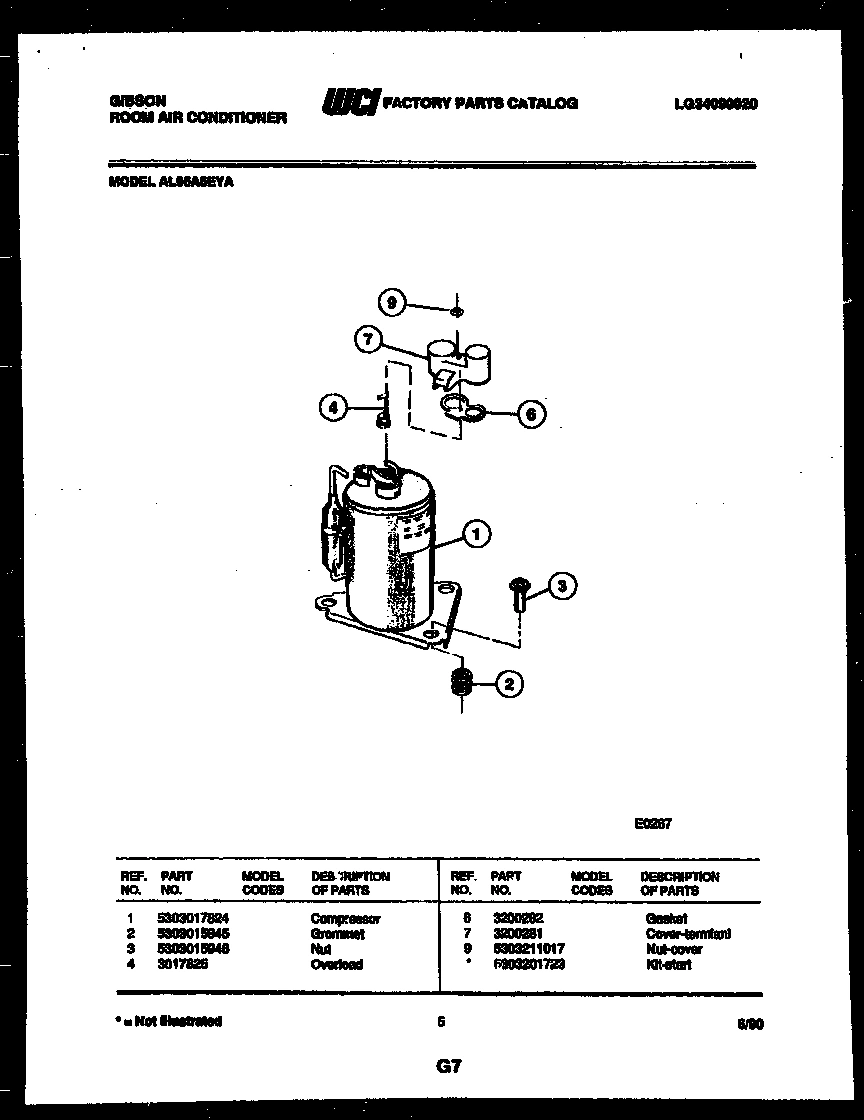

05 - COMPRESSOR PARTS

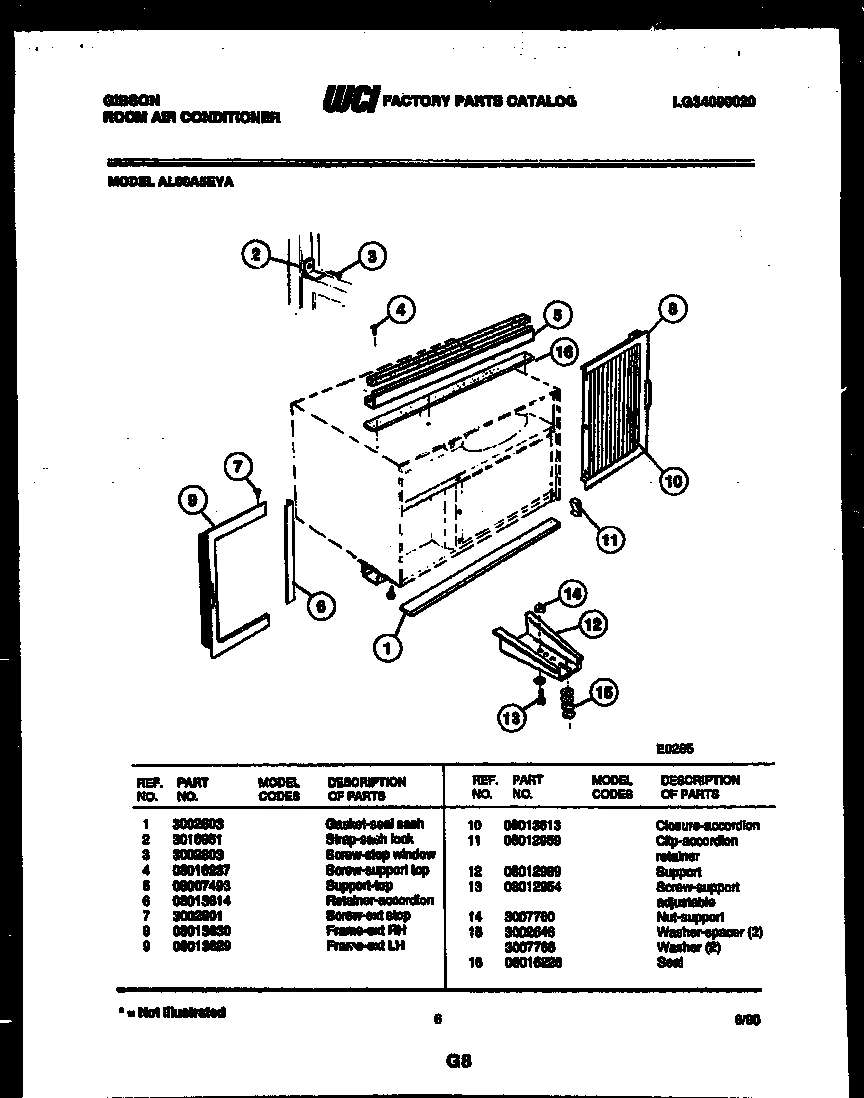

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL06A5EYA ROOM AIR CONDITIONER
*73050
KIT-START WCI 5303201723 Contact Us For Availability
1
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
1
WCI 3205298 WCI 3205298 Contact Us For Availability
1
WCI 5303017824 WCI 5303017824 Contact Us For Availability
2
WCI 5303017300 WCI 5303017300 Contact Us For Availability
2
WCI 08017122 WCI 08017122 Contact Us For Availability
2
SCREW-MOUNTING WCI 5303001817 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
3
WCI 5303209279 WCI 5303209279 Contact Us For Availability
3
WCI 5303002441 WCI 5303002441 Contact Us For Availability
3
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
WCI 3017318 WCI 3017318 Contact Us For Availability
4
WCI 5303209261 WCI 5303209261 Contact Us For Availability
4
SEAL-BOTTOM WCI 3002573 Contact Us For Availability
4
WCI 3017825 WCI 3017825 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
4A
RETAINER-LOUVER (NON-ILLUSTRATED) WCI 5303017319 Contact Us For Availability
4B
KNOB - SLIDE (NON-ILLUSTRATED) WCI 3017341 Contact Us For Availability
4C
CLIP - SPRING (NON-ILLUSTRATED) WCI 3201472 Contact Us For Availability
5
WCI 3017320 WCI 3017320 Contact Us For Availability
5
CLIP WCI 5308002941 Contact Us For Availability
5
BLADE-FAN COND WCI 5303002074 Contact Us For Availability
5
WCI 08007493 WCI 08007493 Contact Us For Availability
5A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 08010919 Contact Us For Availability
6
FILTER-AIR WCI 3017518 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
6
WCI 5308010950 WCI 5308010950 Contact Us For Availability
6
WCI 3200282 WCI 3200282 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
CLIP-FILTER WCI 3203075 Contact Us For Availability
7
WCI 3002376 WCI 3002376 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
7
SCREW-EXT STOP WCI 3002801 Contact Us For Availability
8
WRAPPER WCI 3015684 Contact Us For Availability
8
WCI 3204194 WCI 3204194 Contact Us For Availability
8
FRAME-EXT RH WCI 08013630 Contact Us For Availability
9
WCI 3204200 WCI 3204200 Contact Us For Availability
9
WCI 3204196 WCI 3204196 Contact Us For Availability
9
WCI 5308011040 WCI 5308011040 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
FRAME-EXT LH WCI 08013629 Contact Us For Availability
9A
WCI 3202118 WCI 3202118 Contact Us For Availability
10
WCI 3201390 WCI 3201390 Contact Us For Availability
10
CONTROL WCI 5303204475 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
11
HINGE - DOOR WCI 5303017980 Contact Us For Availability
11
CAPACITOR WCI 3203526 Contact Us For Availability
11
SHROUD WCI 5303209086 Contact Us For Availability
11
CLIP, ACCORDION RETAINER WCI 08012959 Contact Us For Availability
12
STRAP-CAPACITOR WCI 3001740 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
SCREW-STRAP WCI 3016106 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
13A
SLEEVE-CONTROL TUBE (NON-ILLUSTRATED) WCI 3002601 Contact Us For Availability
14
MOTOR WCI 3017538 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
LOUVER ASSY WCI G153025 Contact Us For Availability
15
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
× ![]()
