Model Electrolux AL06A4EYA ROOM AIR CONDITIONER – Common Parts & Diagrams

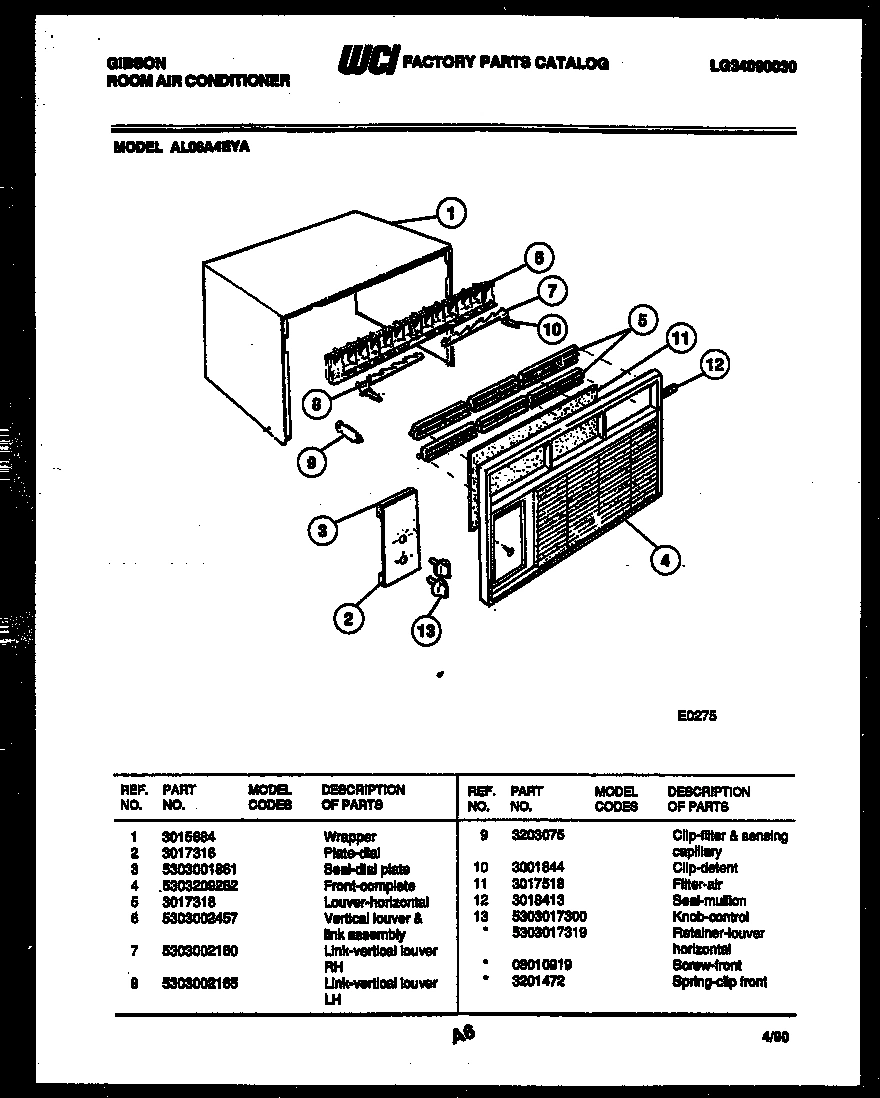

02 - CABINET PARTS

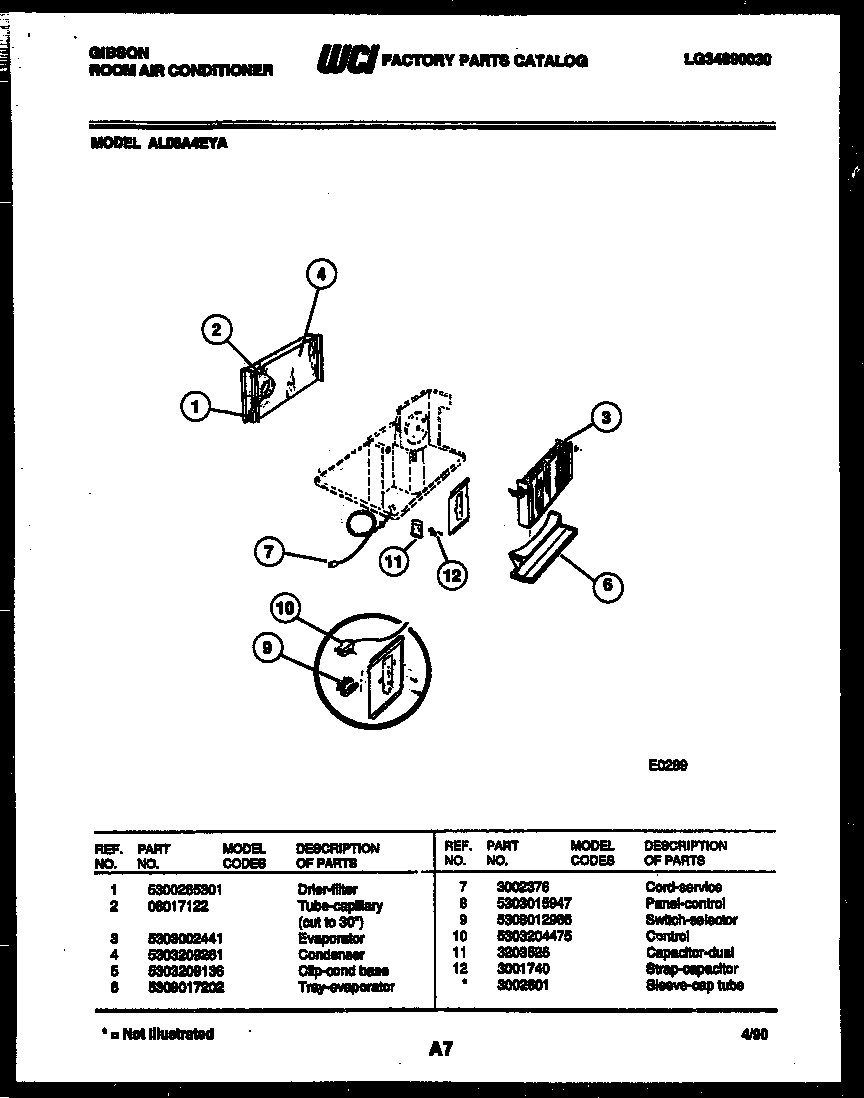

03 - ELECTRICAL PARTS

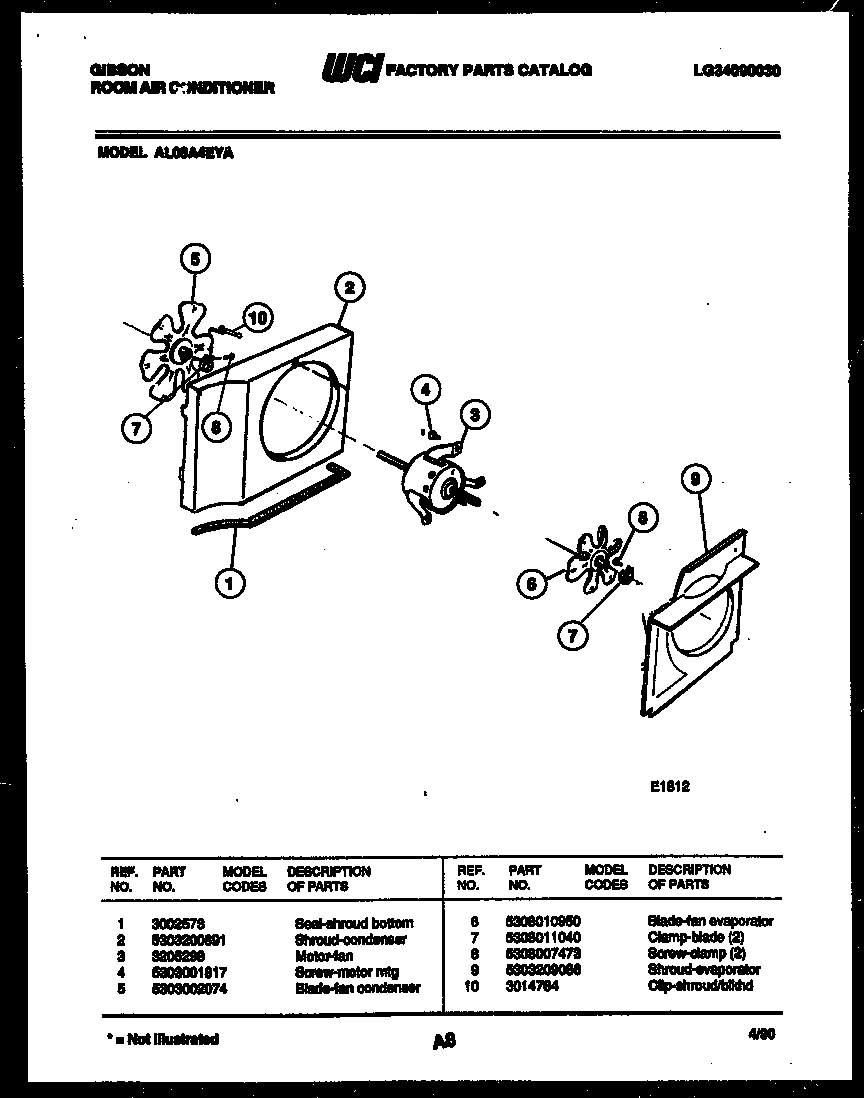

04 - AIR HANDLING PARTS

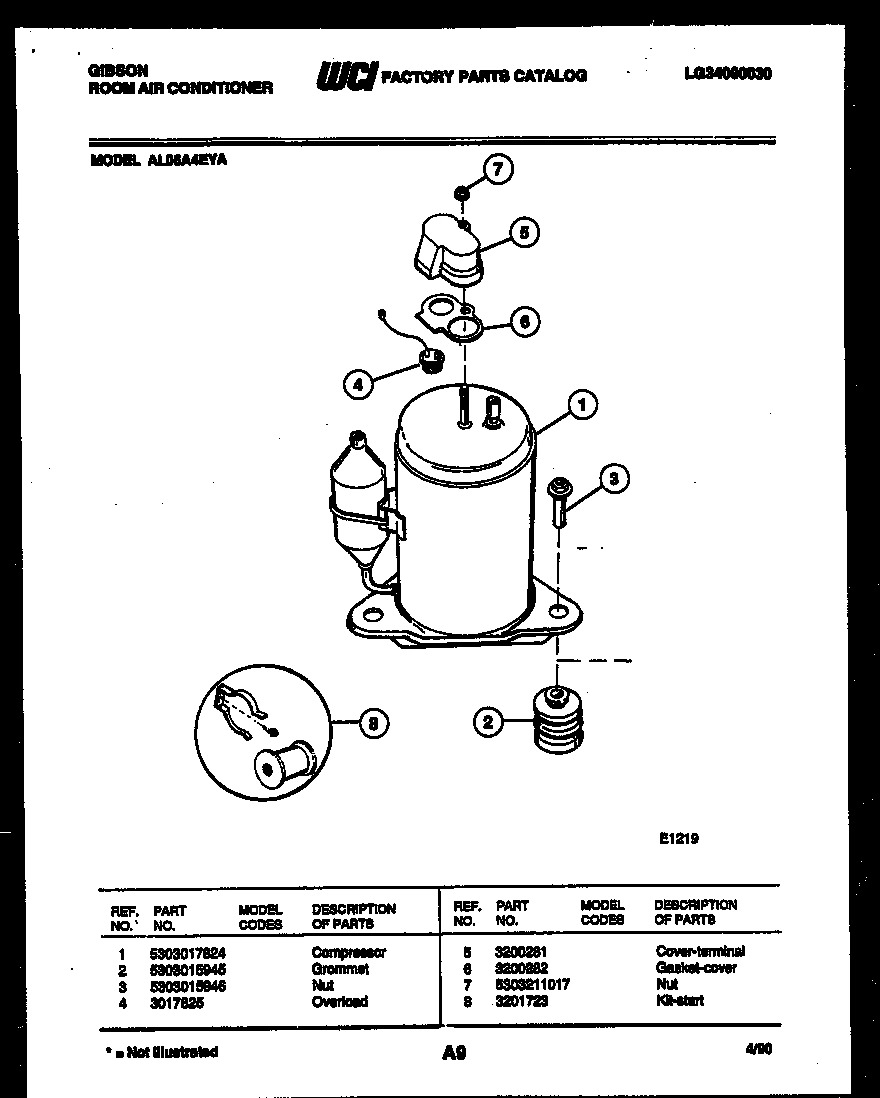

05 - COMPRESSOR PARTS

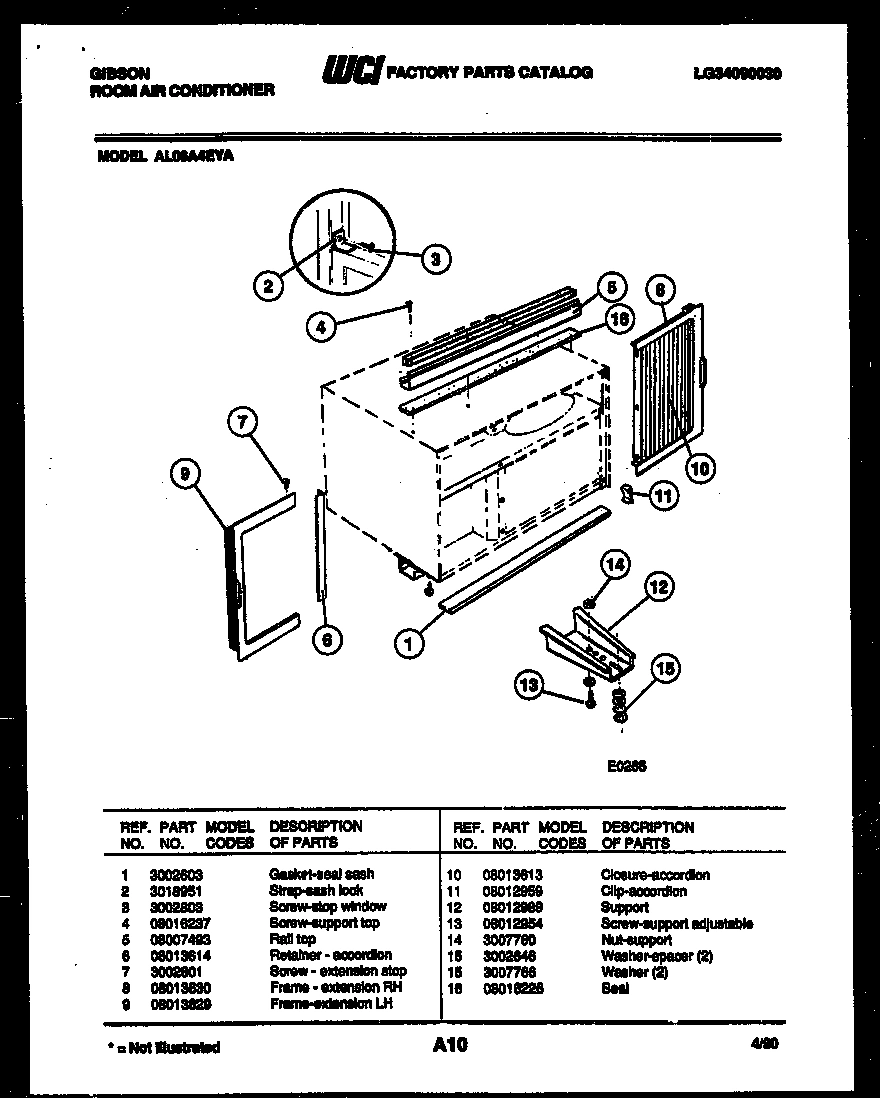

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL06A4EYA ROOM AIR CONDITIONER
1
WRAPPER WCI 3015684 Contact Us For Availability
1
SEAL - SHROUD BOTTOM WCI 3002573 Contact Us For Availability
1
WCI 5303017824 WCI 5303017824 Contact Us For Availability
2
WCI 3017316 WCI 3017316 Contact Us For Availability
2
TUBE-CAPILLARY (CUT TO 30``) WCI 08017122 Contact Us For Availability
2
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
3
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
3
WCI 5303002441 WCI 5303002441 Contact Us For Availability
3
WCI 3205298 WCI 3205298 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
WCI 5303209262 WCI 5303209262 Contact Us For Availability
4
WCI 5303209261 WCI 5303209261 Contact Us For Availability
4
SCREW-MOTOR MTG WCI 5303001817 Contact Us For Availability
4
WCI 3017825 WCI 3017825 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
5
LOUVER-HORIZONTAL WCI 3017318 Contact Us For Availability
5
CLIP-COND BASE WCI 5303209136 Contact Us For Availability
5
WCI 5303002074 WCI 5303002074 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
RAIL-TOP WCI 08007493 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSEMBLY WCI 5303002457 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
6
BLADE-FAN EVAPORATOR WCI 5308010950 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 5303002160 Contact Us For Availability
7
WCI 3002376 WCI 3002376 Contact Us For Availability
7
CLAMP-BLADE (2) WCI 5308011040 Contact Us For Availability
7
NUT WCI 5303211017 Contact Us For Availability
7
SCREW-EXTENSION STOP WCI 3002801 Contact Us For Availability
8
LINK VERTICAL LOUVER LH WCI 5303002165 Contact Us For Availability
8
WCI 5303015947 WCI 5303015947 Contact Us For Availability
8
KIT-START WCI 3201723 Contact Us For Availability
8
FRAME-EXTENSION RH WCI 08013630 Contact Us For Availability
9
CLIP-FILTER & SENSING CAPILLARY WCI 3203075 Contact Us For Availability
9
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
9
WCI 5303209086 WCI 5303209086 Contact Us For Availability
9
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
10
CLIP-DETENT WCI 3001844 Contact Us For Availability
10
CONTROL WCI 5303204475 Contact Us For Availability
10
CLIP-SHROUD/BLKHD WCI 3014764 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
11
FILTER-AIR WCI 3017518 Contact Us For Availability
11
CAPACITOR-DUAL WCI 3203526 Contact Us For Availability
11
WCI 08012959 WCI 08012959 Contact Us For Availability
12
WCI 3018413 WCI 3018413 Contact Us For Availability
12
STRAP-CAPACITOR WCI 3001740 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
WCI 5303017300 WCI 5303017300 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
× ![]()
