Model Electrolux AL06A4EVA ROOM AIR CONDITIONER – Common Parts & Diagrams

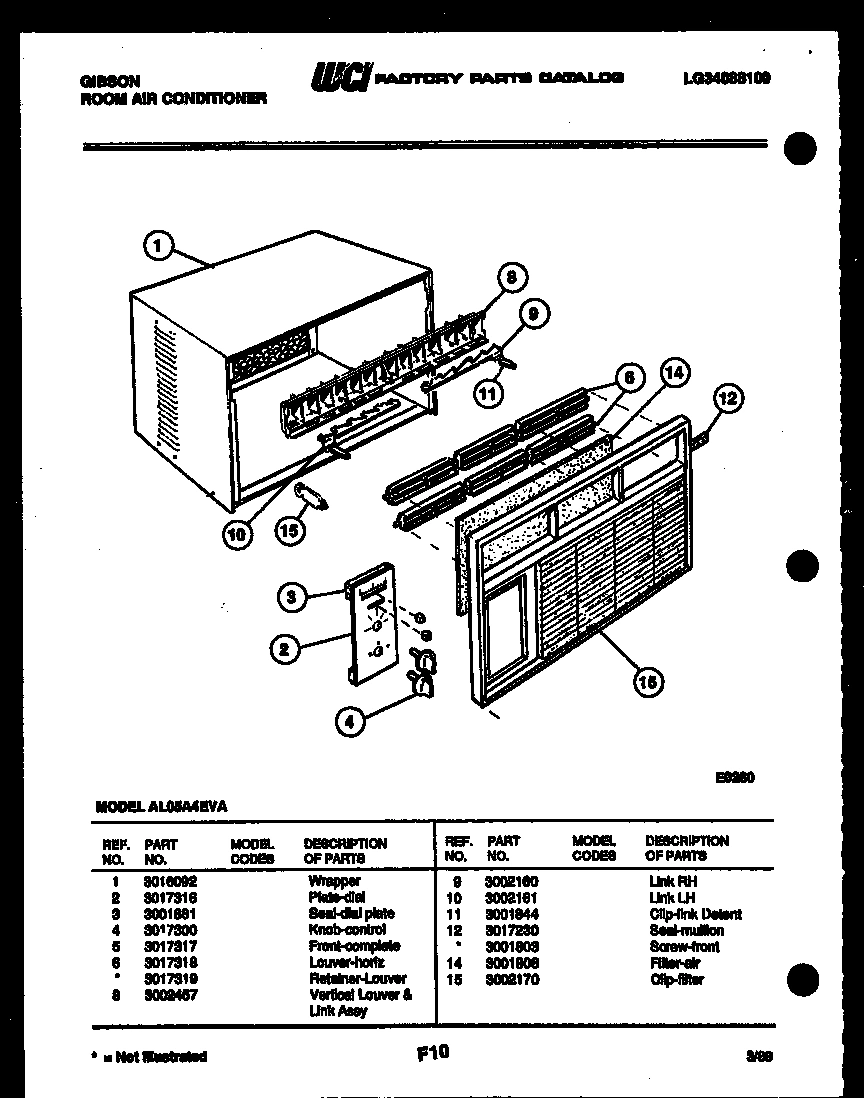

02 - CABINET PARTS

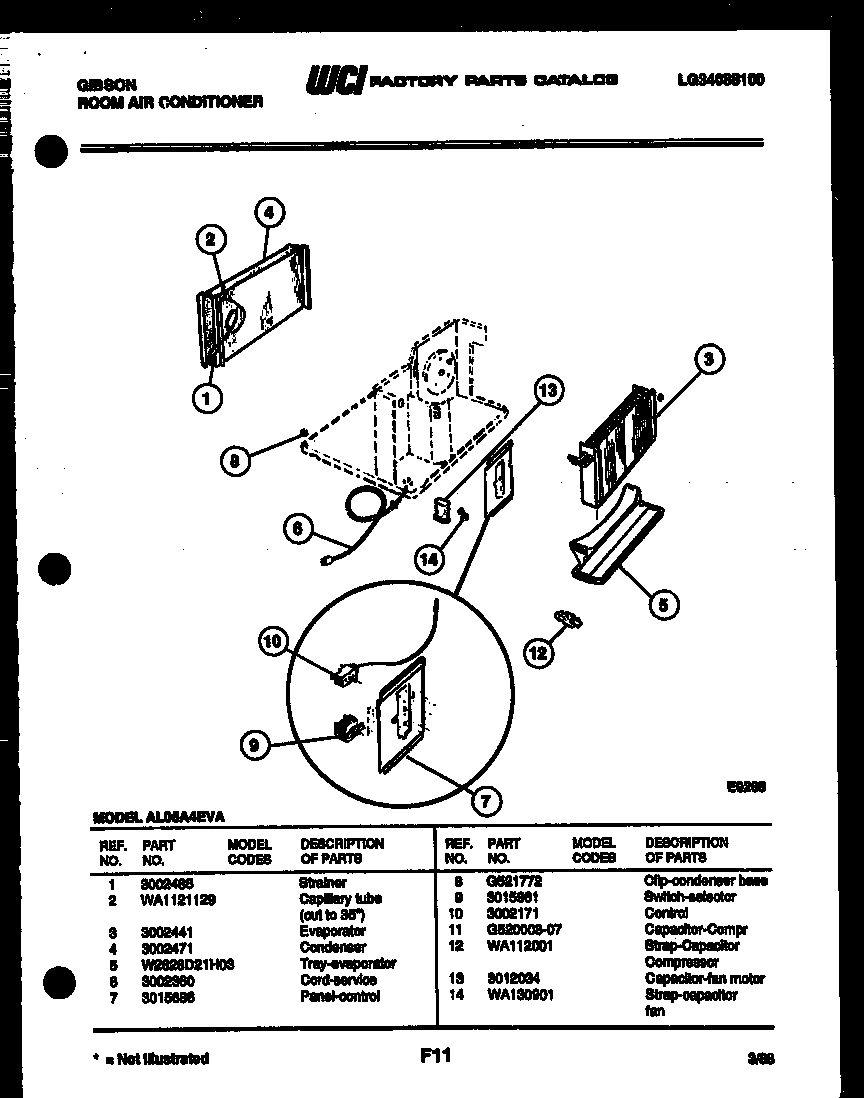

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL06A4EVA ROOM AIR CONDITIONER
1
WRAPPER WCI 3016092 Contact Us For Availability
1
SEAL-SHROUD BTM WCI 3002573 Contact Us For Availability
1
WCI 3016693 WCI 3016693 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
WCI 3017316 WCI 3017316 Contact Us For Availability
2
WCI WA1121129 WCI WA1121129 Contact Us For Availability
2
WCI W2625D25H05 WCI W2625D25H05 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI WA337901 WCI WA337901 Contact Us For Availability
3
WCI 3001861 WCI 3001861 Contact Us For Availability
3
WCI 3002441 WCI 3002441 Contact Us For Availability
3
WCI 3016692 WCI 3016692 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
WCI WA253701 WCI WA253701 Contact Us For Availability
4
WCI 3017300 WCI 3017300 Contact Us For Availability
4
WCI 3002471 WCI 3002471 Contact Us For Availability
4
SCREW-MOTOR MTG WCI 3001817 Contact Us For Availability
4
WCI 3016424 WCI 3016424 Contact Us For Availability
4
WCI W187C140H46 WCI W187C140H46 Contact Us For Availability
5
WCI 3017317 WCI 3017317 Contact Us For Availability
5
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
5
WCI 3002074 WCI 3002074 Contact Us For Availability
6
WCI 3017318 WCI 3017318 Contact Us For Availability
6
CORD-SERVICE WCI 3002360 Contact Us For Availability
6
WCI WA331201 WCI WA331201 Contact Us For Availability
6
GASKET-COVER WCI 3002056 Contact Us For Availability
6
WCI WA452602 WCI WA452602 Contact Us For Availability
6A
WCI 3017319 WCI 3017319 Contact Us For Availability
7
WCI 3015686 WCI 3015686 Contact Us For Availability
7
WCI 3002054 WCI 3002054 Contact Us For Availability
7
WCI WA337701 WCI WA337701 Contact Us For Availability
8
VERTICAL LOUVER & LINK ASSY WCI 3002457 Contact Us For Availability
8
CLIP-CONDENSER BASE WCI G521772 Contact Us For Availability
8
CAP-TERMINAL COVER WCI 3002055 Contact Us For Availability
8
CLIP-RETAINER WCI WA135101 Contact Us For Availability
9
LINK-RH WCI 3002160 Contact Us For Availability
9
WCI 3015961 WCI 3015961 Contact Us For Availability
9
WCI 3012423 WCI 3012423 Contact Us For Availability
9
NUT WCI 3211017 Contact Us For Availability
9
SCREW WCI WC506417 Contact Us For Availability
10
LINK-LH WCI 3002161 Contact Us For Availability
10
CONTROL WCI 3002171 Contact Us For Availability
10
CLAMP-BLADE WCI WA264601 Contact Us For Availability
10
WCI WA452601 WCI WA452601 Contact Us For Availability
11
WCI 3001844 WCI 3001844 Contact Us For Availability
11
WCI G520008-07 WCI G520008-07 Contact Us For Availability
12
SEAL-MULLION WCI 3017230 Contact Us For Availability
12
STRAP-CAPACITOR-COMPRESSOR WCI WA112001 Contact Us For Availability
12
SCREW WCI 3001806 Contact Us For Availability
12A
SCREW-FRONT (NON-ILLUSTRATED) WCI 3001803 Contact Us For Availability
13
WCI 3012034 WCI 3012034 Contact Us For Availability
13
WCI WA333501 WCI WA333501 Contact Us For Availability
14
WCI 3001808 WCI 3001808 Contact Us For Availability
14
WCI WA130901 WCI WA130901 Contact Us For Availability
14
NUT WCI 3007760 Contact Us For Availability
15
WCI 3002170 WCI 3002170 Contact Us For Availability
15
SCREW WCI WA115602 Contact Us For Availability
16
STOP-WINDOW WCI G500741 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
WASHER-STEEL SPACER WCI 3002646 Contact Us For Availability
× ![]()
