Model Electrolux AL05A5EWA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS

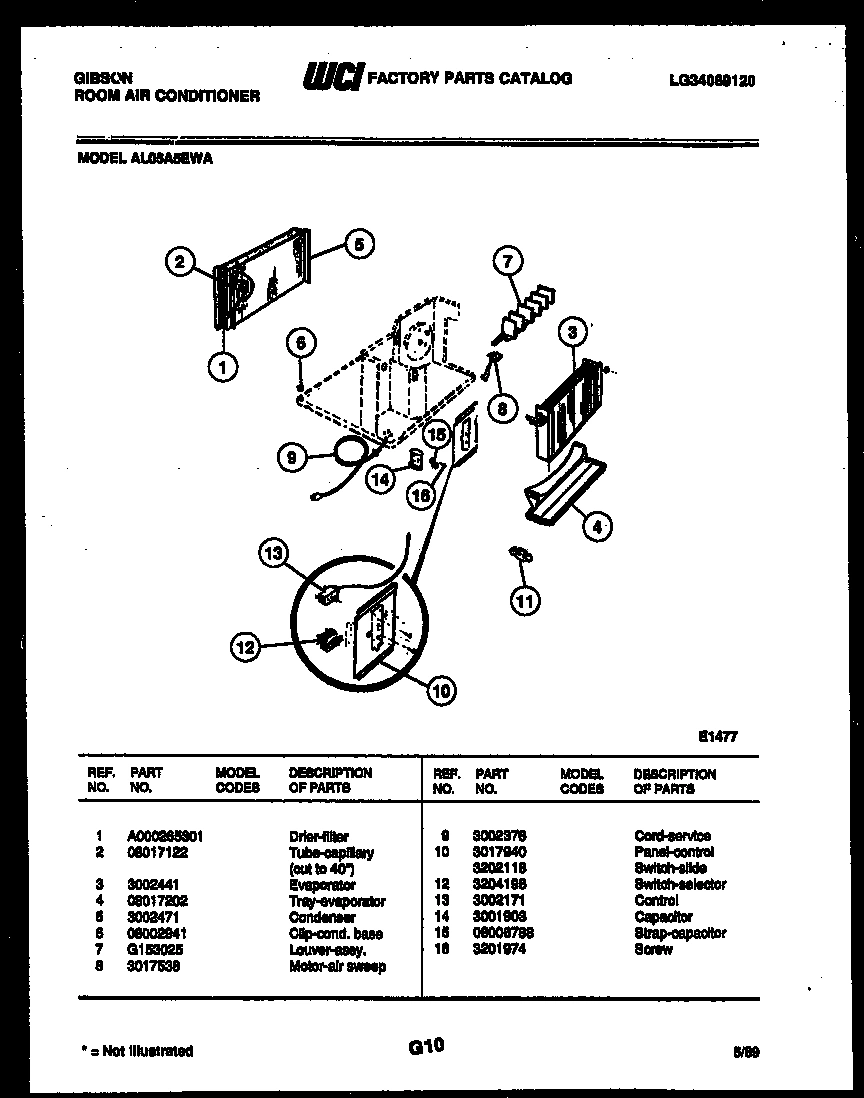

03 - ELECTRICAL PARTS

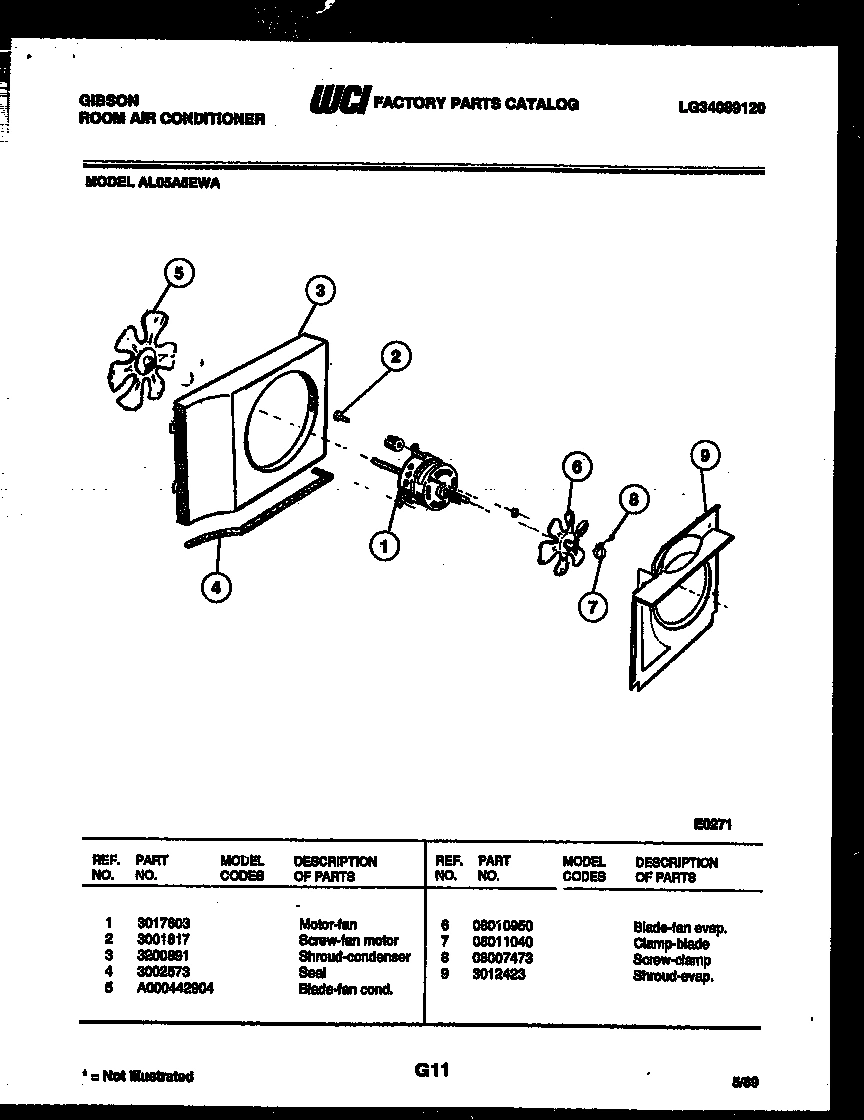

04 - AIR HANDLING PARTS

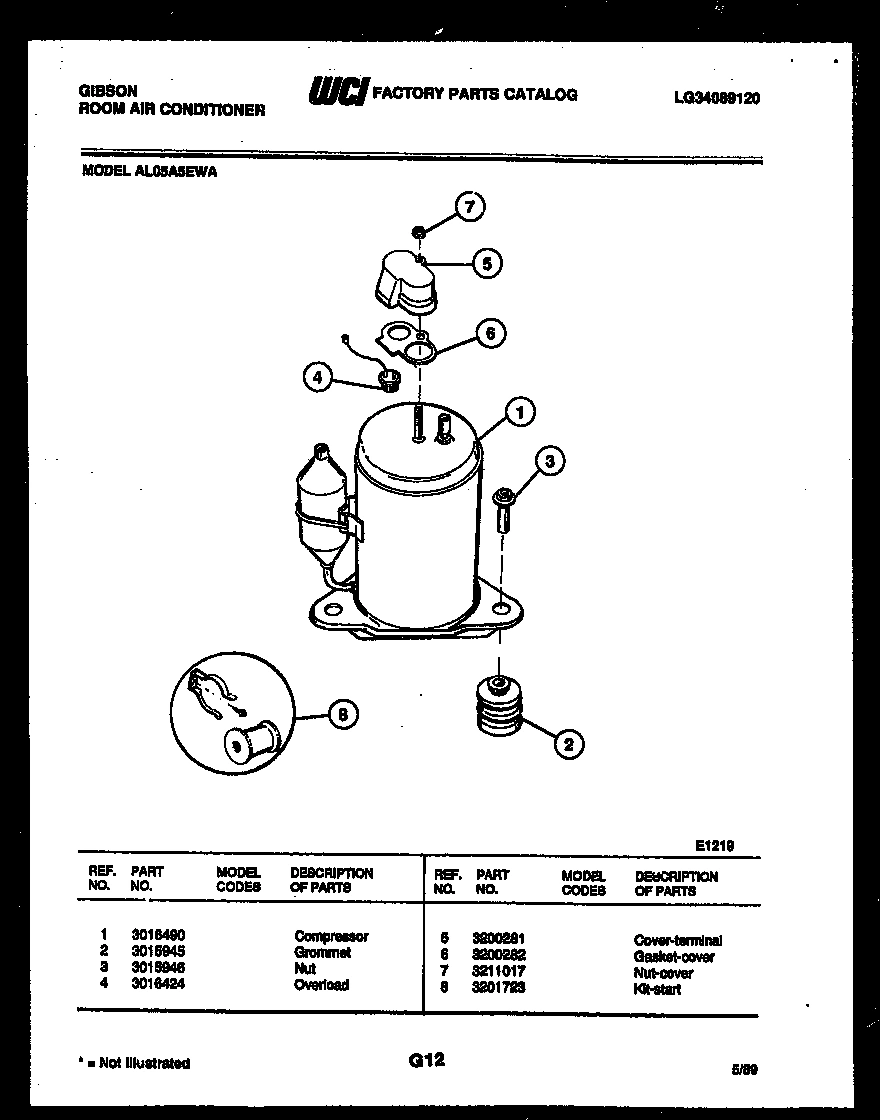

05 - COMPRESSOR PARTS

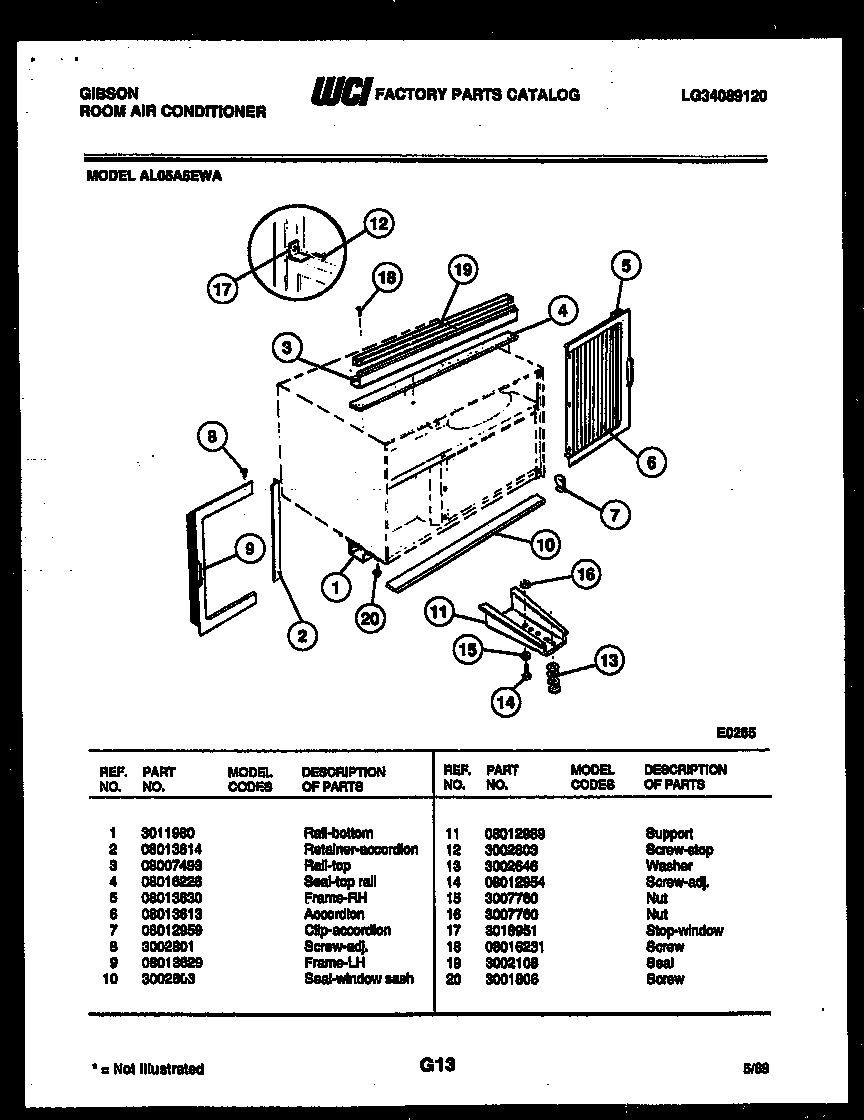

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL05A5EWA ROOM AIR CONDITIONER
*18794
CLIP - SPRING WCI 3201472 Contact Us For Availability
1
WCI 3001861 WCI 3001861 Contact Us For Availability
1
WCI 3017603 WCI 3017603 Contact Us For Availability
1
WCI 3016490 WCI 3016490 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
WCI 3017300 WCI 3017300 Contact Us For Availability
2
TUBE-CAPILLARY (CUT TO 40``) WCI 08017122 Contact Us For Availability
2
WCI 3001817 WCI 3001817 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
2
WCI 08013614 WCI 08013614 Contact Us For Availability
3
WCI 3204201 WCI 3204201 Contact Us For Availability
3
WCI 3002441 WCI 3002441 Contact Us For Availability
3
WCI 3200891 WCI 3200891 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 3017318 WCI 3017318 Contact Us For Availability
4
WCI 08017202 WCI 08017202 Contact Us For Availability
4
SEAL WCI 3002573 Contact Us For Availability
4
WCI 3016424 WCI 3016424 Contact Us For Availability
4
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
4A
WCI 3017319 WCI 3017319 Contact Us For Availability
4B
KNOB - SLIDE (NON-ILLUSTRATED) WCI 3017341 Contact Us For Availability
5
WCI 3017320 WCI 3017320 Contact Us For Availability
5
WCI 3002471 WCI 3002471 Contact Us For Availability
5
WCI A000442904 WCI A000442904 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
FRAME-RH WCI 08013630 Contact Us For Availability
5A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 3001803 Contact Us For Availability
6
WCI 3001808 WCI 3001808 Contact Us For Availability
6
WCI 08002941 WCI 08002941 Contact Us For Availability
6
BLADE-FAN EVAP WCI 08010950 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
6
ACCORDION WCI 08013613 Contact Us For Availability
7
CLIP-FILTER WCI 3203495 Contact Us For Availability
7
LOUVER ASSY WCI G153025 Contact Us For Availability
7
CLAMP-BLADE WCI 08011040 Contact Us For Availability
7
WCI 3211017 WCI 3211017 Contact Us For Availability
7
WCI 08012959 WCI 08012959 Contact Us For Availability
8
WRAPPER WCI 3015684 Contact Us For Availability
8
WCI 3017538 WCI 3017538 Contact Us For Availability
8
KIT-START WCI 3201723 Contact Us For Availability
8
SCREW-ADJ WCI 3002801 Contact Us For Availability
9
WCI 3204200 WCI 3204200 Contact Us For Availability
9
WCI 3002376 WCI 3002376 Contact Us For Availability
9
SHROUD-EVAP WCI 3012423 Contact Us For Availability
9
FRAME-LH WCI 08013629 Contact Us For Availability
10
WCI 3017940 WCI 3017940 Contact Us For Availability
10A
SWITCH - SLIDE WCI 3202118 Contact Us For Availability
11
SUPPORT WCI 08012989 Contact Us For Availability
12
WCI 3204196 WCI 3204196 Contact Us For Availability
12
SCREW-STOP WCI 3002803 Contact Us For Availability
13
CONTROL WCI 3002171 Contact Us For Availability
13
WASHER WCI 3002646 Contact Us For Availability
14
WCI 3001903 WCI 3001903 Contact Us For Availability
14
SCREW-ADJ WCI 08012954 Contact Us For Availability
15
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
16
SCREW WCI 3201974 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP - WINDOW WCI 3018951 Contact Us For Availability
18
WCI 08016231 WCI 08016231 Contact Us For Availability
19
SEAL WCI 3002108 Contact Us For Availability
20
SCREW WCI 3001806 Contact Us For Availability
× ![]()
