Model Electrolux AL05A5EVA ROOM AIR CONDITIONER – Common Parts & Diagrams

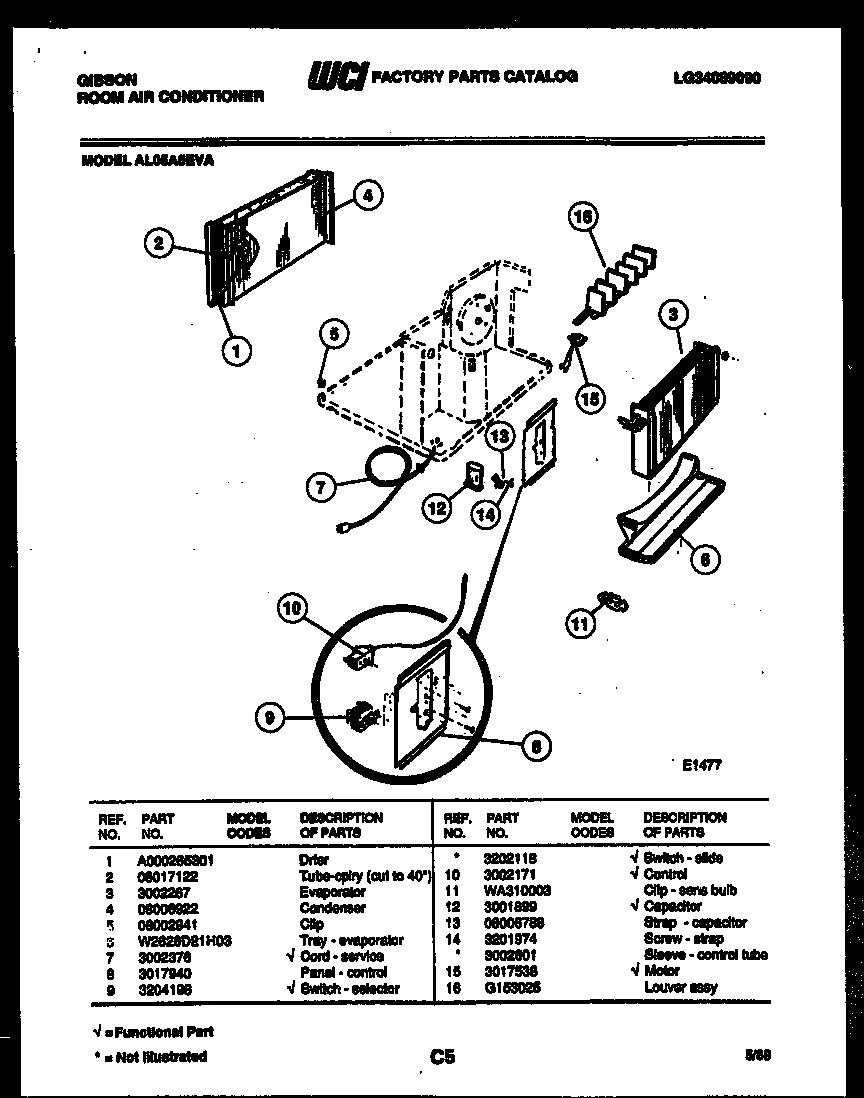

02 - CABINET PARTS
03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS

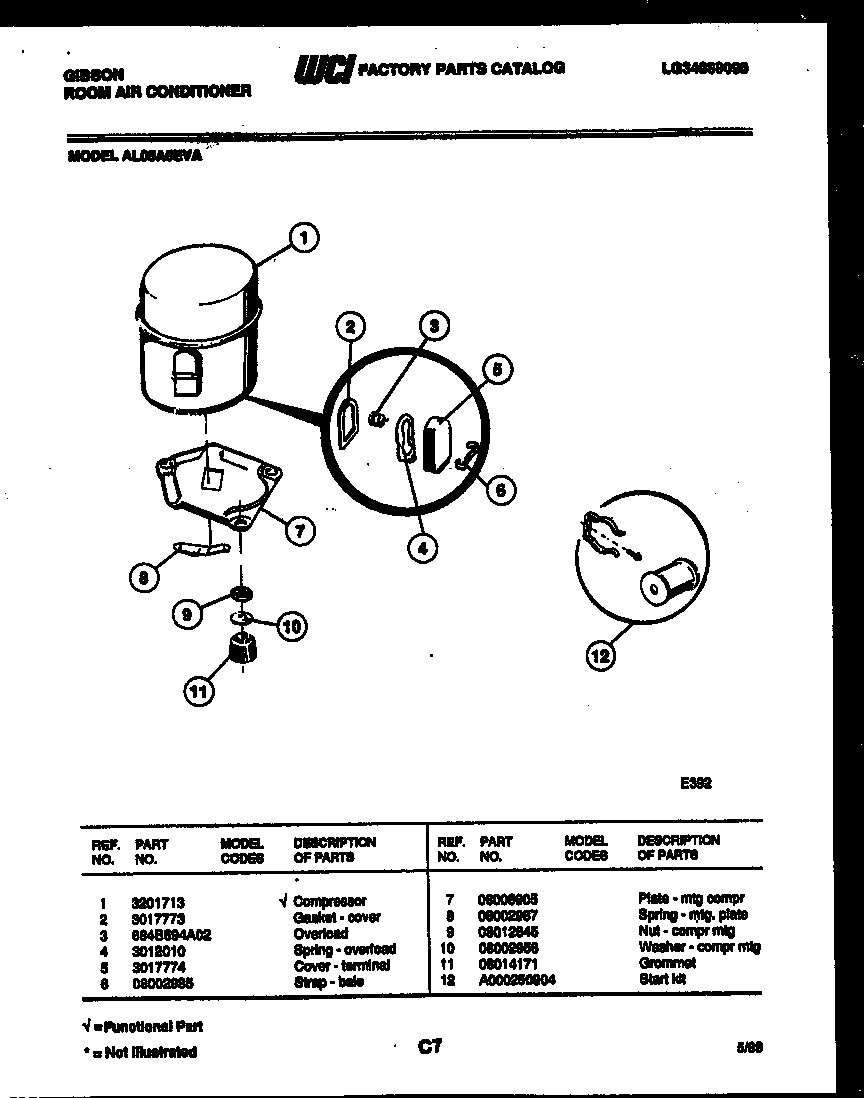

05 - COMPRESSOR PARTS

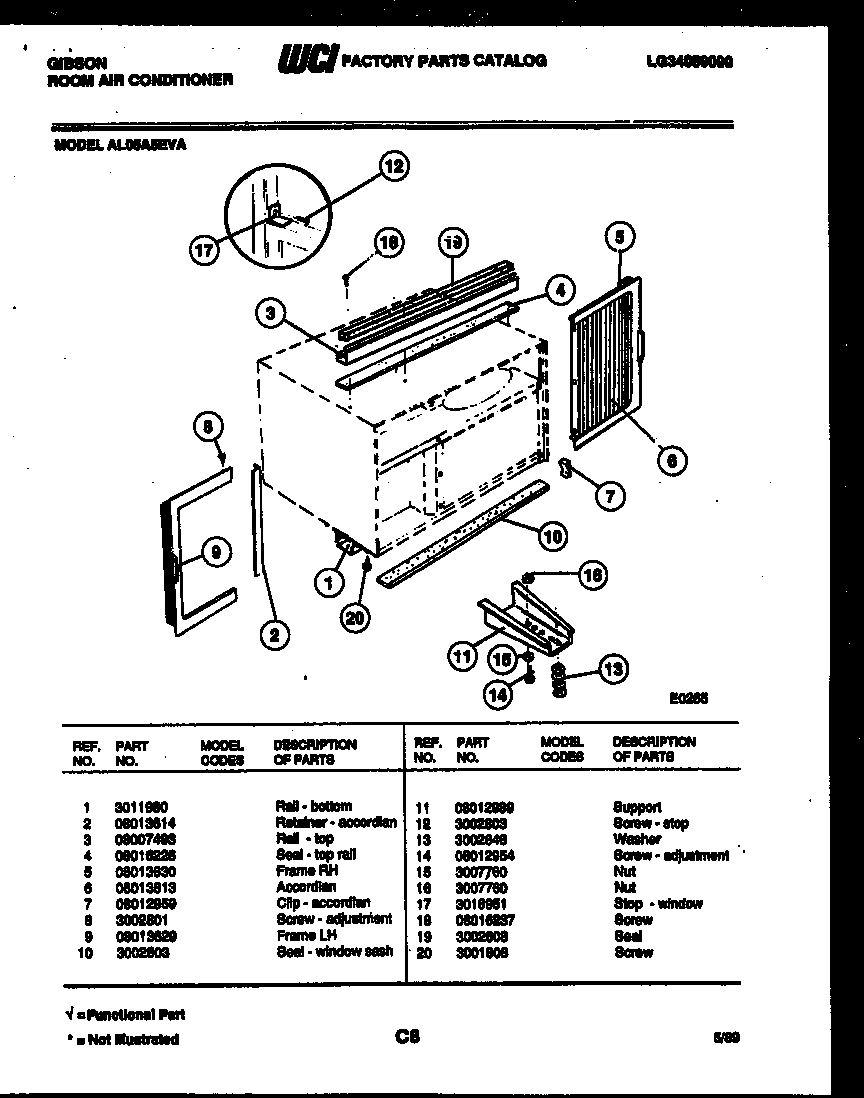

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL05A5EVA ROOM AIR CONDITIONER
*16599
CLIP - SPRING WCI 3201472 Contact Us For Availability
1
WCI 3001861 WCI 3001861 Contact Us For Availability
1
WCI 08009081 WCI 08009081 Contact Us For Availability
1
WCI 3201713 WCI 3201713 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
WCI 3017300 WCI 3017300 Contact Us For Availability
2
TUBE - CPLRY (CUT TO 40``) WCI 08017122 Contact Us For Availability
2
SCREW - MTG WCI 08003045 Contact Us For Availability
2
GASKET-COVER WCI 3017773 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI 08013614 Contact Us For Availability
3
WCI 3204201 WCI 3204201 Contact Us For Availability
3
WCI 3002267 WCI 3002267 Contact Us For Availability
3
WCI 3200891 WCI 3200891 Contact Us For Availability
3
WCI 684B694A02 WCI 684B694A02 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 3017318 WCI 3017318 Contact Us For Availability
4
WCI 08006922 WCI 08006922 Contact Us For Availability
4
SEAL-BOTTOM WCI 3002573 Contact Us For Availability
4
SPRING-OVERLOAD WCI 3012010 Contact Us For Availability
4
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
4A
WCI 3017319 WCI 3017319 Contact Us For Availability
4B
KNOB - SLIDE (NON-ILLUSTRATED) WCI 3017341 Contact Us For Availability
5
WCI 3017320 WCI 3017320 Contact Us For Availability
5
WCI 08002941 WCI 08002941 Contact Us For Availability
5
BLADE - FAN COND WCI 3002390 Contact Us For Availability
5
COVER-TERMINAL WCI 3017774 Contact Us For Availability
5
FRAME-RH WCI 08013630 Contact Us For Availability
5A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 3001803 Contact Us For Availability
6
WCI 3001808 WCI 3001808 Contact Us For Availability
6
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
6
BLADE - FAN EVAP WCI 08009134 Contact Us For Availability
6
WCI 08002985 WCI 08002985 Contact Us For Availability
6
ACCORDIAN WCI 08013613 Contact Us For Availability
7
WCI 3002376 WCI 3002376 Contact Us For Availability
7
SHROUD WCI 3012423 Contact Us For Availability
7
WCI 08006905 WCI 08006905 Contact Us For Availability
7
CLIP - ACCORDIAN WCI 08012959 Contact Us For Availability
8
WRAPPER WCI 3015684 Contact Us For Availability
8
WCI 3017940 WCI 3017940 Contact Us For Availability
8
WCI 08002987 WCI 08002987 Contact Us For Availability
8
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
9
WCI 3204200 WCI 3204200 Contact Us For Availability
9
WCI 3204196 WCI 3204196 Contact Us For Availability
9
NUT - COMPR MTG WCI 08012645 Contact Us For Availability
9
FRAME-LH WCI 08013629 Contact Us For Availability
9A
WCI 3202118 WCI 3202118 Contact Us For Availability
10
CONTROL WCI 3002171 Contact Us For Availability
10
WASHER - COMPR MTG WCI 08002956 Contact Us For Availability
11
CLIP-SENS BULB WCI WA310003 Contact Us For Availability
11
GROMMET WCI 08014171 Contact Us For Availability
11
SUPPORT WCI 08012989 Contact Us For Availability
12
CAPACITOR WCI 3001899 Contact Us For Availability
12
WCI A000250904 WCI A000250904 Contact Us For Availability
12
SCREW-STOP WCI 3002803 Contact Us For Availability
13
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
13
WASHER WCI 3002646 Contact Us For Availability
14
SCREW-STRAP WCI 3201974 Contact Us For Availability
14
SCREW ADJUSTMENT WCI 08012954 Contact Us For Availability
14A
SLEEVE-CONTROL TUBE (NON-ILLUSTRATED) WCI 3002601 Contact Us For Availability
15
MOTOR WCI 3017538 Contact Us For Availability
16
LOUVER ASSY WCI G153025 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP - WINDOW WCI 3018951 Contact Us For Availability
18
WCI 08016237 WCI 08016237 Contact Us For Availability
19
WCI 3002608 WCI 3002608 Contact Us For Availability
20
SCREW WCI 3001806 Contact Us For Availability
× ![]()
