Model Electrolux AL05A2RYA ROOM AIR CONDITIONER – Common Parts & Diagrams

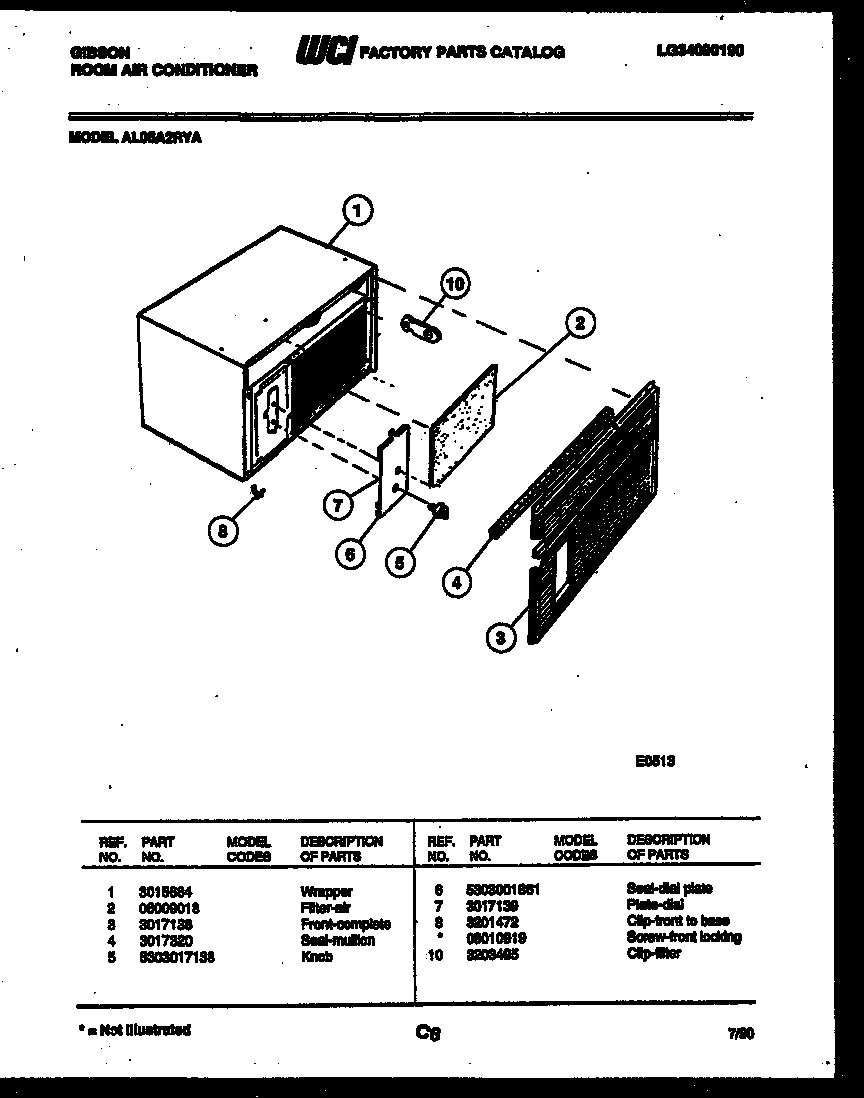

02 - CABINET PARTS

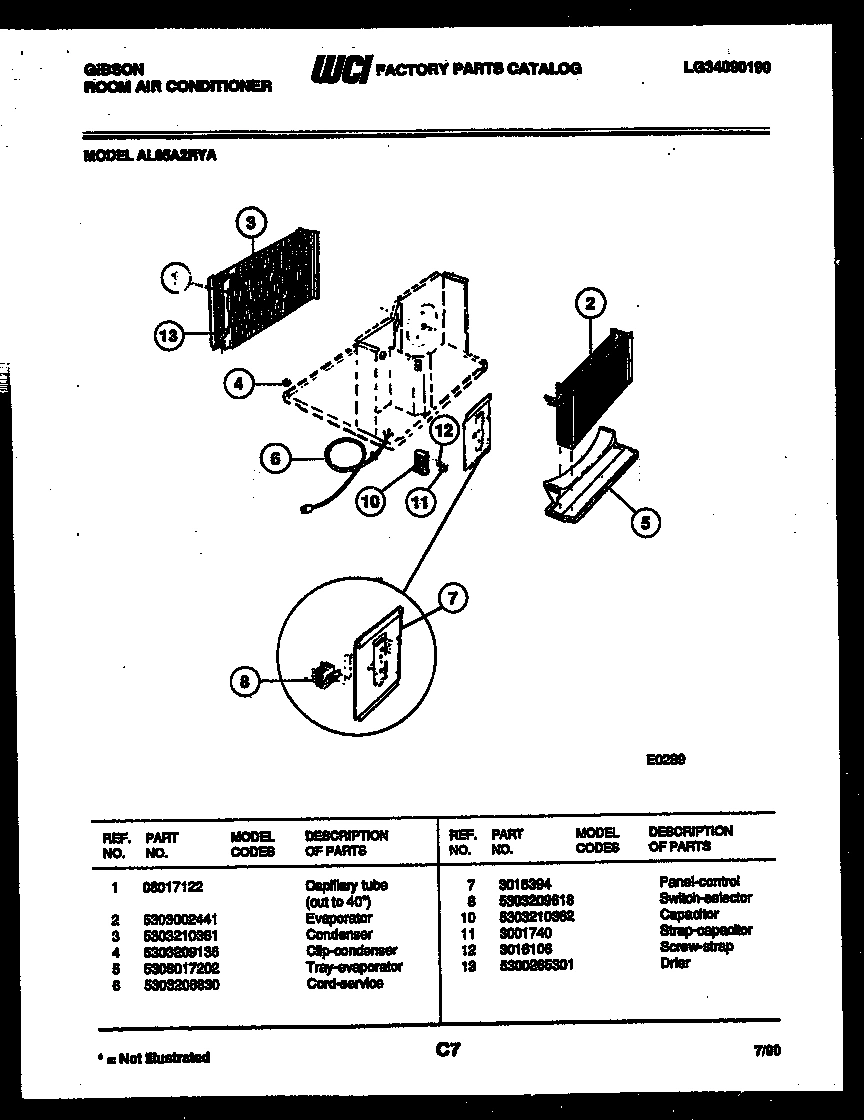

03 - ELECTRICAL PARTS

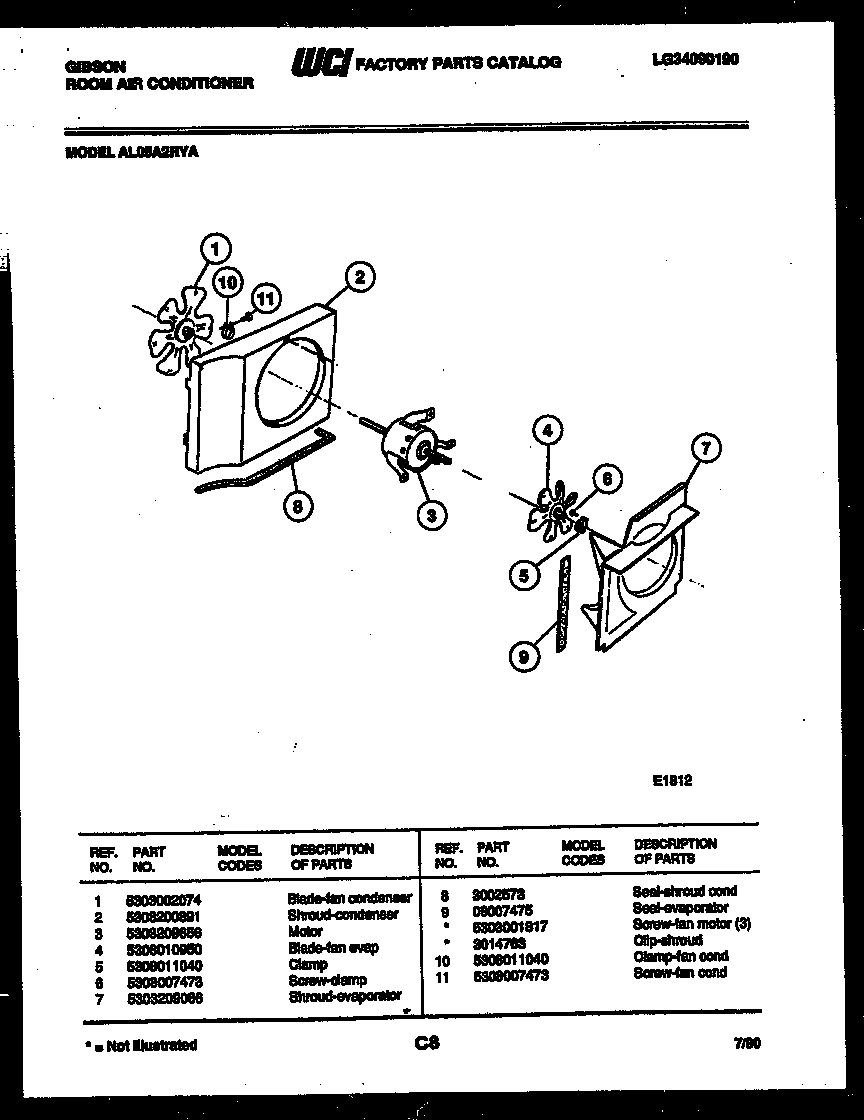

04 - AIR HANDLING PARTS

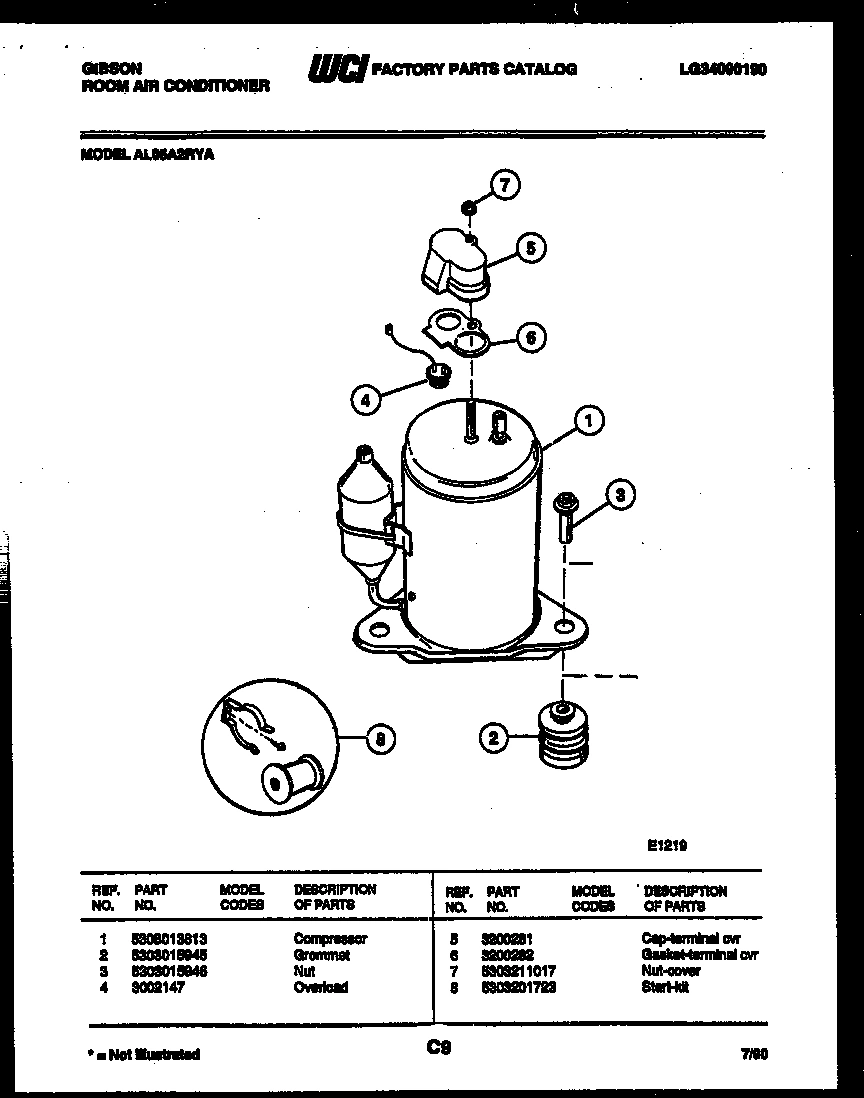

05 - COMPRESSOR

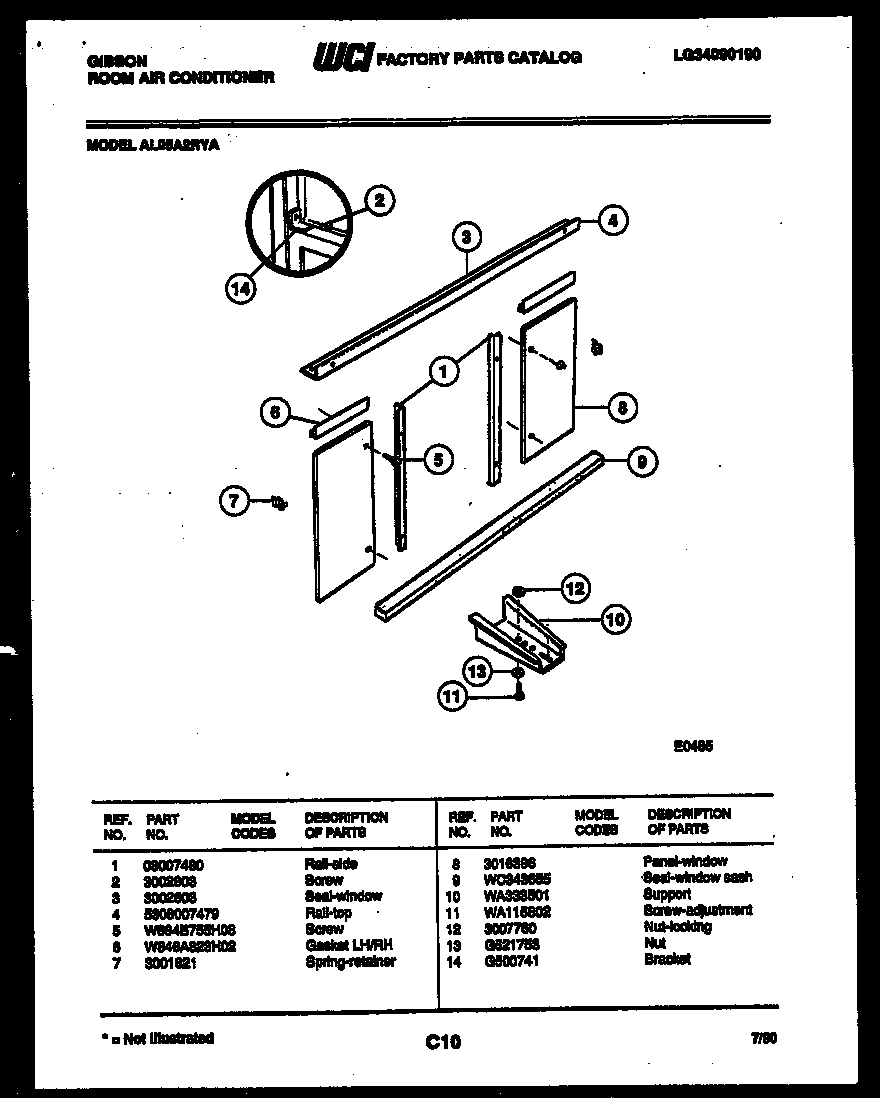

06 - INSTALLATION PARTS
Common parts from model Electrolux AL05A2RYA ROOM AIR CONDITIONER
1
WRAPPER WCI 3015684 Contact Us For Availability
1
CAPILLARY TUBE (CUT TO 40``) WCI 08017122 Contact Us For Availability
1
WCI 5303002074 WCI 5303002074 Contact Us For Availability
1
WCI 5308013813 WCI 5308013813 Contact Us For Availability
1
WCI 08007480 WCI 08007480 Contact Us For Availability
2
FILTER-AIR WCI 08009018 Contact Us For Availability
2
WCI 5303002441 WCI 5303002441 Contact Us For Availability
2
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI 3017136 WCI 3017136 Contact Us For Availability
3
WCI 5303210361 WCI 5303210361 Contact Us For Availability
3
WCI 5303209656 WCI 5303209656 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
4
WCI 3017320 WCI 3017320 Contact Us For Availability
4
WCI 5303209136 WCI 5303209136 Contact Us For Availability
4
WCI 5308010950 WCI 5308010950 Contact Us For Availability
4
OVERLOAD WCI 3002147 Contact Us For Availability
4
WCI 5308007479 WCI 5308007479 Contact Us For Availability
5
KNOB WCI 5303017138 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
5
CAP-TERMINAL CVR WCI 3200281 Contact Us For Availability
5
WCI W684B755H08 WCI W684B755H08 Contact Us For Availability
6
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
6
WCI 5303206830 WCI 5303206830 Contact Us For Availability
6
GASKET-TERMINAL CVR WCI 3200282 Contact Us For Availability
6
WCI W846A823H02 WCI W846A823H02 Contact Us For Availability
7
WCI 3017139 WCI 3017139 Contact Us For Availability
7
WCI 3016394 WCI 3016394 Contact Us For Availability
7
WCI 5303209086 WCI 5303209086 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
WCI 3001821 WCI 3001821 Contact Us For Availability
8
CLIP-FRONT TO BASE WCI 3201472 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303209618 Contact Us For Availability
8
SEAL-SHROUD COND WCI 3002573 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
WCI 3016396 WCI 3016396 Contact Us For Availability
8A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 08010919 Contact Us For Availability
9
WCI 08007475 WCI 08007475 Contact Us For Availability
9A
SCREW-FAN MOTOR (3) (NON-ILLUSTRATED) WCI 5303001817 Contact Us For Availability
9B
CLIP-SHROUD (NON-ILLUSTRATED) WCI 3014763 Contact Us For Availability
10
CLIP-FILTER WCI 3203495 Contact Us For Availability
10
WCI 5303210362 WCI 5303210362 Contact Us For Availability
10
CLAMP-FAN COND WCI 5308011040 Contact Us For Availability
10
WCI WA333501 WCI WA333501 Contact Us For Availability
11
STRAP-CAPACITOR WCI 3001740 Contact Us For Availability
11
WCI WA115602 WCI WA115602 Contact Us For Availability
12
SCREW-STRAP WCI 3016106 Contact Us For Availability
12
NUT-LOCKING WCI 3007760 Contact Us For Availability
13
WCI 5300265301 WCI 5300265301 Contact Us For Availability
13
WCI G521753 WCI G521753 Contact Us For Availability
14
BRACKET WCI G500741 Contact Us For Availability
× ![]()
