Model Electrolux AL05A2RWG ROOM AIR CONDITIONER – Common Parts & Diagrams

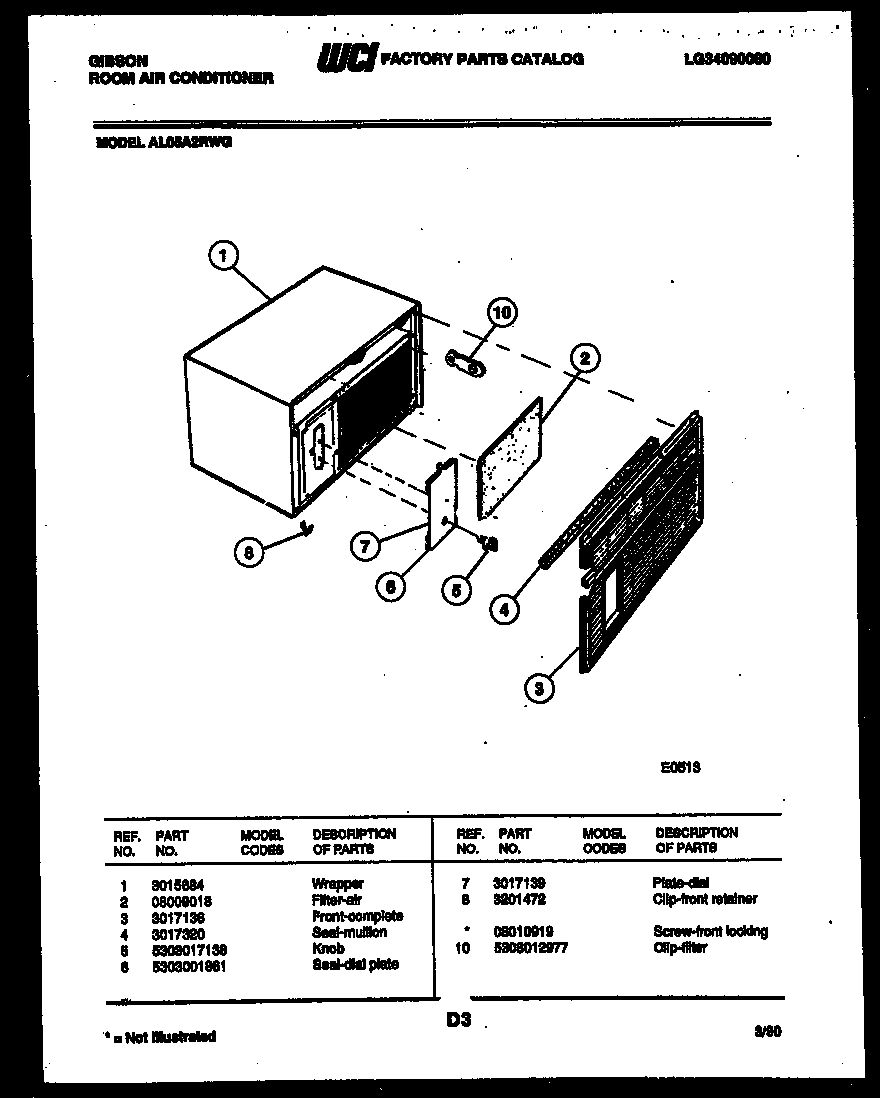

02 - CABINET PARTS

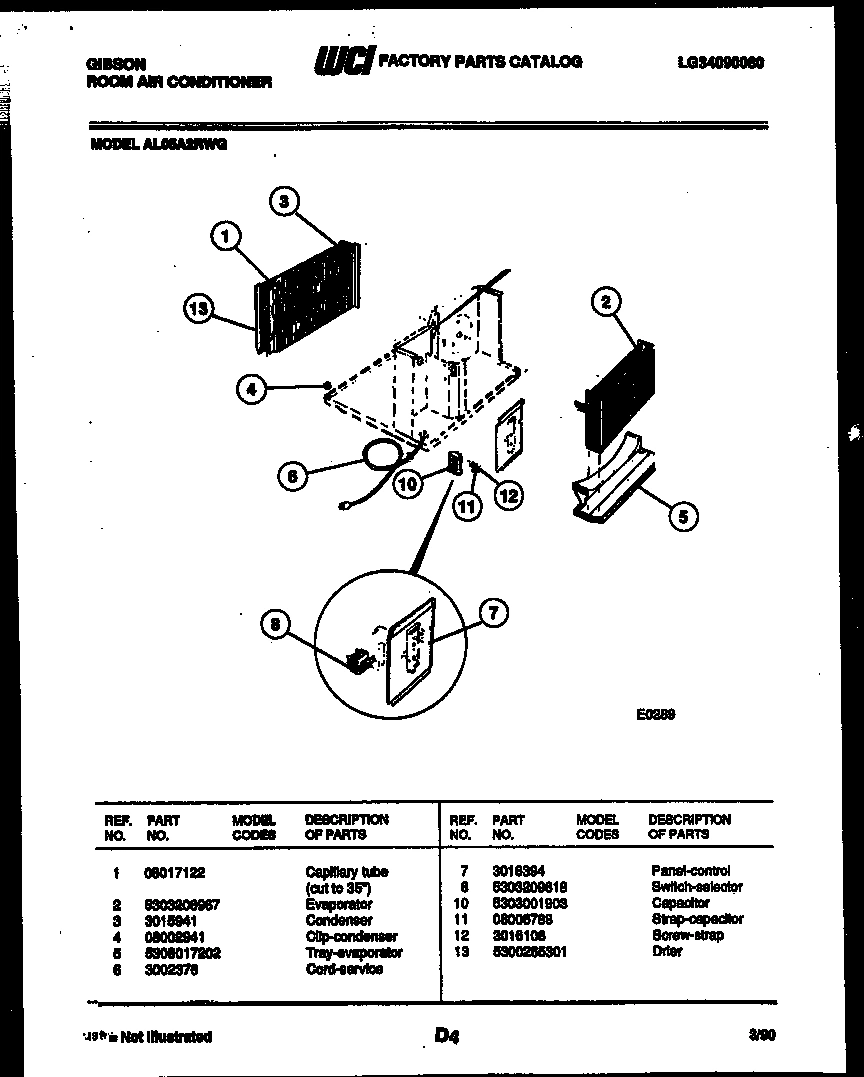

03 - ELECTRICAL PARTS

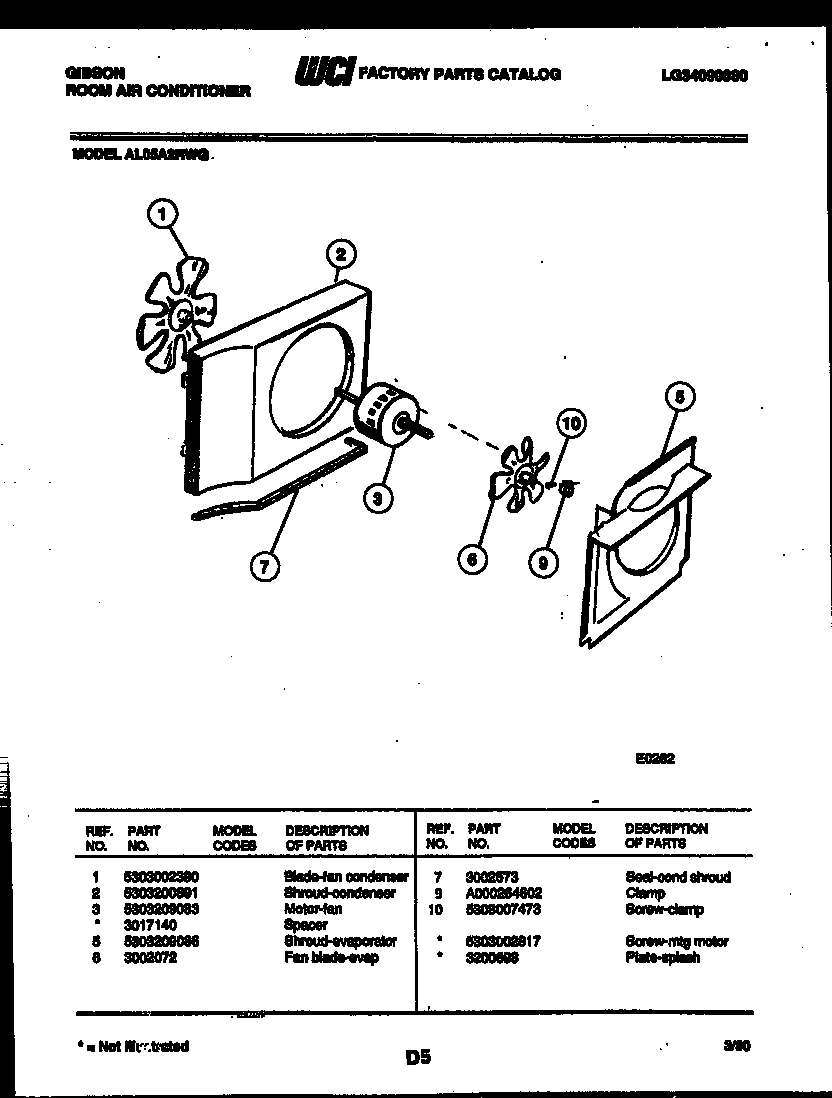

04 - AIR HANDLING PARTS

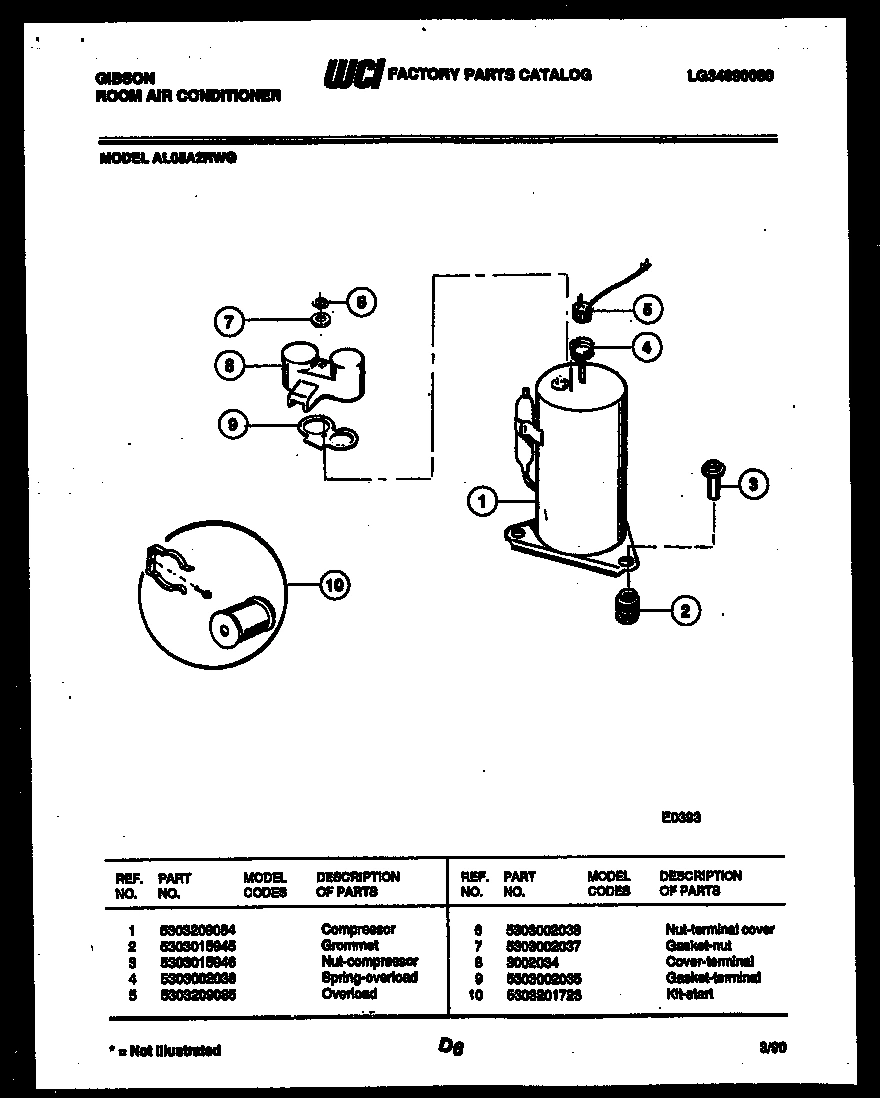

05 - COMPRESSOR PARTS

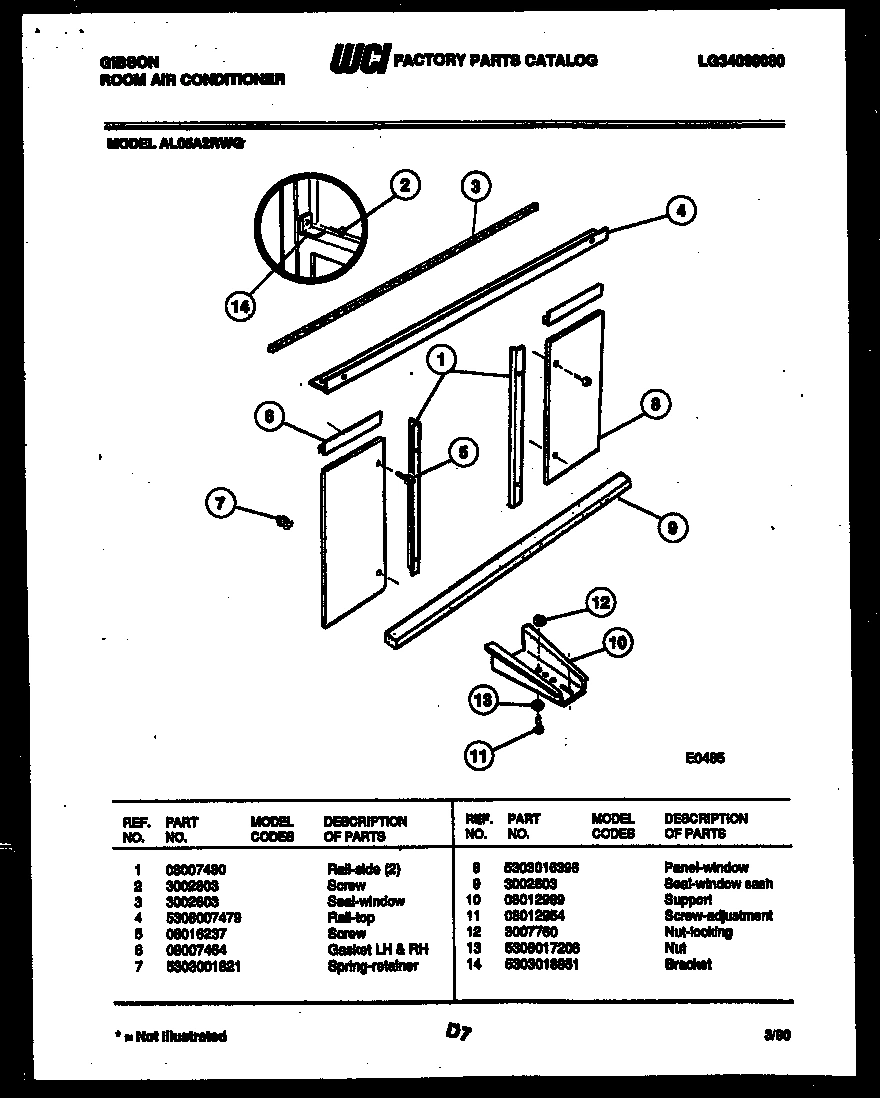

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AL05A2RWG ROOM AIR CONDITIONER
*33231
PLATE-SPLASH WCI 3200698 Contact Us For Availability
*33231
WCI 5303002817 WCI 5303002817 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
CAPILLARY TUBE-CUT TO 35`` WCI 08017122 Contact Us For Availability
1
BLADE-FAN CONDENSER WCI 5303002390 Contact Us For Availability
1
WCI 5303209084 WCI 5303209084 Contact Us For Availability
1
RAIL-SIDE (2) WCI 08007480 Contact Us For Availability
2
FILTER-AIR WCI 08009018 Contact Us For Availability
2
WCI 5303206967 WCI 5303206967 Contact Us For Availability
2
SHROUD-CONDENSER WCI 5303200891 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI 3017136 WCI 3017136 Contact Us For Availability
3
WCI 3015941 WCI 3015941 Contact Us For Availability
3
WCI 5303209083 WCI 5303209083 Contact Us For Availability
3
WCI 5303015946 WCI 5303015946 Contact Us For Availability
3A
SPACER (NON-ILLUSTRATED) WCI 3017140 Contact Us For Availability
4
WCI 3017320 WCI 3017320 Contact Us For Availability
4
WCI 08002941 WCI 08002941 Contact Us For Availability
4
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
4
WCI 5308007479 WCI 5308007479 Contact Us For Availability
5
KNOB WCI 5303017138 Contact Us For Availability
5
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
5
WCI 5303209086 WCI 5303209086 Contact Us For Availability
5
WCI 5303209085 WCI 5303209085 Contact Us For Availability
5
WCI 08016237 WCI 08016237 Contact Us For Availability
6
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
6
WCI 3002376 WCI 3002376 Contact Us For Availability
6
WCI 3002072 WCI 3002072 Contact Us For Availability
6
NUT-TERMINAL COVER WCI 5303002038 Contact Us For Availability
6
GASKET LH & RH WCI 08007464 Contact Us For Availability
7
WCI 3017139 WCI 3017139 Contact Us For Availability
7
WCI 3016394 WCI 3016394 Contact Us For Availability
7
SEAL-COND SHROUD WCI 3002573 Contact Us For Availability
7
WCI 5303002037 WCI 5303002037 Contact Us For Availability
7
SPRING-RETAINER WCI 5303001821 Contact Us For Availability
8
WCI 3201472 WCI 3201472 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303209618 Contact Us For Availability
8
COVER-TERMINAL WCI 3002034 Contact Us For Availability
8
WCI 5303016396 WCI 5303016396 Contact Us For Availability
8A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 08010919 Contact Us For Availability
9
WCI A000264602 WCI A000264602 Contact Us For Availability
9
GASKET-TERMINAL WCI 5303002035 Contact Us For Availability
10
WCI 5308012977 WCI 5308012977 Contact Us For Availability
10
WCI 5303001903 WCI 5303001903 Contact Us For Availability
10
KIT-START WCI 5303201723 Contact Us For Availability
10
SUPPORT WCI 08012989 Contact Us For Availability
11
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
11
SCREW ADJUSTMENT WCI 08012954 Contact Us For Availability
12
SCREW-STRAP WCI 3016106 Contact Us For Availability
12
NUT-LOCKING WCI 3007760 Contact Us For Availability
13
WCI 5300265301 WCI 5300265301 Contact Us For Availability
13
NUT WCI 5308017206 Contact Us For Availability
14
BRACKET WCI 5303018951 Contact Us For Availability
× ![]()
