Model Whirlpool AKT3630E ELECTRIC COOK-TOP – Common Parts & Diagrams

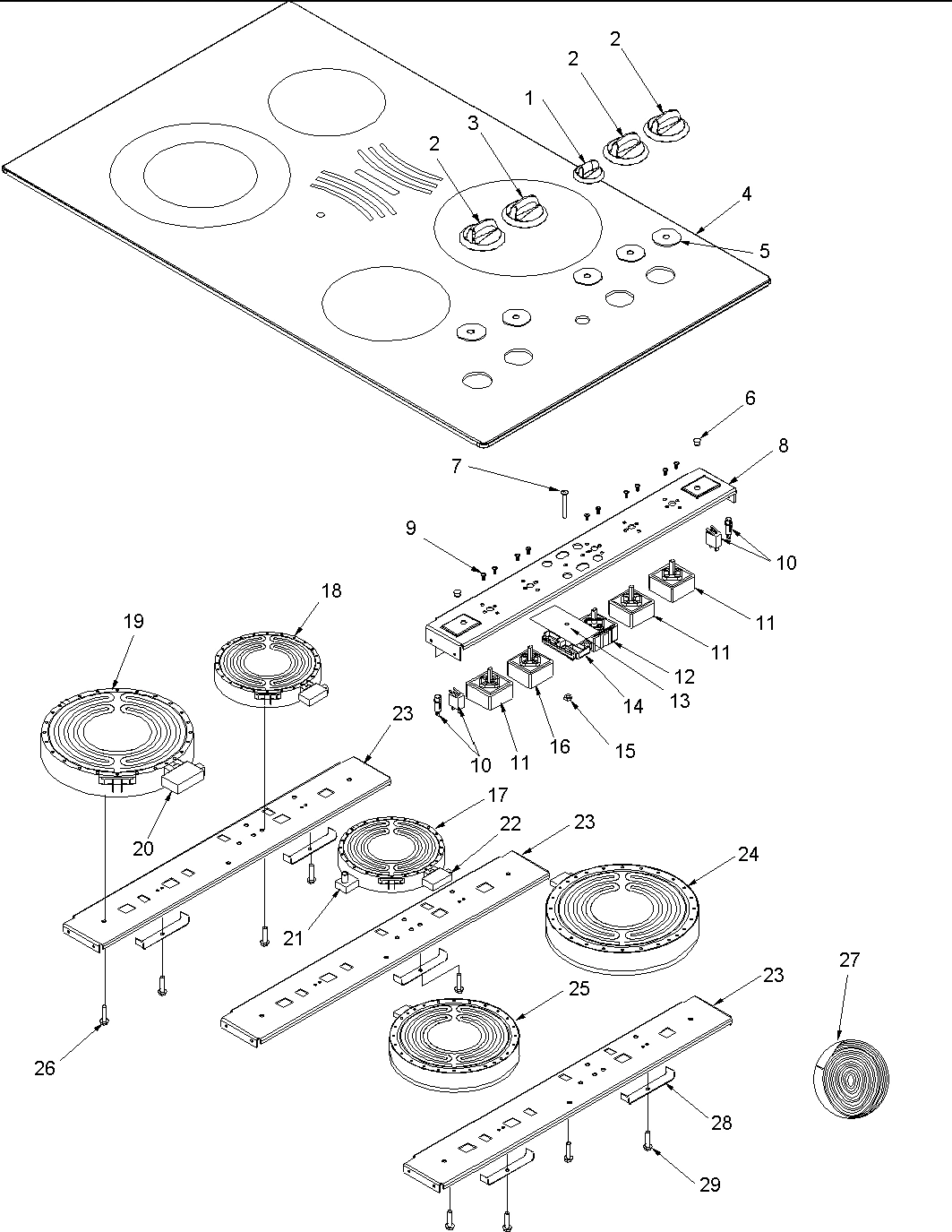

01 - Cooktop Assembly

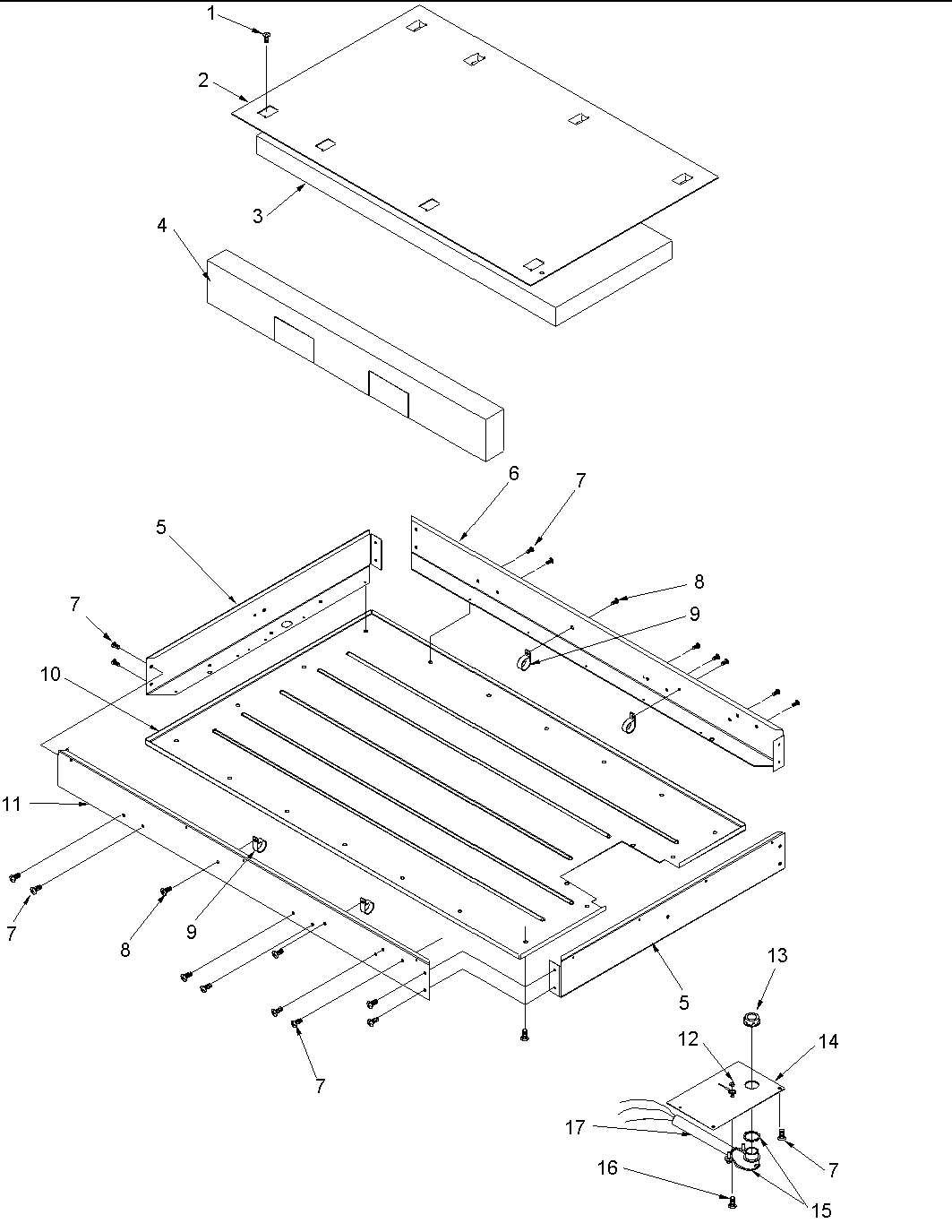

02 - Heater Box Assembly
Common parts from model Whirlpool AKT3630E ELECTRIC COOK-TOP
1
KNOB,WARM ZONE(BLACK) WPL 31918405B Contact Us For Availability
1
POP RIVET K WPL Y0307447 Contact Us For Availability
2
KNOB,INFINITE(BLACK) WPL 31926601B Contact Us For Availability
2
PANEL, ACCESS 36`` WPL 31913401 Contact Us For Availability
3
KNOB,DUAL INFINITE(BLACK) WPL 31926603B Contact Us For Availability
3
INSULATION,BOT BURNER BOX WPL 31974402 Contact Us For Availability
4
ASSY, FRAME&GLASS(AKT3630) WPL 31914001B Contact Us For Availability
4
INSUL,36`` ELEC CKTP WPL 32014901 Contact Us For Availability
5
SEAL, INLET WPL Y0308941 Contact Us For Availability
5
END, HEATER BOX WPL Y0316069 Contact Us For Availability
6
LENS, INDICATOR LIGHT WPL 31934001 Contact Us For Availability
6
SIDE HEATER BOX WPL 31913601 Contact Us For Availability
7
SCREW WPL M0202521 Contact Us For Availability
7
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
8
BRACKET, CONTROL MTG. WPL 31913701 Contact Us For Availability
8
SCREW, No.8-18 X 5/8 PPH WPL 31750431 Contact Us For Availability
9
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
10
LIGHT, INDICATOR WPL 31933901 Contact Us For Availability
10
BAFFLE, HEATER BOX WPL 31913801 Contact Us For Availability
11
SIDE HEATER BOX WPL 31913501 Contact Us For Availability
12
SWITCH,INF(120P-1241) WPL 31890802 Contact Us For Availability
12
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
13
INSULATION, IND. LIGHT WPL 0307444 Contact Us For Availability
13
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
14
LIGHT, INDICATOR WPL Y0307442 Contact Us For Availability
14
PLATE, CONDUIT WPL Y0307451 Contact Us For Availability
15
NUT A WPL M0281002 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
16
SCREW, GRD No.10-32 X 1/2 PANHD WPL 31750523 Contact Us For Availability
17
ELEMENT, WARMING ZONE WPL 31912702 Contact Us For Availability
17
HARNESS, CONDUIT WPL 31988601 Contact Us For Availability
18
ELEMENT, RIBBON 6`` 240V/1200W WPL 31938901 Contact Us For Availability
20
LIMITER-DUAL WPL 0316689 Contact Us For Availability
21
LIGHT,INDICATOR-HOT SURFACE WPL 31913001 Contact Us For Availability
22
LIMITER WPL 31912801 Contact Us For Availability
23
BRACKET, ELEMENT MTG. WPL 31911601 Contact Us For Availability
26
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
27
TAPE PER ROLL WPL M0275045 Contact Us For Availability
28
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
29
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
NI
SCREW, No.6-20 X .625 TRUSS HD WPL 31750321 Contact Us For Availability
× ![]()
