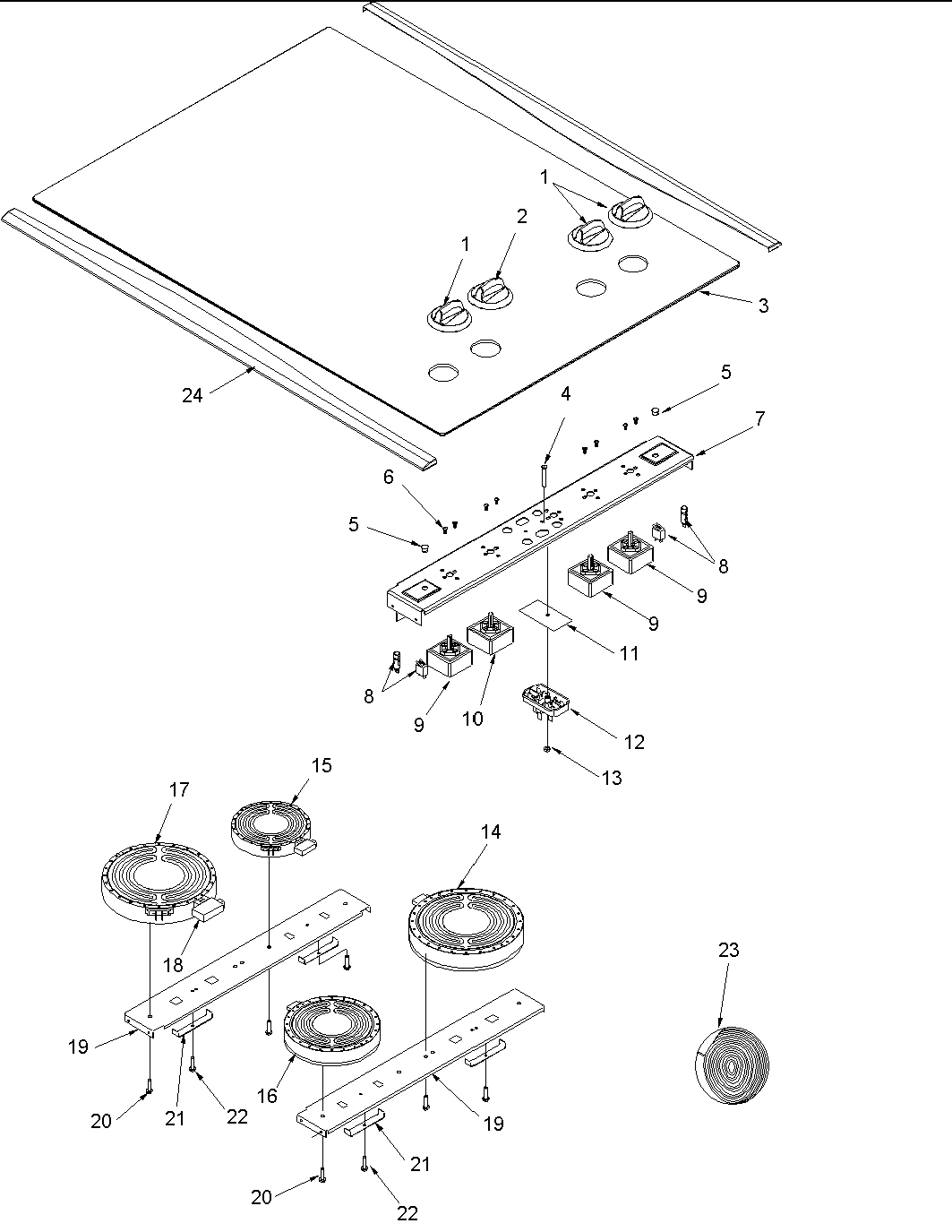

Model Whirlpool AKT3040E ELECTRIC COOK-TOP – Common Parts & Diagrams

0
INSTR,INSTALL-AKH/AKT
INSTR,INSTALL-AKH/AKT WPL 31967701 Contact Us For Availability
View on Model
0
MNL,PTS-30`` ELEC SMTHTP CKTP
MNL,PTS-30`` ELEC SMTHTP CKTP WPL RP2420024 Contact Us For Availability
View on Model
0
MNL,SVC(ELEC SMOOTHTOP CKTOP)
MNL,SVC(ELEC SMOOTHTOP CKTOP) WPL RS2420005 Contact Us For Availability
View on Model
1
POP RIVET K
POP RIVET K WPL Y0307447 Contact Us For Availability
View on Model
1
KNOB,INFINITE(BLACK)
KNOB,INFINITE(BLACK) WPL 31926601B Contact Us For Availability
View on Model
2

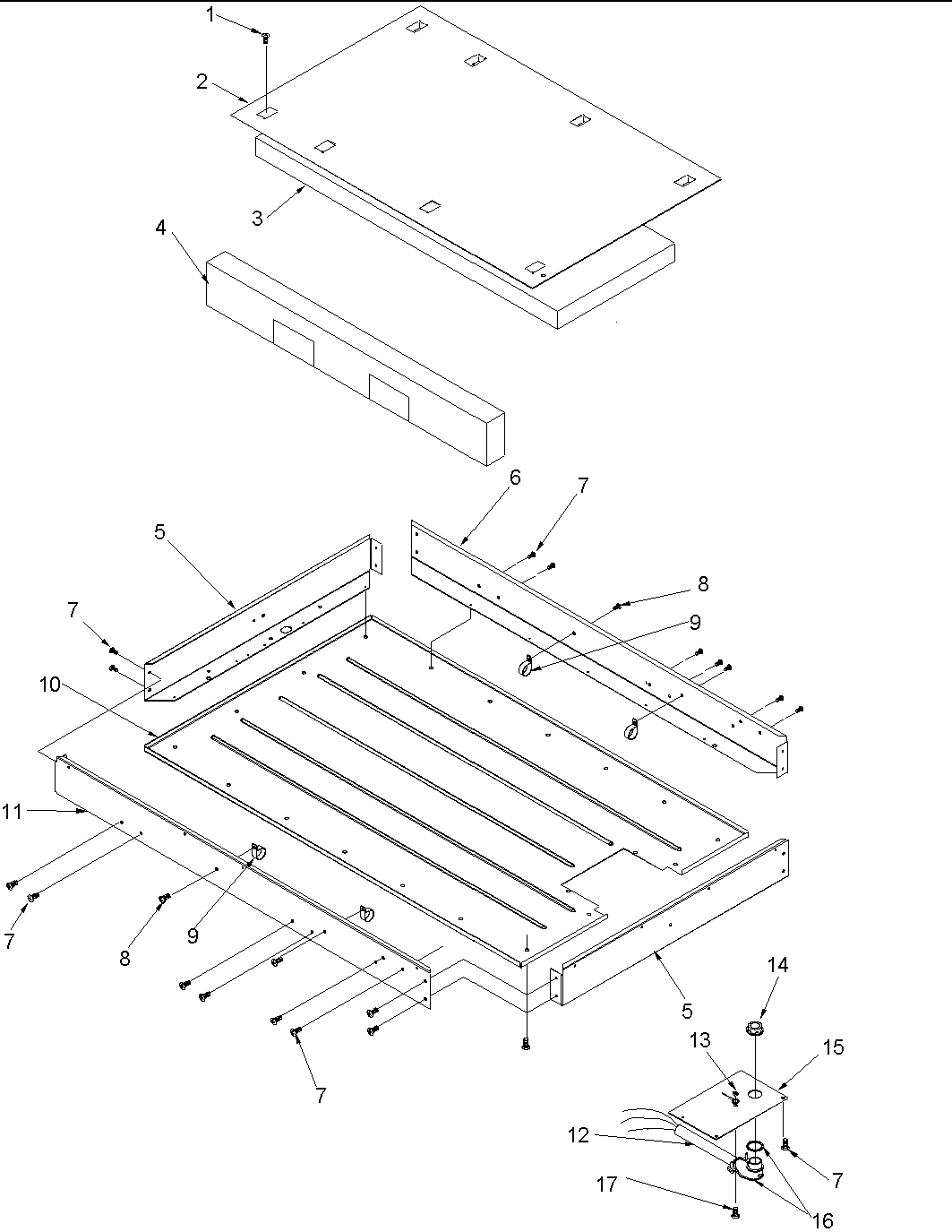

BAFFLE, HEATER BOX
BAFFLE, HEATER BOX WPL 0316074 Contact Us For Availability
View on Model
2
KNOB,DUAL INFINITE(BLACK)
KNOB,DUAL INFINITE(BLACK) WPL 31926603B Contact Us For Availability
View on Model
3
ASSY, FRAME&GLASS(AKH3040)
ASSY, FRAME&GLASS(AKH3040) WPL 31912501B Contact Us For Availability
View on Model
3
INSULATION,BOT BURNER BOX
INSULATION,BOT BURNER BOX WPL 31974401 Contact Us For Availability
View on Model
4
INSULATION,BURNER BOX-30``
INSULATION,BURNER BOX-30`` WPL 32060001 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL M0202521 Contact Us For Availability
View on Model
5
END, HEATER BOX
END, HEATER BOX WPL Y0316069 Contact Us For Availability
View on Model
6
SIDE, HEATER BOX
SIDE, HEATER BOX WPL Y0316071 Contact Us For Availability
View on Model
7
BRACKET,CONTROL MTG
BRACKET,CONTROL MTG WPL 32049801 Contact Us For Availability
View on Model
8
SCREW, No.8-18 X 5/8 PPH
SCREW, No.8-18 X 5/8 PPH WPL 31750431 Contact Us For Availability
View on Model
8
LIGHT,INDICATOR
LIGHT,INDICATOR WPL 32049701 Contact Us For Availability
View on Model
9
CLAMP, TUBE (1/2``)
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
View on Model
10
PANEL, ACCESS
PANEL, ACCESS WPL Y0316649 Contact Us For Availability
View on Model
11
SIDE, HEATER BOX
SIDE, HEATER BOX WPL Y0316070 Contact Us For Availability
View on Model
11
INSULATION, IND. LIGHT
INSULATION, IND. LIGHT WPL 0307444 Contact Us For Availability
View on Model
12
HARNESS, CONDUIT
HARNESS, CONDUIT WPL 31939501 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR
LIGHT, INDICATOR WPL Y0307442 Contact Us For Availability
View on Model
13
HEX NUT (NKL)
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
View on Model
13
NUT A
NUT A WPL M0281002 Contact Us For Availability
View on Model
14
BUSHING, CONDUIT
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
View on Model
15
PLATE, CONDUIT
PLATE, CONDUIT WPL Y0307451 Contact Us For Availability
View on Model
15
ELEMENT, RIBBON 6`` 240V/1200W
ELEMENT, RIBBON 6`` 240V/1200W WPL 31938901 Contact Us For Availability
View on Model
16
CONNECTOR, CONDUIT
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
View on Model
17
SCREW, GRD No.10-32 X 1/2 PANHD
SCREW, GRD No.10-32 X 1/2 PANHD WPL 31750523 Contact Us For Availability
View on Model
18
LIMITER-DUAL
LIMITER-DUAL WPL 0316689 Contact Us For Availability
View on Model
19
BRACKET, ELEMENT MTG.
BRACKET, ELEMENT MTG. WPL 31911601 Contact Us For Availability
View on Model
20
SCREW, SHOULDER AB 6-20 X .825
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
View on Model
21
SPRING, ELEMENT
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
View on Model
22
SCREW, No.8-18 X 3/8 PPH
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
View on Model
30
MANUAL, OWNERS
MANUAL, OWNERS WPL 32066301 Contact Us For Availability
View on Model
NI
SEAL, INLET
SEAL, INLET WPL Y0308941 Contact Us For Availability
View on Model
