Model Whirlpool AKS3030SS GAS COOK-TOP – Common Parts & Diagrams
03 - SUPPLEMENTAL INFORMATION

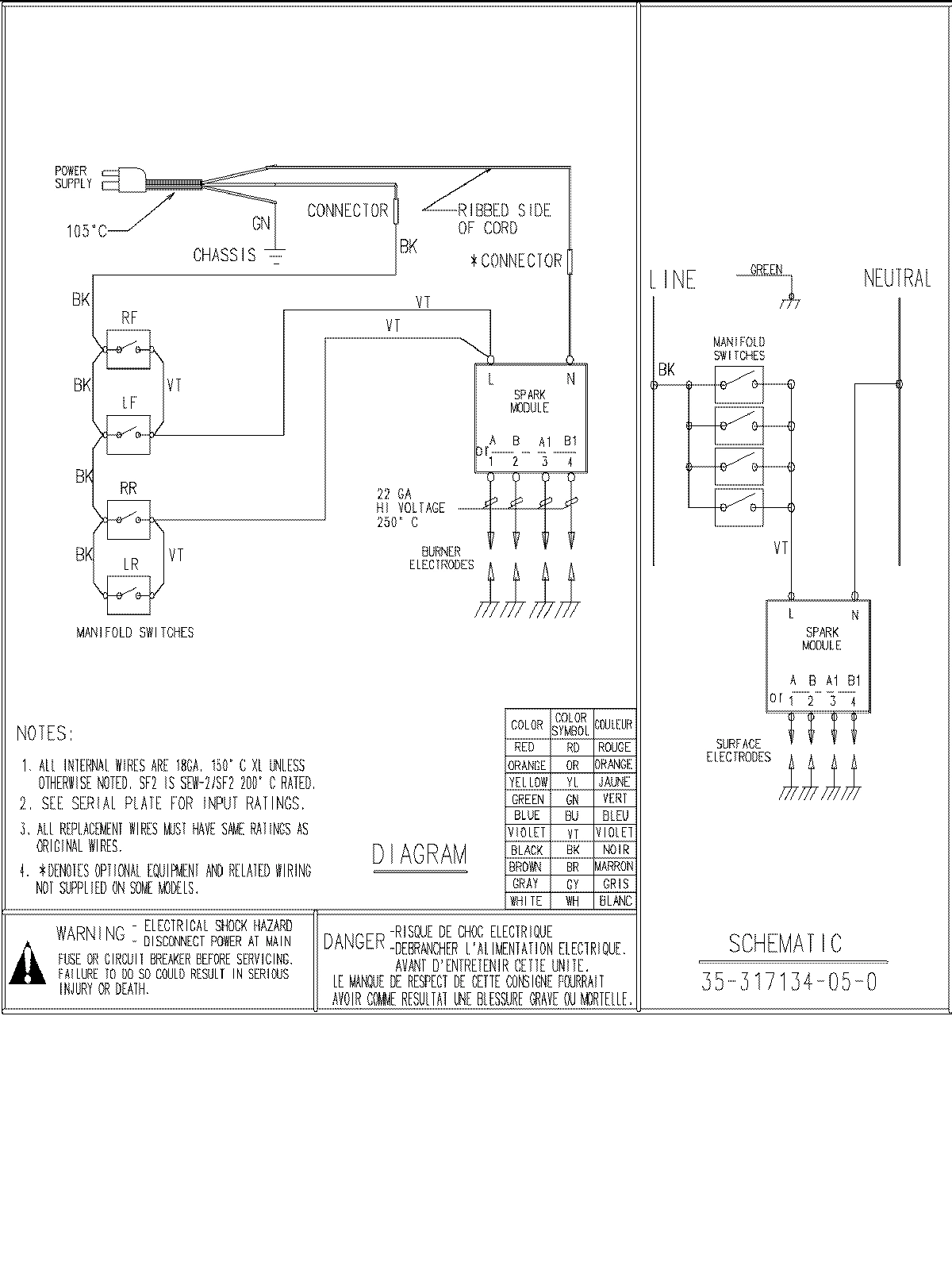

04 - WIRING INFORMATION

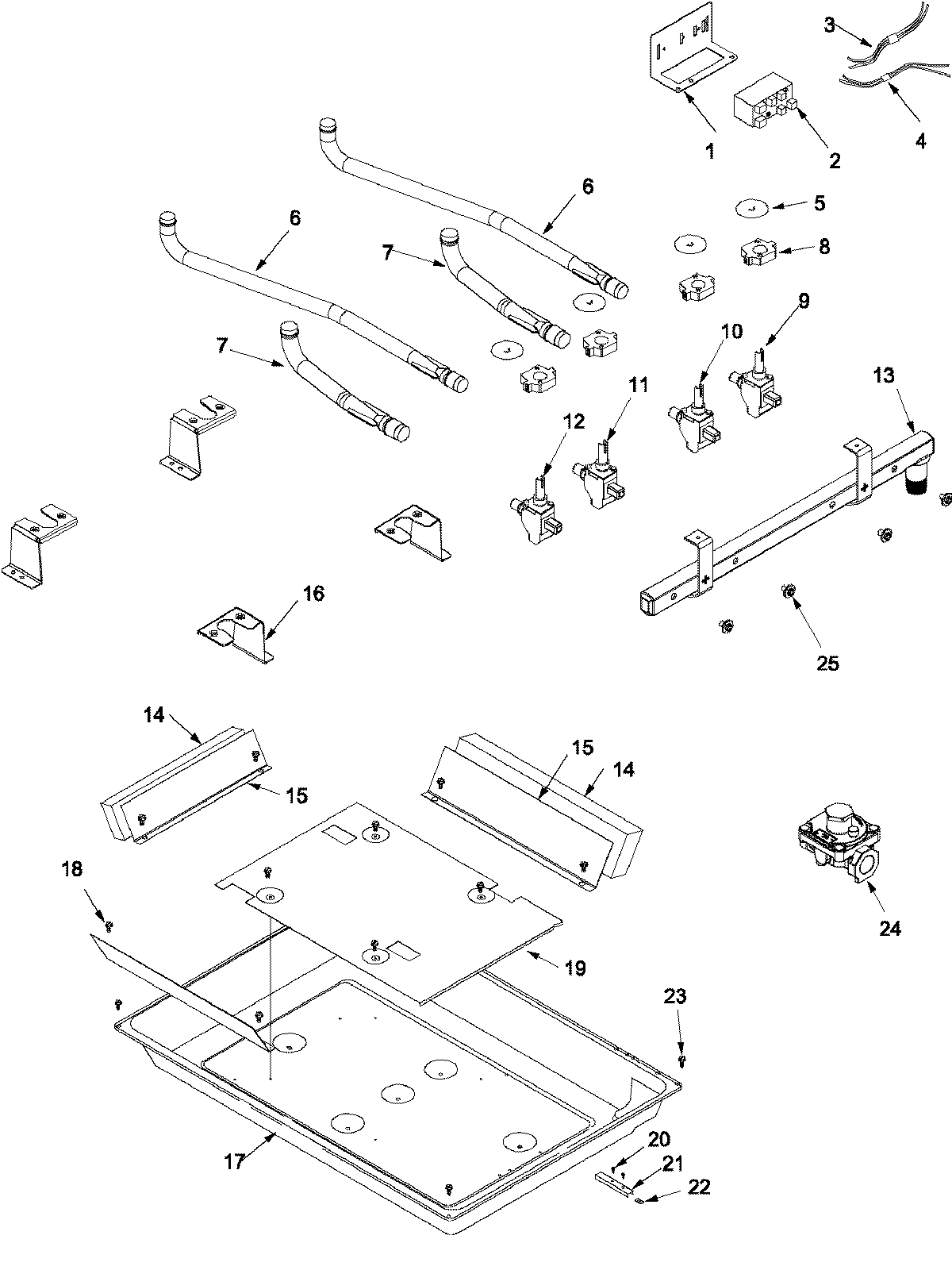

01 - BURNER BOX

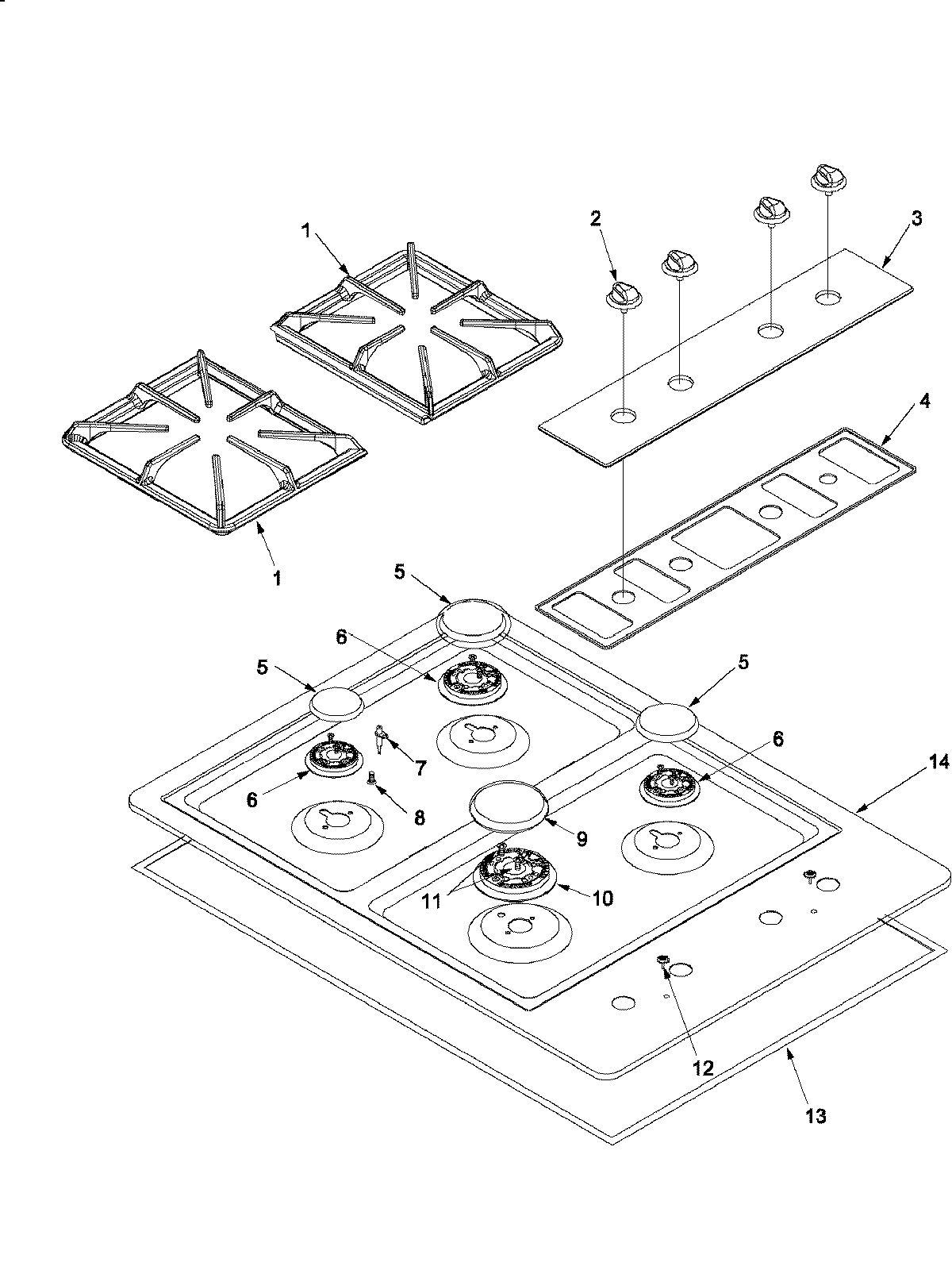

02 - MAIN TOP
Common parts from model Whirlpool AKS3030SS GAS COOK-TOP
1
BRKT, SPARK MODULE WPL Y0315097 Contact Us For Availability
1
GRATE, SINGLE CAST (MATTE BLK) WPL 32012201MB Contact Us For Availability
2
MANUAL, OWNERS (AKS COOKTOPS) WPL 32066101 Contact Us For Availability
2
SPARK MODULE WPL 31962701 Contact Us For Availability
3
HARNESS, IGNITION WIRE 20`` WPL 31941701 Contact Us For Availability
3
GLASS, CONTROL PANEL (BLK) WPL 31688701B Contact Us For Availability
4
HARNESS, IGNITION WIRE 31`` WPL 31941601 Contact Us For Availability
4
FRAME-CONTROL PNL GLASS (BLK) WPL 316399B Contact Us For Availability
5
SHIELD, SWITCH WPL Y0314316 Contact Us For Availability
5
CAP, BURNER 9K (MATTE BLK) WPL 31782601MB Contact Us For Availability
6
VENTURI, LEFT WPL 31899701 Contact Us For Availability
7
VENTURI, RIGHT WPL 31899601 Contact Us For Availability
8
SWITCH, SPARK (270 DEG) WPL Y0316705 Contact Us For Availability
8
SCREW, ELECTRODE WPL Y0316775 Contact Us For Availability
9
CAP, BURNER 12/13K (MATTE BLK) WPL 31782701MB Contact Us For Availability
10
VALVE, TOP BURNER (7.6K) WPL 31759503 Contact Us For Availability
10
TOP BURNER (LARGE 12/13K) WPL Y0315767 Contact Us For Availability
11
VALVE, TOP BURNER (9.7K) WPL 31759502 Contact Us For Availability
12
VALVE, TOP BURNER (12.5K) WPL 31891901 Contact Us For Availability
12
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
13
MANIFOLD PIPE WPL 77001070 Contact Us For Availability
13
SEAL WPL Y0301012 Contact Us For Availability
14
INSULATION, BURNER BOX WPL 31974701 Contact Us For Availability
14
MAIN TOP-30`` GAS COOKTOP (SS) WPL 32012601SS Contact Us For Availability
15
SHIELD, BURNER BOX-SIDE WPL Y0316984 Contact Us For Availability
16
BRKT, VENTURI MTG WPL Y0315640 Contact Us For Availability
17
BURNER BOX, 30`` GAS CKTP WPL 31950901 Contact Us For Availability
19
SHIELD, BURNER BOX-BOTTOM WPL Y0316983 Contact Us For Availability
20
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
21
BRACKET-INSULATION WPL Y0305003 Contact Us For Availability
22
CLIP, TINNERMAN WPL Y0304999 Contact Us For Availability
23
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
24
PRESSURE REGULATOR WPL 77001068 Contact Us For Availability
25
SCREW, VALVE (BLK) WPL 31750703 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003137 Contact Us For Availability
NI
SCREW, 1/4-20 X 2 1/2`` WPL 31750603 Contact Us For Availability
NI
SEALANT, PIPE (LP & NAT) WPL 31909101 Contact Us For Availability
NI
WIRE HARNESS-IGNITION SWITCH WPL 77001216 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SEAL, INLET WPL Y0308941 Contact Us For Availability
NI
CORD, POWER SUPPLY WPL Y0316704 Contact Us For Availability
× ![]()
