Model Whirlpool AKGD3060E GAS COOK-TOP – Common Parts & Diagrams

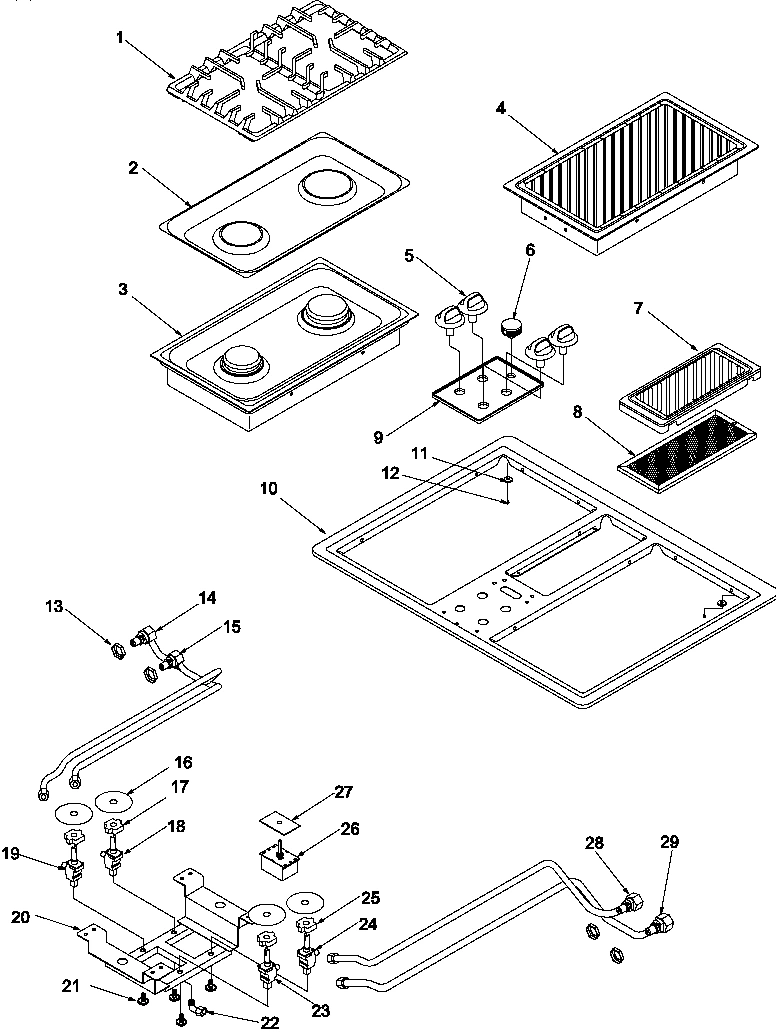

03 - MAIN TOP
01 - BURNER, GRILLE ASSY AND ACS200 GRIDDLE

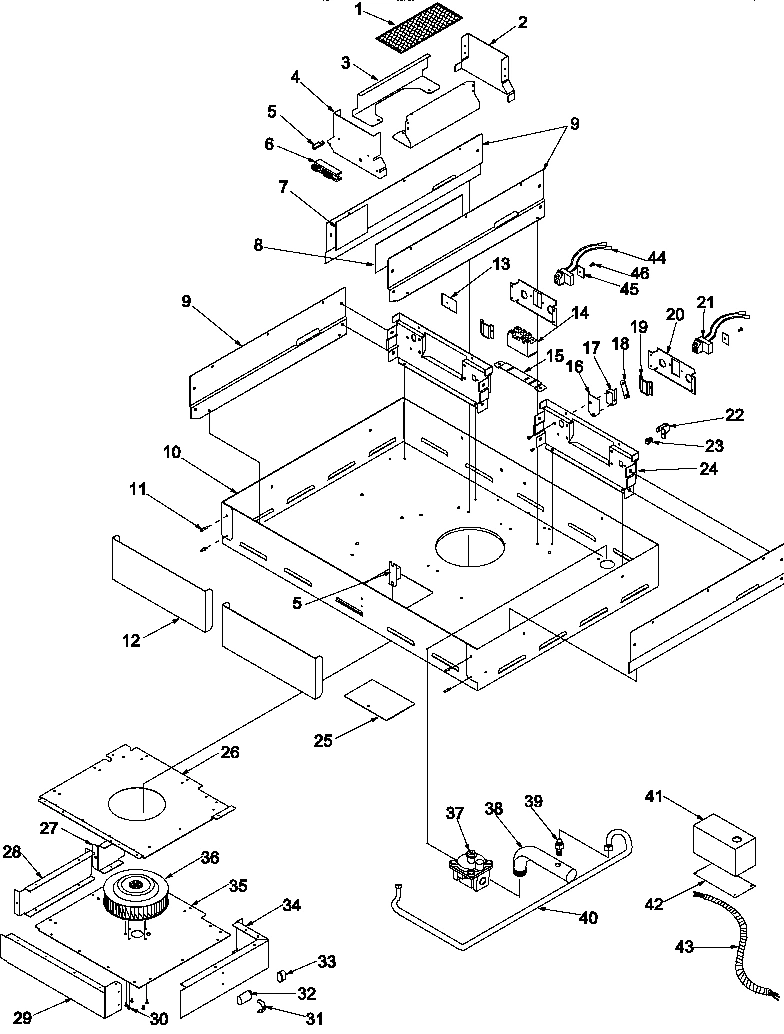

02 - CAVITY
Common parts from model Whirlpool AKGD3060E GAS COOK-TOP
1
CAP, BURNER 9K (MATTE BLK) WPL 31782601MB Contact Us For Availability
1
SHIELD, FAN WPL Y0316901 Contact Us For Availability
2
BOWL, BURNER-DOUBLE (BLK)9/12K WPL 315600B Contact Us For Availability
2
CAP, BURNER 12/13K (MATTE BLK) WPL 31782701MB Contact Us For Availability
2
PLENUM, END WPL 31756001 Contact Us For Availability
3
PLENUM SIDE WPL 31752701 Contact Us For Availability
4
SEE NOTE ASSY,GRILLE BURNER -- (SEE PAGE 10, WPL Y00000000 Contact Us For Availability
4
TOP BURNER (LARGE 12/13K) WPL Y0315767 Contact Us For Availability
4
PLENUM, END WPL Y0315709 Contact Us For Availability
5
KNOB, TOP BURNER (BLACK) WPL 31760504B Contact Us For Availability
5
SCREW, ELECTRODE WPL Y0316775 Contact Us For Availability
5
RELAY, BLOWER CUTOUT WPL Y0307599 Contact Us For Availability
6
KNOB, FAN SWITCH (BLACK) WPL 31760705B Contact Us For Availability
6
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
7
COVER, CASTING VENT-GAS WPL 316648G Contact Us For Availability
7
TOP, MODULE-SEALED BURNER(BLK) WPL 315754B Contact Us For Availability
7
INSULATION, CONTROL SHIELD 7`` WPL 31756702 Contact Us For Availability
8
FILTER, EXHAUST (BLK) WPL 315689B Contact Us For Availability
8
ELECTRODE, BURNER IGN. 1O``WIRE WPL Y0315751 Contact Us For Availability
8
INSULATION, CONTROL SHIELD 16`` WPL 31756701 Contact Us For Availability
9
ASSY, CONTROL PNL (AKGD3060E) WPL 31704904B Contact Us For Availability
9
ELECTRODE, BURNER IGN. 21``WIRE WPL Y0316389 Contact Us For Availability
9
SHIELD, CONTROL WPL 31752801 Contact Us For Availability
10
MAIN TOP, 30`` DD COOKTOP (BLK) WPL 31753002B Contact Us For Availability
10
BRKT, VENTURI WPL 31749501 Contact Us For Availability
10
BOX, BURNER (GAS) WPL 31742302 Contact Us For Availability
11
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
11
BRKT, VENTURI WPL 0316697 Contact Us For Availability
11
RIVET, POP WPL Y0097822 Contact Us For Availability
12
VENTURI, REAR BURNER-HW WPL 31833401 Contact Us For Availability
12
SHIELD, FRONT WPL 31788701 Contact Us For Availability
13
NUT, PAL 3/4-16 X 1.062 WPL 31750116 Contact Us For Availability
13
BRKT, BURNER MTG. WPL Y0315755 Contact Us For Availability
13
PLATE, BURNER BOX WPL 31743201 Contact Us For Availability
14
ASSY, TUBE ORIFICE LEFT REAR WPL 31752301 Contact Us For Availability
14
VENTURI, FRT BURNER WPL 31833301 Contact Us For Availability
14
SPARK MODULE, 4+0 WPL 0315154 Contact Us For Availability
15
ASSY, TUBE ORIFICE LEFT FRONT WPL 31752401 Contact Us For Availability
15
MODULE PAN,GAS SEALED BRNR(BLA WPL 315757B Contact Us For Availability
15
BRKT, SPARK MODULE WPL Y0317026 Contact Us For Availability
16
SHIELD, SWITCH WPL Y0314316 Contact Us For Availability
16
INSULATION, ESM WPL Y0091523 Contact Us For Availability
17
SWITCH, SPARK (270 DEG) WPL Y0315727 Contact Us For Availability
17
SWITCH, HI-TEMP MICRO WPL 31751601 Contact Us For Availability
18
VALVE, GAS 270DEG LR 9.7K 2800 WPL 31755601 Contact Us For Availability
18
SCREW WPL M0202521 Contact Us For Availability
18
NUT, SPEED No.4-40 (BLK) WPL 31750107 Contact Us For Availability
19
VALVE, GAS LF 270DEG 12K 3100 WPL 31755701 Contact Us For Availability
19
FLASH TUBE KGT591 WPL Y0040841 Contact Us For Availability
19
BRKT, PLUG BLOCK MTG WPL Y0040983 Contact Us For Availability
20
MANIFOLD, GAS WPL Y0317060 Contact Us For Availability
20
PLATE, ORIFICE MTG WPL 31745201 Contact Us For Availability
21
SCREW, VALVE (BLK) WPL 31750703 Contact Us For Availability
21
GRILLE, ELECTRODE WPL Y0042217 Contact Us For Availability
21
PLUG BLOCK WPL Y0042215 Contact Us For Availability
22
FITTING, 90 DEG ELBOW WPL Y0316881 Contact Us For Availability
22
BURNER, GRILLE WPL 0046387 Contact Us For Availability
22
BRKT, CONTACT WPL Y0316850 Contact Us For Availability
23
VALVE 270D RR 9.7K WPL 31755901 Contact Us For Availability
23
GRILLE BURNER REAR SUPPORT WPL Y041041B Contact Us For Availability
23
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
24
VALVE, GAS 270 DEG RR 7.6K 280 WPL 31755801 Contact Us For Availability
24
GRILLE , LOW SMOKE (BLACK) WPL 316647G Contact Us For Availability
24
BRKT, ORIFICE MTG PLATE WPL Y0315737 Contact Us For Availability
25
SWITCH, SPARK/FAN WPL Y0315728 Contact Us For Availability
25
GRIDDLE, CAST (GAS) WPL 31716701G Contact Us For Availability
25
PANEL, ACCESS WPL 31743301 Contact Us For Availability
26
CONTROL, FAN SPEED VARIABLE WPL Y0316913 Contact Us For Availability
26
MODULE PAN & DEFLECTOR WPL 315746CG Contact Us For Availability
26
PLENUM, TOP WPL 31754001 Contact Us For Availability
27
SHIELD, SWITCH-VARIABLE WPL 31726302 Contact Us For Availability
27
GROUND PIN XST311 KGT591 WPL Y0041898 Contact Us For Availability
27
PLENUM, SIDE WPL 31754401 Contact Us For Availability
28
ASSY, TUBE ORIFICE RIGHT REAR WPL 31752501 Contact Us For Availability
28
STRIKE, GRILLE PAN WPL Y0315593 Contact Us For Availability
28
PLENUM, DUCT FILLER WPL 31754501 Contact Us For Availability
29
ASSY, TUBE ORIFICE RIGHT FRONT WPL 31752601 Contact Us For Availability
29
SCREW, No.6-32 X .250 PAN HD PH WPL 31750303 Contact Us For Availability
29
PLENUM, FRONT WPL 31754301 Contact Us For Availability
30
PAN, GREASE KGT591 WPL Y0042724 Contact Us For Availability
30
SCREW (PLAIN M4 METRIC .236) WPL 31750722 Contact Us For Availability
31
BRKT, CAPACITOR WPL 0317082 Contact Us For Availability
32
MOTOR CAPACITOR-FAN WPL 0316874 Contact Us For Availability
33
CAP, CAPACITOR WPL 31756201 Contact Us For Availability
34
PLENUM, REAR WPL 31754201 Contact Us For Availability
35
PLENUM, BOTTOM WPL 31754101 Contact Us For Availability
36
ASSY, FAN/MOTOR WPL Y0315697 Contact Us For Availability
37
PRESSURE REGULATOR WPL 0302495 Contact Us For Availability
38
TUBE, GAS INLET WPL 31752901 Contact Us For Availability
39
FITTING 1/4 NPT X 3/8 COMP WPL Y0303219 Contact Us For Availability
40
TUBE-GAS INLET WPL Y0316764 Contact Us For Availability
41
BOX, JUNCTION-MOTOR WPL 31755001 Contact Us For Availability
42
COVER, JUNCTION BOX WPL 31755101 Contact Us For Availability
43
CONDUIT, 3/8`` X 5 1/4`` WPL 31756402 Contact Us For Availability
44
WIRE, IGNITION JUMPER WPL Y0317084 Contact Us For Availability
45
TERMINAL, INSULATOR WPL Y0041998 Contact Us For Availability
46
SCREW, No.8-32 X1/2 NYL HEX HD WPL 31750417 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
NI
METAL SCREW 6X3/8 PHIL PAN HD WPL 31750316 Contact Us For Availability
NI
SCREW, No.8-32 X 3/8 HEX WSH HD WPL 31750415 Contact Us For Availability
NI
SCREW, No.8-18 X 1/4 P TRS HD WPL 31750422 Contact Us For Availability
NI
WASHER, FLAT 13/64 X 5/8 O.D. WPL 31750011 Contact Us For Availability
NI
CONNECTOR, SNAP-TITE (90 DEG) WPL 31727801 Contact Us For Availability
NI
SEAL, BURNER BOX (100``) WPL 31746301 Contact Us For Availability
NI
BRACKET, CONDUIT WPL 31754601 Contact Us For Availability
NI
INSULATION, BURNER BOX WPL 31756601 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
ASSY,PL WPL Y0315748 Contact Us For Availability
NI
WPL Y0316989 WPL Y0316989 Contact Us For Availability
× ![]()
