Model Whirlpool AKFW1140 AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
03 - SECTION
02 - SECTION
04 - SECTION

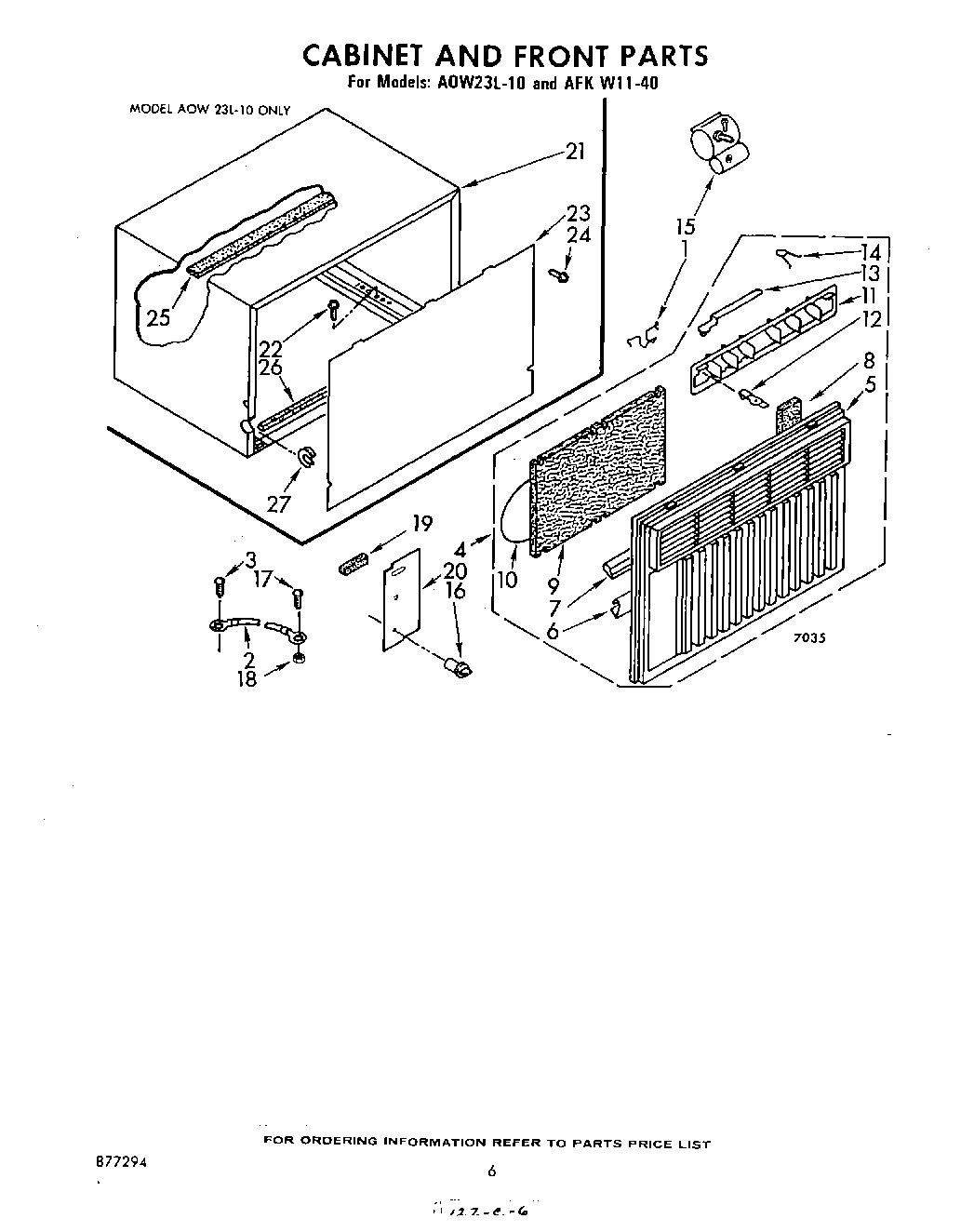

Common parts from model Whirlpool AKFW1140 AIR CONDITIONER
xInsulation, Cabinet (R.S.) WPL 647847 Contact Us For Availability
xSeal, Cabinet (Weather) WPL 649972 Contact Us For Availability
xInsulation, Cabinet (Top) WPL 649973 Contact Us For Availability
1
Base Assembly WPL 949387 Contact Us For Availability
1
Clip, Cabinet Front WPL 649966 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
Wire, Ground WPL 857017 Contact Us For Availability
3
Compressor Assembly WPL 484396 Contact Us For Availability
3
Screw, St 8-32 x 3/8 WPL 488854 Contact Us For Availability
3
Front, Cabinet Assembly WPL 947658 Contact Us For Availability
4
Plate, Compressor WPL 647982 Contact Us For Availability
5
Spring, Compressor WPL 643179 Contact Us For Availability
5
front, cabinet WPL 947659 Contact Us For Availability
6
Grommet (3) WPL 469581 Contact Us For Availability
7
Sleeve (3) WPL 858148 Contact Us For Availability
7
Seal, Cabinet Front WPL 647914 Contact Us For Availability
8
Nut, Lock (3) WPL 858121 Contact Us For Availability
8
Seal WPL 649198 Contact Us For Availability
9
Fastener, snap (2) WPL 487808 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Filter WPL 648008 Contact Us For Availability
10
Channel, Wiring WPL 852317 Contact Us For Availability
10
Motor, Fan WPL 997689 Contact Us For Availability
10
Retainer, Filter WPL 476707 Contact Us For Availability
11
Clamp, Cable WPL 648791 Contact Us For Availability
11
Louver, Vertical WPL 647798 Contact Us For Availability
12
Door, Exhaust WPL 649720 Contact Us For Availability
12
Nut, Lock (4) WPL 858122 Contact Us For Availability
12
Handle, Verticle Louver (2) WPL 644165 Contact Us For Availability
13
Spring, Exhaust Door WPL 859369 Contact Us For Availability
13
Wheel, Blower WPL 645932 Contact Us For Availability
13
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
14
Clip, Speed WPL 649620 Contact Us For Availability
14
Evaporator Assembly WPL 998428 Contact Us For Availability
14
Spring, Detent (2) WPL 641484 Contact Us For Availability
15
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
15
Tube, Restrictor WPL 949393 Contact Us For Availability
15
Bag, Accessory WPL 947672 Contact Us For Availability
16
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
16
Blade, Fan WPL 947370 Contact Us For Availability
16
Knob, Control (2) WPL 947264 Contact Us For Availability
17
Tube, Condensate WPL 49181 Contact Us For Availability
17
Condenser Assembly WPL 949394 Contact Us For Availability
17
Screw, Mach 8-32 x 3/8 WPL 488853 Contact Us For Availability
18
Shroud, Condenser WPL 647862 Contact Us For Availability
18
Bend, Return 3-Way WPL 49493 Contact Us For Availability
19
Pan, Condenser Condensaste WPL 859238 Contact Us For Availability
19
Bend, Return (3-Way) WPL 476078 Contact Us For Availability
19
Plate, Escutcheon WPL 947683 Contact Us For Availability
20
Support, Unit WPL 852318 Contact Us For Availability
20
Bend, Return 1.608`` WPL 855644 Contact Us For Availability
20
Spacer, Escutcheon Plate WPL 470036 Contact Us For Availability
21
Retainer, Shroud Cover (3) WPL 647873 Contact Us For Availability
21
Bend, Return 1.00`` (20) WPL 855199 Contact Us For Availability
21
xCabinet (Requires Insulation 649939) WPL 857273 Contact Us For Availability
22
Cover, Dividing Wall WPL 994399 Contact Us For Availability
22
Bend, Return .765`` (5) WPL 854624 Contact Us For Availability
22
xScrew, Wood No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
23
Tube & Strainer Assembly (Includes 49599 Stra WPL 484230 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
24
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
25
Cover, Evaporator WPL 856957 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Insulation, Cabinet (L.S.) WPL 857271 Contact Us For Availability
26
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
26
Seal WPL 649609 Contact Us For Availability
26
Seal, Cabinet (Bottom) WPL 998961 Contact Us For Availability
27
Box, Control WPL 993643 Contact Us For Availability
27
Seal WPL 649610 Contact Us For Availability
27
xGrommet, Appliance Cable WPL 647849 Contact Us For Availability
28
Bushing, Control Shaft WPL 647879 Contact Us For Availability
28
Cover, Tube Opening WPL 994400 Contact Us For Availability
29
Shaft, Control WPL 852023 Contact Us For Availability
30
Washer, Spring WPL 647881 Contact Us For Availability
30
Overload WPL 949398 Contact Us For Availability
31
Cam, Control WPL 647882 Contact Us For Availability
31
Spring, Overload WPL 994171 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
33
Switch, Pushbutton WPL 947654 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
34
Screw, TC 6-20 x .362 (2) WPL 488735 Contact Us For Availability
34
Cover, Terminal WPL 647152 Contact Us For Availability
35
Control, Tempetature WPL 949431 Contact Us For Availability
35
Strap, Terminal Cover WPL 643299 Contact Us For Availability
36
Screw, Mach 6-32 x .175 (2) WPL 488734 Contact Us For Availability
36
Gasket, Terminal Cover WPL 647154 Contact Us For Availability
37
Grommet, Wiring WPL 647865 Contact Us For Availability
38
Wire, Ground WPL 857634 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
39
Cable, Appliance WPL 649070 Contact Us For Availability
39
Cup, Condensate Pan WPL 647850 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Wire, Control WPL 859370 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
42
Guard, Blower Wheel WPL 997949 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
43
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
43
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
43
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
43
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
43
WPL 799351 WPL 799351 Contact Us For Availability
43
WPL 877294 WPL 877294 Contact Us For Availability
43
WPL 947597 WPL 947597 Contact Us For Availability
43
WPL 949407 WPL 949407 Contact Us For Availability
50
xRelay WPL 484275 Contact Us For Availability
51
xCapacitor WPL 484358 Contact Us For Availability
52
xCap, Capacitor WPL 791869 Contact Us For Availability
53
xScrew, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
54
xBracket, capacitor WPL 35564 Contact Us For Availability
55
Multiplier, Terminal WPL 90654 Contact Us For Availability
58
xClip, Terminal (8) WPL 45571 Contact Us For Availability
59
WPL 978029 WPL 978029 Contact Us For Availability
59
No Dr WPL 505168 Contact Us For Availability
59
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
59
Start Assist Kit WPL 484220 Contact Us For Availability
59
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
59
Start Kit WPL 484397 Contact Us For Availability
59
xWire, 10 Ft. WPL 485609 Contact Us For Availability
59
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
