Model Whirlpool AKDG2E GAS COOK-TOP – Common Parts & Diagrams
01 - BURNER BOX
04 - VENT SYTSTEM

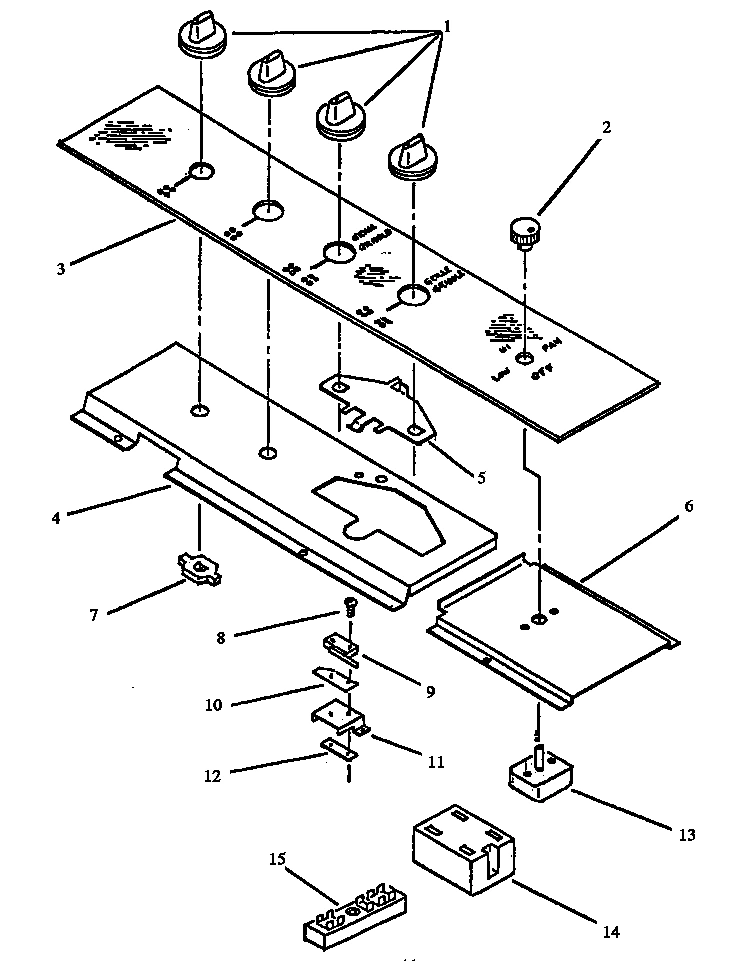

02 - CONTROL PANEL

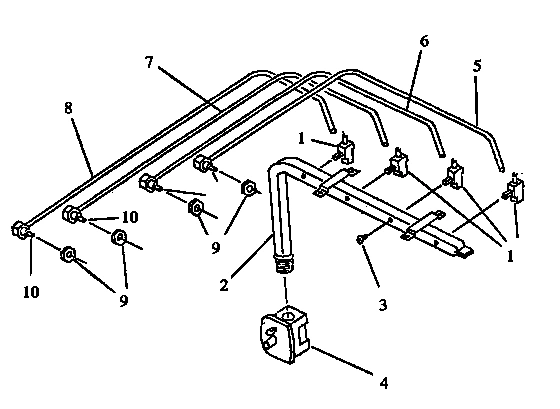

03 - GAS SUPPLY
Common parts from model Whirlpool AKDG2E GAS COOK-TOP
1
MAIN TOP, BLACK ENAMEL WPL 300987B Contact Us For Availability
1
FILTER EXHAUST KET595 WPL Y0042024 Contact Us For Availability
1
KNOB, GAS VALVE (BLACK) WPL 309795B Contact Us For Availability
1
KNOB, GAS VALVE (BLACK) WPL 314217B Contact Us For Availability
1
VALVE, SURFACE BURNER WPL 0301425 Contact Us For Availability
2
BURNER BOX WA GT593 WPL Y0040485 Contact Us For Availability
2
ASS`Y, TOP PLENUM WPL Y059560CG Contact Us For Availability
2
KNOB, FAN SWITCH WPL 309167B Contact Us For Availability
2
KNOB, FAN SWITCH WPL 314290B Contact Us For Availability
2
MANIFOLD PIPE KGT591 WPL 0042374 Contact Us For Availability
3
SWITCH SHIELD ET-590 595 WPL Y0040821 Contact Us For Availability
3
TRANSITION WPL Y0059493 Contact Us For Availability
3
GLASS, CONTROL (BLACK) WPL 309169B Contact Us For Availability
3
GLASS, CONTROL (BLACK) WPL 314203B Contact Us For Availability
3
SURFACE VALVE BOLT& GASKET WPL Y0061441 Contact Us For Availability
4
HEAT SHIELD KGT591 WPL 0040837 Contact Us For Availability
4
BLOWER HOUSING, FLAT BLACK WPL 302681G Contact Us For Availability
4
VALVE SHIELD WPL 0059489 Contact Us For Availability
4
REGULATOR WPL 0042303 Contact Us For Availability
5
BOTTOM BAFFLE KGT591 WPL Y0040836 Contact Us For Availability
5
LOCK-NUT NYLON KET595 WPL 0041862 Contact Us For Availability
5
SWITCH ACTUATOR GT593 WPL Y0041046 Contact Us For Availability
5
TUBE ORIFICE ASSY RF GT591 WPL Y0042329 Contact Us For Availability
6
HEAT SHIELD FRONT GT593 WPL Y0040846 Contact Us For Availability
6
FAN WHEEL KET595 WPL Y0042752 Contact Us For Availability
6
BRACKET, SWITCH MTG. WPL 0300179 Contact Us For Availability
6
TUBE ORIFICE ASSY RR GT591 WPL Y0042330 Contact Us For Availability
7
SIGHT SHIELD WPL Y040838CG Contact Us For Availability
7
HARPER SPARK SWITCH WPL Y0301326 Contact Us For Availability
7
ASSY,TUBE-L.F. WPL Y0052038 Contact Us For Availability
8
ACCESS COVER KGT591 WPL Y0040839 Contact Us For Availability
8
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
8
PLATE, MOTOR MTG WPL 0059470 Contact Us For Availability
8
TUBE ASSY. L.R. WPL Y0052037 Contact Us For Availability
9
MANIFOLD SUPPORT BRKT. 591 593 WPL Y0040996 Contact Us For Availability
9
BOLT, SHOULDER WPL 0303176 Contact Us For Availability
9
SWITCH, INTERLOCK (S.P.D.T.) WPL Y0308371 Contact Us For Availability
9
PAL NUT ORIFICE FITTINGS WPL Y0041852 Contact Us For Availability
10
ORIFICE MTG. BRKT. KGT591 WPL Y0040982 Contact Us For Availability
10
INSULATION, ESM WPL Y0091523 Contact Us For Availability
10
SEE NOTE ORIFICE HOOD INCLUDED WITH TUBE ASSY WPL Y00000000 Contact Us For Availability
10
WASHER K WPL 0041933 Contact Us For Availability
11
BRKT, PLUG BLOCK MTG WPL Y0040983 Contact Us For Availability
11
MOTOR COVER WPL 0059471 Contact Us For Availability
11
BRKT, MICRO SWITCH MTG WPL Y0040988 Contact Us For Availability
12
PLUG BLOCK ASSY, LT. WPL Y0052674 Contact Us For Availability
12
PLUG BLOCK ASSY, RT. WPL Y0052675 Contact Us For Availability
12
SPEED NUT (TWIN TYPE) WPL 0041902 Contact Us For Availability
13
PLATE, SWITCH MTG WPL 0040989 Contact Us For Availability
13
RUBBER GROMMET WPL 0041981 Contact Us For Availability
13
SELECTOR SWITCH WPL Y0063503 Contact Us For Availability
14
SWITCH, MODULE WPL Y0308372 Contact Us For Availability
14
MOTOR, FAN 115V 60HZ WPL Y0314126 Contact Us For Availability
14
SPARK MODULE WPL Y0306035 Contact Us For Availability
15
PLUG BLOCK WPL Y0042215 Contact Us For Availability
15
TERMINAL BLOCK WPL Y0042222 Contact Us For Availability
16
CONDUIT (3/8 X 18) WPL 0042115 Contact Us For Availability
17
SCREW, NO. 8A X 1/4 WPL Y0041799 Contact Us For Availability
17
SEAL WPL Y0301012 Contact Us For Availability
18
SCREW, No.8-32 X 3/8 HEX WSH HD WPL Y0041825 Contact Us For Availability
18
SEAL, END WPL 0041121 Contact Us For Availability
19
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
20
TINNERMAN CLIP PYRO TH WPL 0041896 Contact Us For Availability
21
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
22
NUT 1/4-20 SQ. ET590 595 WPL 0041861 Contact Us For Availability
23
VENT COVER WPL Y0058942 Contact Us For Availability
NI
SCREW NYLON 8-32X.375 WPL Y0041841 Contact Us For Availability
NI
TERMINAL, INSULATOR WPL Y0041998 Contact Us For Availability
NI
SUPPLY CORD KGT591-593 WPL Y0042030 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SPACER, MOTOR COVER WPL 0059120 Contact Us For Availability
NI
GASKET, MOTOR MTG WPL 0059569 Contact Us For Availability
NI
ORIFICE WPL 059562G Contact Us For Availability
NI
MOTOR, FAN 115V 60HZ WPL Y0057496 Contact Us For Availability
NI
CONNECTOR, 3/8`` WPL Y0058971 Contact Us For Availability
NI
SHIELD, SWITCH WPL Y0314316 Contact Us For Availability
× ![]()
