Model Whirlpool AK4000XV1 DEHUMIDIFIER – Common Parts & Diagrams

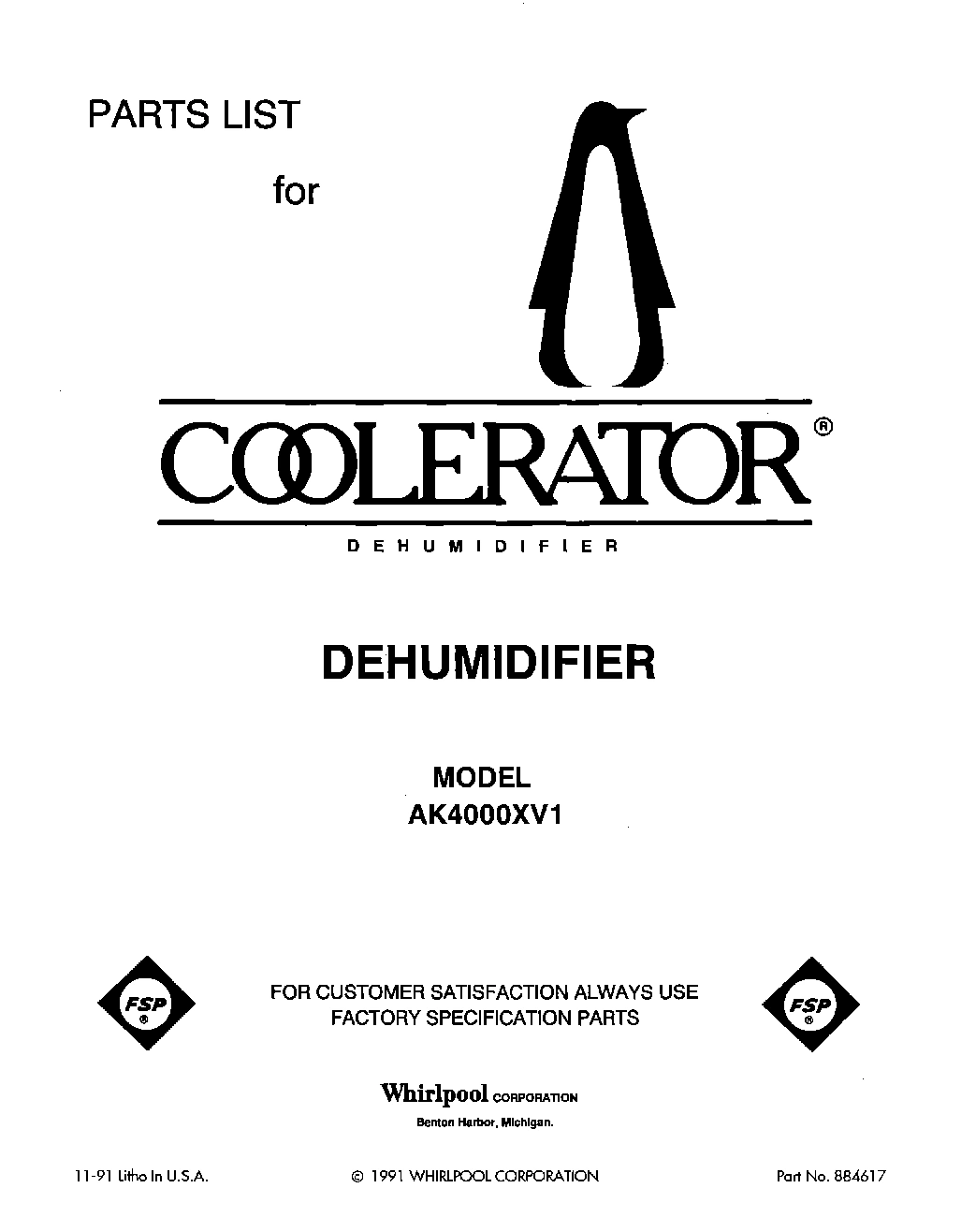

01 - SECTION
03 - SECTION

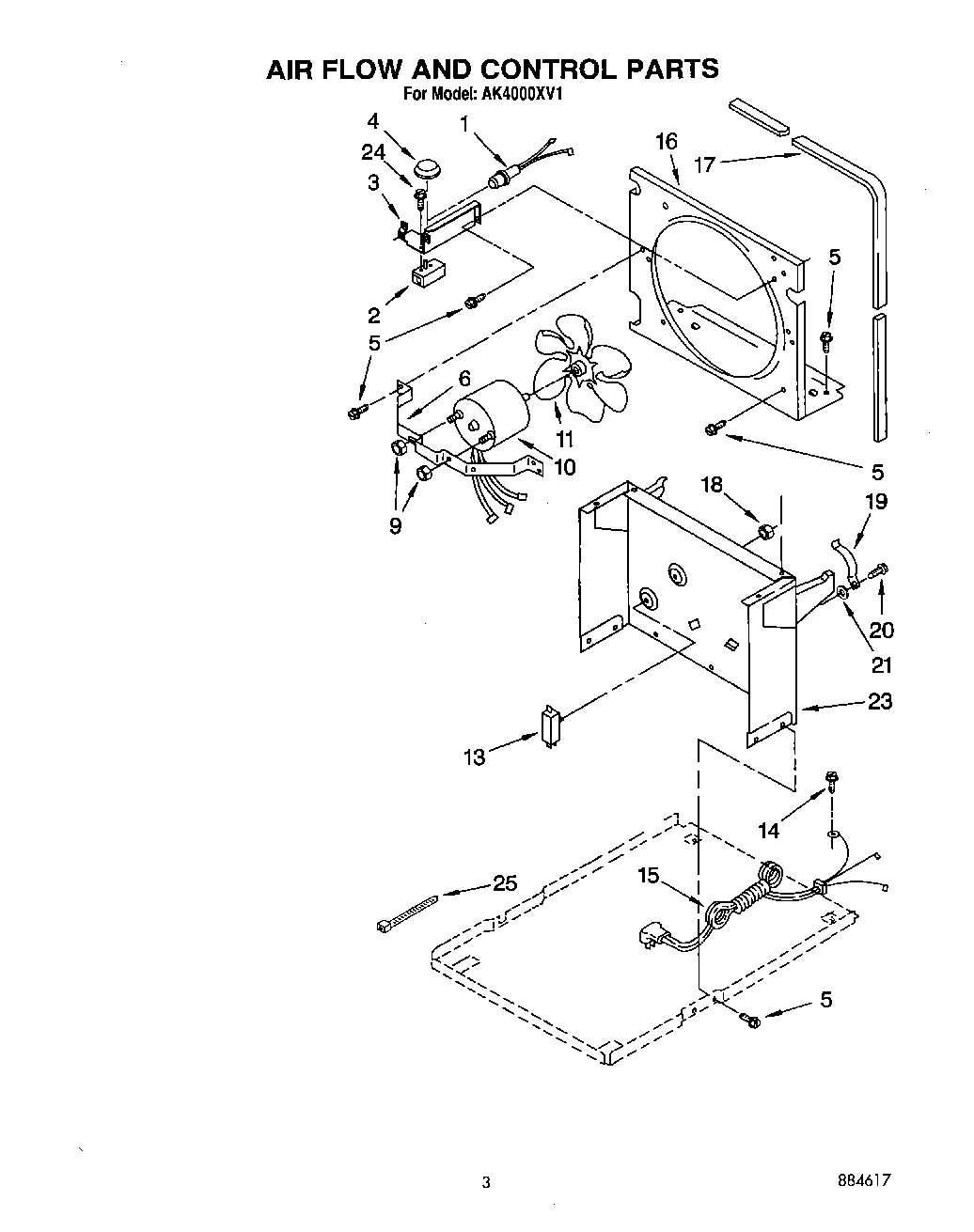

04 - SECTION
02 - SECTION
Common parts from model Whirlpool AK4000XV1 DEHUMIDIFIER
Guide, Use And Care WPL LIT1156920 Contact Us For Availability
Wiring Diagram WPL LIT1158219 Contact Us For Availability
Sheet, Tech And WPL LIT1161877 Contact Us For Availability
List, Repair Parts WPL LIT884617 Contact Us For Availability
1
Cabinet WPL 998820 Contact Us For Availability
1
Condenser WPL 1161197 Contact Us For Availability
2
Tube, Restrictor (Length 36.0``) WPL 1161189 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Strainer, Tube WPL 474013 Contact Us For Availability
4
Tube, Outlet (Includes No.3) WPL 1161348 Contact Us For Availability
5
Grille, Front WPL 1156716 Contact Us For Availability
5
Gasket, Cover WPL 798471 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Relay, Start WPL 876689 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
8
Pan, Condensate WPL 951901 Contact Us For Availability
9
Screw, 8-32 x 3/8 (6) WPL 1158781 Contact Us For Availability
10
Motor, Fan WPL 1156858 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload, Protector WPL 1158823 Contact Us For Availability
11
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
11
Tape, No Drip (30` Roll) Valve, Access WPL 505168 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
11
Paint, Touch-Up Starlight Gray (1/2 Pint) WPL 485426 Contact Us For Availability
11
Cap, Condensate Pan WPL 646753 Contact Us For Availability
11
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
11
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
11
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Relay, Start WPL 1156815 Contact Us For Availability
12
Cover, Terminal WPL 1157582 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
13
Retainer, Cover WPL 938384 Contact Us For Availability
14
Evaporator WPL 1161199 Contact Us For Availability
15
Cord, Appliance WPL 1155670 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
23
Plate, Compressor WPL 876944 Contact Us For Availability
24
Screw, S.M. No.8 x 1/4 (2) WPL 1159222 Contact Us For Availability
24
Pin, Roller (2) WPL 489015 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 876684 Contact Us For Availability
26
Retainer, Cover WPL 831282 Contact Us For Availability
27
Cover, Terminal WPL 865068 Contact Us For Availability
28
Overload WPL 876686 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
30
Spring, Clip WPL 643179 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
32
Bend, Return (13) WPL 855199 Contact Us For Availability
33
Bend, Return WPL 854624 Contact Us For Availability
× ![]()
