Model Whirlpool AK4000XV0 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION

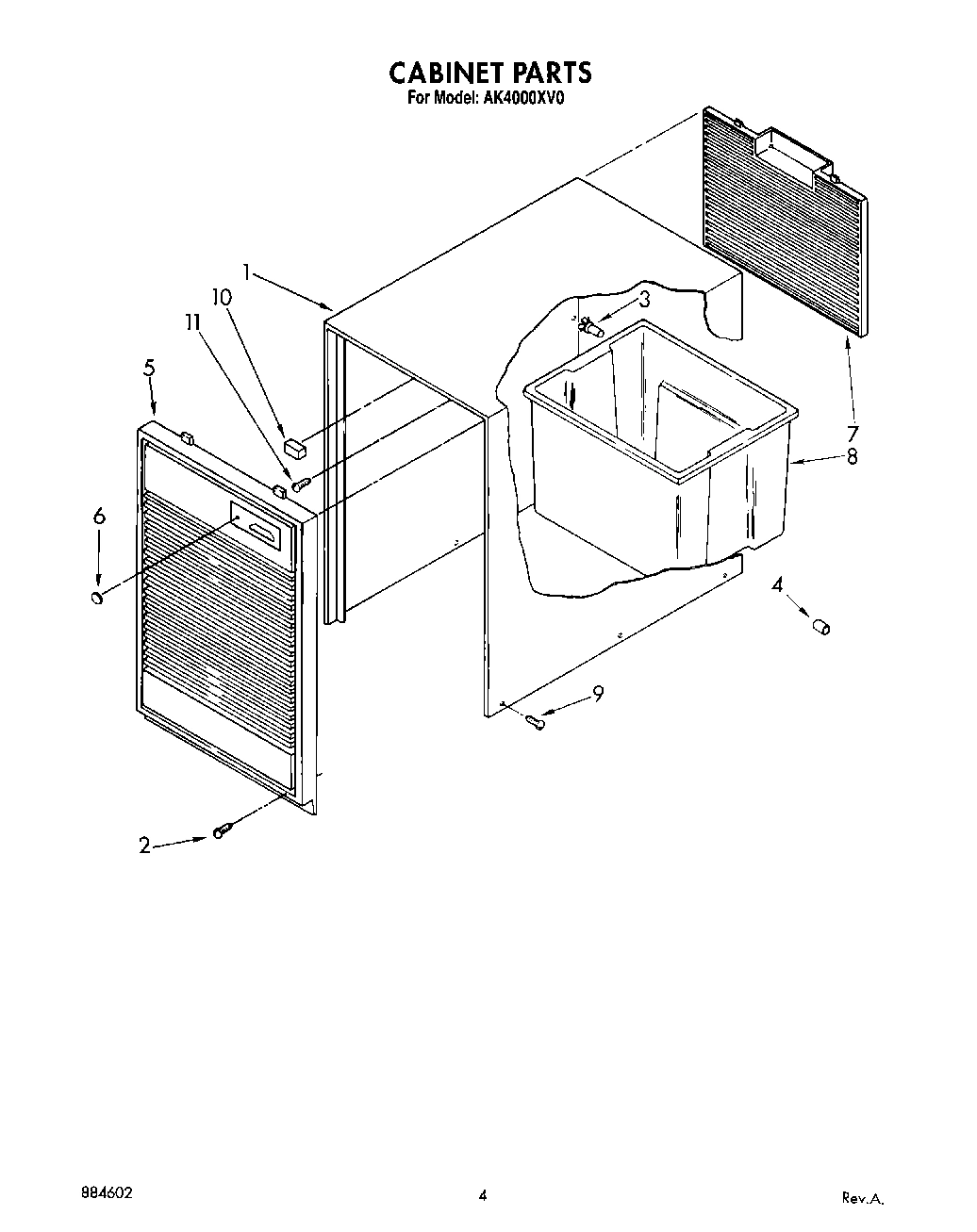

01 - SECTION

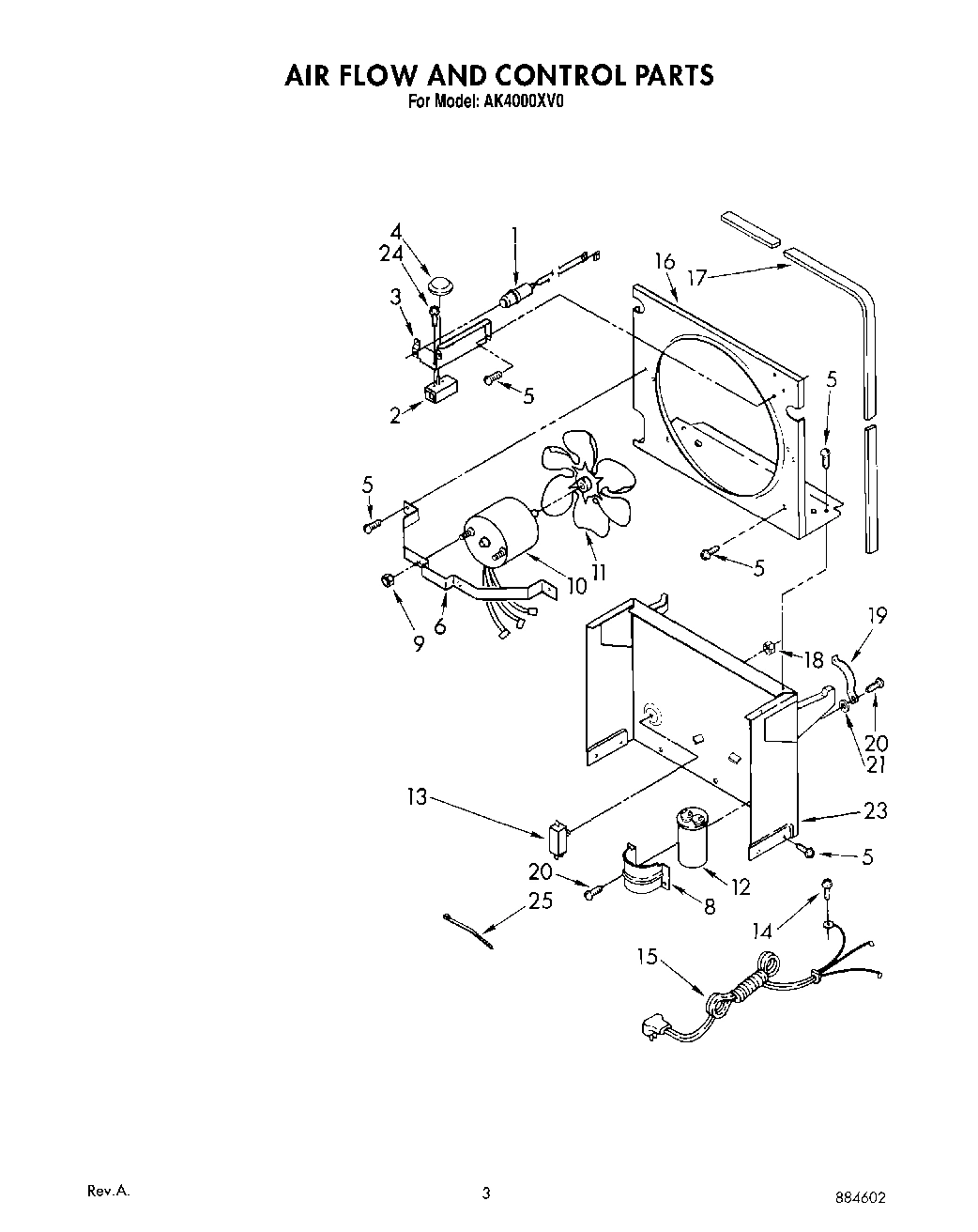

03 - SECTION
04 - SECTION
Common parts from model Whirlpool AK4000XV0 DEHUMIDIFIER
Guide, Use And Care WPL LIT1156920 Contact Us For Availability
Sheet, Tech And WPL LIT1158411 Contact Us For Availability
Wiring Daigram WPL LIT1158413 Contact Us For Availability
List, Repair Parts WPL LIT884602 Contact Us For Availability
1
Light, Indicator WPL 1155766 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
2
Humidistat, Control WPL 1155848 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
4
cap, thread WPL 998869 Contact Us For Availability
5
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
5
Grille, Front WPL 1156716 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
8
Bracket, Capacitor WPL 951364 Contact Us For Availability
8
Pan, Condensate WPL 951901 Contact Us For Availability
9
Screw, 8-32 x 3/8 (6) WPL 489016 Contact Us For Availability
10
Overload, Protector WPL 951417 Contact Us For Availability
10
Motor, Fan WPL 1155657 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
11
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
11
Tape, No Drip (30` Roll) Valve, Access WPL 505168 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
11
Paint, Touch-Up Starlight Gray (1/2 Pint) WPL 485426 Contact Us For Availability
11
Cap, Condensate Pan WPL 646753 Contact Us For Availability
11
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
11
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
11
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
12
Capacitor, Run WPL 951363 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Cord, Appliance WPL 1155669 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Plate, Compressor WPL 876944 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Pin, Roller (2) WPL 489015 Contact Us For Availability
24
Screw, S.M. No.8 x 1/4 (2) WPL 145450 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 876949 Contact Us For Availability
26
Retainer, Cover WPL 832008 Contact Us For Availability
27
Cover, Terminal WPL 798470 Contact Us For Availability
28
Overload WPL 798479 Contact Us For Availability
29
Spring, Overload WPL 798469 Contact Us For Availability
30
Spring, Clip WPL 643179 Contact Us For Availability
31
Glide (2) WPL 951886 Contact Us For Availability
32
Bend, Return (13) WPL 855199 Contact Us For Availability
33
Bend, Return WPL 854624 Contact Us For Availability
× ![]()
