Model Electrolux AK25E5RYA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

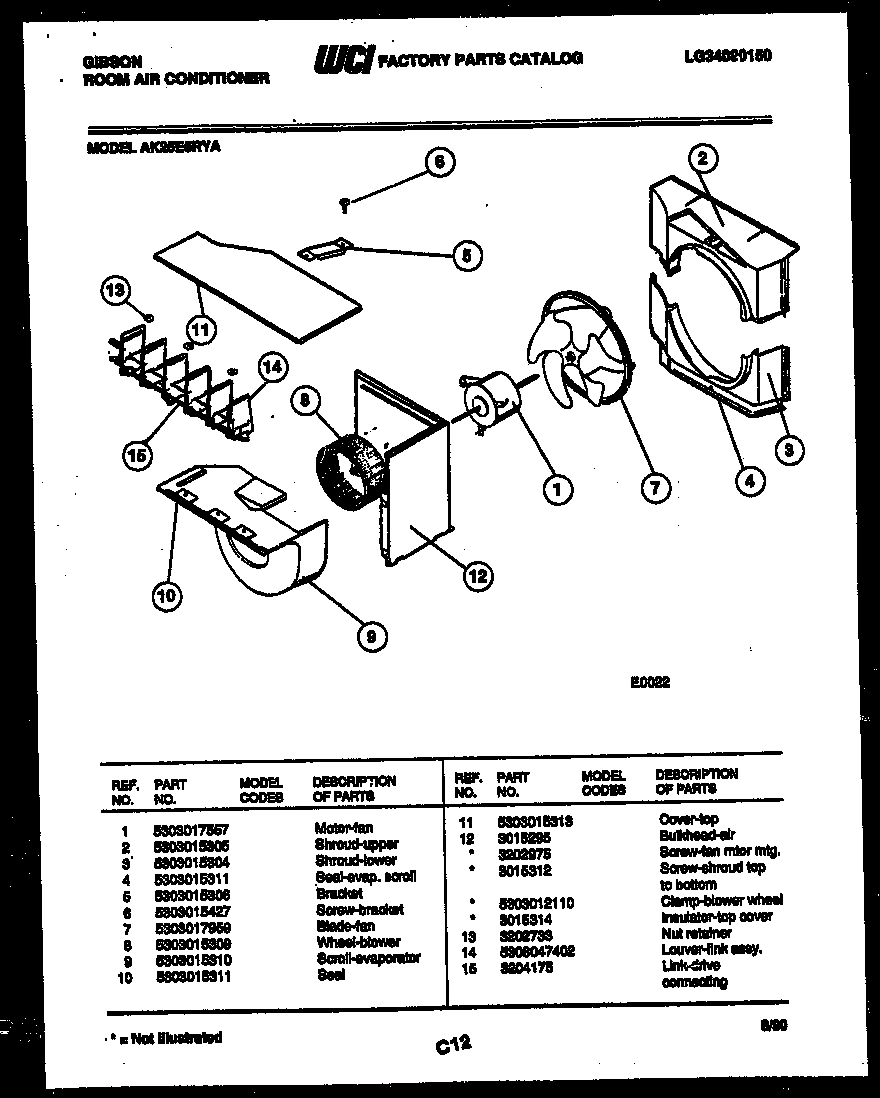

04 - AIR HANDLING PARTS

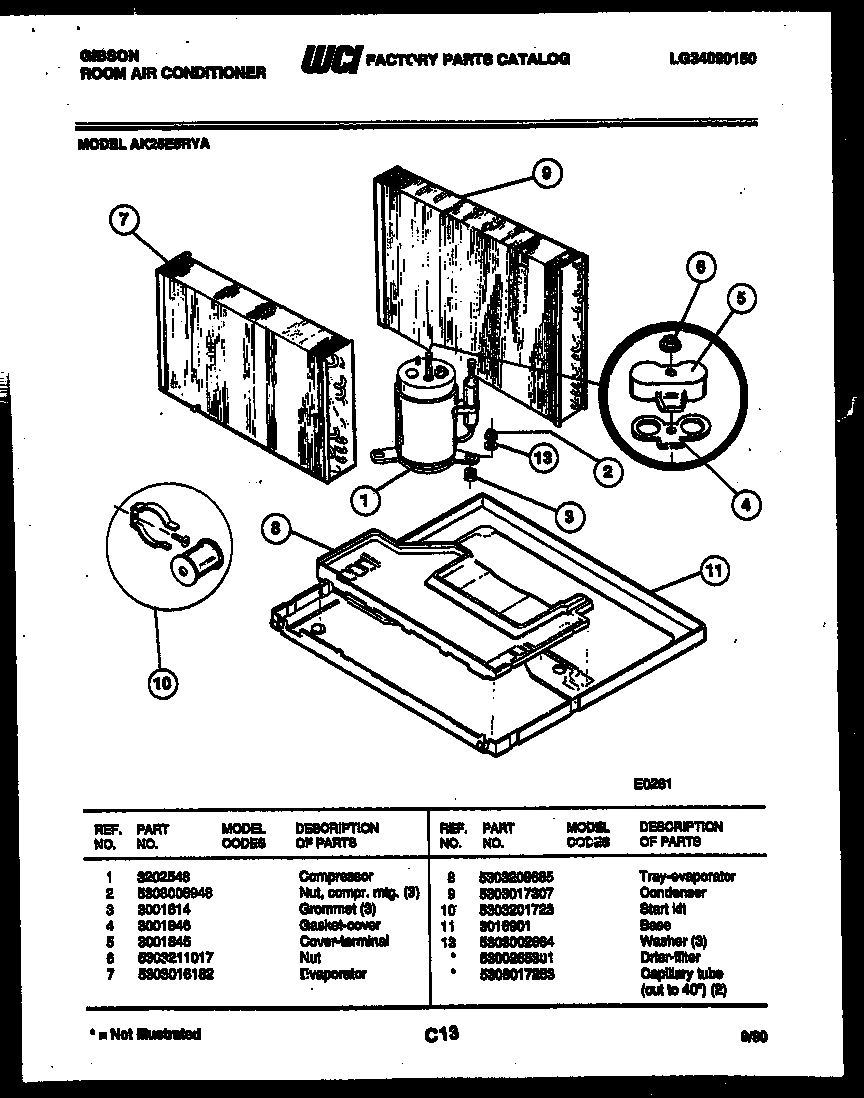

05 - SYSTEM PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK25E5RYA ROOM AIR CONDITIONER
*30402
SPRING-CLIP (2) WCI 3200447 Contact Us For Availability
*30408
CAPILLARY TUBE (CUT TO 40``) (2) WCI 5308017253 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 3202548 WCI 3202548 Contact Us For Availability
1
SEAL WCI 5303002608 Contact Us For Availability
2
STOP-ANGLE WCI 5303211056 Contact Us For Availability
2
GRILLE-REAR WCI 5303210207 Contact Us For Availability
2
WCI 5303015316 WCI 5303015316 Contact Us For Availability
2
WCI 5303015305 WCI 5303015305 Contact Us For Availability
2
NUT, COMPR. MTG. (3) WCI 5308006948 Contact Us For Availability
3
LOUVER (3) WCI 3017302 Contact Us For Availability
3
CONTROL WCI 5303015319 Contact Us For Availability
3
WCI 5303015304 WCI 5303015304 Contact Us For Availability
3
GROMMET (3) WCI 3001814 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
FILTER (MOLDED) WCI 3017336 Contact Us For Availability
4
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
4
WCI 3001846 WCI 3001846 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
WCI 3017299 WCI 3017299 Contact Us For Availability
5
SCREW-MOTOR WCI 5308009156 Contact Us For Availability
5
BRACKET WCI 5303015306 Contact Us For Availability
5
COVER-TERMINAL WCI 3001845 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
FRONT COMPLETE WCI 5303210438 Contact Us For Availability
6
WCI 3018334 WCI 3018334 Contact Us For Availability
6
NUT WCI 5303211017 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
DOOR-FRONT WCI 3202693 Contact Us For Availability
7
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
7
WCI 5303017959 WCI 5303017959 Contact Us For Availability
7
WCI 5303016182 WCI 5303016182 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
HINGE - DOOR WCI 5303017980 Contact Us For Availability
8
INSULATION - VERTICAL DIVIDER WCI 3015425 Contact Us For Availability
8
WCI 5303015309 WCI 5303015309 Contact Us For Availability
8
WCI 5303208665 WCI 5303208665 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
SCREW FRONT (2) WCI 3017304 Contact Us For Availability
9
SCROLL-EVAPORATOR WCI 5303015310 Contact Us For Availability
9
WCI 5303017307 WCI 5303017307 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
KNOB-CONTROL, (2) WCI 5303017300 Contact Us For Availability
10
CLIP-SONSOR BULB WCI 5303017914 Contact Us For Availability
10
SEAL WCI 5303015311 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
KNOB - SLIDE, SWITCH WCI 3017341 Contact Us For Availability
11
WCI 5303015313 WCI 5303015313 Contact Us For Availability
11
WCI 3016901 WCI 3016901 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
12
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
12
WCI 3203161 WCI 3203161 Contact Us For Availability
12
SCREW WCI 3007754 Contact Us For Availability
12C
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
12D
INSULATOR-TOP COVER (NON-ILLUSTRATED) WCI 3015314 Contact Us For Availability
13
WCI 3201677 WCI 3201677 Contact Us For Availability
13
CAPACITOR DUAL WCI 5303012039 Contact Us For Availability
13
NUT RETAINER WCI 3202733 Contact Us For Availability
13
WASHER (3) WCI 5303002664 Contact Us For Availability
13
WCI 3001819 WCI 3001819 Contact Us For Availability
14
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
14
STRAP WCI 5303015323 Contact Us For Availability
14
LOUVER-LINK ASSY. WCI 5308047402 Contact Us For Availability
14
WCI 3001818 WCI 3001818 Contact Us For Availability
15
BRACE - FRONT WCI 3015325 Contact Us For Availability
15
LINK-DRIVE-CONNECTING WCI 3204175 Contact Us For Availability
15
WCI 3002058 WCI 3002058 Contact Us For Availability
16
MOTOR-DRIVE WCI 5303015317 Contact Us For Availability
17
SWITCH-SLIDE WCI 5303015318 Contact Us For Availability
17A
SPACER-SLIDE SWITCH (NON-ILLUSTRATED) WCI 5303207304 Contact Us For Availability
19
WCI 5308017261 WCI 5308017261 Contact Us For Availability
20
INSULATION WCI 5303015428 Contact Us For Availability
21
WCI 5303210367 WCI 5303210367 Contact Us For Availability
× ![]()
