Model Whirlpool AK2500XV1 DEHUMIDIFIER – Common Parts & Diagrams
01 - SECTION
03 - SECTION
02 - SECTION
04 - SECTION
Common parts from model Whirlpool AK2500XV1 DEHUMIDIFIER
1
Manual, Owners WPL LIT1156920 Contact Us For Availability
1
Wiring Diagram WPL LIT1158219 Contact Us For Availability
1
Sheet, Tech WPL LIT1158619 Contact Us For Availability
1
Literature Parts (List, Repair Parts) WPL LIT884605 Contact Us For Availability
1

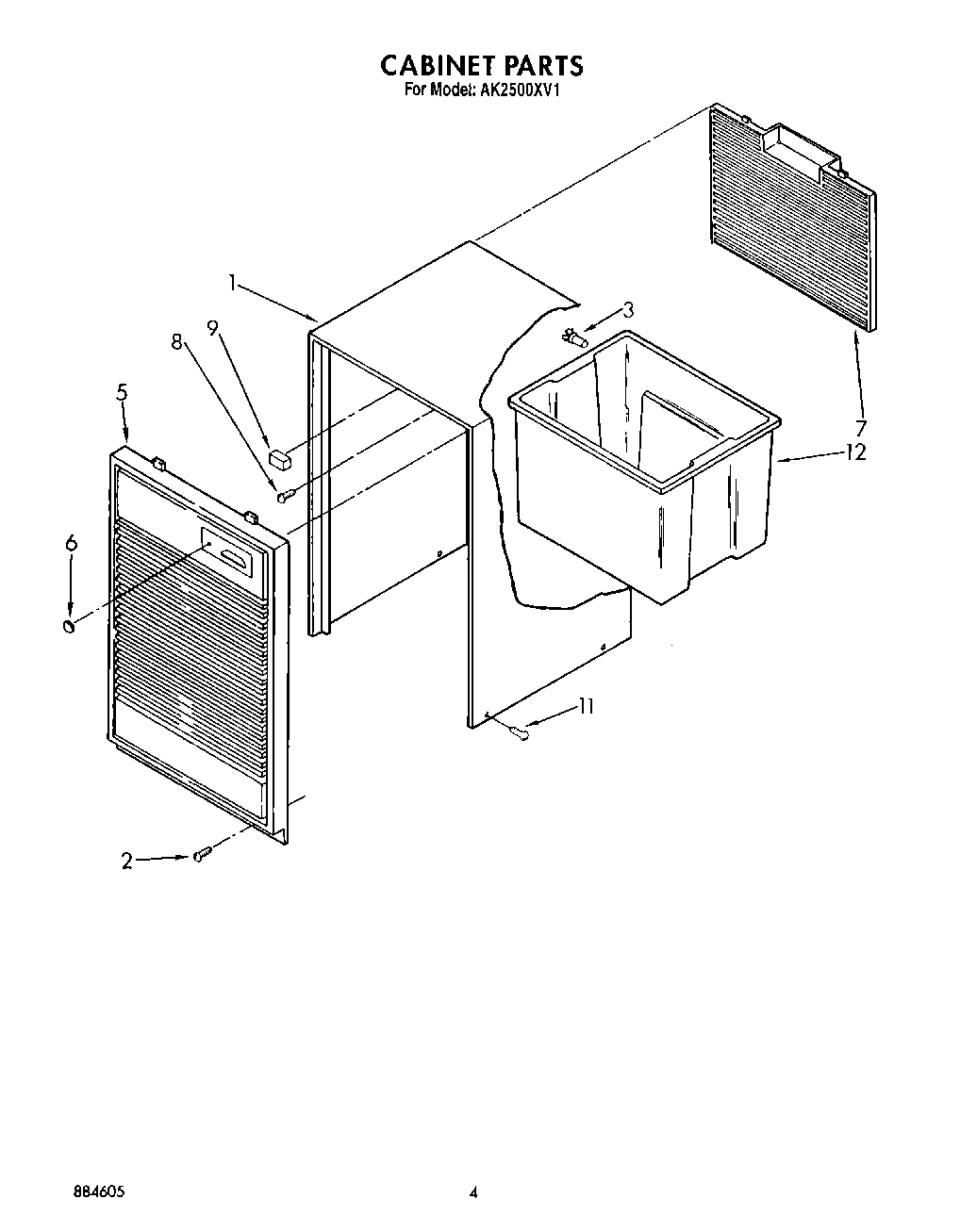

Cabinet WPL 998821 Contact Us For Availability
2
Tube, Restrictor (36.00`` Length) WPL 1158530 Contact Us For Availability
3
Strainer, Tube WPL 474013 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Tube, Outlet (Includes No.3) WPL 949896 Contact Us For Availability
5
Condenser WPL 949908 Contact Us For Availability
5
Grille, Front Assembly WPL 1156716 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
11
Screw WPL 1158781 Contact Us For Availability
12
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
12
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (3) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
22
Roll Pin (2) WPL 489015 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
23
Glide (2) WPL 951886 Contact Us For Availability
24
Screw, 8 X 1/4 WPL 145450 Contact Us For Availability
24
Roller (2) WPL 998726 Contact Us For Availability
25

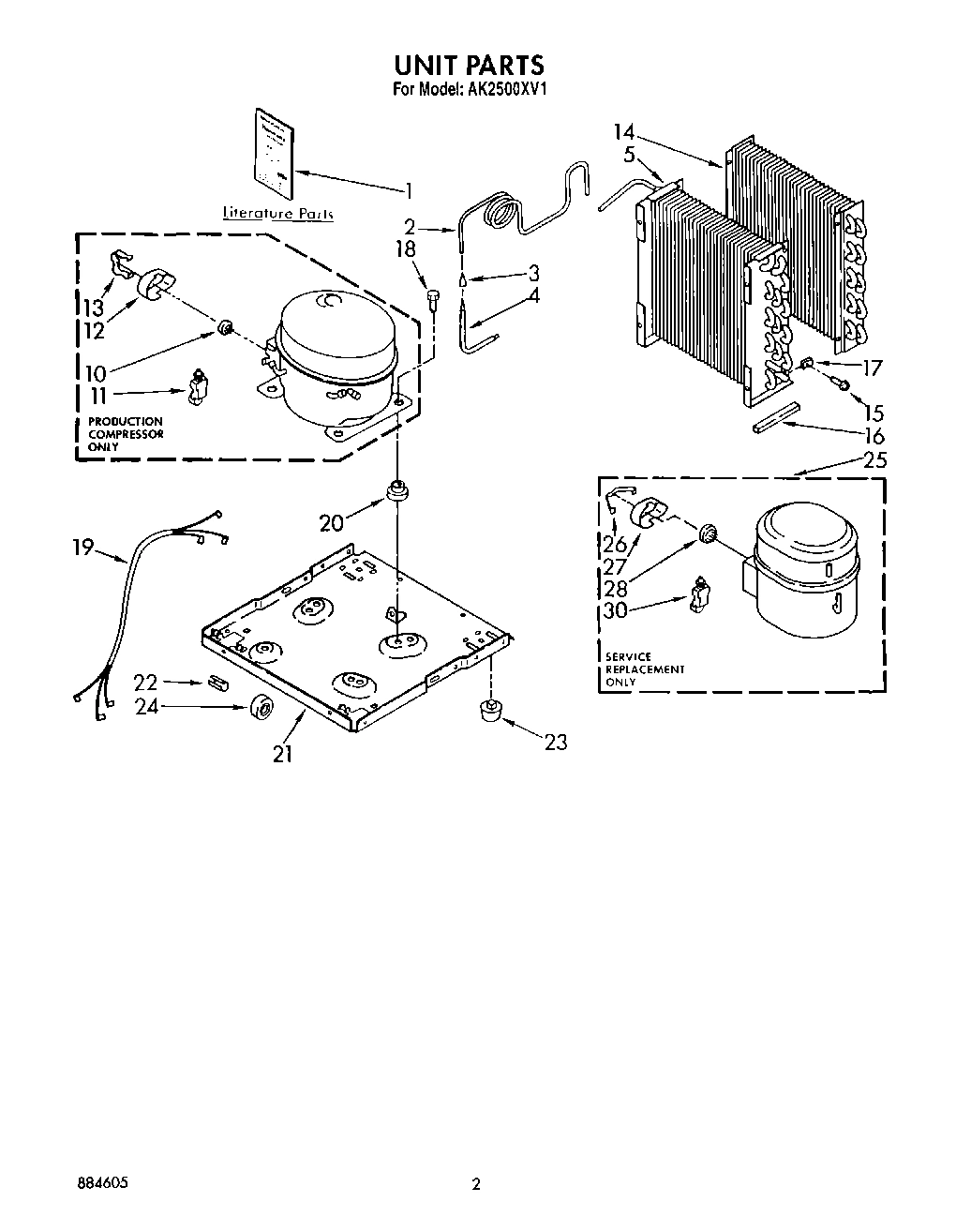

Compressor, Service (Complete Assembly) WPL 4211286 Contact Us For Availability
26
Retainer, Cover WPL 938384 Contact Us For Availability
27
Cover, Terminal WPL 1157582 Contact Us For Availability
28
Overload WPL 1158790 Contact Us For Availability
30
Relay, Start WPL 1158608 Contact Us For Availability
× ![]()
