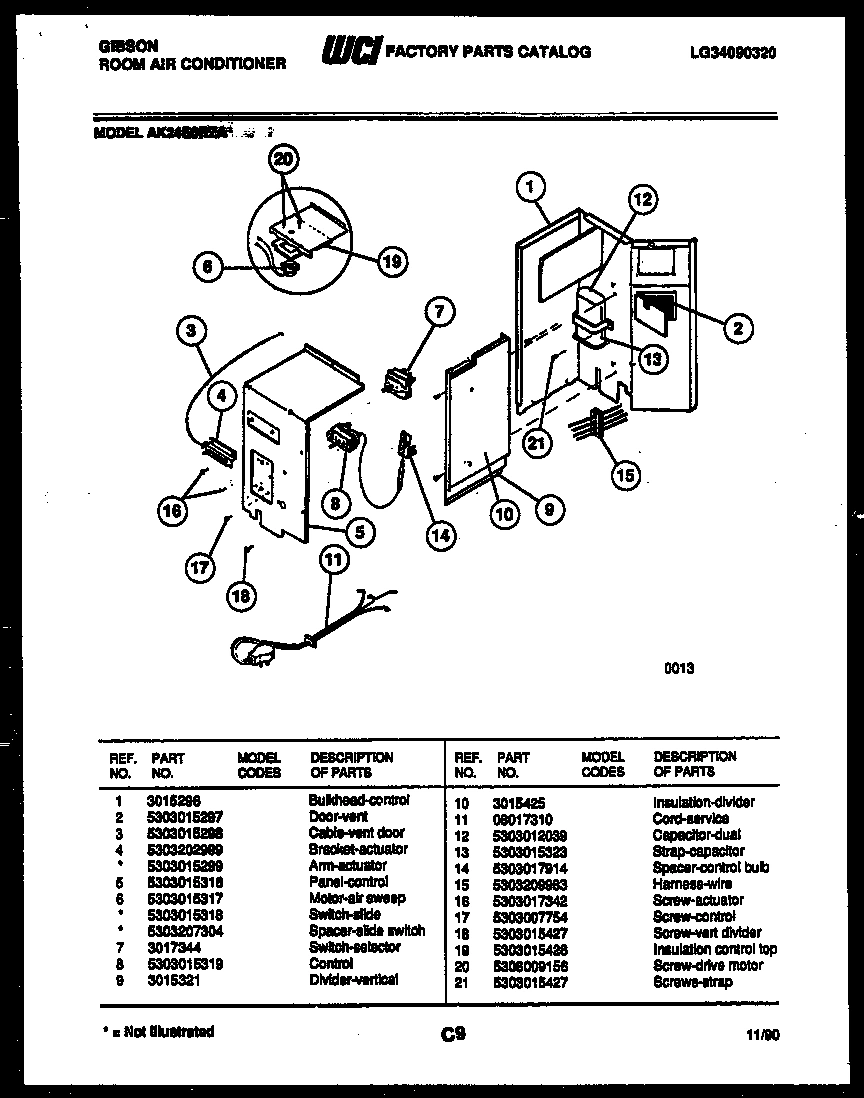

Model Electrolux AK24E6RZA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - SYSTEM PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK24E6RZA ROOM AIR CONDITIONER
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 5303210260 WCI 5303210260 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
LOUVER-HORIZ WCI 3017302 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
WCI 3015295 WCI 3015295 Contact Us For Availability
2
GROMMET WCI 5303001777 Contact Us For Availability
2A
RETAINER-HORIZ LOUVER (NON-ILLUSTRATED) WCI 3017303 Contact Us For Availability
2B
RAIL-FILTER LH (NON-ILLUSTRATED) WCI 3017363 Contact Us For Availability
2C
RAIL-FILTER RH (NON-ILLUSTRATED) WCI 3017335 Contact Us For Availability
3
FILTER-AIR WCI 3017336 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
SHROUD-COND UPPR WCI 5303015305 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
WCI 5303207308 WCI 5303207308 Contact Us For Availability
4
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
4
SHROUD-COND LWR WCI 5303015304 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
4A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303015299 Contact Us For Availability
5
WCI 5303017980 WCI 5303017980 Contact Us For Availability
5
WCI 5303015316 WCI 5303015316 Contact Us For Availability
5
WCI 5303017959 WCI 5303017959 Contact Us For Availability
5
GASKET WCI 5303002068 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 3017299 WCI 3017299 Contact Us For Availability
6
WCI 5303015317 WCI 5303015317 Contact Us For Availability
6
WCI 5303015309 WCI 5303015309 Contact Us For Availability
6
WCI 5303002067 WCI 5303002067 Contact Us For Availability
6
SIDE - ANGLE WCI 3002059 Contact Us For Availability
6A
WCI 5303015318 WCI 5303015318 Contact Us For Availability
6A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
6B
SPACER-SLIDE SWITCH (NON-ILLUSTRATED) WCI 5303207304 Contact Us For Availability
7
WCI 3017344 WCI 3017344 Contact Us For Availability
7
WCI 5303212528 WCI 5303212528 Contact Us For Availability
7
WCI 5303015313 WCI 5303015313 Contact Us For Availability
7
WCI 5303002069 WCI 5303002069 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
8
CONTROL WCI 5303015319 Contact Us For Availability
8
INSUL - TOP COVER WCI 3015314 Contact Us For Availability
8
WCI 5303015327 WCI 5303015327 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
9
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
9
BRKT-SHROUD TO BLKHD WCI 5303015306 Contact Us For Availability
9
TUBE-CPLRY-CUT TO 40`` (2) WCI 5303018217 Contact Us For Availability
10
WCI 5303017300 WCI 5303017300 Contact Us For Availability
10
INSULATION-DIVIDER WCI 3015425 Contact Us For Availability
10
WCI 5303016182 WCI 5303016182 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 5303017340 WCI 5303017340 Contact Us For Availability
11
WCI 08017310 WCI 08017310 Contact Us For Availability
11
SEAL-EVAP HSG WCI 5303015311 Contact Us For Availability
11
WCI 5303208665 WCI 5303208665 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
KNOB WCI 3017341 Contact Us For Availability
12
CAPACITOR DUAL WCI 5303012039 Contact Us For Availability
12
SCROLL-EVAPORATOR WCI 5303015310 Contact Us For Availability
12
WCI 5303209197 WCI 5303209197 Contact Us For Availability
13
WCI 3017304 WCI 3017304 Contact Us For Availability
13
WCI 5303015323 WCI 5303015323 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 5303212506 WCI 5303212506 Contact Us For Availability
14
SPACER-CONTROL BULB WCI 5303017914 Contact Us For Availability
14
NUT-RETAINING LVR WCI 3202733 Contact Us For Availability
14
KIT-START WCI 5303201723 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
WCI 5303209983 WCI 5303209983 Contact Us For Availability
15
VERT LVR & LINK ASSY WCI 5308047402 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
SCREW-ACTUATOR WCI 5303017342 Contact Us For Availability
16
WCI 3204175 WCI 3204175 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
WCI 5303007754 WCI 5303007754 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
19
INSULATION CONTROL TOP WCI 5303015428 Contact Us For Availability
20
SCREW-DRIVE MOTOR WCI 5308009156 Contact Us For Availability
× ![]()
