Model Electrolux AK24E6RVA ROOM AIR CONDITIONER – Common Parts & Diagrams

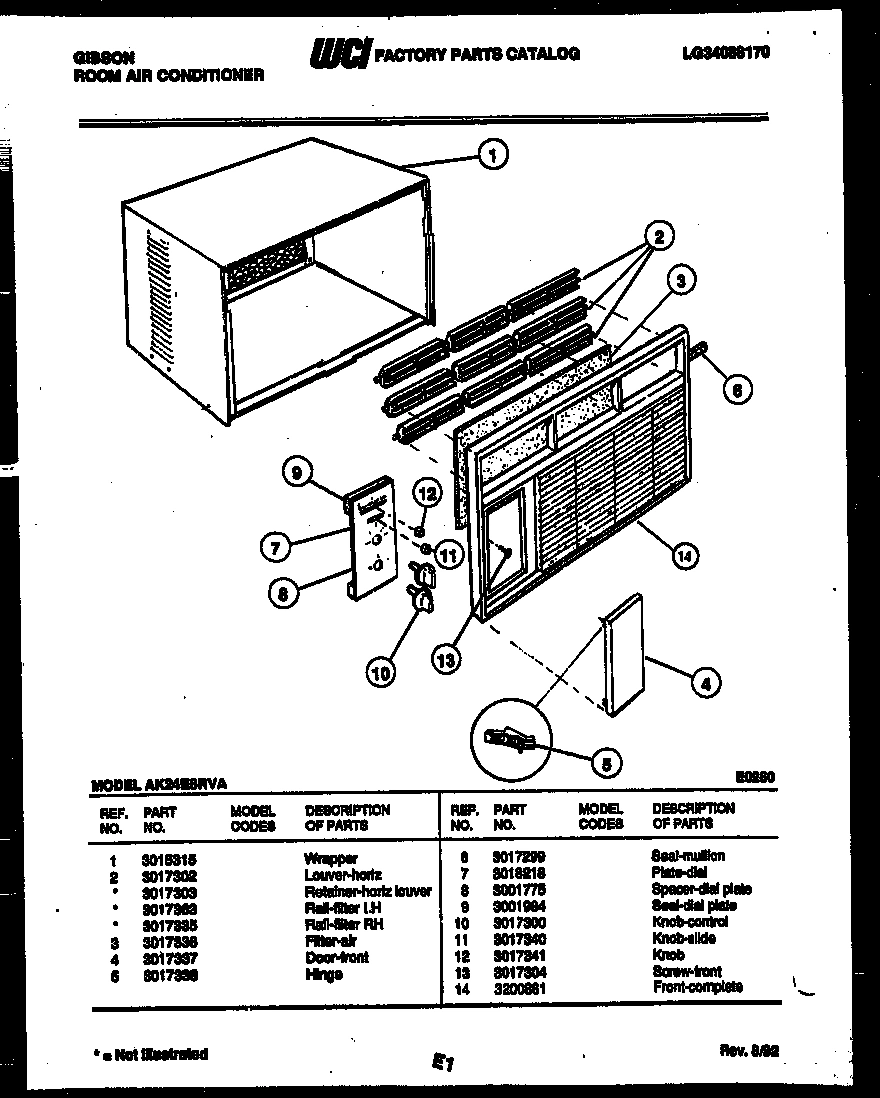

02 - CABINET PARTS

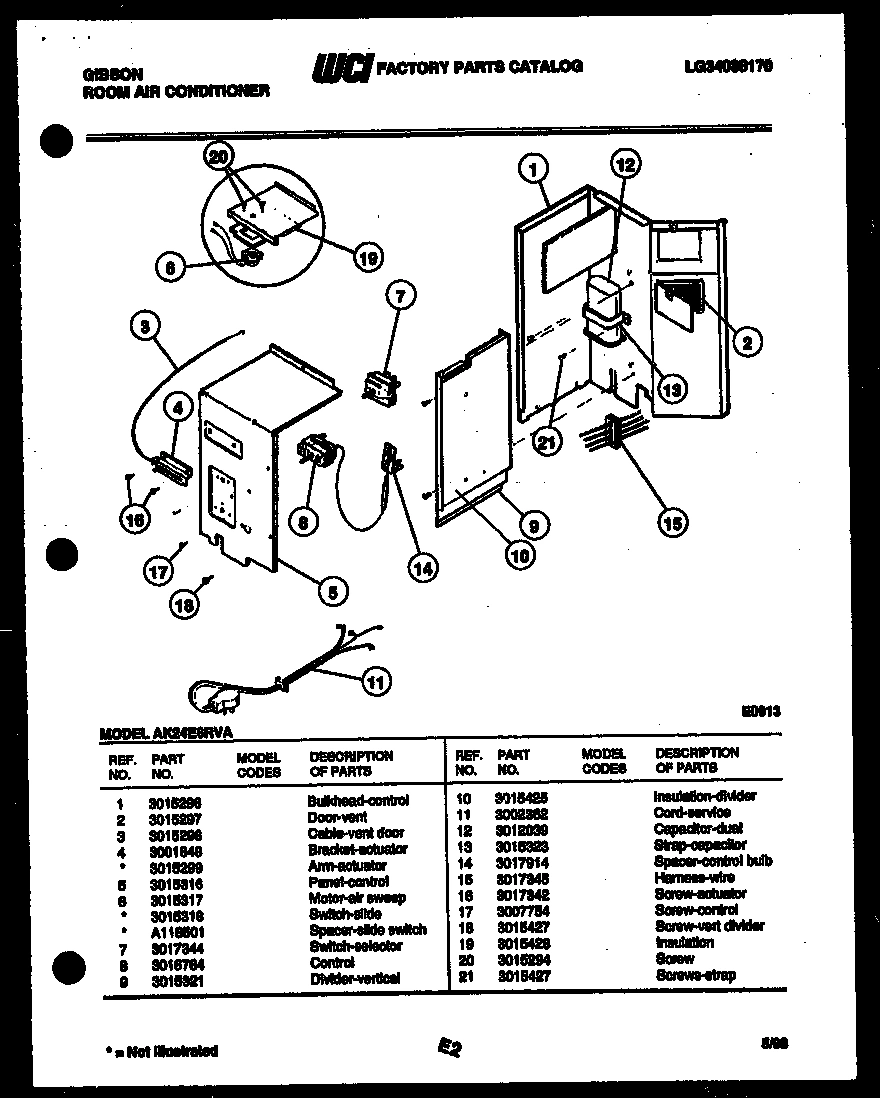

03 - ELECTRICAL PARTS

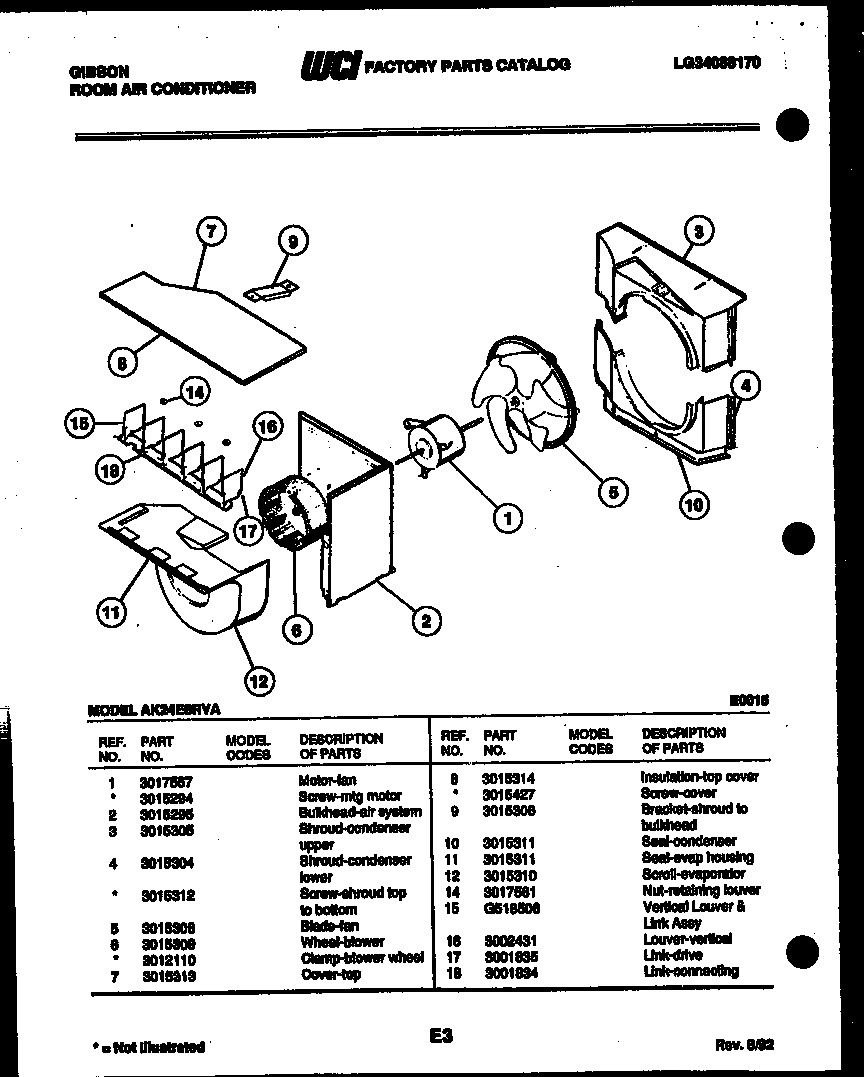

04 - AIR HANDLING PARTS

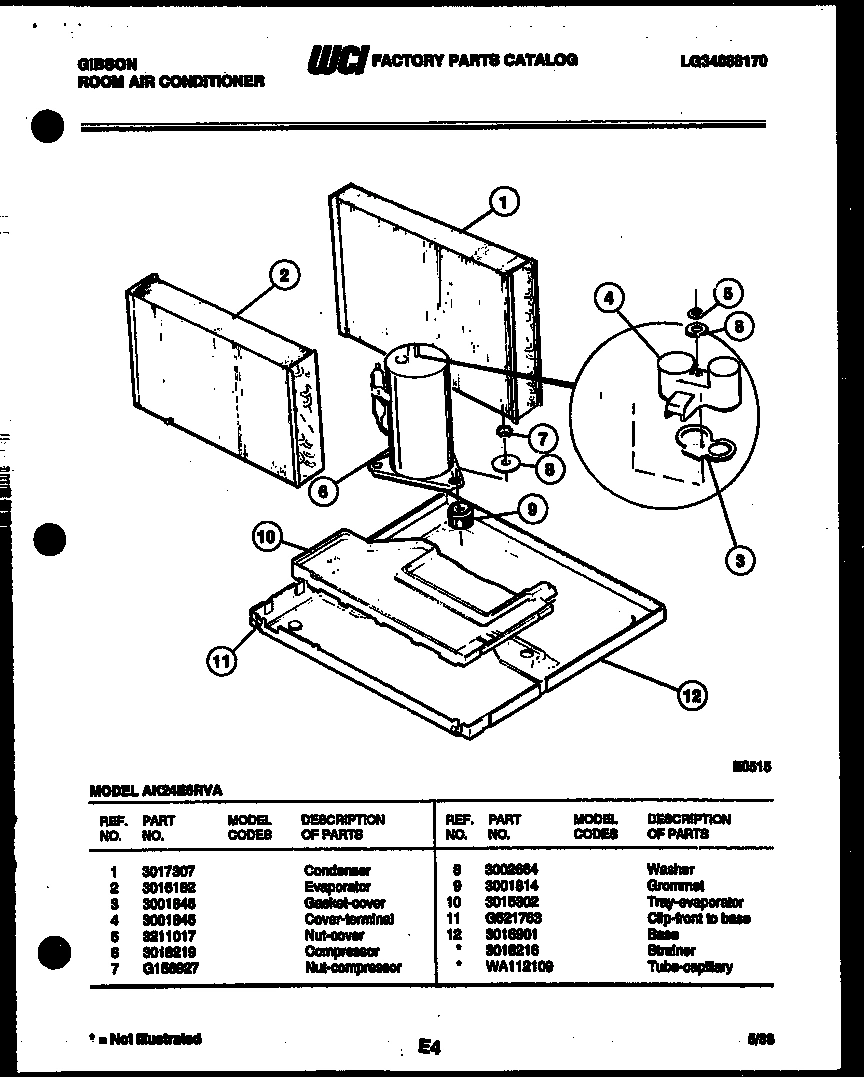

05 - SYSTEM PARTS

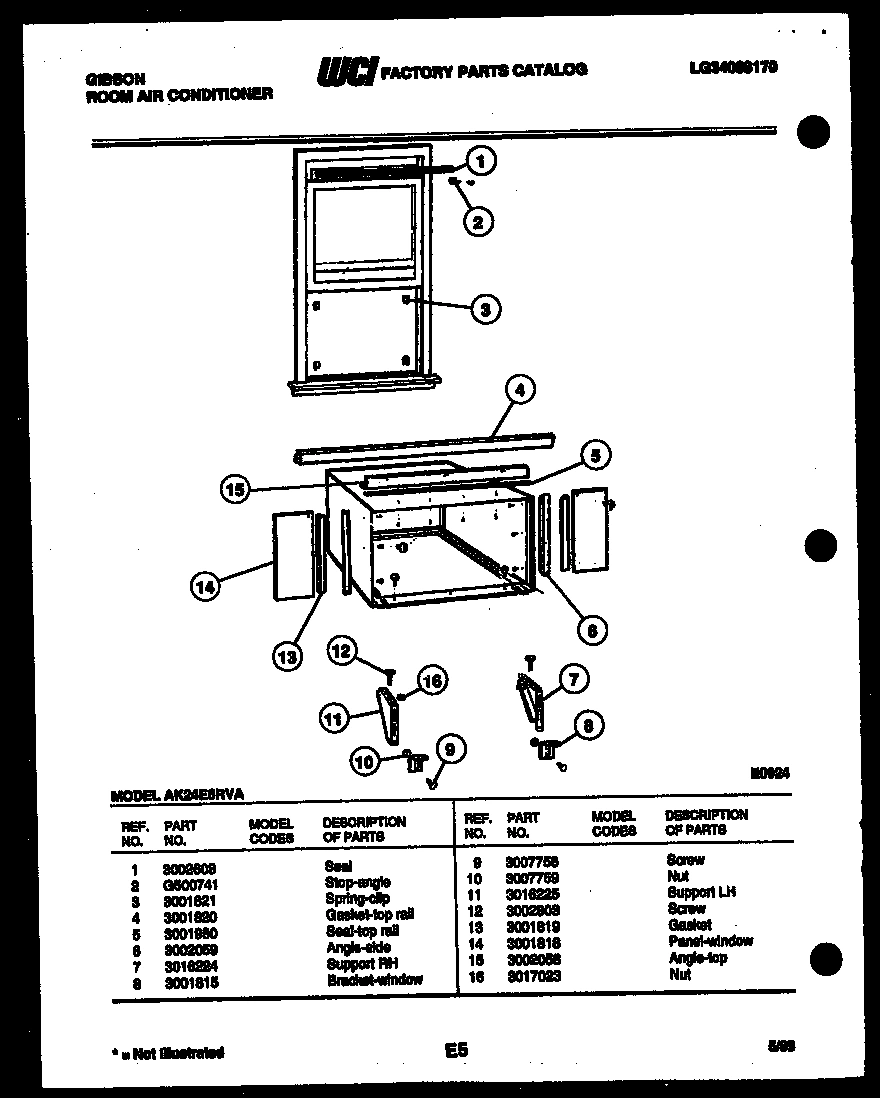

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK24E6RVA ROOM AIR CONDITIONER
*89390
WCI WA112109 WCI WA112109 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3017557 WCI 3017557 Contact Us For Availability
1
WCI 3017307 WCI 3017307 Contact Us For Availability
1
WCI 3002608 WCI 3002608 Contact Us For Availability
1A
SCREW-MTG MOTOR (NON-ILLUSTRATED) WCI 3015294 Contact Us For Availability
2
LOUVER-HORIZ WCI 3017302 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3015295 WCI 3015295 Contact Us For Availability
2
WCI 3016182 WCI 3016182 Contact Us For Availability
2
STOP - ANGLE WCI G500741 Contact Us For Availability
2A
RETAINER-HORIZ LOUVER (NON-ILLUSTRATED) WCI 3017303 Contact Us For Availability
2B
RAIL-FILTER LH (NON-ILLUSTRATED) WCI 3017363 Contact Us For Availability
2C
RAIL-FILTER RH (NON-ILLUSTRATED) WCI 3017335 Contact Us For Availability
3
FILTER-AIR WCI 3017336 Contact Us For Availability
3
CABLE - VENT DOOR WCI 3015298 Contact Us For Availability
3
WCI 3015305 WCI 3015305 Contact Us For Availability
3
WCI 3001846 WCI 3001846 Contact Us For Availability
3
SPRING CLIP WCI 3001821 Contact Us For Availability
4
WCI 3017337 WCI 3017337 Contact Us For Availability
4
WCI 3001848 WCI 3001848 Contact Us For Availability
4
WCI 3015304 WCI 3015304 Contact Us For Availability
4
COVER-TERMINAL WCI 3001845 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
4A
WCI 3015299 WCI 3015299 Contact Us For Availability
5
HINGE WCI 3017338 Contact Us For Availability
5
WCI 3015316 WCI 3015316 Contact Us For Availability
5
WCI 3015308 WCI 3015308 Contact Us For Availability
5
WCI 3211017 WCI 3211017 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 3017299 WCI 3017299 Contact Us For Availability
6
MOTOR-AIR SWEEP WCI 3015317 Contact Us For Availability
6
WCI 3015309 WCI 3015309 Contact Us For Availability
6
WCI 3018219 WCI 3018219 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
6A
WCI 3015318 WCI 3015318 Contact Us For Availability
6A
CLAMP-BLOWER WHEEL (NON-ILLUSTRATED) WCI 3012110 Contact Us For Availability
6B
WCI A118501 WCI A118501 Contact Us For Availability
7
WCI 3017344 WCI 3017344 Contact Us For Availability
7
WCI 3018218 WCI 3018218 Contact Us For Availability
7
WCI 3015313 WCI 3015313 Contact Us For Availability
7
NUT-COMPRESSOR WCI G156927 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3001775 WCI 3001775 Contact Us For Availability
8
CONTROL WCI 3016764 Contact Us For Availability
8
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
8
WCI 3002664 WCI 3002664 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
9
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
9
BRACKET-SHROUD TO BULKHEAD WCI 3015306 Contact Us For Availability
9
WCI 3001814 WCI 3001814 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 3017300 WCI 3017300 Contact Us For Availability
10
INSULATION-DIVIDER WCI 3015425 Contact Us For Availability
10
WCI 3015302 WCI 3015302 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 3017340 WCI 3017340 Contact Us For Availability
11
WCI 3002362 WCI 3002362 Contact Us For Availability
11
SEAL-EVAP HOUSING WCI 3015311 Contact Us For Availability
11
WCI G521763 WCI G521763 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
KNOB WCI 3017341 Contact Us For Availability
12
CAPACITOR-DUAL WCI 3012039 Contact Us For Availability
12
SCROLL - EVAPORATOR WCI 3015310 Contact Us For Availability
12
WCI 3016901 WCI 3016901 Contact Us For Availability
12
WCI 3002803 WCI 3002803 Contact Us For Availability
13
WCI 3017304 WCI 3017304 Contact Us For Availability
13
WCI 3015323 WCI 3015323 Contact Us For Availability
13
WCI 3001819 WCI 3001819 Contact Us For Availability
14
WCI 3200861 WCI 3200861 Contact Us For Availability
14
SPACER - CONTROL BULB WCI 3017914 Contact Us For Availability
14
NUT-RETAINING LOUVER WCI 3017561 Contact Us For Availability
14
WCI 3001818 WCI 3001818 Contact Us For Availability
15
HARNESS-WIRE WCI 3017345 Contact Us For Availability
15
VERTICAL LOUVER & LINK ASSY WCI G518506 Contact Us For Availability
15
WCI 3002058 WCI 3002058 Contact Us For Availability
16
WCI 3017342 WCI 3017342 Contact Us For Availability
16
WCI 3002431 WCI 3002431 Contact Us For Availability
17
SCREW-CONTROL WCI 3007754 Contact Us For Availability
17
WCI 3001835 WCI 3001835 Contact Us For Availability
18
LINK-CONNECTING WCI 3001834 Contact Us For Availability
19
INSULATION WCI 3015428 Contact Us For Availability
× ![]()
