Model Electrolux AK14C6RVA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

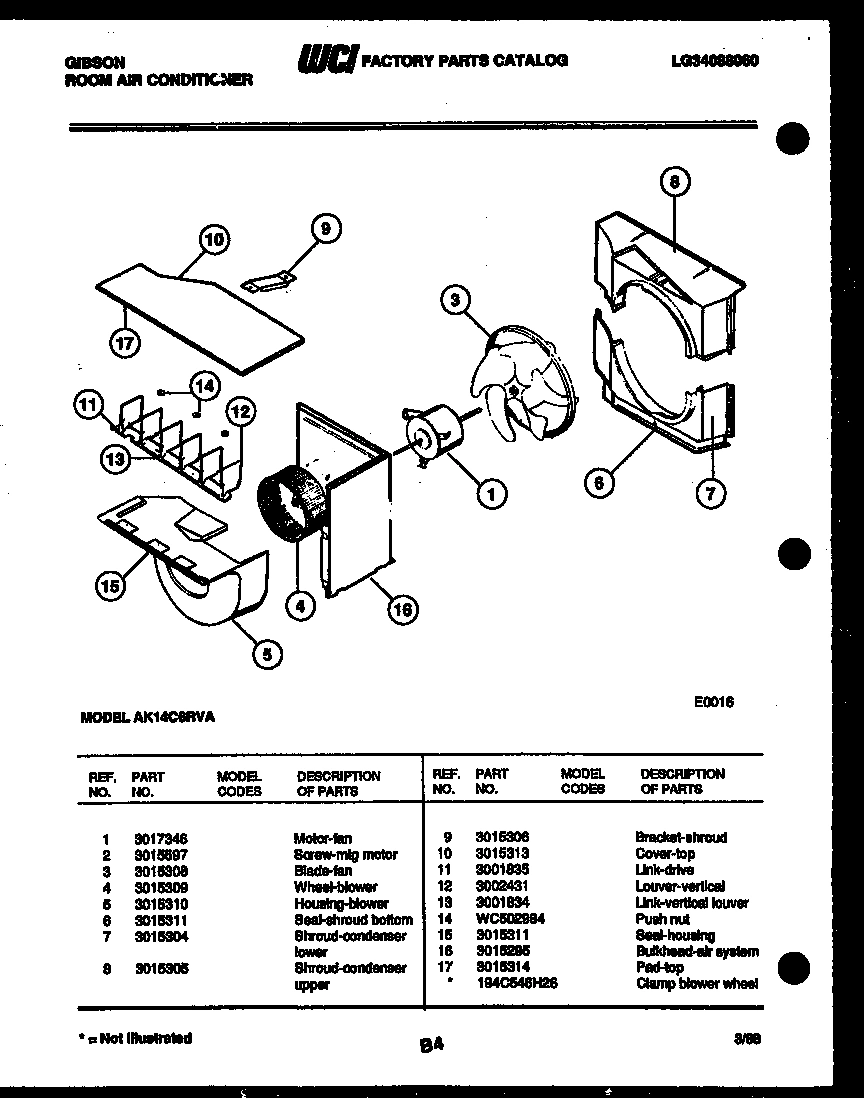

04 - AIR HANDLING PARTS

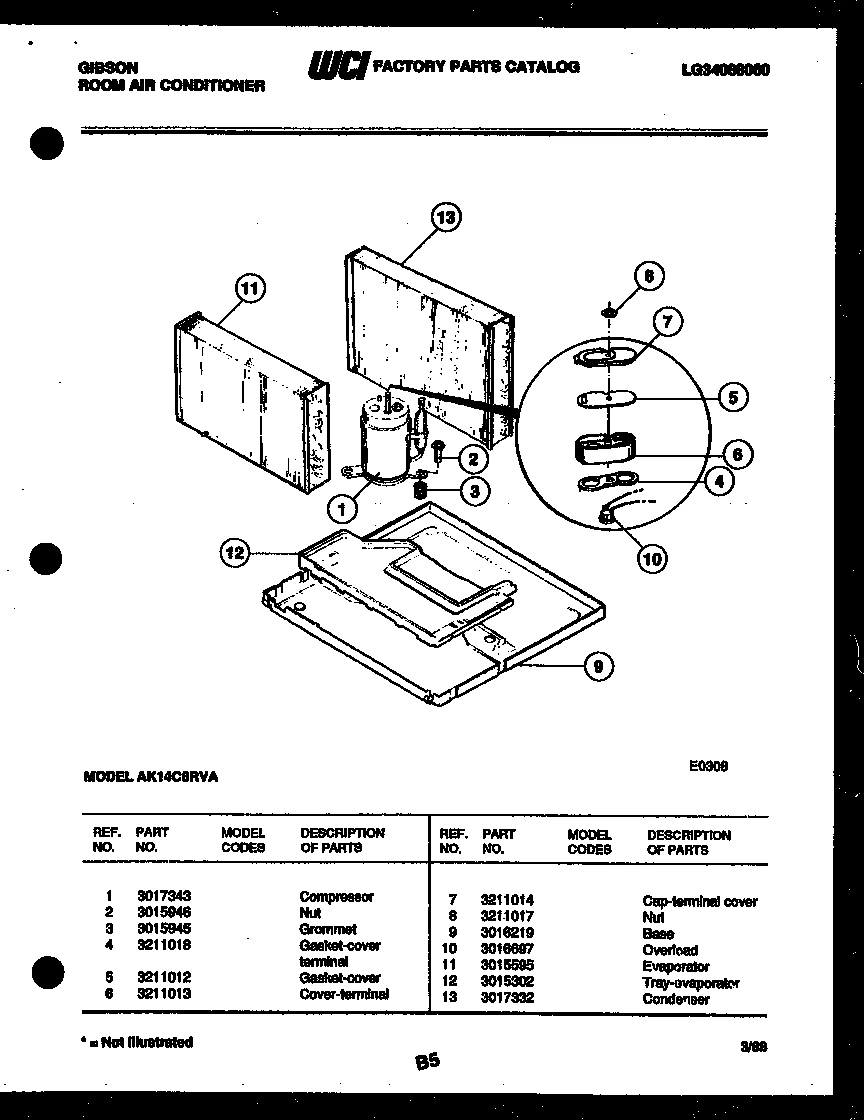

05 - SYSTEM PARTS

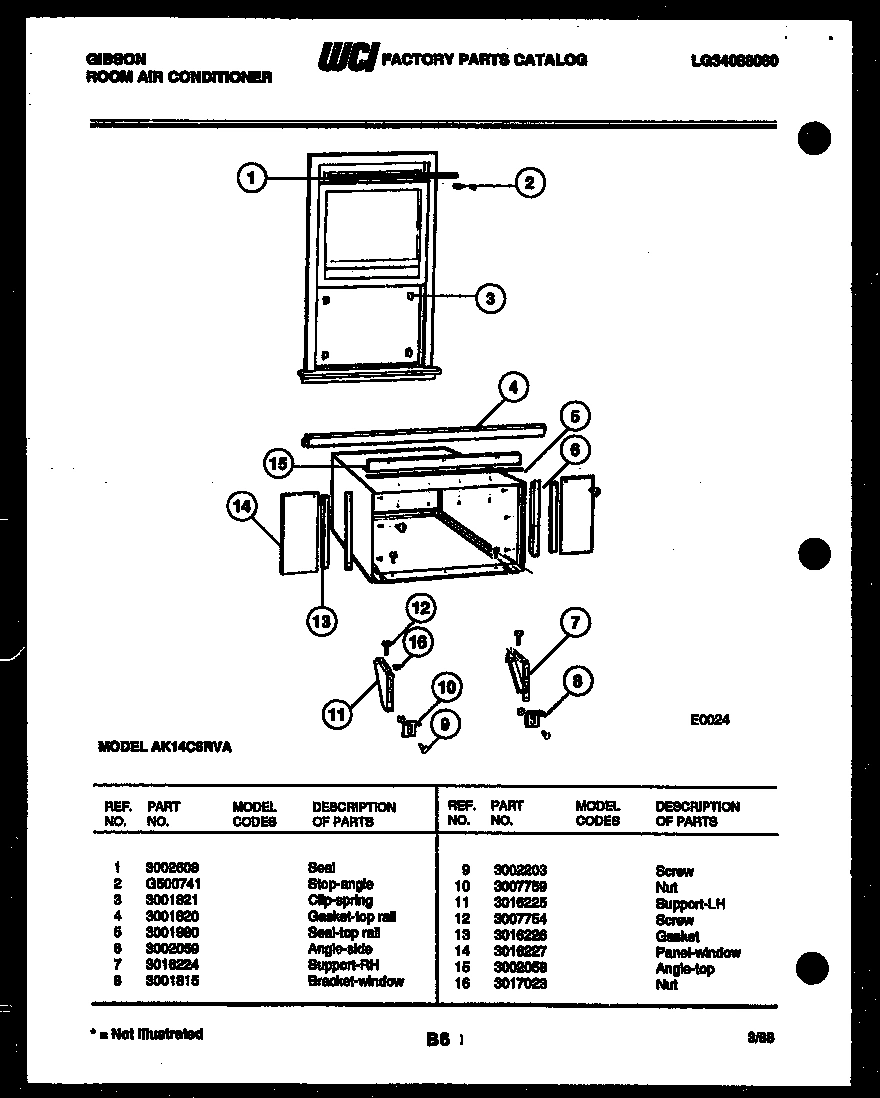

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK14C6RVA ROOM AIR CONDITIONER
*77467
CLAMP-BLOWER WHEEL WCI 194C546H26 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 3017346 WCI 3017346 Contact Us For Availability
1
WCI 3017343 WCI 3017343 Contact Us For Availability
1
WCI 3002608 WCI 3002608 Contact Us For Availability
2
WCI 3017333 WCI 3017333 Contact Us For Availability
2
WCI 3015297 WCI 3015297 Contact Us For Availability
2
WCI 3015597 WCI 3015597 Contact Us For Availability
2
NUT WCI 3015946 Contact Us For Availability
2
STOP - ANGLE WCI G500741 Contact Us For Availability
3
WCI 3017302 WCI 3017302 Contact Us For Availability
3
SCREW-ACUATOR WCI 3017342 Contact Us For Availability
3
WCI 3015308 WCI 3015308 Contact Us For Availability
3
GROMMET WCI 3015945 Contact Us For Availability
3
CLIP - SPRING WCI 3001821 Contact Us For Availability
3A
RETAINER-LOUVER (NON-ILLUSTRATED) WCI 3017303 Contact Us For Availability
3B
RAIL-FILTER LH (NON-ILLUSTRATED) WCI 3017363 Contact Us For Availability
3C
RAIL-FILTER RH (NON-ILLUSTRATED) WCI 3017335 Contact Us For Availability
4
FILTER-AIR WCI 3017336 Contact Us For Availability
4
CABLE - VENT DOOR WCI 3015298 Contact Us For Availability
4
WCI 3015309 WCI 3015309 Contact Us For Availability
4
GASKET-COVER TERMINAL WCI 3211018 Contact Us For Availability
4
WCI 3001820 WCI 3001820 Contact Us For Availability
5
WCI 3017337 WCI 3017337 Contact Us For Availability
5
WCI 3001848 WCI 3001848 Contact Us For Availability
5
HOUSING-BLOWER WCI 3015310 Contact Us For Availability
5
GASKET-COVER WCI 3211012 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 3017338 WCI 3017338 Contact Us For Availability
6
ARM - ACTUATOR WCI 3015299 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 3017299 WCI 3017299 Contact Us For Availability
7
WCI 3016763 WCI 3016763 Contact Us For Availability
7
WCI 3015304 WCI 3015304 Contact Us For Availability
7
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 3017339 WCI 3017339 Contact Us For Availability
8
WCI 3015317 WCI 3015317 Contact Us For Availability
8
WCI 3015305 WCI 3015305 Contact Us For Availability
8
NUT WCI 3211017 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
8A
SPACER-DIAL PLATE (NON-ILLUSTRATED) WCI 3001725 Contact Us For Availability
8A
SWITCH-STIDE (NON-ILLUSTRATED) WCI 3015318 Contact Us For Availability
9
WCI 3017344 WCI 3017344 Contact Us For Availability
9
SEAL-DIAL PLATE WCI 3001984 Contact Us For Availability
9
BRACKET-SHROUD WCI 3015306 Contact Us For Availability
9
WCI 3016219 WCI 3016219 Contact Us For Availability
9
WCI 3002203 WCI 3002203 Contact Us For Availability
10
WCI 3017300 WCI 3017300 Contact Us For Availability
10
CONTROL WCI 3016764 Contact Us For Availability
10
WCI 3015313 WCI 3015313 Contact Us For Availability
10
WCI 3016697 WCI 3016697 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
11
WCI 3017340 WCI 3017340 Contact Us For Availability
11
WCI 3001835 WCI 3001835 Contact Us For Availability
11
WCI 3015595 WCI 3015595 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
KNOB (NON-ILLUSTRATED) WCI 3017341 Contact Us For Availability
12
WCI 3017304 WCI 3017304 Contact Us For Availability
12
SCREW WCI 3007754 Contact Us For Availability
12
HARNESS-WIRE WCI 3017345 Contact Us For Availability
12
WCI 3002431 WCI 3002431 Contact Us For Availability
12
WCI 3015302 WCI 3015302 Contact Us For Availability
13
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
13
WCI 3001834 WCI 3001834 Contact Us For Availability
13
WCI 3017332 WCI 3017332 Contact Us For Availability
13
WCI 3016226 WCI 3016226 Contact Us For Availability
14
INSULATION-DIVIDER WCI 3015425 Contact Us For Availability
14
WCI WC502984 WCI WC502984 Contact Us For Availability
14
WCI 3016227 WCI 3016227 Contact Us For Availability
15
SEAL-HOUSING WCI 3015311 Contact Us For Availability
15
WCI 3002058 WCI 3002058 Contact Us For Availability
16
SPACER - CONTROL BULB WCI 3211009 Contact Us For Availability
16
WCI 3015295 WCI 3015295 Contact Us For Availability
17
WCI 3002361 WCI 3002361 Contact Us For Availability
17
PAD-TOP WCI 3015314 Contact Us For Availability
18
WCI 3015323 WCI 3015323 Contact Us For Availability
20
WCI 3015294 WCI 3015294 Contact Us For Availability
21
INSULATION WCI 3015428 Contact Us For Availability
22
CAPACITOR-DUAL WCI 3012047 Contact Us For Availability
× ![]()
