Model Electrolux AK14C6EZA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

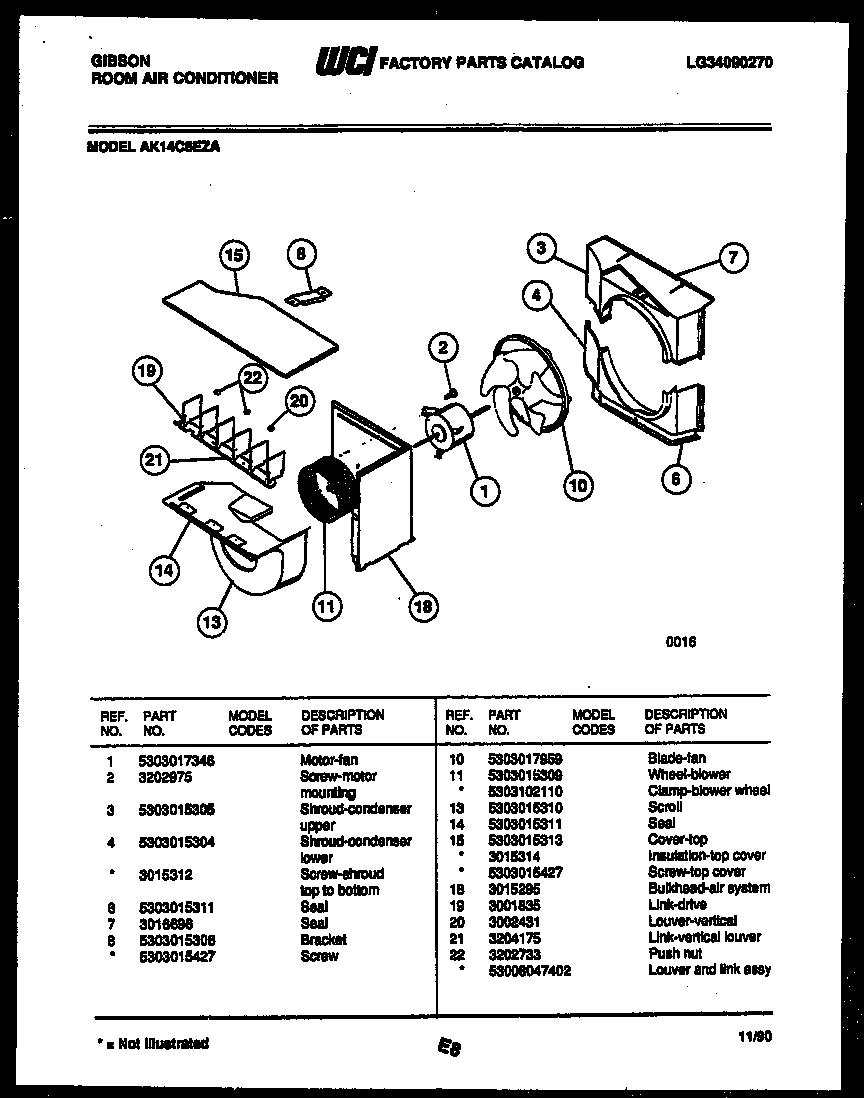

04 - AIR HANDLING PARTS

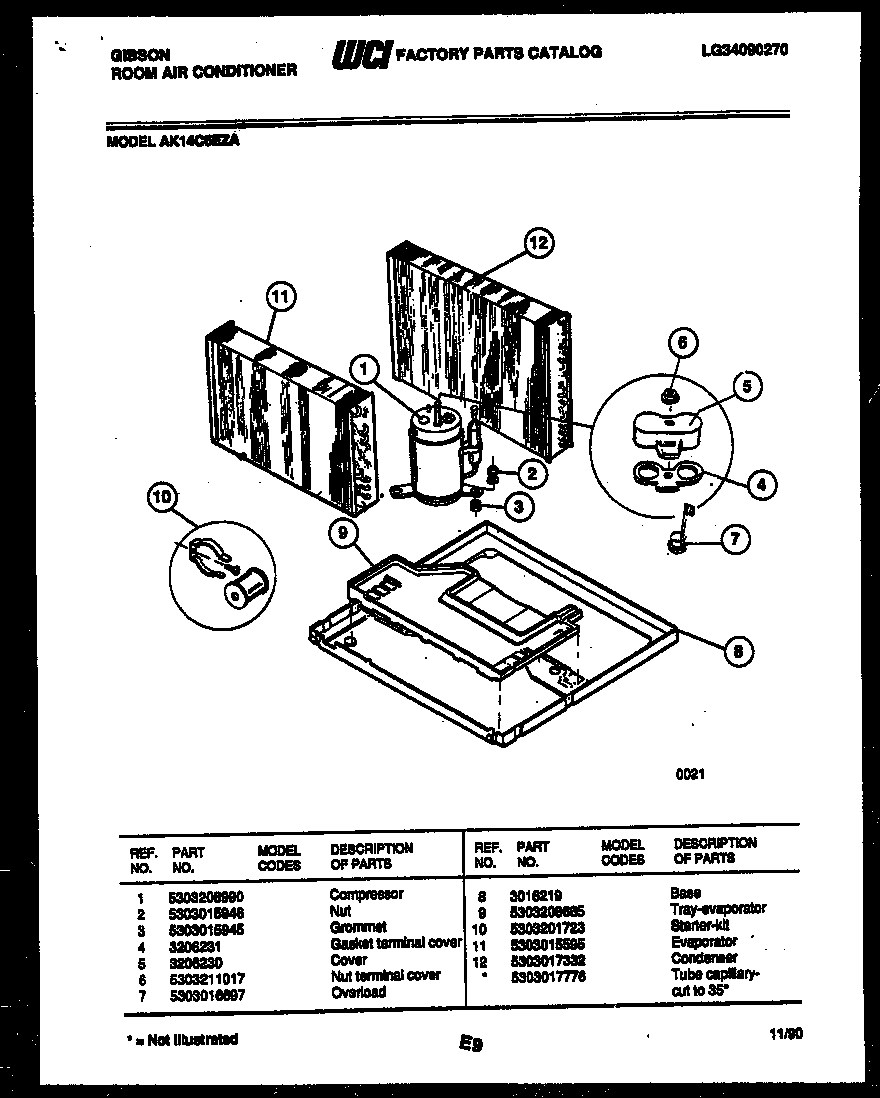

05 - SYSTEM PARTS

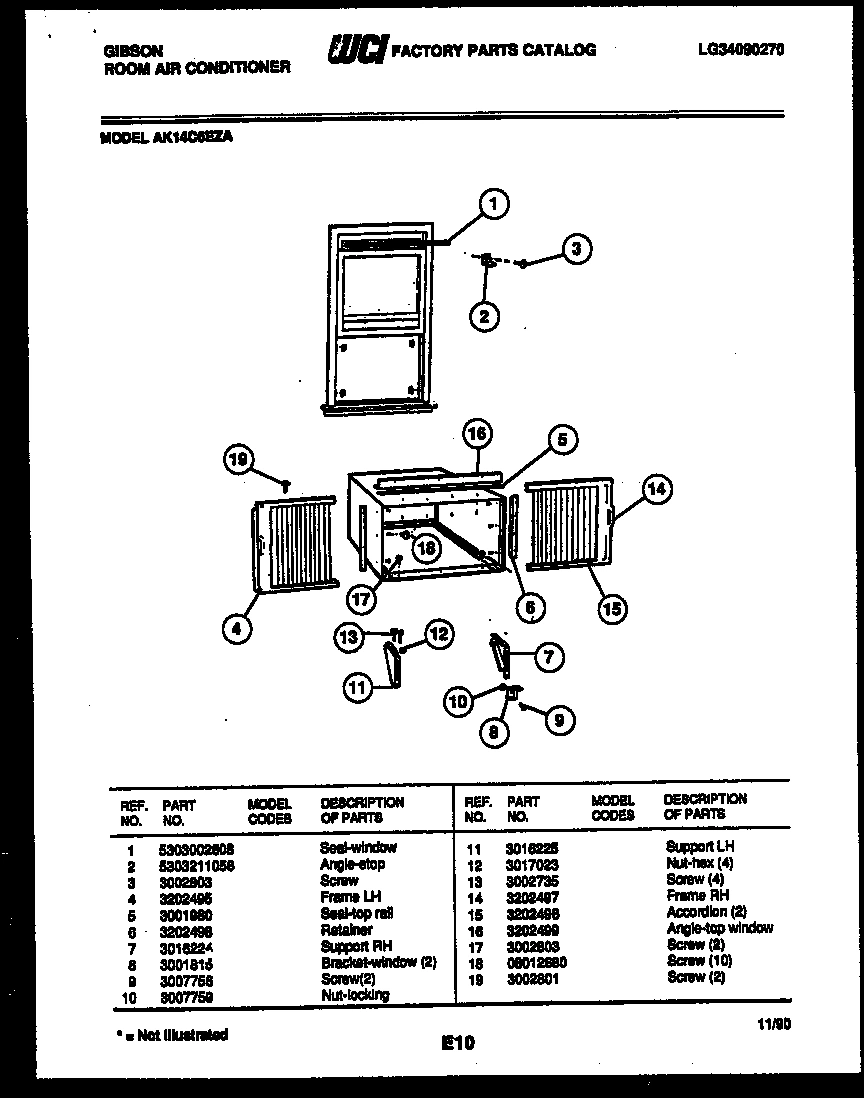

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK14C6EZA ROOM AIR CONDITIONER
*32452
WCI 53008047402 WCI 53008047402 Contact Us For Availability
*32455
WCI 5303017776 WCI 5303017776 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
WCI 3015296 WCI 3015296 Contact Us For Availability
1
WCI 5303017346 WCI 5303017346 Contact Us For Availability
1
WCI 5303208990 WCI 5303208990 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
ANGLE-TOP WCI 5303211056 Contact Us For Availability
2
WCI 5303212506 WCI 5303212506 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
NUT WCI 5303015946 Contact Us For Availability
3
WCI 3017302 WCI 3017302 Contact Us For Availability
3
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
3
SHROUD-CONDENSER UPPER WCI 5303015305 Contact Us For Availability
3
GROMMET WCI 5303015945 Contact Us For Availability
3A
RETAINER-LOUVER (NON-ILLUSTRATED) WCI 3017303 Contact Us For Availability
4
FILTER-AIR WCI 3017336 Contact Us For Availability
4
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
4
SHROUD-CONDENSER LOWER WCI 5303015304 Contact Us For Availability
4
WCI 3206231 WCI 3206231 Contact Us For Availability
4
WCI 3202495 WCI 3202495 Contact Us For Availability
4A
ARM-ACTUATOR (NON-ILLUSTRATED) WCI 5303015299 Contact Us For Availability
5
WCI 3017299 WCI 3017299 Contact Us For Availability
5
COVER WCI 3206230 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303212508 WCI 5303212508 Contact Us For Availability
6
WCI 5303015316 WCI 5303015316 Contact Us For Availability
6
Nut,terminal cover WCI 5303211017 Contact Us For Availability
6
WCI 3202498 WCI 3202498 Contact Us For Availability
6A
SPACER-DIAL PLATE (NON-ILLUSTRATED) WCI 5303001775 Contact Us For Availability
7
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
7
WCI 3017538 WCI 3017538 Contact Us For Availability
7
SEAL WCI 3016696 Contact Us For Availability
7
WCI 5303016697 WCI 5303016697 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
7A
WCI 5303015318 WCI 5303015318 Contact Us For Availability
7B
SPACE-SLIDE SWITCH (NON-ILLUSTRATED) WCI 5303207304 Contact Us For Availability
8
WCI 5303017300 WCI 5303017300 Contact Us For Availability
8
BRACKET WCI 5303015306 Contact Us For Availability
8
WCI 3016219 WCI 3016219 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
WCI 5303017340 WCI 5303017340 Contact Us For Availability
9
WCI 5303208665 WCI 5303208665 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
WCI 3017344 WCI 3017344 Contact Us For Availability
10
WCI 3001802 WCI 3001802 Contact Us For Availability
10
WCI 5303017959 WCI 5303017959 Contact Us For Availability
10
STARTER KIT WCI 5303201723 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
WCI 5303207308 WCI 5303207308 Contact Us For Availability
11
CONTROL WCI 5303015319 Contact Us For Availability
11
WCI 5303015309 WCI 5303015309 Contact Us For Availability
11
WCI 5303015595 WCI 5303015595 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
11A
WCI 5303102110 WCI 5303102110 Contact Us For Availability
12
HINGE - DOOR WCI 5303017980 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
WCI 5303017332 WCI 5303017332 Contact Us For Availability
12A
INSUL-VERT. DIVIDER (NON-ILLUSTRATED) WCI 3015425 Contact Us For Availability
13
WCI 5303015310 WCI 5303015310 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
WCI 5308017363 WCI 5308017363 Contact Us For Availability
14
SEAL WCI 5303015311 Contact Us For Availability
14
WCI 3202497 WCI 3202497 Contact Us For Availability
15
CAPACITOR WCI 3201140 Contact Us For Availability
15
WCI 5303015313 WCI 5303015313 Contact Us For Availability
15
WCI 3202496 WCI 3202496 Contact Us For Availability
15A
INSULATION-TOP COVER (NON-ILLUSTRATED) WCI 3015314 Contact Us For Availability
16
WCI 5303015323 WCI 5303015323 Contact Us For Availability
16
ANGLE - TOP WINDOW WCI 3202499 Contact Us For Availability
17
SPACER-CONTROL BULB WCI 5303211009 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WIRE HARNESS WCI 5303017345 Contact Us For Availability
18
WCI 3015295 WCI 3015295 Contact Us For Availability
18
SCREW (10) WCI 08012680 Contact Us For Availability
19
WCI 5303017342 WCI 5303017342 Contact Us For Availability
19
WCI 3001835 WCI 3001835 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
SCREW-CONTROL MTG. WCI 5303007754 Contact Us For Availability
20
WCI 3002431 WCI 3002431 Contact Us For Availability
21
LINK-VERTICAL LOUVER WCI 3204175 Contact Us For Availability
22
PUSH NUT WCI 3202733 Contact Us For Availability
23
WCI 5303015428 WCI 5303015428 Contact Us For Availability
24
WCI 5308009156 WCI 5308009156 Contact Us For Availability
× ![]()
