Model GE AJCQ10DCDW2 Room Air Conditioner Built In – Common Parts & Diagrams

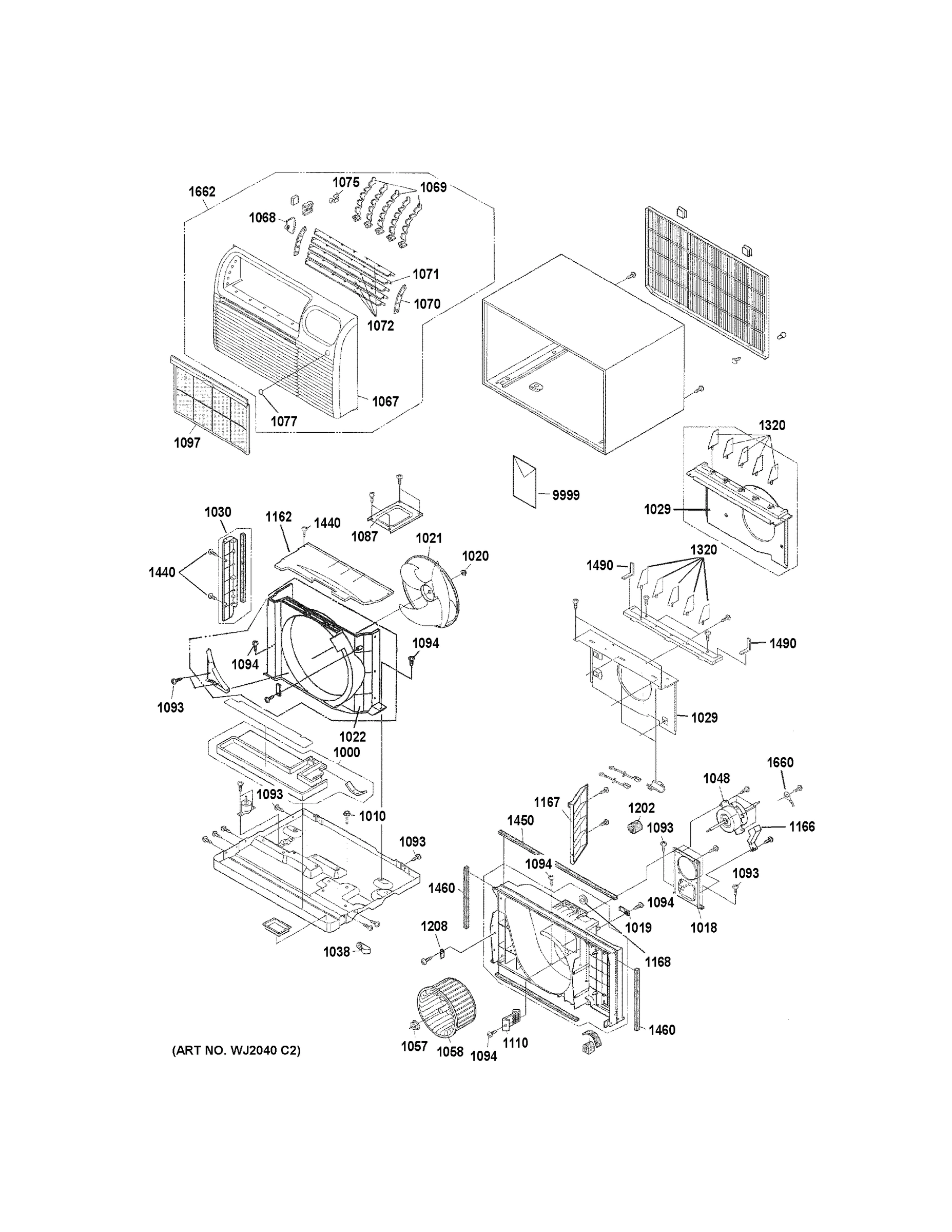

GRILLE & CHASSIS PARTS

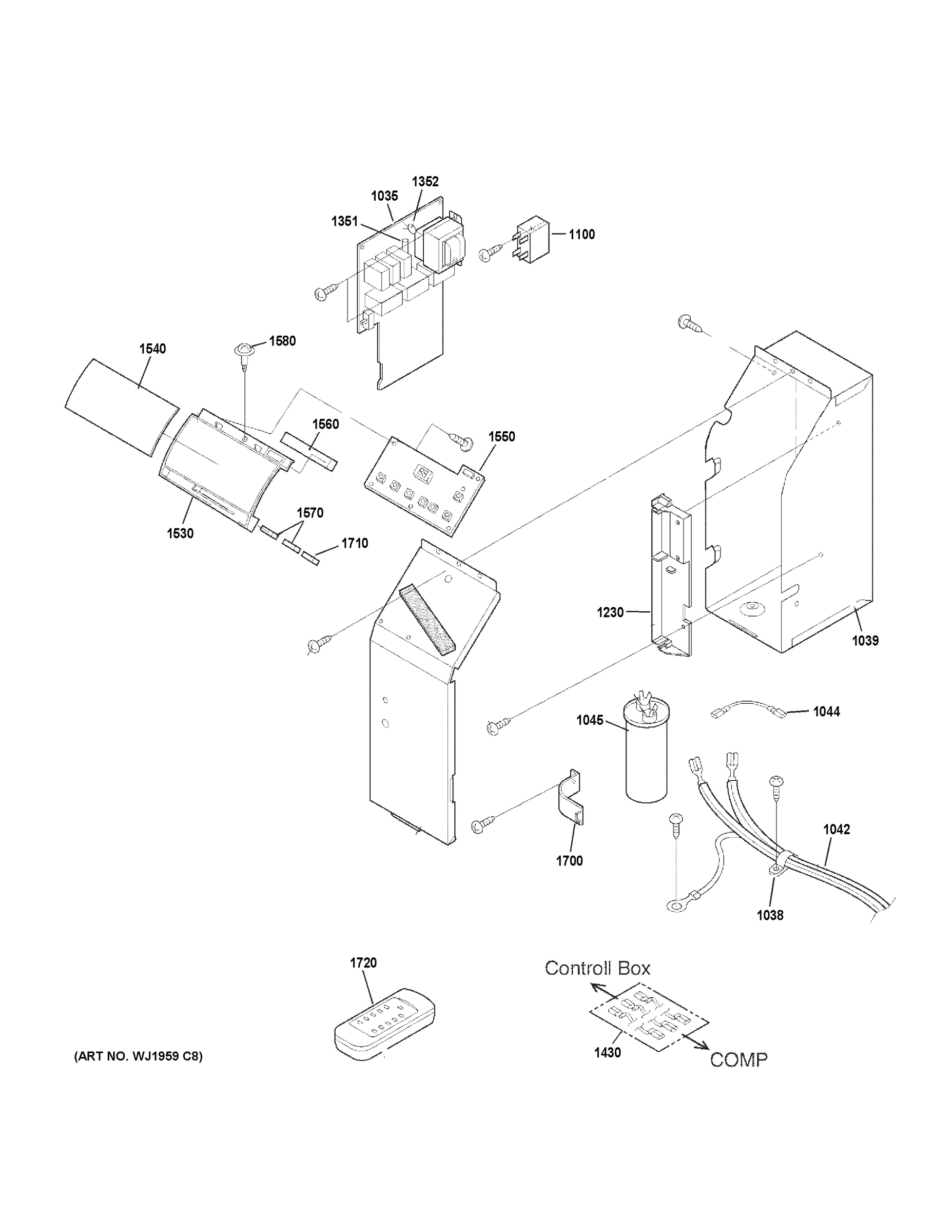

CONTROL PARTS

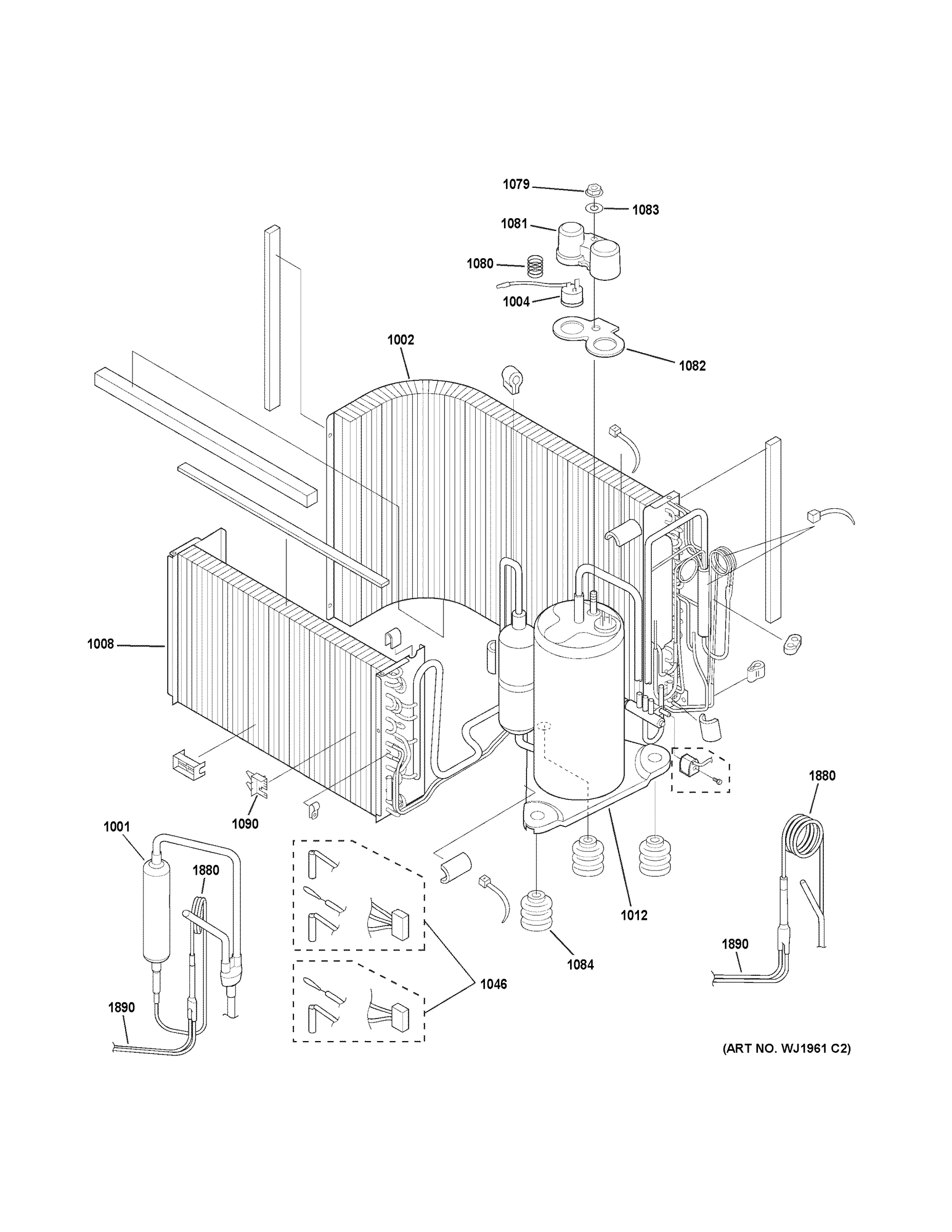

SEALED SYSTEM & COMPONENTS
Common parts from model GE AJCQ10DCDW2 Room Air Conditioner Built In
1001
FILTER DRIER GEN WJ56X10009 Contact Us For Availability
1002
CONDENSER ASM GEN WJ87X10239 Contact Us For Availability
1008
EVAPORATOR ASM GEN WJ88X10214 Contact Us For Availability
1012
COMPRESSOR GEN WJ98X10265 Contact Us For Availability
1020
SPECIAL NUT GEN WJ01X10283 Contact Us For Availability
1021
PROPELLER FAN O/D GEN WJ73X10157 Contact Us For Availability
1035
CONTROL BOARD UNIT GEN WJ26X10317 Contact Us For Availability
1038
WIRE HOLDER GEN WJ03X10001 Contact Us For Availability
1039
CONTROL BOX GEN WJ76X10286 Contact Us For Availability
1044
LEAD WIRE GEN WJ37X10021 Contact Us For Availability
1045
RUNNING CAPACITOR GEN WJ20X10132 Contact Us For Availability
1046
THERMISTER GEN WJ27X10110 Contact Us For Availability
1057
SPECIAL NUT GEN WJ01X10284 Contact Us For Availability
1058
CENTRIFUGAL FAN GEN WJ73X10158 Contact Us For Availability
1077
GE BADGE GEN WJ07X10246 Contact Us For Availability
1079
SPECIAL NUT GEN WJ01X10286 Contact Us For Availability
1080
PROTECTOR SPRING GEN WJ02X10031 Contact Us For Availability
1081
TERMINAL COVER GEN WJ79X10204 Contact Us For Availability
1082
TERMINAL GASKET GEN WJ43X10061 Contact Us For Availability
1083
GASKET WASHER GEN WJ01X10288 Contact Us For Availability
1084
COMPRESSOR CUSHION N GEN WJ01X10046 Contact Us For Availability
1087
BRACE GEN WJ65X10116 Contact Us For Availability
1090
THERMISTOR HOLDER GEN WJ03X10011 Contact Us For Availability
1093
SPECIAL SCREW GEN WJ01X10037 Contact Us For Availability
1094
SPECIAL SCREW GEN WJ01X10012 Contact Us For Availability
1100
FAN MTR CAPACITOR GEN WJ20X10116 Contact Us For Availability
1110
DAMPER FRAME GEN WJ01X10291 Contact Us For Availability
1162
SHROUD COVER K7L GEN WJ79X10199 Contact Us For Availability
1166
MOTOR COVER GEN WJ79X10200 Contact Us For Availability
1167
BULKHEAD PLATE GEN WJ76X10235 Contact Us For Availability
1168
SEAL MOTOR GEN WJ01X10297 Contact Us For Availability
1202
INSULATOR GEN WJ45X10016 Contact Us For Availability
1208
STOPPER GEN WJ66X10040 Contact Us For Availability
1230
PWB HOLDER GEN WJ01X10342 Contact Us For Availability
1320
LOUVER GEN WJ71X10454 Contact Us For Availability
1351
FUSE GEN WP23X10003 Contact Us For Availability
1352
VARISTO R GEN WP27X10002 Contact Us For Availability
1430
COMP. WIRING GEN WJ27X10115 Contact Us For Availability
1450
CABINET-PE GEN WJ82X10040 Contact Us For Availability
1460
CABINET-PE GEN WJ82X10041 Contact Us For Availability
1490
L-BASE-PLATE-PE GEN WJ11X10021 Contact Us For Availability
1530
CONTROL BASE GEN WJ26X10318 Contact Us For Availability
1540
CONTROL SHEET GEN WJ29X10032 Contact Us For Availability
1550
CONTROL UNIT GEN WJ29X10033 Contact Us For Availability
1560
INSULATOR GEN WJ45X10029 Contact Us For Availability
1570
INSULATOR GEN WJ45X10028 Contact Us For Availability
1580
SPECIAL SCREW GEN WJ01X10381 Contact Us For Availability
1660
LEAD WIRE GEN WJ37X10001 Contact Us For Availability
1662
FRONT PANEL ASM GEN WJ71X10654 Contact Us For Availability
1700
CLAMP HOLDING GEN WJ03X10037 Contact Us For Availability
1710
CONTROL RUBBER GEN WJ01X10382 Contact Us For Availability
1720
REMOTE CONTROLLER GEN WJ26X10316 Contact Us For Availability
1880
CAPILLARY TUBE B GEN WJ53X10208 Contact Us For Availability
1890
CAPILLARY TUBE GEN WJ53X10203 Contact Us For Availability
9999
PM MINI MANUAL GEN 31615291 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 4975975 Contact Us For Availability
× ![]()
