Model GE AJ508WCT1 Room Air Conditioner Built In – Common Parts & Diagrams

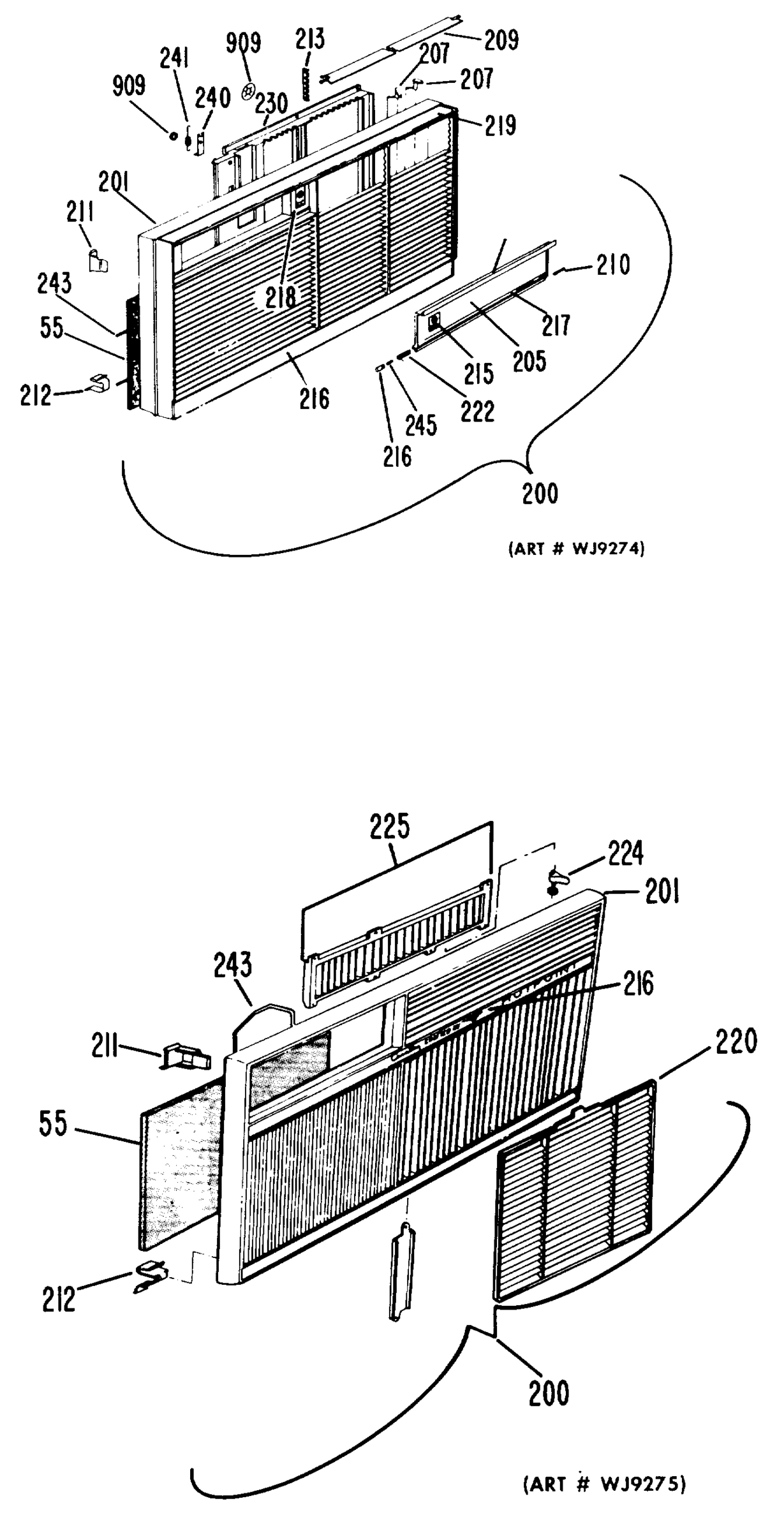

0

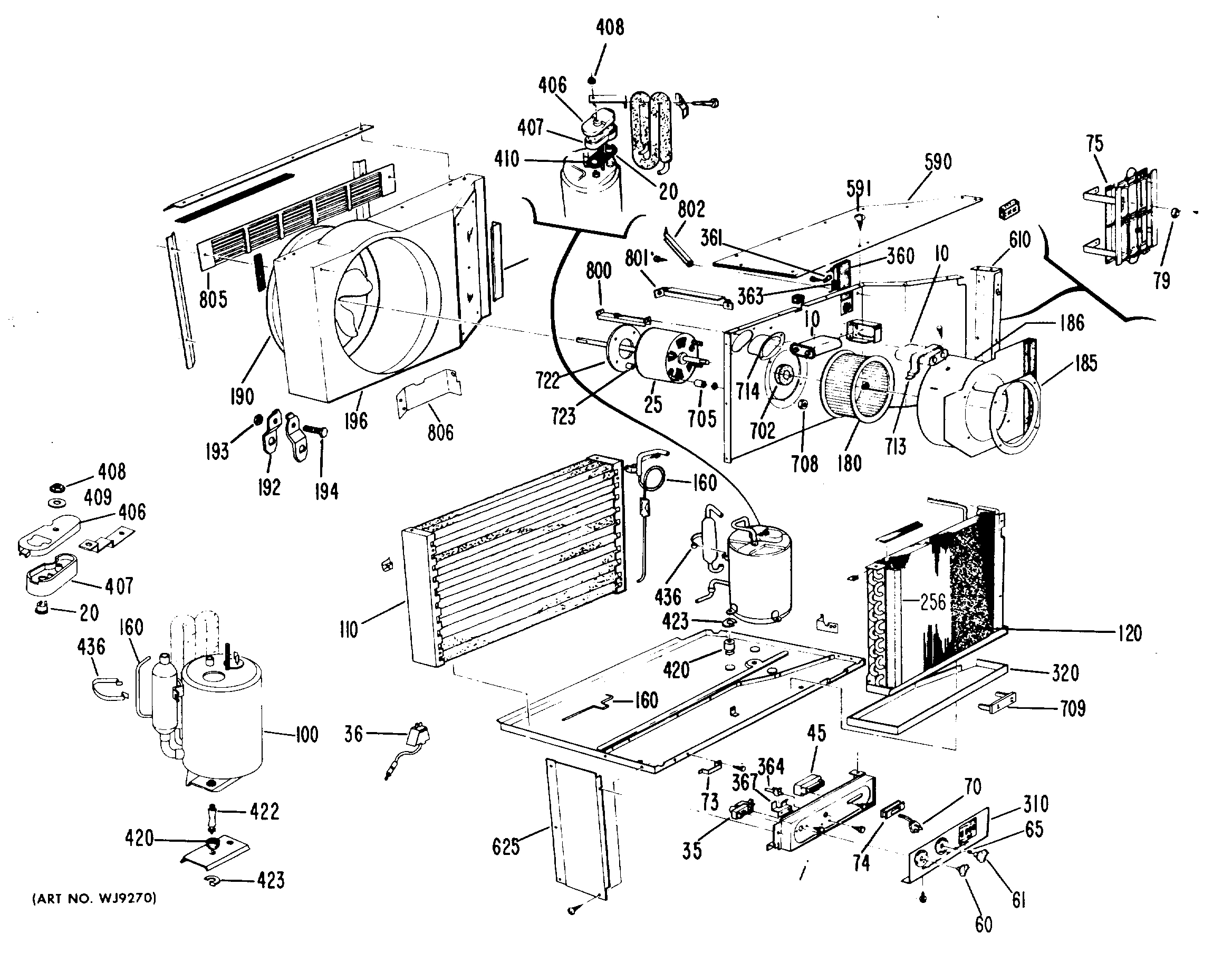

1

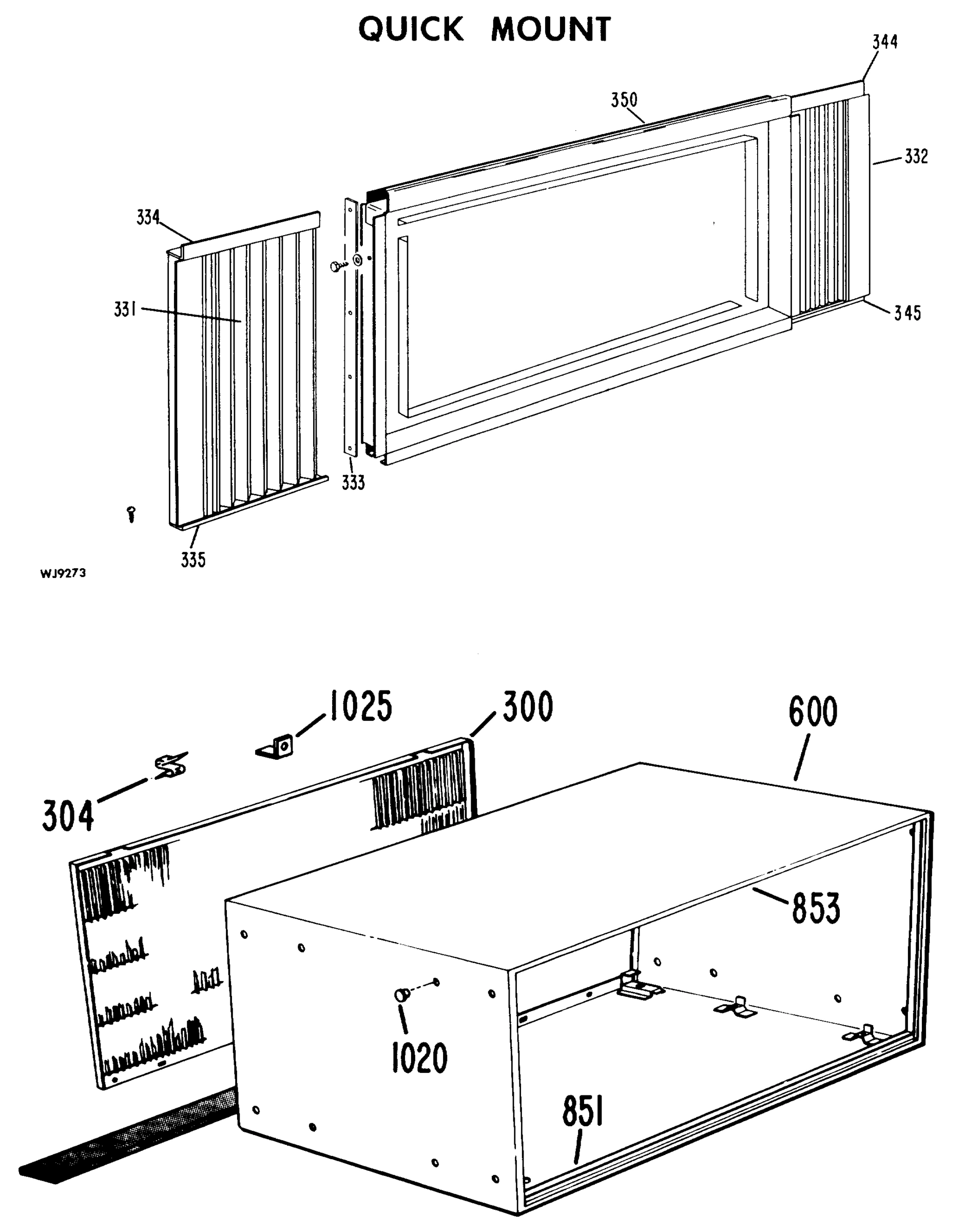

QUICK MOUNT
Common parts from model GE AJ508WCT1 Room Air Conditioner Built In
10
GEN WJ20X0353 GEN WJ20X0353 Contact Us For Availability
20
GEN WP23X0014 GEN WP23X0014 Contact Us For Availability
25
FAN MOTOR GEN WJ94X0514 Contact Us For Availability
35
GEN WJ28X0507 GEN WJ28X0507 Contact Us For Availability
45
SWITCH MAIN 5 POS ROTARY GEN WJ26X0135 Contact Us For Availability
55
GEN WJ85X0096 GEN WJ85X0096 Contact Us For Availability
61
GEN WJ12X0132 GEN WJ12X0132 Contact Us For Availability
65
KNOB SPRING GEN WJ02X0187 Contact Us For Availability
70
GEN WJ35X0102 GEN WJ35X0102 Contact Us For Availability
73
CLAMP POWER CORD GEN WJ03X0169 Contact Us For Availability
74
GEN WJ01X0329 GEN WJ01X0329 Contact Us For Availability
100
GEN WJ98X0508 GEN WJ98X0508 Contact Us For Availability
110
CONDENSER KIT GEN WJ88X0073 Contact Us For Availability
120
GEN WJ87X0195 GEN WJ87X0195 Contact Us For Availability
160
CAPILLARY .042 CUT TO 14 GEN WJ53X0127 Contact Us For Availability
160
CAPILLARY .036 CUT TO 17 GEN WJ53X0137 Contact Us For Availability
165
GEN WJ56X0037 GEN WJ56X0037 Contact Us For Availability
165
GEN WJ56X0051 GEN WJ56X0051 Contact Us For Availability
165
GEN WJ62X0220 GEN WJ62X0220 Contact Us For Availability
180
GEN WJ74X0094 GEN WJ74X0094 Contact Us For Availability
181
BLOWER CLAMP GEN WJ03X0284 Contact Us For Availability
185
GEN WP76X0005 GEN WP76X0005 Contact Us For Availability
186
SCROLL ASSEMBLY INDOOR GEN WJ76X0116 Contact Us For Availability
188
GEN WJ85X0109 GEN WJ85X0109 Contact Us For Availability
190
OUTDOOR FAN WITH SLINGER GEN WJ73X0063 Contact Us For Availability
192
GEN WJ03X0215 GEN WJ03X0215 Contact Us For Availability
193
GEN WJ01X0508 GEN WJ01X0508 Contact Us For Availability
194
GEN WJ01X0507 GEN WJ01X0507 Contact Us For Availability
196
SHROUD OUTDOOR GEN WJ76X0117 Contact Us For Availability
200
GEN WJ71X0773 GEN WJ71X0773 Contact Us For Availability
201
GEN WJ71X0795 GEN WJ71X0795 Contact Us For Availability
207
LOUVER VERTICAL GEN WJ71X0231 Contact Us For Availability
207
LOUVER VERTICAL GEN WJ71X0232 Contact Us For Availability
209
GEN WJ71X0714 GEN WJ71X0714 Contact Us For Availability
210
GEN WJ03X0231 GEN WJ03X0231 Contact Us For Availability
211
CLIP GRILLE TOP GEN WJ02X0320 Contact Us For Availability
212
CLIP GRILLE BOTTOM GEN WJ02X0290 Contact Us For Availability
213
GEN WJ71X0741 GEN WJ71X0741 Contact Us For Availability
218
GEN WJ07X0532 GEN WJ07X0532 Contact Us For Availability
223
GEN WJ71X0875 GEN WJ71X0875 Contact Us For Availability
224
GEN WJ71X0874 GEN WJ71X0874 Contact Us For Availability
230
GEN WJ71X0742 GEN WJ71X0742 Contact Us For Availability
243
RETAINER FILTER GEN WJ66X0263 Contact Us For Availability
256
GASKET SEPARATE AIR GEN WJ43X0372 Contact Us For Availability
304
GEN WJ02X0203 GEN WJ02X0203 Contact Us For Availability
305
GEN WJ41X0100 GEN WJ41X0100 Contact Us For Availability
310
GEN WP07X0026 GEN WP07X0026 Contact Us For Availability
320
DRIP TRAY GEN WJ70X0172 Contact Us For Availability
321
COVER DRIP TRAY GEN WJ70X0173 Contact Us For Availability
360
GEN WJ70X0166 GEN WJ70X0166 Contact Us For Availability
360
GEN WJ70X0283 GEN WJ70X0283 Contact Us For Availability
361
GEN WJ02X0407 GEN WJ02X0407 Contact Us For Availability
363
GEN WJ02X0397 GEN WJ02X0397 Contact Us For Availability
364
SHAFT DAMPER DOOR GEN WJ14X0076 Contact Us For Availability
366
LINK DAMPER DOOR GEN WJ03X0221 Contact Us For Availability
367
GEN WJ03X0211 GEN WJ03X0211 Contact Us For Availability
406
GEN WJ79X0199 GEN WJ79X0199 Contact Us For Availability
407
GEN WP79X0001 GEN WP79X0001 Contact Us For Availability
408
NUT TERMINAL COVER GEN WJ01X0292 Contact Us For Availability
409
WASHER TERMINAL CAP GEN WP01X0005 Contact Us For Availability
410
GEN WJ43X0333 GEN WJ43X0333 Contact Us For Availability
411
GEN WP37X0002 GEN WP37X0002 Contact Us For Availability
420
GEN WJ01X0609 GEN WJ01X0609 Contact Us For Availability
422
GEN WJ01X0608 GEN WJ01X0608 Contact Us For Availability
423
GEN WJ02X0360 GEN WJ02X0360 Contact Us For Availability
436
ACCUMULATOR CLAMP GEN WJ02X0432 Contact Us For Availability
437
GEN WJ66X0230 GEN WJ66X0230 Contact Us For Availability
438
GEN WJ03X0143 GEN WJ03X0143 Contact Us For Availability
565
GEN WJ79X0344 GEN WJ79X0344 Contact Us For Availability
590
TOP COVER ASSEMBLY GEN WJ79X0224 Contact Us For Availability
600
CABINET ASSEMBLY GEN WJ90X0050 Contact Us For Availability
610
PANEL RIGHT SIDE FRONT GEN WJ82X0053 Contact Us For Availability
625
PANEL LEFT SIDE FRONT GEN WJ82X0054 Contact Us For Availability
701
GEN WP36X0003 GEN WP36X0003 Contact Us For Availability
702
GEN WJ43X0240 GEN WJ43X0240 Contact Us For Availability
705
GEN WJ01X0306 GEN WJ01X0306 Contact Us For Availability
707
GEN WZ10X0152 GEN WZ10X0152 Contact Us For Availability
708
GEN WJ01X0445 GEN WJ01X0445 Contact Us For Availability
711
GEN WJ01X0662 GEN WJ01X0662 Contact Us For Availability
713
GEN WJ66X0373 GEN WJ66X0373 Contact Us For Availability
718
GEN WJ02X0416 GEN WJ02X0416 Contact Us For Availability
724
GEN WJ02X0405 GEN WJ02X0405 Contact Us For Availability
732
WIRE STRAP GEN WJ03X0302 Contact Us For Availability
740
GEN WJ02X0425 GEN WJ02X0425 Contact Us For Availability
800
BRACE GEN WJ65X0261 Contact Us For Availability
801
BRACE GEN WJ65X0262 Contact Us For Availability
802
BRACE GEN WJ65X0294 Contact Us For Availability
804
DEFLECTOR GEN WJ65X0265 Contact Us For Availability
805
DEFLECTOR LOUVERED GEN WJ65X0268 Contact Us For Availability
806
DEFLECTOR GEN WJ65X0266 Contact Us For Availability
807
BRACKET EVAPORATOR GEN WJ65X0267 Contact Us For Availability
810
GEN WJ79X0355 GEN WJ79X0355 Contact Us For Availability
851
GEN WJ43X0369 GEN WJ43X0369 Contact Us For Availability
852
GEN WJ43X0371 GEN WJ43X0371 Contact Us For Availability
853
GEN WJ43X0370 GEN WJ43X0370 Contact Us For Availability
859
GEN WJ43X0359 GEN WJ43X0359 Contact Us For Availability
860
GEN WJ43X0358 GEN WJ43X0358 Contact Us For Availability
900
GEN WJ43X0296 GEN WJ43X0296 Contact Us For Availability
900
GEN WP60X0001 GEN WP60X0001 Contact Us For Availability
905
WATER SHIELD GEN WJ71X0139 Contact Us For Availability
909
GEN WJ02X0281 GEN WJ02X0281 Contact Us For Availability
931
GEN WZ08X0006 GEN WZ08X0006 Contact Us For Availability
950
GEN WJ01X0638 GEN WJ01X0638 Contact Us For Availability
952
GEN WZ06X0083 GEN WZ06X0083 Contact Us For Availability
953
GEN WZ02X0529 GEN WZ02X0529 Contact Us For Availability
955
GEN WZ04X0268 GEN WZ04X0268 Contact Us For Availability
956
GEN WZ06X0108 GEN WZ06X0108 Contact Us For Availability
957
GEN WZ06X0050 GEN WZ06X0050 Contact Us For Availability
959
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
963
GEN WZ04X0248 GEN WZ04X0248 Contact Us For Availability
967
SCREW 10-16 X 1/2" HEX GEN WZ04X0275 Contact Us For Availability
974
GEN WZ04X0286 GEN WZ04X0286 Contact Us For Availability
983
GEN WZ05X0153 GEN WZ05X0153 Contact Us For Availability
994
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
1020
GEN WJ01X0449 GEN WJ01X0449 Contact Us For Availability
5000
GEN WJ02X0216 GEN WJ02X0216 Contact Us For Availability
5000
GEN WJ02X0269 GEN WJ02X0269 Contact Us For Availability
5000
GEN WJ44X0083 GEN WJ44X0083 Contact Us For Availability
5000
GEN WJ84X0029 GEN WJ84X0029 Contact Us For Availability
5000
GEN WJ84X0031 GEN WJ84X0031 Contact Us For Availability
9999
GEN 30-7507 GEN 30-7507 Contact Us For Availability
9999
GEN 30-7652 GEN 30-7652 Contact Us For Availability
9999
GEN 30-7660 GEN 30-7660 Contact Us For Availability
9999
GEN 31-6318 GEN 31-6318 Contact Us For Availability
9999
GEN 49-7032 GEN 49-7032 Contact Us For Availability
× ![]()
